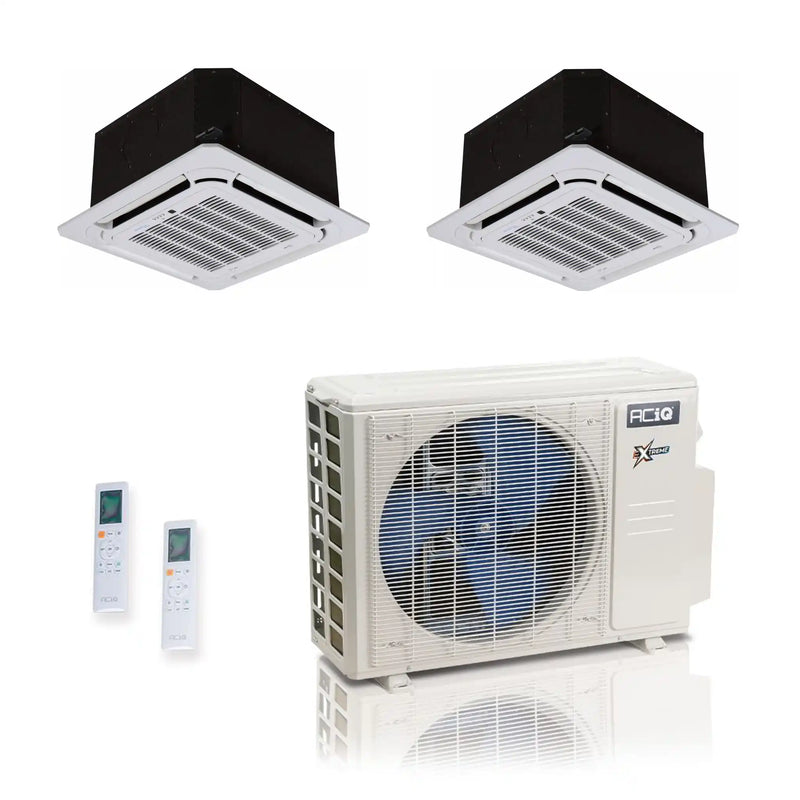

ACiQ 36K BTU 23 SEER2 Extreme Mini Split Ceiling Cassette 2-Zone 230V 12+12

Name: ACiQ 36K BTU 23 SEER2 Extreme Mini Split Ceiling Cassette 2-Zone 230V 12+12
Brand: ACiQ
SKU: ACiQ-36Z-HH-M5C ACIQ-12CC-HH-MC-2
Price: 6576.63 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACiQ-36Z-HH-M5C ACIQ-12CC-HH-MC-2 | ID: 89037

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$6,576.63 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

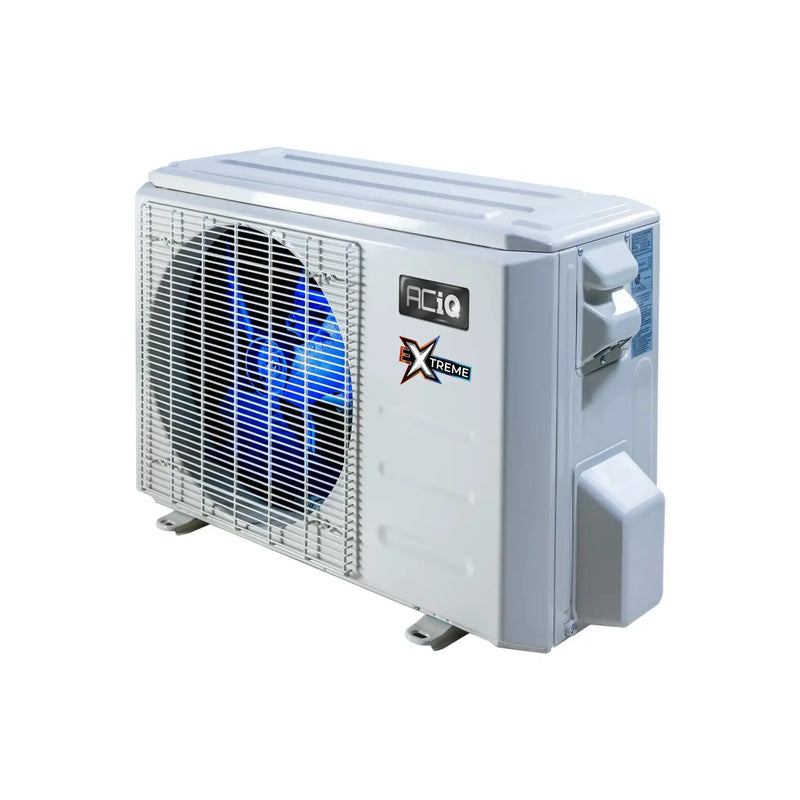

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

36,000 BTU, 23 SEER2 multi zone heat pump condenser
Supports up to 5 attached air handlers
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Integrated Extreme Heat technology with base pan heater
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

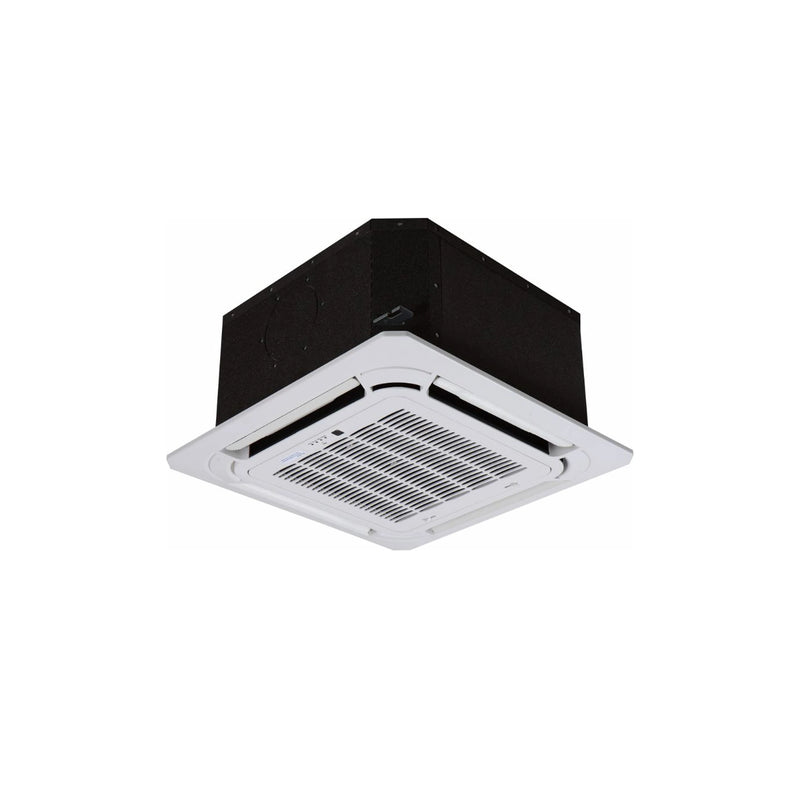

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x2

Upgrade your home comfort with the ACiQ-12CC-HH-MC ceiling cassette air handler. Say goodbye to bulky wall units and hello to a sleek, centralized air distribution system. The ceiling cassette offers high-efficiency heating and cooling with a discreet appearance, complete with a handheld remote control for easy operation.

Key Features

12,000 BTU of Heating or Cooling power
Dry and Fan modes for versatile comfort
Perfect for small rooms in most climates
4 Way Air Supply for consistent room coverage
Handheld remote and Decorative Grille included

Elevate your home with the understated elegance of a flush-mounted Ceiling Cassette air handler from ACiQ. Enjoy quiet comfort and efficient performance all year round.

View More 2 Zone Mini Splits

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Brand	ACiQ	SKU	ACIQ-36Z-HH-M5C
Replaces	ACIQ-36Z-HH-M4B	Product Features	Low Ambient Heating
HSPF2	10.7	Cooling BTU	36,000 BTU
Heating BTU	36,000 BTU	Maximum CFM	3037
Decibel Level (dBA)	65	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R454B
SEER2	23	Compressor Type	Twin Rotary
Liquid Line	1/4" (5)	Suction Line	3/8" (3); 1/2" (2)
Electrical	208/230V 1 Phase 60 Hz	Max Breaker Size	40 Amps
Min. Breaker Size	37 Amps	Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-22 ~ 122
Height	38.39"	Width	38.58"
Depth	16.34"

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x2

Brand	ACiQ	SKU	ACIQ-12CC-HH-MC
Controller	Wireless Included	Product Features	Low Ambient Heating
Cooling BTU	12,000 BTU	Heating BTU	12,000 BTU
Maximum CFM	335.29	Decibel Level (dBA)	As low as 31.5
Electric Heat	Heat Pump	Refrigerant	R454B
Capacity	Dehumidification Rate: 0.45 gal/hr	SEER2	22.3
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton	Mini Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone	Length	22.44"
Height	10.24"	Depth	22.44"

Warranty

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x2

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x2

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
