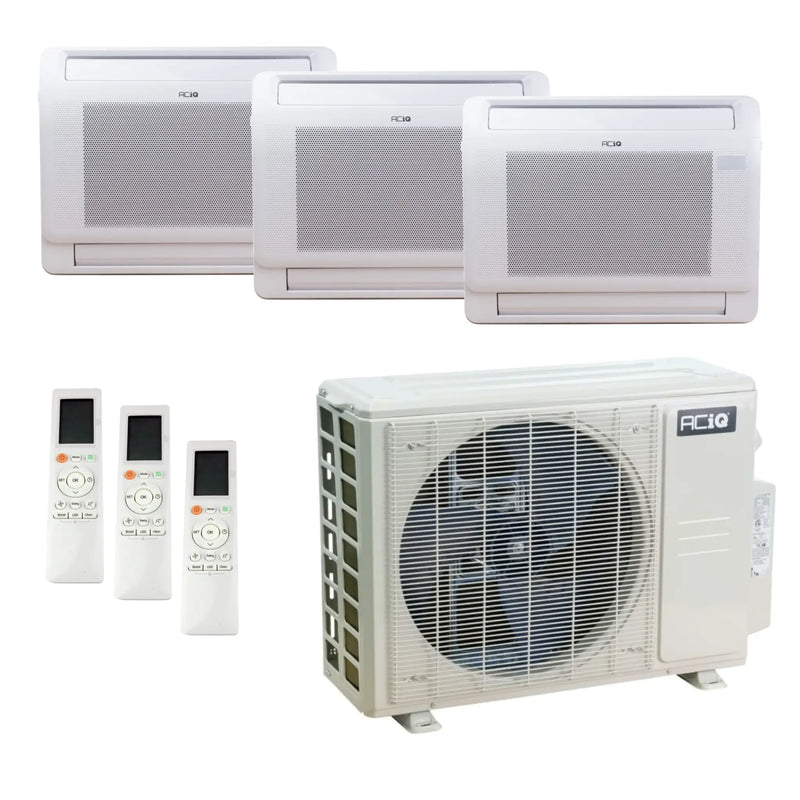

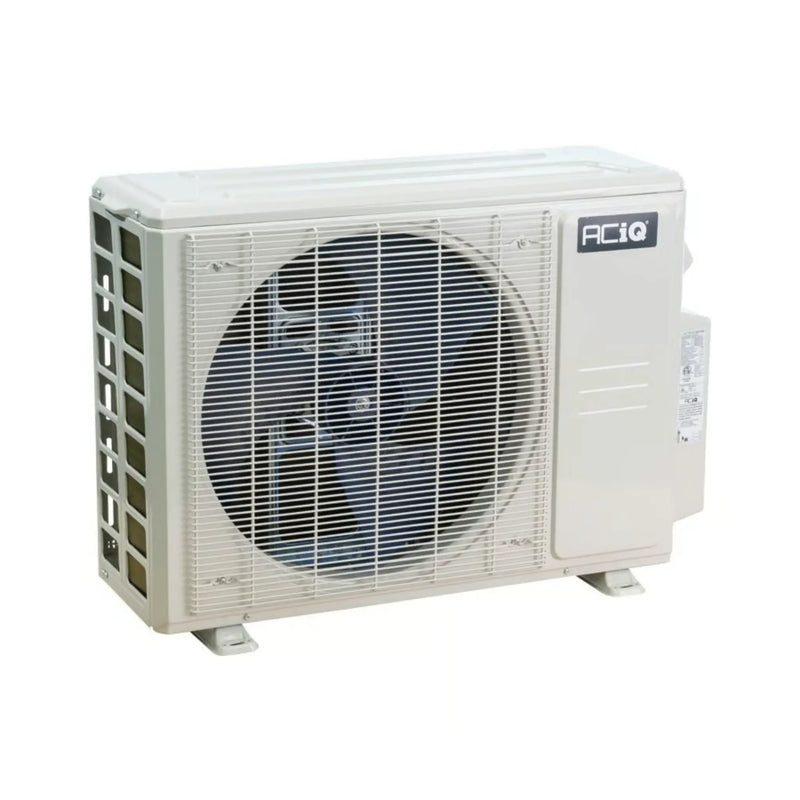

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C
ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.
Key Features
- 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
- Designed to function with up to 5 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

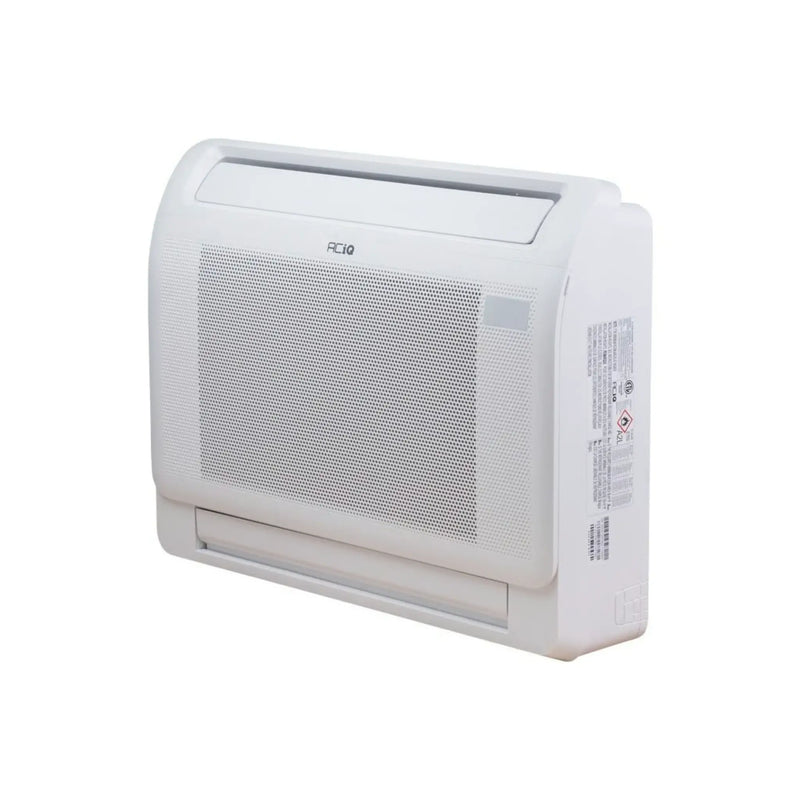

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD
The ACiQ Floor or Ceiling Mounted Mini Split Air Handler is a flexible indoor unit designed for installations where high-wall placement is not feasible. Delivering 12,000 BTU of powerful heating and cooling, it can be mounted low on the wall or suspended from the ceiling. Its low-profile design and quiet operation make it ideal for sunrooms, attics, and spaces with limited wall space. Adaptive airflow direction optimizes performance in both heating and cooling modes.
Key Features
- 12,000 BTU floor or ceiling mounted mini split air handler
- Optimized for heating at floor level and cooling with reversed airflow
- Energy-efficient with R454B refrigerant and inverter compatibility
- Ultra-quiet operation as low as 25 dBA
- Multi-zone compatible design
- Includes wireless remote controller
- Ideal for rooms with low walls, sunrooms, or attic remodels
This unit is designed for versatile installations and offers both floor and ceiling mount capability for unique room configurations or limited-space environments.
ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD x2
The ACiQ 18,000 BTU Floor or Ceiling Mounted Air Handler offers flexible installation in challenging spaces where high-wall mounting isn't possible. Its compact form and powerful airflow design make it ideal for sunrooms, attic remodels, or rooms with knee walls or below-window space. This unit can be wall-mounted close to the floor or suspended from the ceiling using an adjustable rod system, and it includes a wireless remote for intuitive control. Its whisper-quiet performance and low-profile design deliver both functionality and comfort for any interior space.
Key Features
- 18,000 BTU (cooling: 17,000 / heating: 19,000 BTU)
- Versatile installation – floor- or ceiling-mounted configuration
- Ideal for sunrooms, attics, or rooms with angled ceilings
- Maximum CFM: 576.8 with quiet operation as low as 29 dBA
- Pre-wired for condensate pump with overflow shutoff
- Wireless remote included
- R454B refrigerant – eco-friendly and efficient
- Energy Star certified
This unit is designed for creative installation solutions where traditional wall-mounted systems won’t work. Whether elevated above a windowsill or suspended from a ceiling, it provides quiet, efficient comfort.
