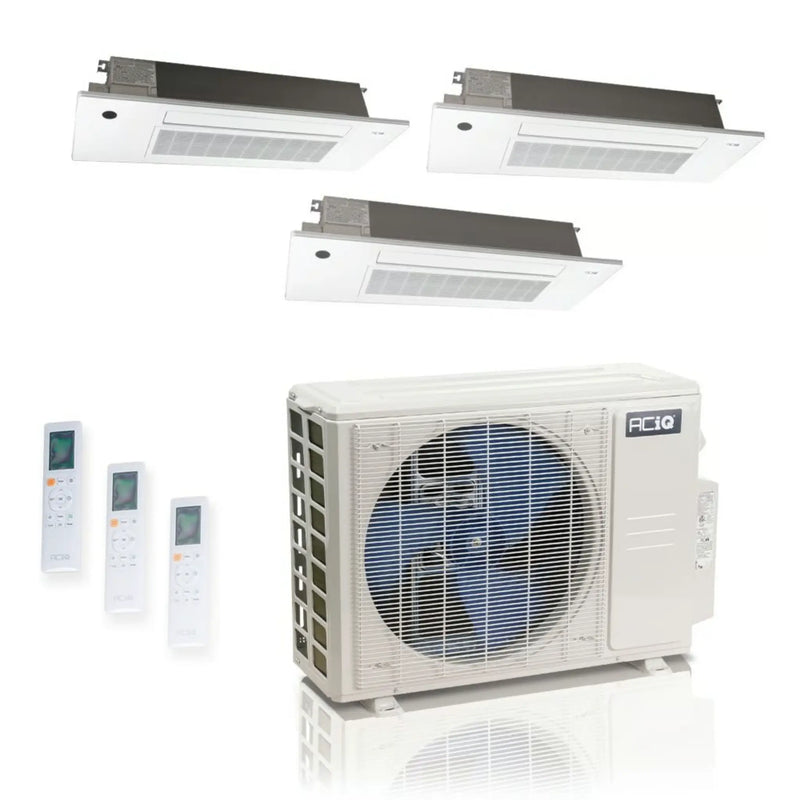

ACiQ 36K BTU 24 SEER2 3-Zone Slim Ceiling Cassette Mini Split R454B 6+9+12

Name: ACiQ 36K BTU 24 SEER2 3-Zone Slim Ceiling Cassette Mini Split R454B 6+9+12
Brand: ACiQ
SKU: ES-36Z-M5C
Price: 5649.99 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By ACiQ | Model: ES-36Z-M5C / SCC-06-HH-MB / SCC-09-HH-MB / SCC-12-HH-MB | ID: 91008

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$5,649.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

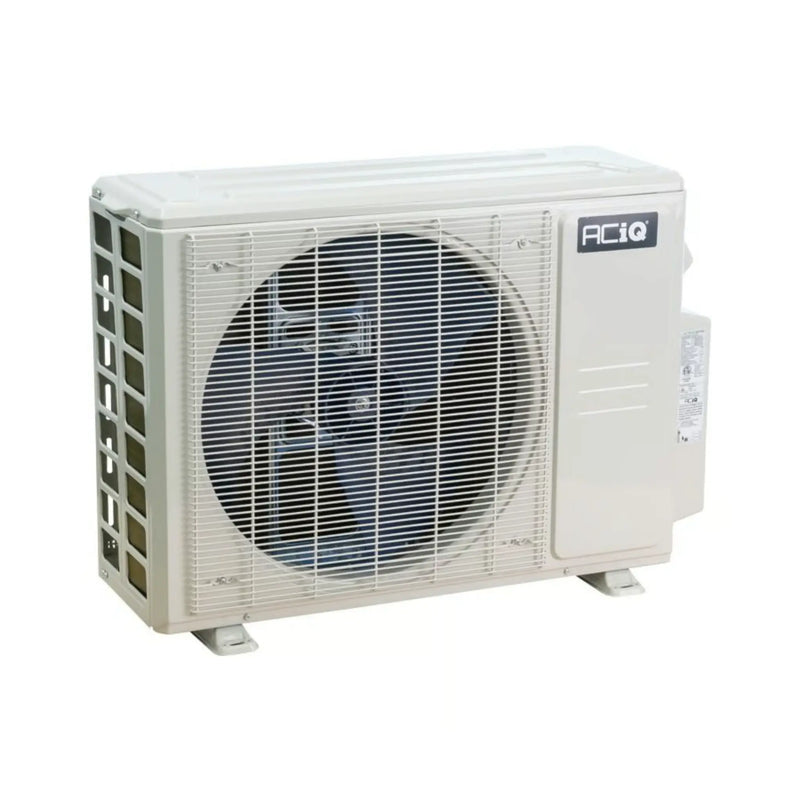

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 5 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

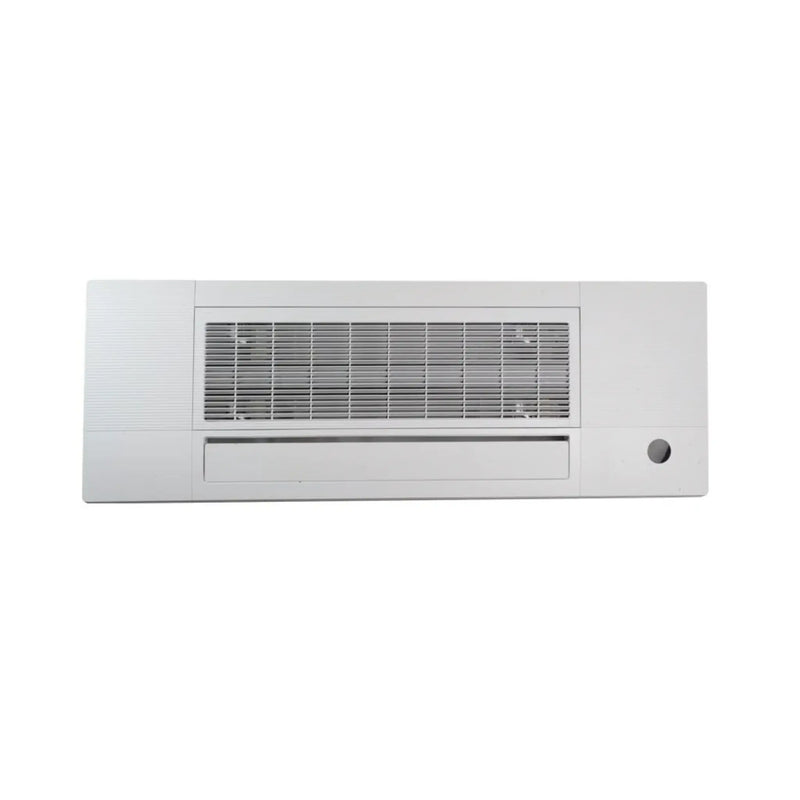

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

The ACiQ Slim Ceiling Cassette is designed to provide efficient heating and cooling in a compact, low-profile form that fits between 16-inch on-center ceiling joists. With one-way airflow, a clean ceiling-mounted design, and compatibility with ACiQ multi-zone systems, this cassette offers the performance of a traditional mini split indoor unit while remaining discreet and space-saving. It supports 6,000, 9,000, and 12,000 BTU applications and includes a dip switch for adjusting capacity. Using environmentally friendly R-454B refrigerant, the Slim Cassette delivers reliable comfort with a minimal appearance and easy ceiling integration.

Key Features

Fits between 16-inch on-center joists for easier installation
Rated for 6K, 9K, and 12K BTU; dip switch adjustable
One-way airflow design with discreet ceiling-mounted appearance
No-ladder filter access with lowering grille system
Handheld remote control included
Decorative grille included for a clean, modern look
Uses environmentally friendly R-454B refrigerant
Compatible with ACiQ multi-zone condensers

View More 3 Zone Mini Splits

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Brand	ACiQ	SKU	ES-36Z-M5C
Replaces	ES-36Z-M4B	HSPF2	9.5
Cooling BTU	36000 BTU	Heating BTU	37000 BTU
Maximum CFM	2148	Decibel Level (dBA)	64.5
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	SEER2	24
Compressor Type	Rotary	Liquid Line	1/4" (5)
Suction Line	3/8" (4); 1/2" (1)	Electrical	208/230V 1 Phase 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	35 A
Min. Breaker Size	30.5 A	Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-13 ~ 122
Height	31.89"	Width	37.24"
Depth	16.14"	Warranty	12 year compressor, 7 year parts with online registration

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

Brand	ACiQ	SKU	SCC-0612-HH-MB
BTU	6,000 / 9,000 / 12,000	Weight (in lbs)	82.45
Manufacturer	ACiQ	Controller	Wireless Included
Heating BTU	6,000 / 9,000 / 12,000	Maximum CFM	Up to 353.20 CFM
Decibel Level (dBA)	As low as 24.0 Decibels	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V, 1 Phase, 60Hz	Phase	Single Phase
Mini Split Type	Slim Ceiling Cassette	Zone Compatibility	Multi Zone, Single Zone
Height	8.98"	Width	50.31"
Depth	13.19"	Warranty	12 year compressor, 7 year parts with online registration

Warranty

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years
Registered Warranty	7 years	12 years

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

Documents

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Brochure

Installation and Owner's Manual

Service Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x3

6K-AHRI Certificate

9K-AHRI Certificate

12K-AHRI Certificate

Warranty Information
