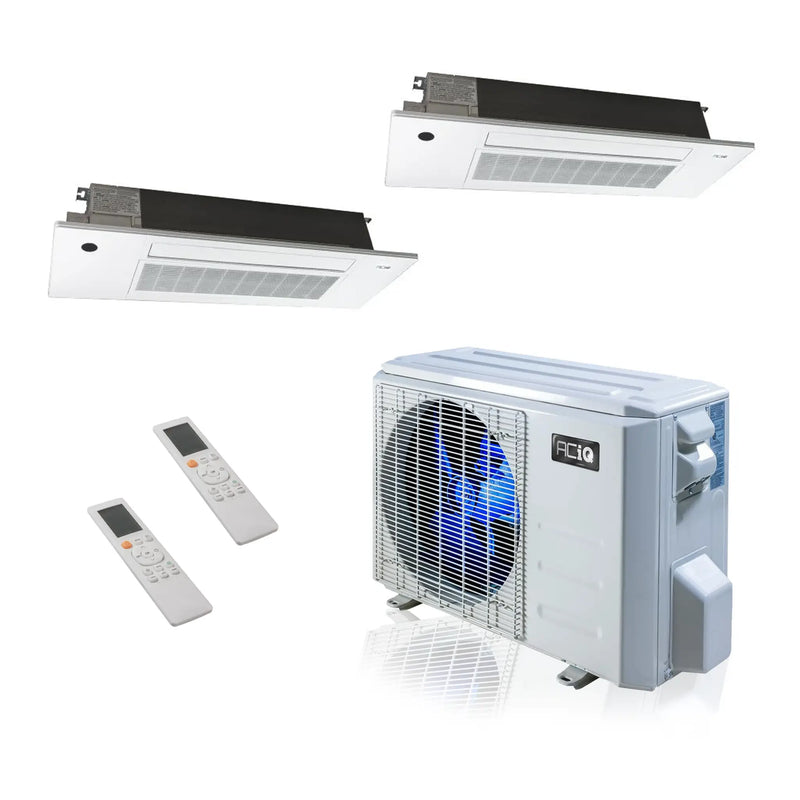

ACiQ 36K BTU 24 SEER2 Slim Ceiling Cassette Mini Split System 2-Zone 18+18

Name: ACiQ 36K BTU 24 SEER2 Slim Ceiling Cassette Mini Split System 2-Zone 18+18
Brand: ACiQ
SKU: ES-36Z-M5C SCC-18-HH-MB-2
Price: 5889.98 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-36Z-M5C SCC-18-HH-MB-2 | ID: 89050

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$5,889.98 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

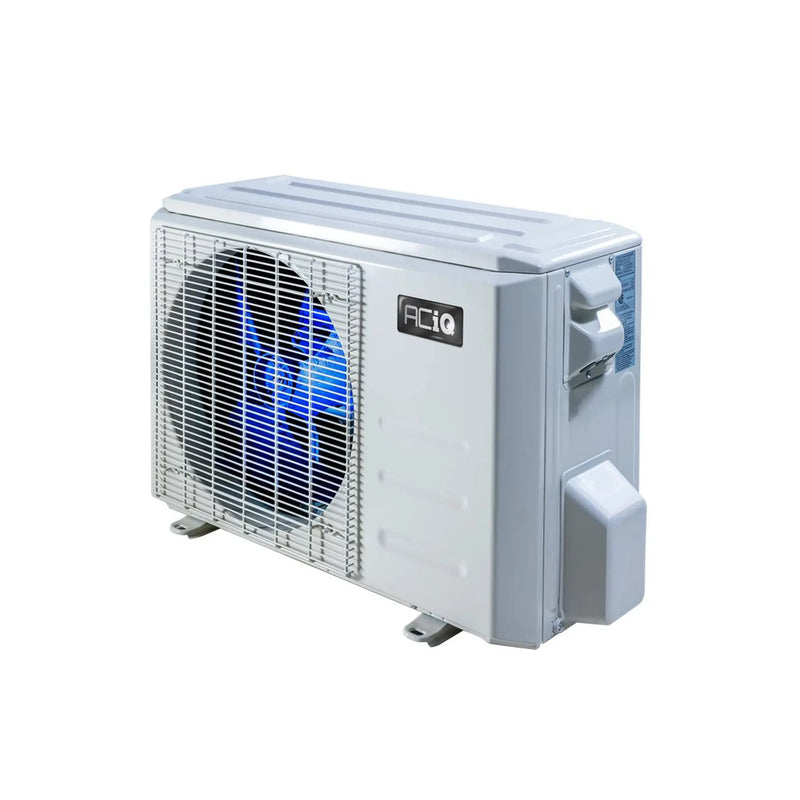

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 5 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

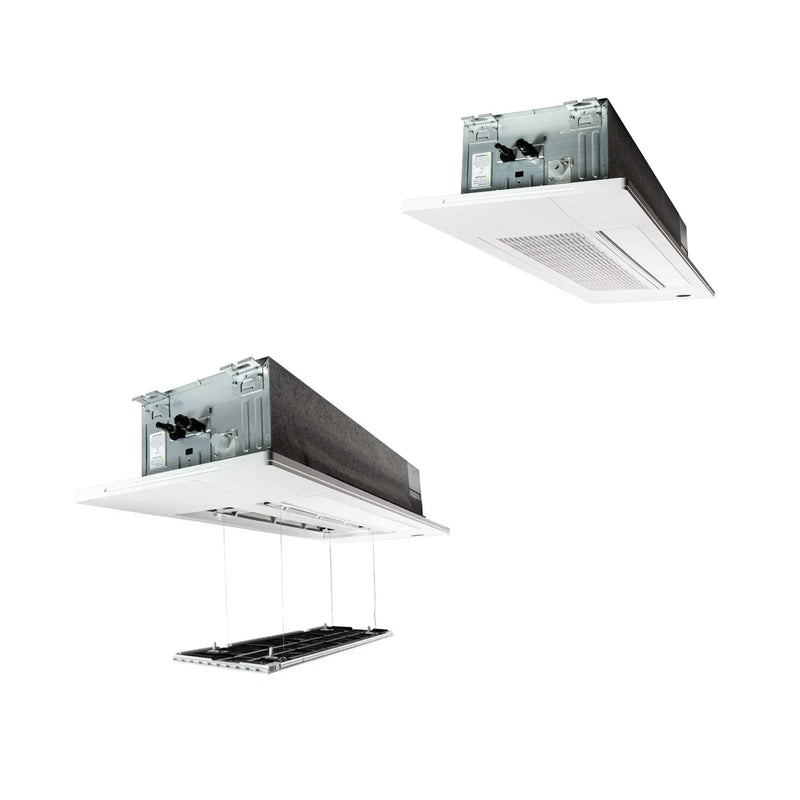

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

The ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2 offers the advantages of a traditional cassette in a slimmer profile that fits between 16”-on-center joists, making installation easier in many cases. This air handler provides high-efficiency heating and cooling with a one-way air delivery system for a sleek and understated appearance.

Key Features

Narrow profile fits between 16 inch-on-center joists
Switchable size – select between 12,000 BTU and 18,000 BTU
No-ladder filter cleaning – grille lowers on cables for easy access to filter
Handheld remote included
Decorative Grille included

Installation of the Slim Ceiling Cassette requires flush-mounting and may involve constructing a PVC drain system for condensation. The unit comes with a factory-installed condensate pump and has the same refrigerant and wiring connections as wall-mounted units.

View More 2 Zone Mini Splits

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Brand	ACiQ	SKU	ES-36Z-M5C
Replaces	ES-36Z-M4B	HSPF2	9.5
Cooling BTU	36000 BTU	Heating BTU	37000 BTU
Maximum CFM	2148	Decibel Level (dBA)	64.5
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	SEER2	24
Compressor Type	Rotary	Liquid Line	1/4" (5)
Suction Line	3/8" (4); 1/2" (1)	Electrical	208/230V 1 Phase 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	35 A
Min. Breaker Size	30.5 A	Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-13 ~ 122
Height	31.89"	Width	37.24"
Depth	16.14"

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

Brand	ACiQ	SKU	SCC-18-HH-MB
Cooling BTU	16700 BTU	Heating BTU	20000 BTU
Maximum CFM	400	Decibel Level (dBA)	35
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Ceiling Cassette	Zone Compatibility	Multi Zone
Height	8.98"	Width	50.31"
Depth	13.19"

Warranty

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Brochure

Installation and Owner's Manual

Service Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

Installation & Owner's Manual

Warranty Information
