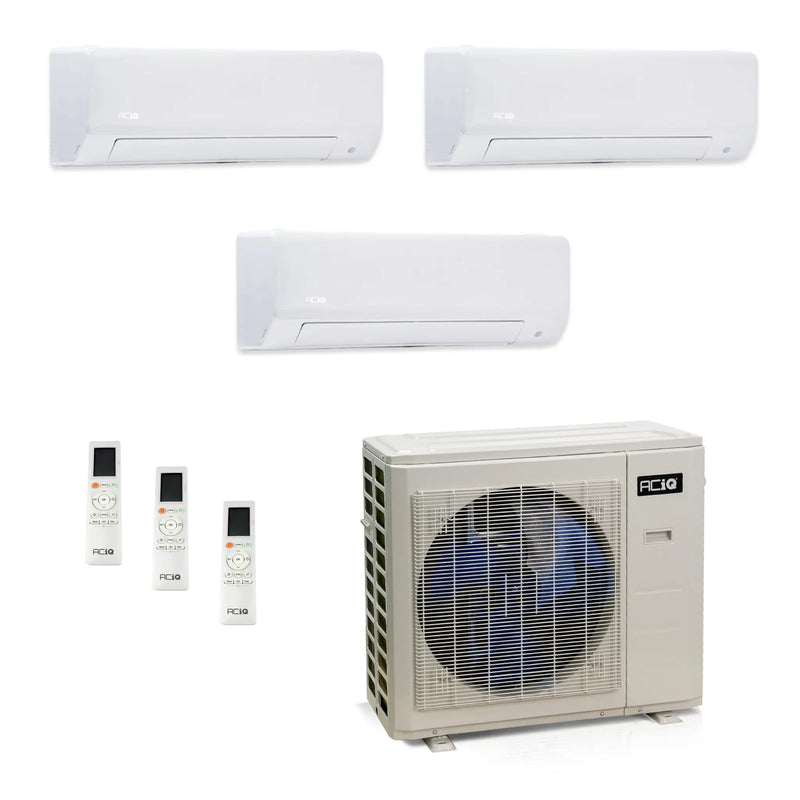

ACiQ 36K BTU 24 SEER2 Wall Mount Mini Split System 3-Zone R454B 230V 6+9+24

Name: ACiQ 36K BTU 24 SEER2 Wall Mount Mini Split System 3-Zone R454B 230V 6+9+24
Brand: ACiQ
SKU: ES-36Z-M5C ACIQ-06W-HH-MD ACIQ-09W-HH-MD ACIQ-24W-HH-MD
Price: 5090.99 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-36Z-M5C ACIQ-06W-HH-MD ACIQ-09W-HH-MD ACIQ-24W-HH-MD | ID: 88962

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$5,090.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

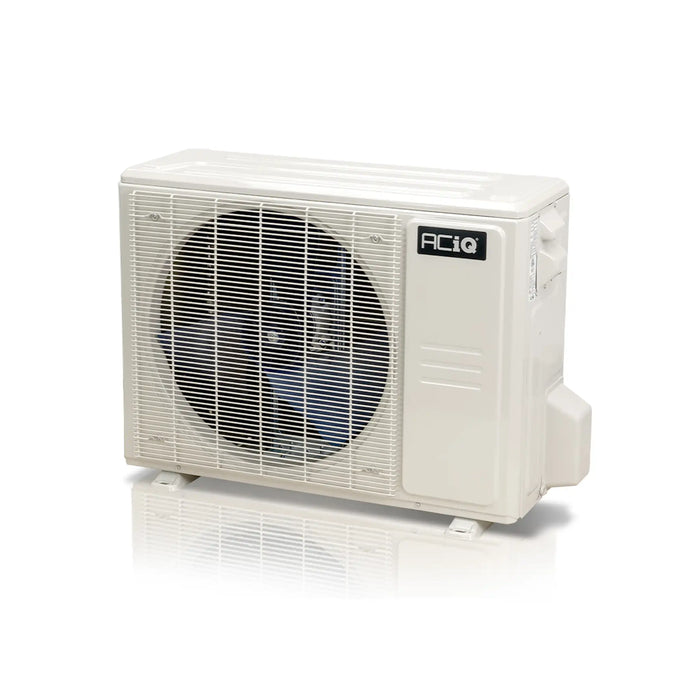

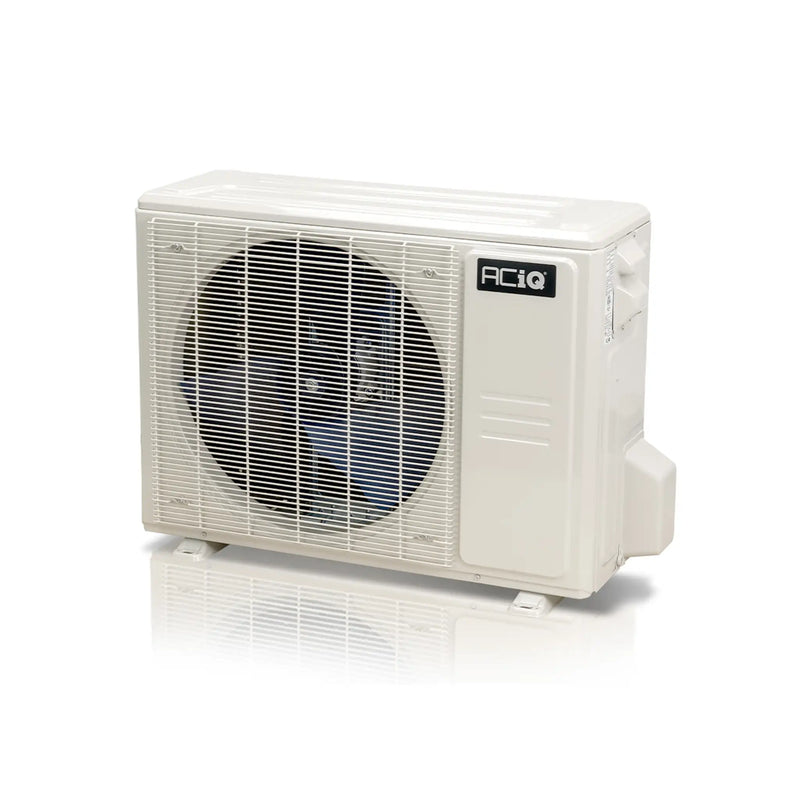

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 5 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD

The 6,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser for a highly efficient Hyper Heat system. The adaptive technology ensures your ideal temperature is maintained regardless of the outdoor weather conditions.

Key Features

6,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-06W-HH-MD air handler features a soft LED display for easy monitoring, along with intelligent heating and cooling capabilities. It is WiFi ready, allowing you to control your home's temperature from anywhere using a smart device. Please note that installation with a condenser and other equipment is required for proper functionality.

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser to create an efficient Hyper Heat system. Equipped with adaptive technology, it monitors and maintains your ideal temperature regardless of external weather conditions.

Key Features

9,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board with error code display, and a smart remote with LCD display. It is WiFi ready and compatible with Amazon Alexa and Google Assistant for convenient control.

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

The 24,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance and can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser for a highly efficient Hyper Heat system. This air handler is ideal for small to medium sized rooms, utilizing adaptive technology to monitor and maintain your desired temperature regardless of external weather conditions.

Key Features

24,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACIQ-24W-HH-MD air handler features a soft LED display for easy monitoring and self-diagnosing control board for error notifications. This unit is WiFi ready, allowing control via smart devices and voice assistants like Amazon Alexa and Google Assistant. Please note that installation with a condenser and other equipment is required for proper functionality.

View More 3 Zone Mini Splits

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Brand	ACiQ	SKU	ES-36Z-M5C
Replaces	ES-36Z-M4B	HSPF2	9.5
Cooling BTU	36000 BTU	Heating BTU	37000 BTU
Maximum CFM	2148	Decibel Level (dBA)	64.5
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	SEER2	24
Compressor Type	Rotary	Liquid Line	1/4" (5)
Suction Line	3/8" (4); 1/2" (1)	Electrical	208/230V 1 Phase 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	35 A
Min. Breaker Size	30.5 A	Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-13 ~ 122
Height	31.89"	Width	37.24"
Depth	16.14"

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD

Brand	ACiQ	SKU	ACIQ-06W-HH-MD
Cooling BTU	6000 BTU	Heating BTU	7000 BTU
Maximum CFM	364.71	Decibel Level (dBA)	As low as 23
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	6,000 BTU/0.5 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Height	11.76"
Width	33.40"	Depth	9.18"

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Brand	ACiQ	SKU	ACIQ-09W-HH-MD
Cooling BTU	9000 BTU	Heating BTU	10000 BTU
Maximum CFM	335.29	Decibel Level (dBA)	38
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	23-24	SEER2	22.3
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Length	33.40"	Height	11.76"
Depth	9.18"	Replaces	N/A

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

Brand	ACiQ	SKU	ACIQ-24W-HH-MD
Weight	39.680000	Product Features	Low Ambient Heating, WiFi
Cooling BTU	24000 BTU	Heating BTU	24000 BTU
Maximum CFM	611.18	Decibel Level (dBA)	44
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	18-20	Liquid Line	3/8"
Suction Line	5/8"	Electrical	208/230V 1 Phase 60 Hz
BTU/Tonnage	24,000 BTU/2 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Length	46.85"
Height	14.59"	Depth	11.20"

Warranty

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

Remote Control Manual

Submittal

Installation & Owner's Manual

Wi-Fi Manual

Warranty Information
