ACiQ R5A5S48AKAWA EVM5X48M21A R92MSN1002120A

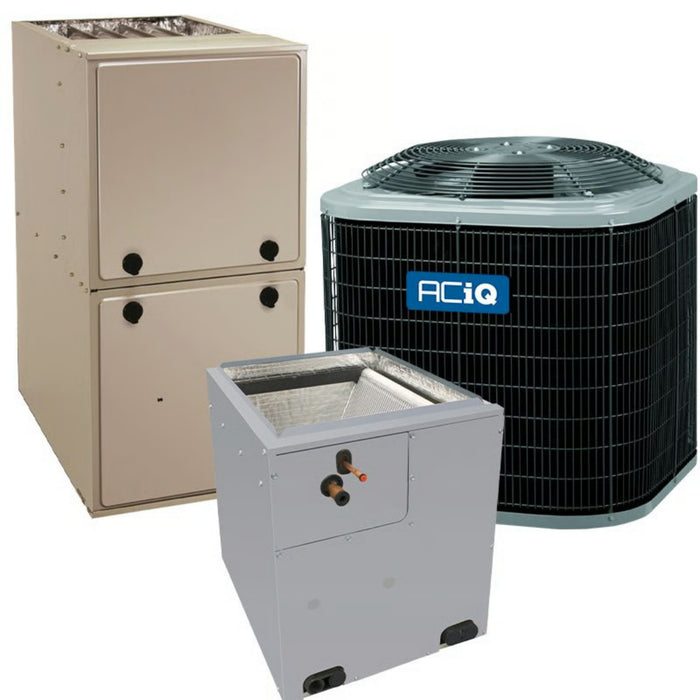

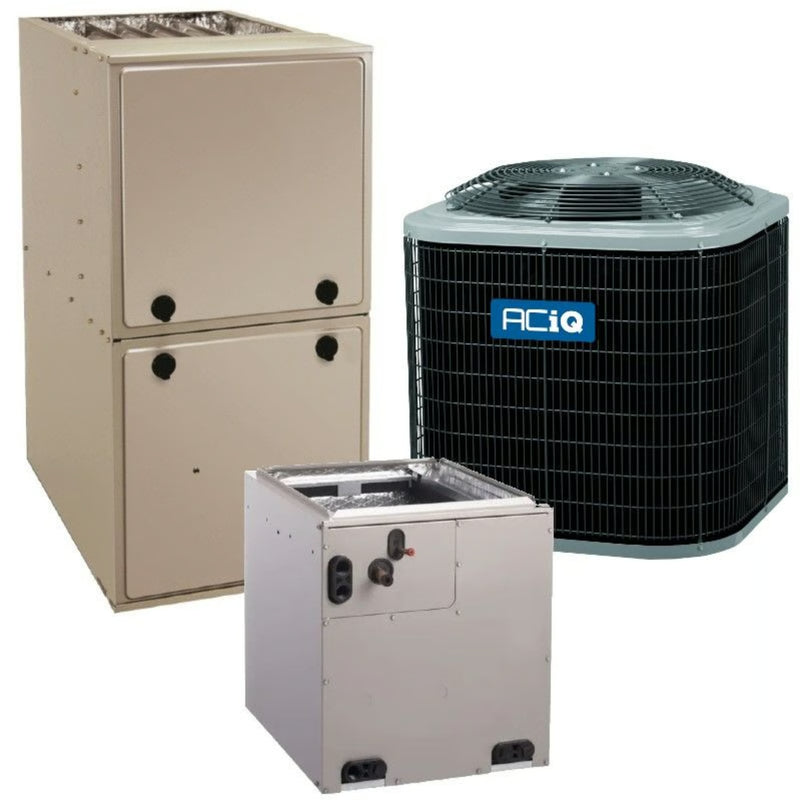

ACiQ 4 Ton 14.5 SEER2 Furnace AC System Multi-Positional 92% 100K BTU R454B

By ACiQ | SKU: R5A5S48AKAWA EVM5X48M21A R92MSN1002120A | ID: 111256
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$5,963.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

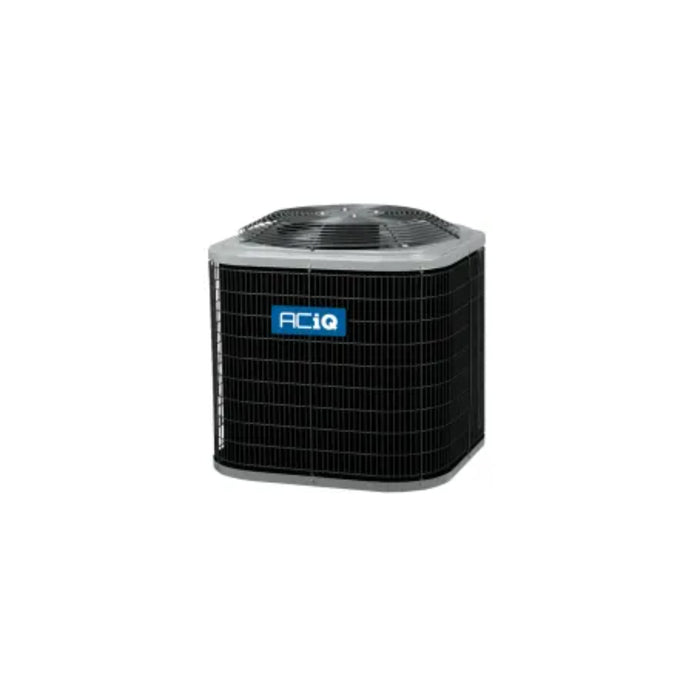

ACiQ 4 Ton Air Conditioner Condenser 13.8 SEER2 R454B R5A5S48AKAWA

The ACiQ R5A5S48AKAWA is a high-efficiency, standard AC-only condenser designed to provide reliable cooling comfort for medium to large homes. Offering an affordable yet energy-efficient solution, this 4-ton condenser is an excellent choice for a variety of residential applications. Its 13.8 SEER2 rating delivers improved energy savings compared to standard units, while the factory pre-charged refrigerant ensures easy installation and optimal performance right out of the box.

Product Features and Benefits:

  • 4 Ton Cooling Capacity
    Efficiently cools medium to large homes in average climate conditions, providing consistent indoor comfort.
  • 13.8 SEER2 Energy Efficiency
    Higher than standard efficiency rating saves energy and reduces electric bills by up to 7% compared to 13.4 SEER2 models.
  • Single Stage Compressor
    Reliable and durable compressor technology ensures steady cooling performance and low maintenance requirements.
  • Pre-Charged with R454B Refrigerant
    Factory-charged with environmentally friendly R454B refrigerant for faster, hassle-free installation and optimal system operation.
  • Includes Filter Drier for Field Installation
    Protects the system by removing moisture and contaminants, extending the lifespan of the condenser.
  • Durable and Reinforced Cabinet Design
    Features reinforced corner posts and an inlet grille to safeguard internal components from damage and debris.
  • 10-Year Parts Limited Warranty
    Backed by a comprehensive warranty when installed according to local codes and paired with a certified coil, ensuring peace of mind.
  • Pre-Charged for 15-Foot Line Set
    Simplifies installation and reduces labor costs by eliminating the need for manual refrigerant charging. Additional refrigerant may be required for longer line sets.
  • Safety Compliance with R454B Refrigerant
    Must be paired with an R454B-compatible air handler or evaporator coil equipped with a leakage detection system to comply with safety standards and maintain warranty coverage.

Important Notes

This condenser is designed solely for cooling and does not provide heating capabilities. It requires a compatible indoor coil or air handler to operate properly.

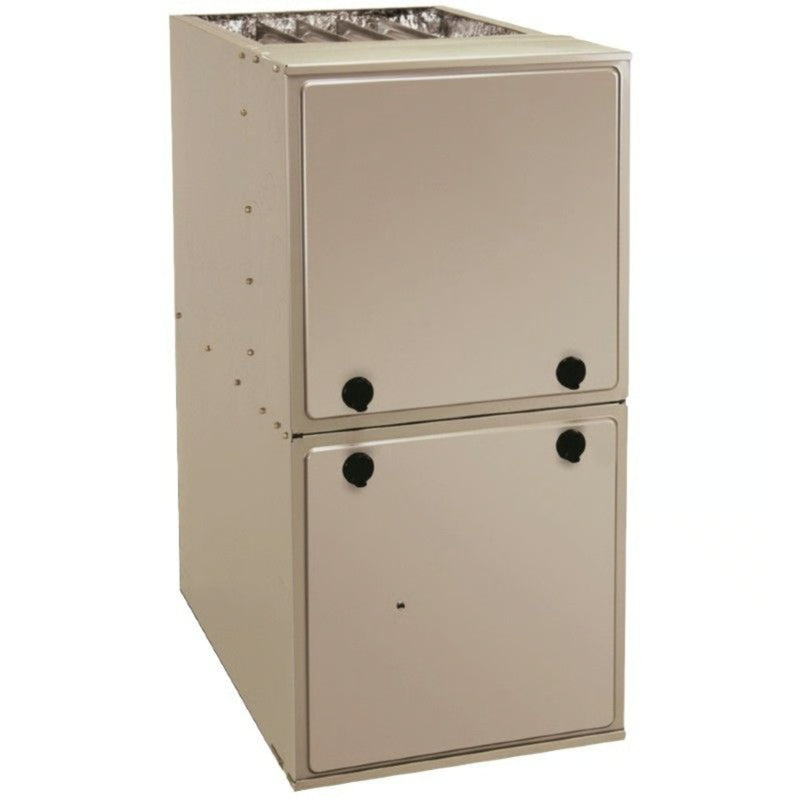

ACiQ 92% Gas Furnace R92MSN1002120A 100000 BTU Single Stage Multi-Positional 115V 1 Phase 60Hz 21"W

The R92MSN furnace series represents ACiQ's standard 92% efficiency furnace. These units are Low NOx compliant and are suitable for installation in mobile or manufactured homes with the appropriate conversion kit. It's important to note that these furnaces require a plastic or PVC exhaust flue for installation.

  • 92% Gas Furnace
  • 18-speed ECM blower motor
  • Single stage gas valve
  • Multi-positional – Can be installed in upflow, downflow, or horizontal orientations
  • Field-convertible to propane with an optional propane conversion kit
  • On board self-diagnostics
  • Low NOx compliant with NOx emissions of less than 40 ng/J
  • Approved for mobile/manufactured housing installation with the appropriate conversion kit

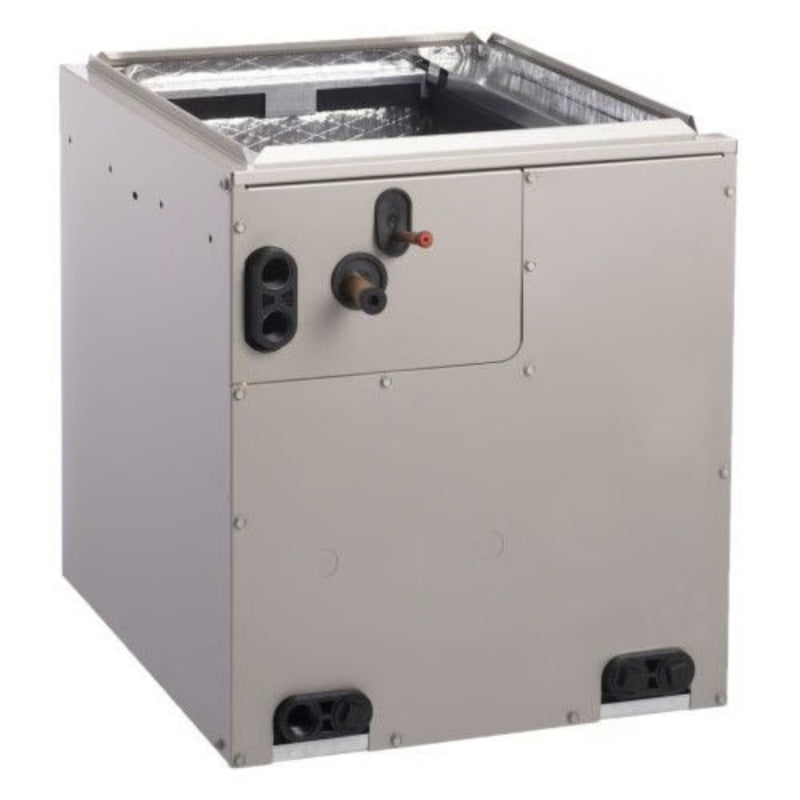

ACiQ 4 Ton Evaporator Coil Cased 21" Width Multi-Positional With TXV R454B EVM5X48M21A

The ACiQ multipoise evaporator coil with Power-V Technology is engineered for superior energy efficiency, durability, and flexible installation. Featuring a patent-pending V-coil design, this cased coil provides excellent heat transfer performance and is constructed from corrosion-resistant all-aluminum materials. Ideal for a wide range of HVAC applications, this evaporator coil is a smart choice for consistent indoor comfort and reduced energy consumption.

Product Features

  • Power-V Technology: Innovative V-shape coil design maximizes heat transfer efficiency
  • Cased Multi-Orientation Design: Supports upflow, downflow, and horizontal installation configurations for flexible system integration
  • Thermostatic Expansion Valve (TXV): Factory-installed TXV metering device optimizes refrigerant control for enhanced system efficiency
  • All-Aluminum Coil: Lightweight and corrosion-resistant design ensures long-lasting performance and improved system efficiency
  • Environmentally Friendly: Fully recyclable aluminum construction aligns with sustainable design principles
  • Durable Drain Pan: Corrosion-resistant Polybutylene Terephthalate (PBT) drain pan offers exceptional strength and helps prevent mold and bacteria buildup
  • Fully Insulated Cabinet: Reduces energy loss and protects internal components for extended equipment life
  • 10-Year Parts Limited Warranty: Warranty coverage available upon product registration

Installation & Serviceability

ACiQ’s Power-V evaporator coil is built with the installer and service technician in mind. Its multipoise capability ensures compatibility with a wide variety of HVAC systems, while enhanced serviceability features allow for quicker, easier maintenance. This coil is an excellent solution for homeowners and professionals seeking reliable performance, energy savings, and installation flexibility.

View More Air Conditioner & Furnace Systems

Specifications

ACiQ 4 Ton Air Conditioner Condenser 13.8 SEER2 R454B R5A5S48AKAWA

Brand ACiQ SKU R5A5S48AKAWA
Refrigerant Charge 15' Weight 198
Manufacturer ACiQ Replaces R4A5S
Product Features New Refrigerant Compliant
Cooling BTU 48000 Maximum CFM 3100
Decibel Level (dBA) 75 Motor RPM 1100
Horsepower 1/5 HP Refrigerant R454B
SEER2 13.8 Condenser Stages Single Stage
Compressor Type Scroll Liquid Valve Size 3/8"
Suction Valve Size 7/8" Electrical 208 / 230 V. 1 Phase 60 Hz
Tonnage 4 Ton Height 31 11/16"
Width 31 3/16" Depth 31 3/16"
Warranty 10 Year Parts Limited Warranty with Online Registration

ACiQ 92% Gas Furnace R92MSN1002120A 100000 BTU Single Stage Multi-Positional 115V 1 Phase 60Hz 21"W

Brand ACiQ Model # R92MSN1002120A
Weight (in lbs) 160 Exhaust Flue Requirement Plastic / PVC
Furnace Efficiency / AFUE 92% Equivalent Carrier Equivalent: 59SC2D100E21--20
Tempstar Equivalent: R92ESN1002120A
Bryant Equivalent: 912SD60100E21
Heating BTU 100,000 Blower Motor Multi Speed - ECM
Maximum CFM 2,000 Motor RPM 1200
Horsepower .75 HP Configuration Upflow/Downflow/Horizontal
Energy Star U.S. South Only Electrical 115v 1 Phase 60 Hz
Connection 1/2" NPT Maximum Inlet Pressure 13.6"wc
Burner Stages Single Ignition Type Direct Ignition with Silicon Nitride Hot Surface Ignitor
Fuel Type Propane, Natural Gas Height 35"
Width 21" Depth 29-1/2"

ACiQ 4 Ton Evaporator Coil Cased 21" Width Multi-Positional With TXV R454B EVM5X48M21A

Brand ACiQ SKU EVM5X48M21A
Weight 47 Manufacturer ACiQ
Replaces EVM4X Additional Information Metering Device: TXV
Additional Information Coil Type: Aluminum V-Coil Configuration Multi-Positional
Refrigerant R454B Liquid Line 3/8"
Suction Line 7/8" Tonnage 4 Ton
Style V-Coil Connection Sweat
Certification UL and c-UL Listed Height 21 15/16"
Width 21" Depth 20 5/8"
Warranty 10 Year Parts Limited Warranty with Online Registration
Warranty

ACiQ 4 Ton Air Conditioner Condenser 13.8 SEER2 R454B R5A5S48AKAWA

Warranty Type Parts
Registered Warranty 10 Years

ACiQ 92% Gas Furnace R92MSN1002120A 100000 BTU Single Stage Multi-Positional 115V 1 Phase 60Hz 21"W

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

ACiQ 4 Ton Evaporator Coil Cased 21" Width Multi-Positional With TXV R454B EVM5X48M21A

Warranty Type Parts
Registered Warranty 10 Years Limited
Documents

ACiQ 4 Ton Air Conditioner Condenser 13.8 SEER2 R454B R5A5S48AKAWA

R5A5S Owner's Manual

R5A5S Specifications Sheet

ACiQ Warranty

ACiQ 92% Gas Furnace R92MSN1002120A 100000 BTU Single Stage Multi-Positional 115V 1 Phase 60Hz 21"W

Specification Sheets

Owner's Manual

Warranty Information

ACiQ 4 Ton Evaporator Coil Cased 21" Width Multi-Positional With TXV R454B EVM5X48M21A

EVM5X Specifications Sheet

EVM5X Installation Manual

ACiQ Evaporator Coil Warranty
