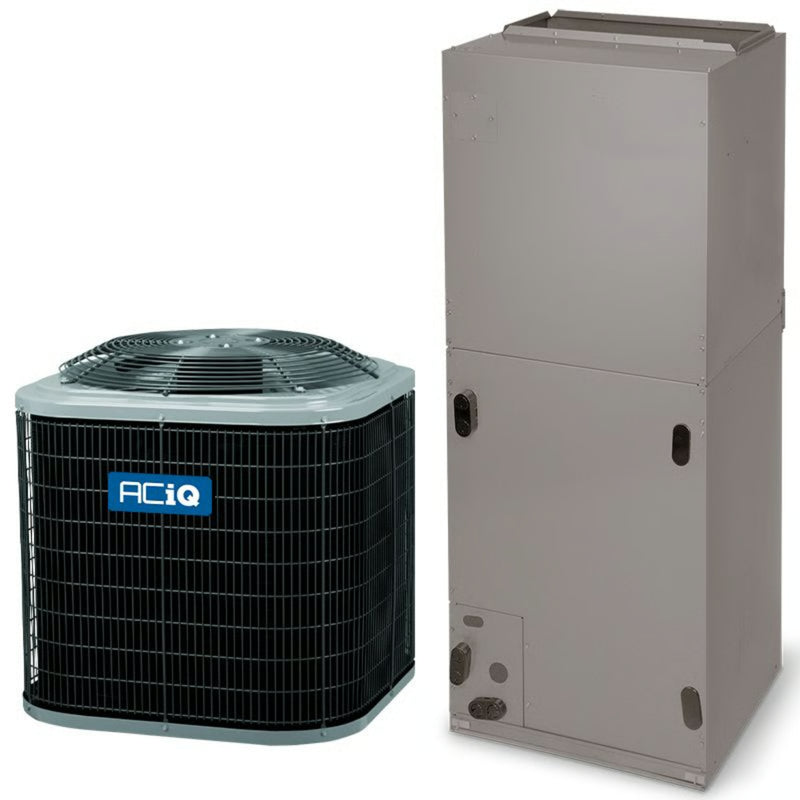

ACiQ 4 Ton 15.2 SEER2 Air Conditioner Split System Multi-Positional R454B

Name: ACiQ 4 Ton 15.2 SEER2 Air Conditioner Split System Multi-Positional R454B
Brand: ACiQ
SKU: R5A5S48AKAWA FHMA5X48L0CA
Price: 5010.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: R5A5S48AKAWA FHMA5X48L0CA | ID: 111222

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$5,010.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

ACiQ 4 Ton Air Conditioner Condenser 13.8 SEER2 R454B R5A5S48AKAWA

The ACiQ R5A5S48AKAWA is a high-efficiency, standard AC-only condenser designed to provide reliable cooling comfort for medium to large homes. Offering an affordable yet energy-efficient solution, this 4-ton condenser is an excellent choice for a variety of residential applications. Its 13.8 SEER2 rating delivers improved energy savings compared to standard units, while the factory pre-charged refrigerant ensures easy installation and optimal performance right out of the box.

Product Features and Benefits:

4 Ton Cooling Capacity
Efficiently cools medium to large homes in average climate conditions, providing consistent indoor comfort.
13.8 SEER2 Energy Efficiency
Higher than standard efficiency rating saves energy and reduces electric bills by up to 7% compared to 13.4 SEER2 models.
Single Stage Compressor
Reliable and durable compressor technology ensures steady cooling performance and low maintenance requirements.
Pre-Charged with R454B Refrigerant
Factory-charged with environmentally friendly R454B refrigerant for faster, hassle-free installation and optimal system operation.
Includes Filter Drier for Field Installation
Protects the system by removing moisture and contaminants, extending the lifespan of the condenser.
Durable and Reinforced Cabinet Design
Features reinforced corner posts and an inlet grille to safeguard internal components from damage and debris.
10-Year Parts Limited Warranty
Backed by a comprehensive warranty when installed according to local codes and paired with a certified coil, ensuring peace of mind.
Pre-Charged for 15-Foot Line Set
Simplifies installation and reduces labor costs by eliminating the need for manual refrigerant charging. Additional refrigerant may be required for longer line sets.
Safety Compliance with R454B Refrigerant
Must be paired with an R454B-compatible air handler or evaporator coil equipped with a leakage detection system to comply with safety standards and maintain warranty coverage.

Important Notes

This condenser is designed solely for cooling and does not provide heating capabilities. It requires a compatible indoor coil or air handler to operate properly.

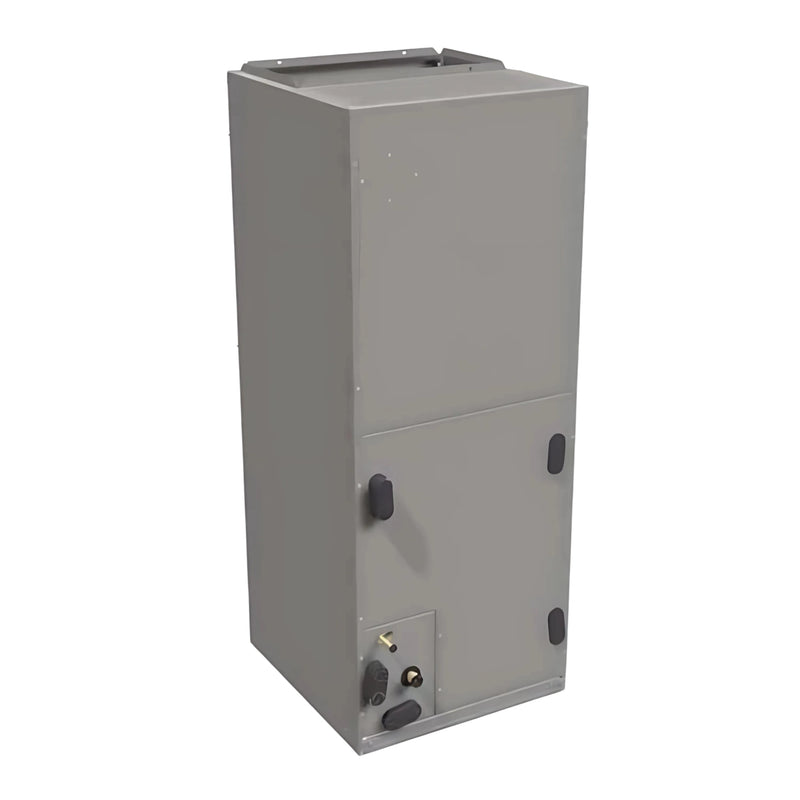

ACiQ 4 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X48L0CA

Experience enhanced indoor comfort and lasting performance with the ACiQ FHMA5X48L0CA air handler. Engineered for energy efficiency, durability, and flexible installation, this 4 ton air handler is an excellent solution for homeowners seeking a reliable HVAC component compatible with both AC and heat pump systems.

Product Features:

4 Ton Cooling Capacity
Delivers powerful airflow and comfort for medium to large residential spaces.
Uses Eco-Friendly R454B Refrigerant
Reduces global warming potential by 75% while preserving non-ozone depleting characteristics.
Multi 5-Speed High-Efficiency ECM Blower Motor
Promotes precise airflow control, quieter performance, and improved energy efficiency.
Multi-Positional Installation
Can be installed in upflow, downflow, or horizontal configurations, making it ideal for varied HVAC setups.
Factory-Installed TXV Kit
Optimizes refrigerant flow for enhanced system performance, reducing the need for extra installation labor.
Compatible with AC-Only and Heat Pump Condensers
Ensures flexibility across a range of HVAC system configurations.
Sturdy, Fully Insulated Cabinet
Includes a corrosion-resistant aluminum coil and heavy-duty casing to protect internal components.
Intelligent Comfort Control
Integrated control board adjusts blower speed automatically based on thermostat feedback, maintaining stable home temperatures.

Warranty Information:

ACiQ backs the FHMA5X48L0CA with a 5-year no-hassle replacement warranty and a 10-year parts warranty. To maintain warranty eligibility, proper installation is required in accordance with local codes, along with use of a certified coil and timely system registration. Our team will assist you post-purchase to complete the registration process.

Installation and Durability:

Engineered for versatility, this air handler supports multiple installation configurations. A pre-installed TXV kit helps streamline the installation process. Its rugged, single-piece outer cabinet and corrosion-resistant aluminum coil ensure lasting durability and efficient operation over the unit’s lifespan.

View More Air Conditioner Split Systems

Specifications

ACiQ 4 Ton Air Conditioner Condenser 13.8 SEER2 R454B R5A5S48AKAWA

Brand	ACiQ	SKU	R5A5S48AKAWA
Refrigerant Charge	15'	Weight	198
Manufacturer	ACiQ	Replaces	R4A5S
Product Features	New Refrigerant Compliant
Cooling BTU	48000	Maximum CFM	3100
Decibel Level (dBA)	75	Motor RPM	1100
Horsepower	1/5 HP	Refrigerant	R454B
SEER2	13.8	Condenser Stages	Single Stage
Compressor Type	Scroll	Liquid Valve Size	3/8"
Suction Valve Size	7/8"	Electrical	208 / 230 V. 1 Phase 60 Hz
Tonnage	4 Ton	Height	31 11/16"
Width	31 3/16"	Depth	31 3/16"
Warranty	10 Year Parts Limited Warranty with Online Registration

ACiQ 4 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X48L0CA

Brand	ACiQ	SKU	FHMA5X48L0CA
Weight	182	Manufacturer	ACiQ
Cooling BTU	48,000	Blower Motor	Multi-tap 5-Speed ECM
Maximum CFM	1400	Horsepower	3/4 HP
Electric Backup Heat Capabilities (Optional)	5, 8, 10, 15, 20 Kilowatts	Configuration	Multi-Positional
Refrigerant	R454B	Filter Size	20" x 20"
Liquid Line	3/8"	Suction Line	7/8"
Electrical	208/230v 1 Phase 60 Hz	Max Breaker Size	15 Amps
Min. Breaker Size	7.6 Amps	Tonnage	4 Ton
Connection	Sweat	Height	53 7/16"
Width	21 1/8"	Depth	22 1/16"
Warranty	10 Years Parts and 5 Years No Hassle Replacement with Online Registration

Warranty

ACiQ 4 Ton Air Conditioner Condenser 13.8 SEER2 R454B R5A5S48AKAWA

Warranty Type	Parts
Registered Warranty	10 Years

ACiQ 4 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X48L0CA

Warranty Type	Parts	Replacement
Registered Warranty	10 Years	5 Years

Documents

ACiQ 4 Ton Air Conditioner Condenser 13.8 SEER2 R454B R5A5S48AKAWA

R5A5S Owner's Manual

R5A5S Specifications Sheet

ACiQ Warranty

ACiQ 4 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X48L0CA

FHMA5 Installation Manual

FHMA5 Specifications Sheet

FHMA5 Service Manual

FHMA5 Warranty
