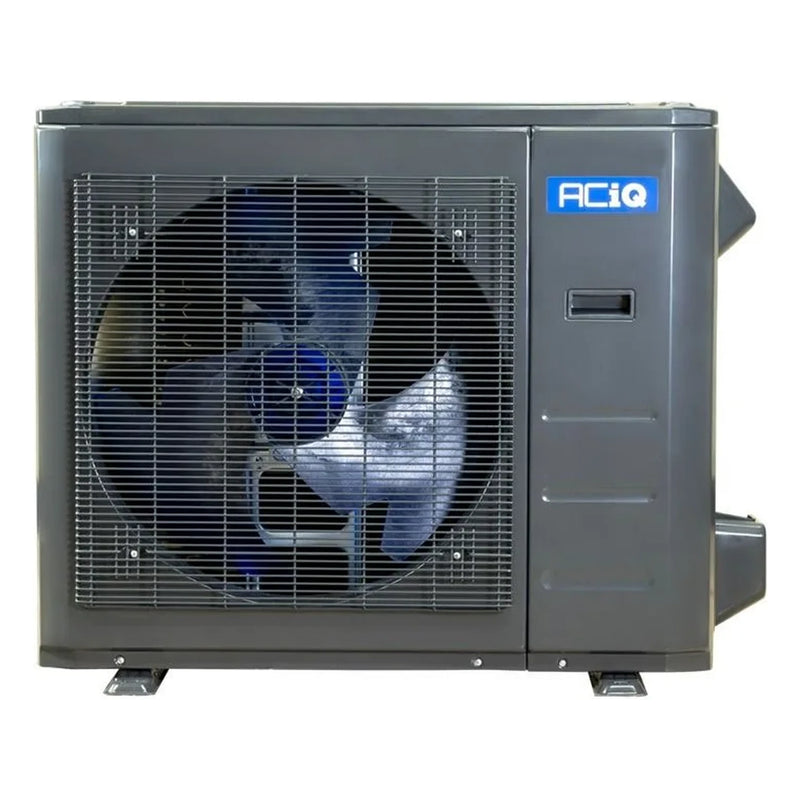

ACiQ 4 Ton 15.3 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-48-AC-B
The ACIQ-48-AC-B is a 4 ton, 15.3 SEER2 air conditioner condenser built around a variable-speed inverter compressor and R454B refrigerant. Instead of cycling on and off at full capacity, the compressor speeds up and slows down to track real-time demand, and ACiQ's Learning Condenser technology monitors indoor and outdoor temperature, duct pressure, and refrigerant temperature during startup to fine-tune performance going forward.
Rated at 48,000 BTU of cooling with up to 3,037 CFM airflow and as low as 65 dBA of operating sound, this condenser can also throttle down to roughly a 1 ton unit when full capacity isn't needed, making it a good seasonal AC-only option for homes that already have another primary heat source such as a boiler or fireplace. It runs on a 208/230V single-phase circuit and weighs 218.48 lbs.
Key Features
-
Variable-Speed Inverter Compressor - Self-adjusts BTU output to match real-time demand instead of cycling at full capacity.
-
Learning Condenser Technology - Monitors temperature, duct pressure, and refrigerant temperature during startup to optimize future performance.
-
15.3 SEER2 Efficiency - Rated 15.3 SEER2 / 9.8 EER2 for lower cooling operating costs.
-
48,000 BTU Cooling Capacity - Delivers 48,000 BTU of cooling with up to 3,037 CFM of airflow.
-
Quiet Operation - Runs as low as 65 dBA, noticeably quieter than a fixed-speed condenser at full load.
-
R454B Refrigerant - Uses the lower-GWP R454B refrigerant charge required for current equipment.
-
Down to 1 Ton Operation - Inverter design lets the compressor throttle down for seasonal AC-only supplemental cooling.
-
208/230V Single-Phase Electrical - Runs on a 208/230V 1-phase 60 Hz circuit with a 40 Amps max breaker.
Important Refrigerant Safety Notice: This unit uses R454B, an A2L mildly flammable refrigerant. It must be paired with a compatible, A2L-rated indoor coil or air handler equipped with proper leak detection. Please call 1-888-557-9206 with any compatibility questions before purchasing or installing.

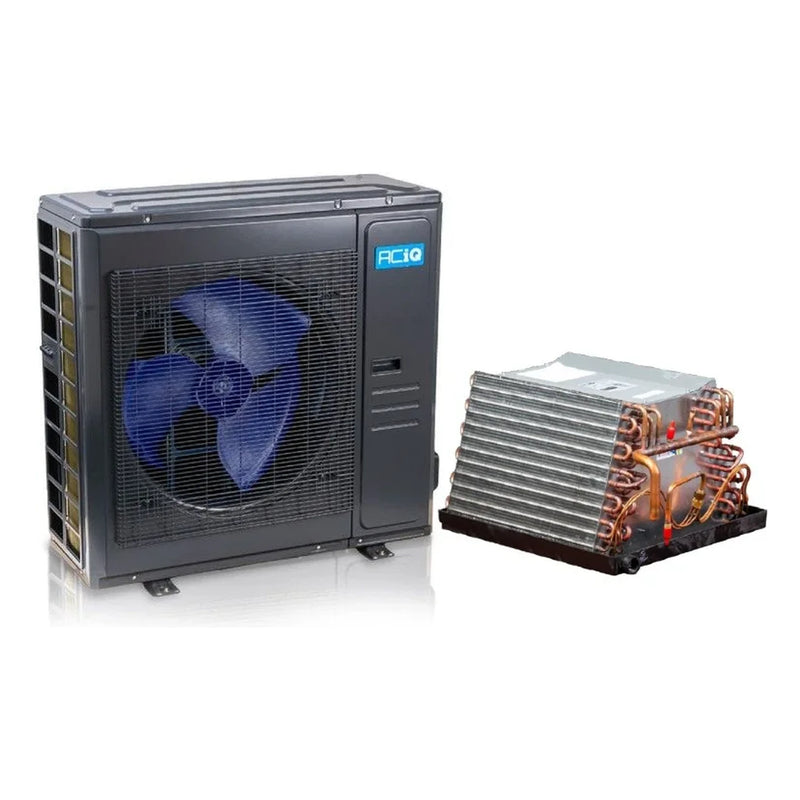

ACiQ 3.5-5 Ton Uncased Downflow Mobile Home Coil With TXV R454B ACIQ-MH59AU4VWEC
The ACiQ ACIQ-MH59AU4VWEC is an uncased downflow evaporator coil purpose-built for mobile and manufactured home installations, rated for use across 3.5 to 5 ton systems. Rifled aluminum tubing and enhanced aluminum fins keep heat transfer efficient, while a heavy-duty polypropylene drain pan and included downflow plate kit are built specifically for downflow furnace and air handler cabinets.
Key Features and Benefits:
-
3.5-5 Ton Capacity Range
Rated to support mobile home systems from 3.5 up to 5 tons of cooling capacity.
-
Uncased Downflow Design
Purpose-built uncased coil sized to drop into downflow mobile home furnace and air handler cabinets.
-
Rifled Aluminum Tubing
Enhanced aluminum fins and rifled tubing improve heat transfer efficiency and durability.
-
Left-Hand Sweat/Braze Connections
Factory-configured left-hand refrigerant connections simplify field installation.
-
Heavy-Duty Polypropylene Drain Pan
Corrosion-resistant drain pan is built to withstand mobile home service conditions.
-
Downflow Plate Kit Included
Ships with the plate kit needed to complete a proper downflow installation.
Installation Requirements
This coil cannot operate independently and must be paired with a compatible mobile home condenser and downflow furnace or air handler, each sold separately. It should never be undersized relative to the condenser it supports.
