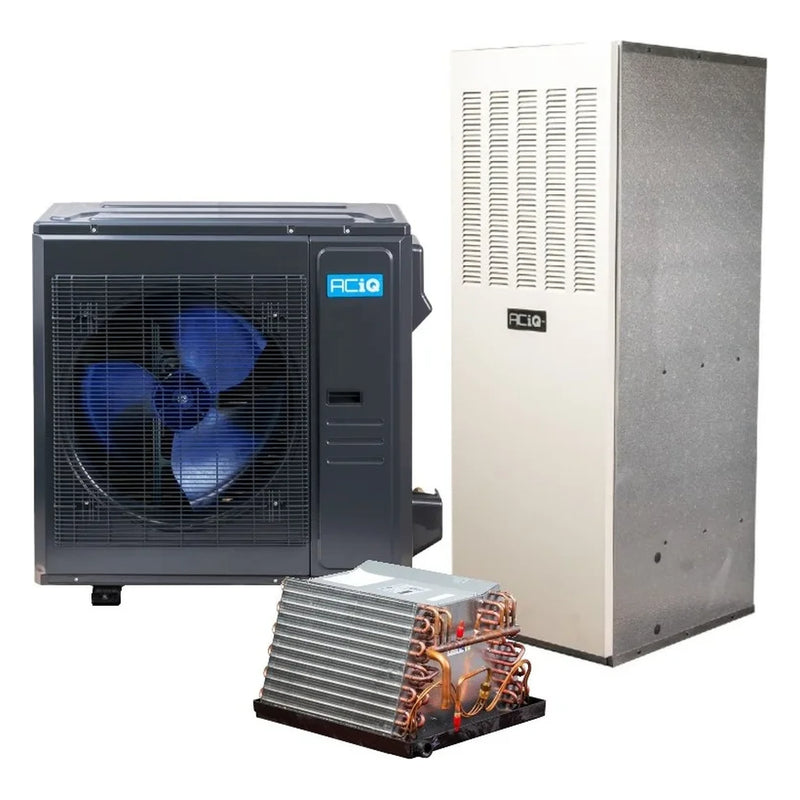

ACiQ 4 Ton 15.3 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-48-AC-B-MH

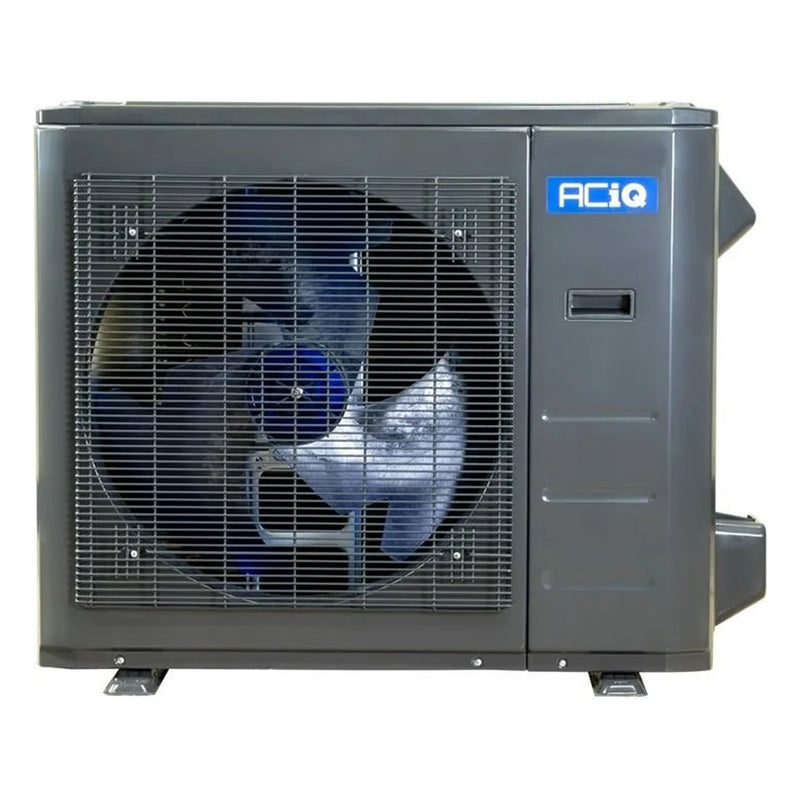

The ACIQ-48-AC-B-MH is a 4 ton, 15.3 SEER2 air conditioner condenser built around a variable-speed inverter compressor and R454B refrigerant. Instead of cycling on and off at full capacity, the compressor speeds up and slows down to track real-time demand, and ACiQ's Learning Condenser technology monitors indoor and outdoor temperature, duct pressure, and refrigerant temperature during startup to fine-tune performance going forward.
Rated at 48,000 BTU of cooling with up to 3,037 CFM airflow and as low as 65 dBA of operating sound, this condenser can also throttle down to roughly a 1 ton unit when full capacity isn't needed, making it a good seasonal AC-only option for homes that already have another primary heat source such as a boiler or fireplace. It runs on a 208/230V single-phase circuit and weighs 218.48 lbs.
Key Features
-
Variable-Speed Inverter Compressor - Self-adjusts BTU output to match real-time demand instead of cycling at full capacity.
-
Learning Condenser Technology - Monitors temperature, duct pressure, and refrigerant temperature during startup to optimize future performance.
-
15.3 SEER2 Efficiency - Rated 15.3 SEER2 / 9.8 EER2 for lower cooling operating costs.
-
48,000 BTU Cooling Capacity - Delivers 48,000 BTU of cooling with up to 3,037 CFM of airflow.
-
Quiet Operation - Runs as low as 65 dBA, noticeably quieter than a fixed-speed condenser at full load.
-
R454B Refrigerant - Uses the lower-GWP R454B refrigerant charge required for current equipment.
-
Down to 1 Ton Operation - Inverter design lets the compressor throttle down for seasonal AC-only supplemental cooling.
-
208/230V Single-Phase Electrical - Runs on a 208/230V 1-phase 60 Hz circuit with a 40 Amps max breaker.
Important Refrigerant Safety Notice: This unit uses R454B, an A2L mildly flammable refrigerant. It must be paired with a compatible, A2L-rated indoor coil or air handler equipped with proper leak detection. Please call 1-888-557-9206 with any compatibility questions before purchasing or installing.
ACiQ 5 Ton Uncased Downflow Mobile Home Coil With TXV R454B ACIQ-MH59AU4VWEC
The ACiQ ACIQ-MH59AU4VWEC is an uncased downflow evaporator coil built specifically for mobile and manufactured home split-system installations. It uses left-hand refrigerant and plumbing connections with sweat/braze fittings, and a factory-installed TXV for accurate refrigerant metering.
Constructed with rifled aluminum tubing, enhanced aluminum fins, and a heavy-duty polypropylene drain pan, this 5 ton coil is AHRI certifiable with any brand of compatible condenser and includes a downflow plate kit for straightforward field installation.
Key Features and Benefits:
-
5 Ton Downflow Coil
Sized for mobile and manufactured home split systems.
-
R454B Refrigerant Compatible
Built for use with modern R454B split systems.
-
Factory-Installed TXV
Ensures precise refrigerant metering for improved efficiency.
-
Rifled Aluminum Tubing
Enhanced aluminum fins promote efficient heat transfer.
-
Left-Hand Connections
Sweat/braze fittings simplify field installation.
-
Heavy-Duty Polypropylene Drain Pan
Resists corrosion for long-term reliability.
-
Downflow Plate Kit Included
Built specifically for mobile and manufactured home use.
Installation Requirements
This coil is designed for mobile and manufactured home applications only and must be matched with a compatible condenser and mobile home furnace or air handler cabinet; it cannot operate as a standalone unit. Disclaimer: This coil is intended for use with R454B refrigerant systems, which are classified as A2L. To comply with safety standards, ensure the paired condenser and system include proper leak detection where required. Please call us at 1-888-557-9206 if you have any questions.
ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 3-5 Ton ACIQ-EFL1520FD-MH
The ACiQ-EFL1520FD-MH is a 15 kilowatt electric downflow furnace rated at 49,100 BTU, sized to pair with larger 3 to 5 ton mobile home air conditioning systems. An ECM multi-speed blower delivers up to 1,710 CFM through a direct-drive 3/4 HP motor, and the unit draws power through a 240V single-phase circuit protected by dual breakers.
This model ships with an AC coil cabinet included, though the condenser and evaporator coil are sold separately, giving installers a ready-made cabinet to build the rest of the system around. Factory-installed sequencers and temperature limit switches manage staged heating safely, and heat modules install via molex plug in the field or ship pre-installed from the factory.
Key Features
-
15kW / 49,100 BTU Output - Delivers electric resistance heat sized for 3 to 5 ton mobile home AC systems.
-
AC Coil Cabinet Included - Ships with the coil cabinet in place; condenser and evaporator coil are sold separately.
-
Dual Circuit Breakers - Ships with a 60 amp and a 25 amp breaker to protect the staged heating elements.
-
ECM Multi-Speed Blower - Direct-drive 3/4 HP ECM motor moves up to 1,710 CFM for even heat distribution.
-
Safety Sequencers & Limit Switches - Factory-installed controls stage heating elements safely and protect against overheating.
-
Molex Plug Modules - Heat modules install or service in the field via molex connections, or ship factory-installed.
-
Front-Access Controls - Service points are accessible from the front of the cabinet for faster maintenance.
-
Washable Filter - Easy-to-clean or replace filter helps lower long-term maintenance costs.
