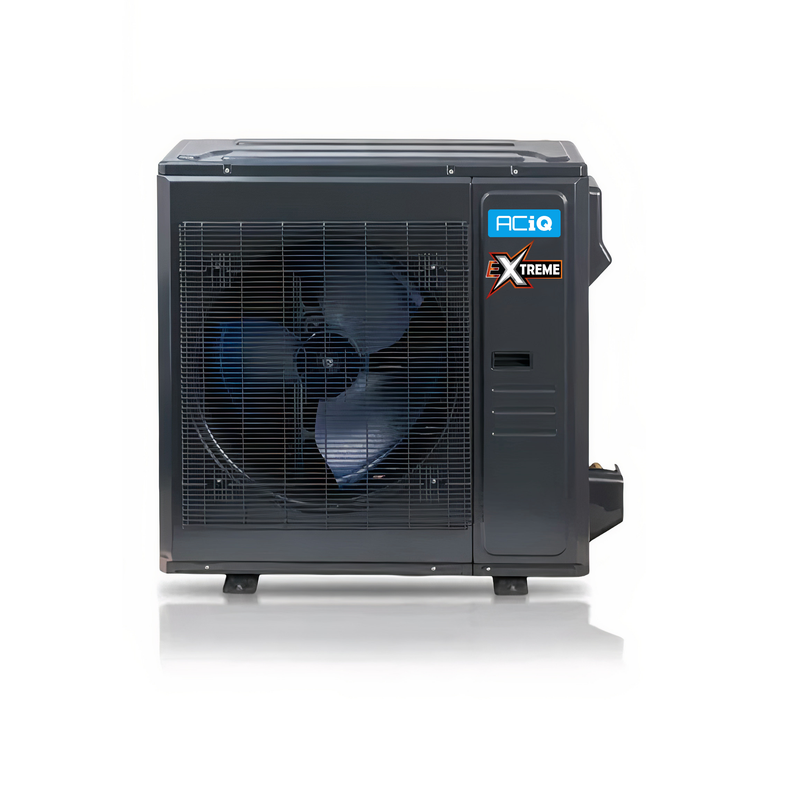

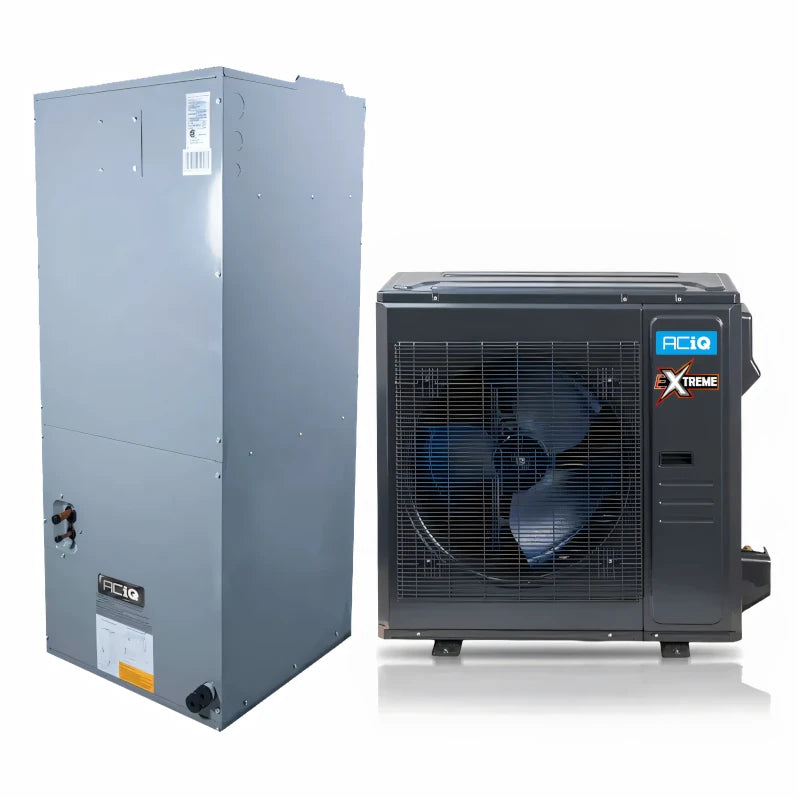

ACiQ 4 Ton 16.5 SEER2 Central Heat Pump Inverter Extreme Series R454B ACiQ-48-HPD
Engineered for year-round performance, the ACiQ-48-HPD delivers powerful heating and cooling with smart inverter technology, adaptive sizing, and advanced sensors for optimal efficiency. Capable of heating down to -22°F, this Extreme Series unit adjusts output in real-time for precise comfort and up to 75% savings on cold-weather heating costs. Eco-friendly R454B refrigerant and whisper-quiet operation make it a smart, future-ready solution for any climate.
-
Wide Variable BTU Output for Optimal Comfort
Intelligent performance with 12,000–48,000 BTU cooling and 12,000–50,000 BTU heating, adjusting output based on demand for maximum efficiency.
-
Eco-Conscious R454B Refrigerant
Utilizes low-GWP R454B refrigerant, meeting modern environmental standards and improving sustainability.
-
Inverter Heat Pump Technology for Ducted Systems
High-efficiency inverter-driven compressor delivers consistent comfort and reduced energy consumption.
-
Extreme Temperature Operation
Reliable cooling performance from -22°F to 122°F and heating from -22°F to 75°F, designed for harsh climates.
-
Corrosion-Resistant Gold Fin Condenser
Durable gold fin coating enhances longevity and protects the outdoor coil from salt, moisture, and other elements.
-
Ultra-Quiet Operation
Engineered for low-noise performance, even at high capacity, for a quieter indoor environment.
-
Perfect for Central Ducted HVAC Installations
Designed to integrate seamlessly into ducted heating and cooling systems, ideal for whole-home comfort.

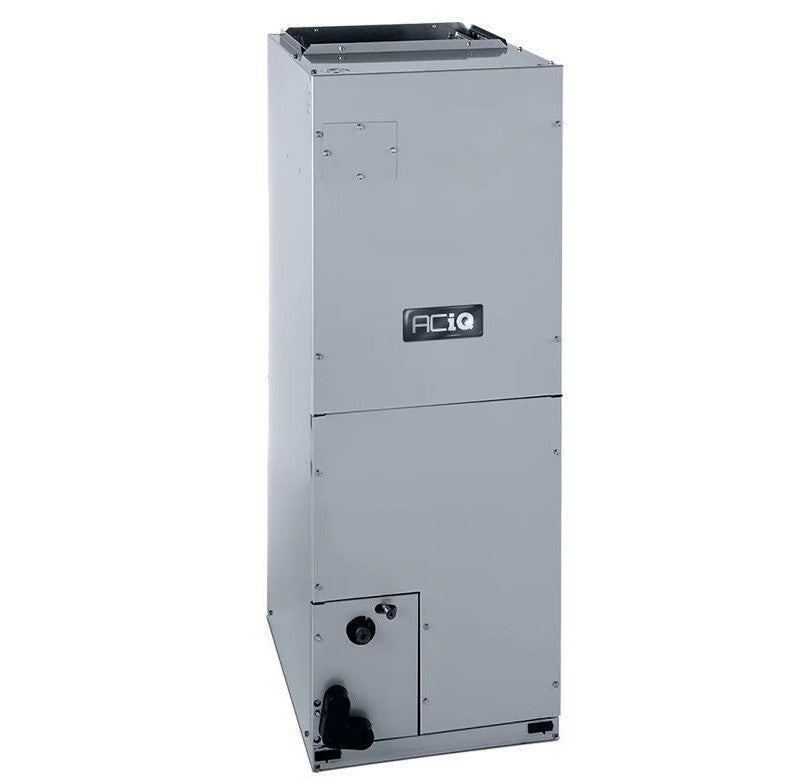

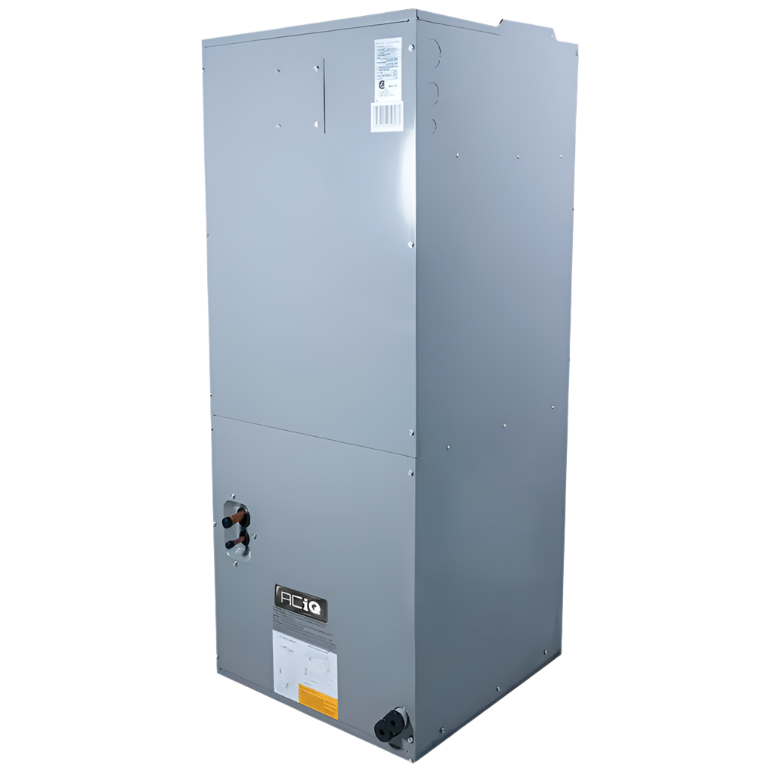

ACiQ 4 Ton Central Ducted Air Handler Multi-Position R454B ACiQ-48-AHD
The ACiQ-48-AHD air handler features a variable speed DC blower and advanced communicating technology to ensure optimal comfort and efficiency. It works seamlessly with your thermostat and inverter condenser to automatically adjust BTU output, delivering precise temperature control. The air handler easily integrates with your existing ductwork to efficiently distribute heated and cooled air throughout your home.
-
Powerful 48,000 BTU / 4 Ton Capacity
Designed to efficiently heat and cool larger spaces, providing robust performance for home or commercial applications.
-
Compatible with Any 24V Thermostat
Seamlessly integrates with any 24-volt thermostat, offering compatibility with both traditional and smart thermostats.
-
Variable Speed DC Blower for Energy Efficiency
Equipped with a variable-speed DC blower motor that adjusts airflow to maximize comfort while reducing energy consumption.
-
Multi-Position Installations for Flexibility
Offers multi-position installation options: upflow, downflow, or horizontal left/right, giving you the flexibility to adapt to various HVAC setups.
-
R454B Refrigerant Compatible
Supports eco-friendly R454B refrigerant, reducing environmental impact and promoting a lower global warming potential (GWP).
-
Perfect for Central Ducted Systems
Ideal for use in central ducted HVAC systems, making it perfect for whole-home cooling and heating solutions.
Installation and Maintenance
Installing the ACiQ central ducted air handler is similar to replacing any standard air handler. Your technician will take care of the electrical, refrigerant, thermostat, and communication connections, as well as linking the air handler to your return and supply ductwork.
This air handler is highly versatile, offering multi-positional installation options (upflow, downflow, or horizontal). It is compatible with any 24v thermostat that supports two-stage heating. For additional heating during the coldest days, optional supplemental electric heat kits are available.
If maintenance is ever needed, the air handler’s intelligent control board will display fault codes to quickly identify any system issues.
Please Note:
The air handler requires installation alongside a condenser and other essential components, which are available at an additional cost if not already included in your product bundle. For straight electric heating, an electric heat kit is required, and is also available at an additional cost.
