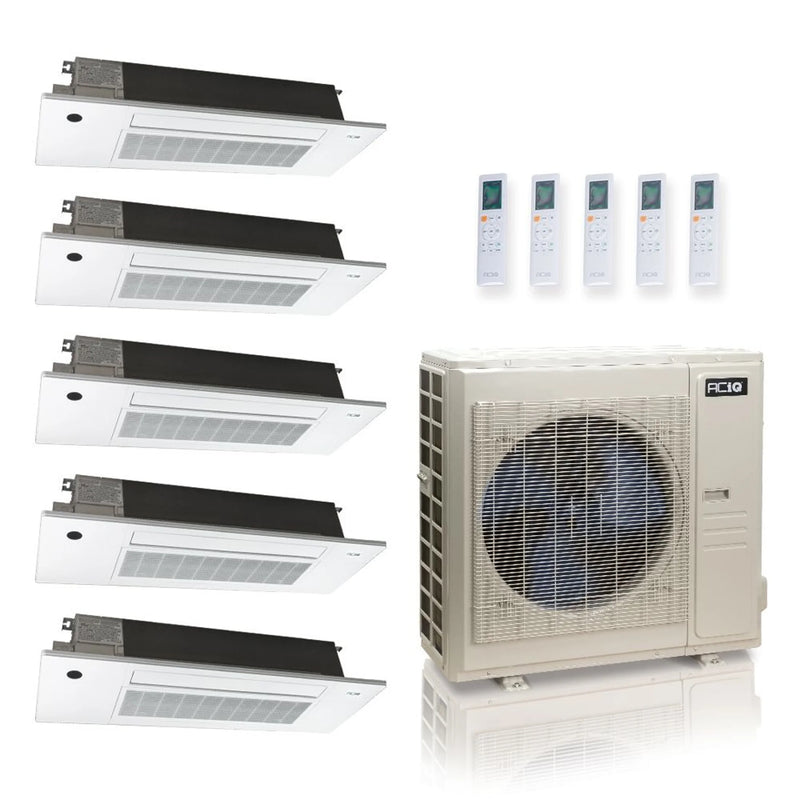

ACiQ 48,000 BTU 24 SEER2 5-Zone Slim Ceiling Cassette Mini Split R454B 230V 6+6+9+9+12

By ACiQ | Model: ES-48Z-M6C / SCC-06-HH-MB-2 / SCC-09-HH-MB-2 / SCC-12-HH-MB | ID: 91655
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$8,349.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

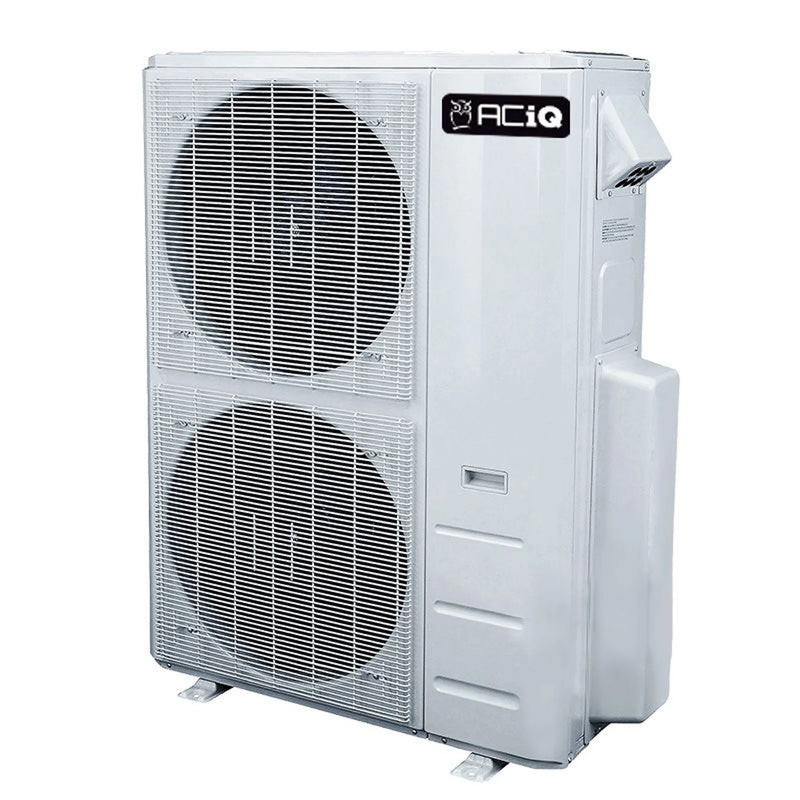

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

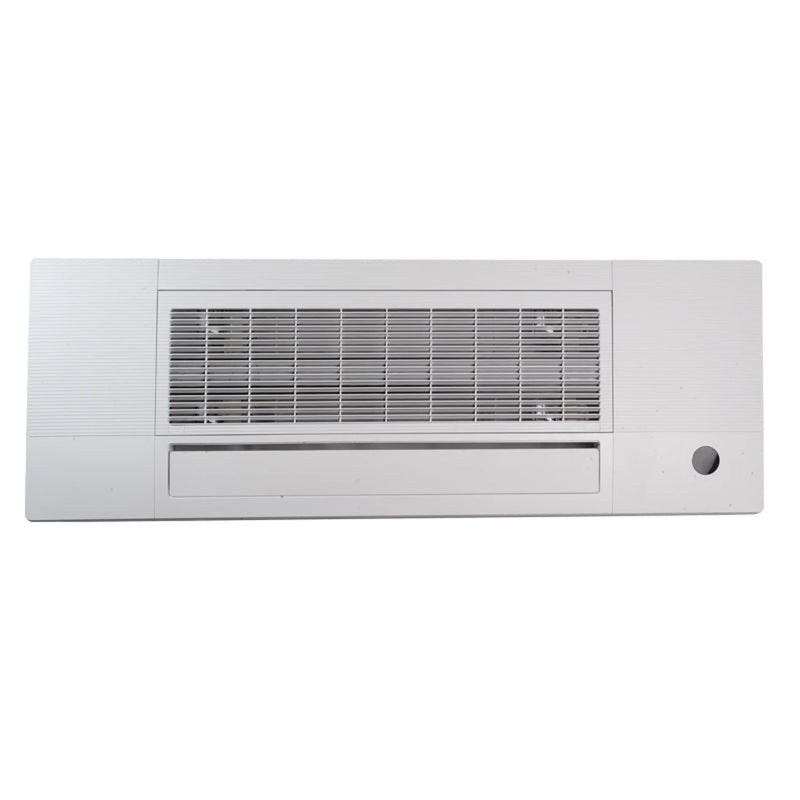

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x5

The ACiQ Slim Ceiling Cassette is designed to provide efficient heating and cooling in a compact, low-profile form that fits between 16-inch on-center ceiling joists. With one-way airflow, a clean ceiling-mounted design, and compatibility with ACiQ multi-zone systems, this cassette offers the performance of a traditional mini split indoor unit while remaining discreet and space-saving. It supports 6,000, 9,000, and 12,000 BTU applications and includes a dip switch for adjusting capacity. Using environmentally friendly R-454B refrigerant, the Slim Cassette delivers reliable comfort with a minimal appearance and easy ceiling integration.

Key Features

  • Fits between 16-inch on-center joists for easier installation
  • Rated for 6K, 9K, and 12K BTU; dip switch adjustable
  • One-way airflow design with discreet ceiling-mounted appearance
  • No-ladder filter access with lowering grille system
  • Handheld remote control included
  • Decorative grille included for a clean, modern look
  • Uses environmentally friendly R-454B refrigerant
  • Compatible with ACiQ multi-zone condensers

View More 5 Zone Mini Splits

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Brand ACiQ SKU ES-48Z-M6C
Replaces ES-48Z-M5B SEER2 24
HSPF2 10.3 Cooling BTU 47000 BTU
Heating BTU 48000 BTU Maximum CFM 4503
Decibel Level (dBA) 63 Electric Heat Heat Pump
Refrigerant R454B Compressor Type Rotary
Liquid Line 1/4" (6) Suction Line 3/8" (4); 1/2" (2)
Electrical 208/230V 1 Phase 60 Hz Electric Phase Filter Single Phase
Max Breaker Size 60 A Min. Breaker Size 40 A
Tonnage 4 Ton BTU/Tonnage 48,000 BTU/4 Ton
Mini Split Type Wall Mounted Zone Compatibility Multi Zone
Height 52.48" Width 37.48"
Depth 16.34"



ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x5

Brand ACiQ SKU SCC-0612-HH-MB
BTU 6,000 / 9,000 / 12,000 Weight (in lbs) 82.45
Manufacturer ACiQ Controller Wireless Included
Heating BTU 6,000 / 9,000 / 12,000 Maximum CFM Up to 353.20 CFM
Decibel Level (dBA) As low as 24.0 Decibels Refrigerant R454B
Liquid Line 1/4" Suction Line 3/8"
Electrical 208/230V, 1 Phase, 60Hz Phase Single Phase
Mini Split Type Slim Ceiling Cassette Zone Compatibility Multi Zone, Single Zone
Height 8.98" Width 50.31"
Depth 13.19" Warranty 12 year compressor, 7 year parts with online registration
Warranty

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts



ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x5

Warranty Type Parts Compressor
Standard Warranty 5 year parts 7 year parts
Registered Warranty 7 year parts 12 year parts
Documents

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Brochure

Installation and Owner's Manual

Service Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information


ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x5

6K-AHRI Certificate

9K-AHRI Certificate

12K-AHRI Certificate

6K-Submittal

9K-Submittal

12K-Submittal

Owner's Manual

Remote Manual

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
