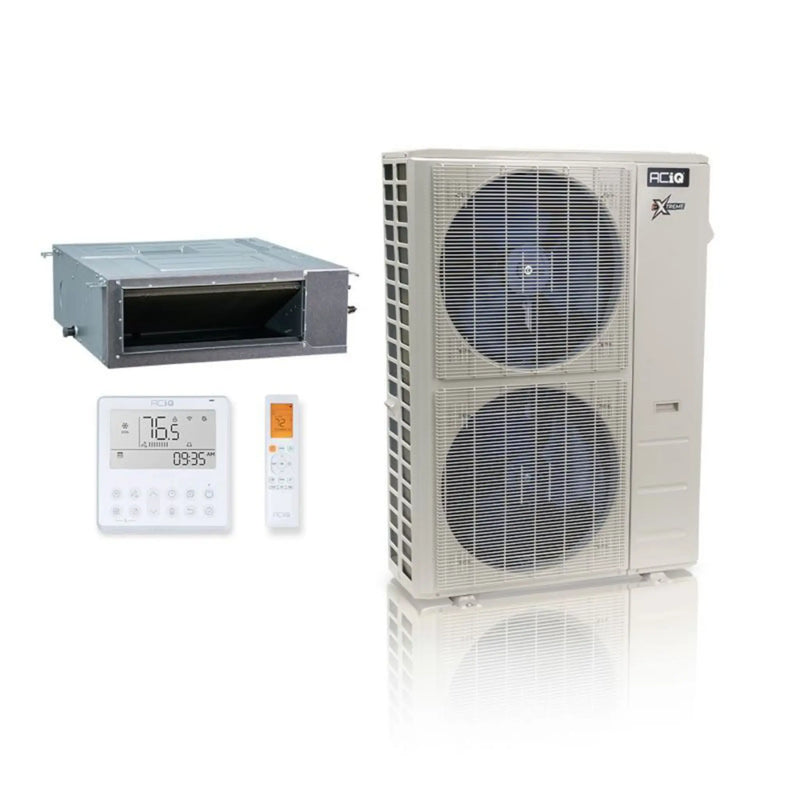

ACiQ 48K BTU 16.7 SEER2 Single Zone Concealed Duct Mini Split R454B 230V

Name: ACiQ 48K BTU 16.7 SEER2 Single Zone Concealed Duct Mini Split R454B 230V
Brand: ACiQ
SKU: ACIQ-48ZPL-HP230C
Price: 4499.99 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By ACiQ | Model: ACIQ-48ZPL-HP230C / ACIQ-48CD-HH-MC | ID: 90822

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,499.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

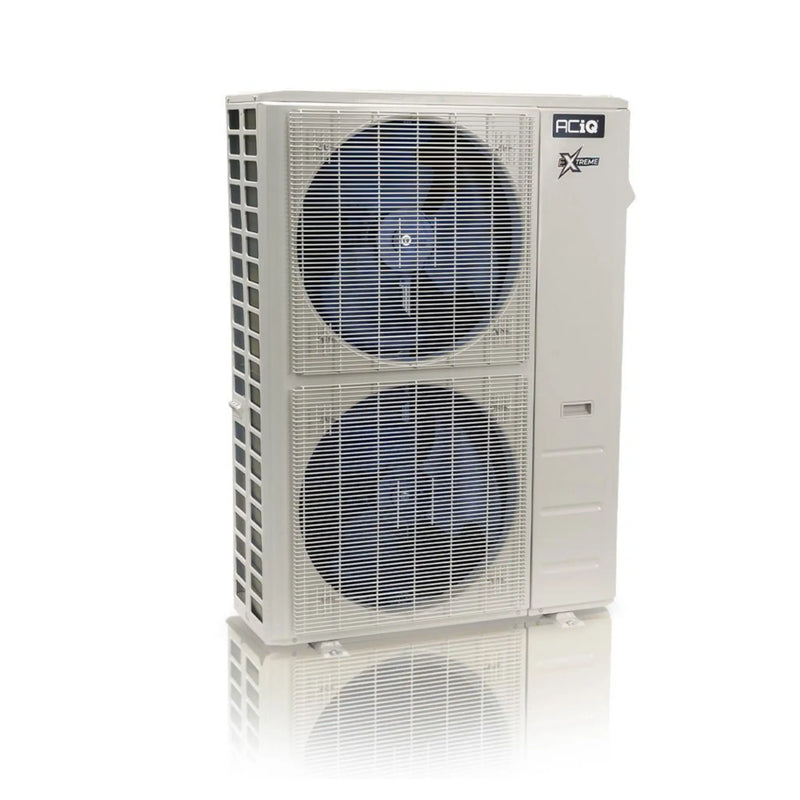

ACiQ 48K BTU 18 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-48ZPL-HP230C

The ACiQ 48,000 BTU Extreme Series Single Zone Condenser offers high-efficiency performance for both heating and cooling with advanced Hyper Heat inverter technology. Built to operate in extreme conditions, this condenser delivers heating down to -22°F and cooling up to 122°F. With a rotary inverter compressor and gold fin coil protection, this unit is engineered for dependable operation, quiet performance, and long-term durability in residential applications.

Key Features

Hyper Heat technology for heating in temperatures as low as -22°F
14.3 SEER2 and 8.4 HSPF2 efficiency ratings
Variable inverter twin rotary compressor for energy savings
Gold fin coil protection enhances longevity and corrosion resistance
Maximum airflow up to 4,500 CFM
Quiet operation with a sound level of 65 dBA
R454B refrigerant for reduced environmental impact
Compatible with wall mount, floor mount, cassette, and concealed duct air handlers

Professional installation is required. Unit does not include quick connect fittings or accessories. Register online to receive a 12-year compressor and 7-year parts warranty.

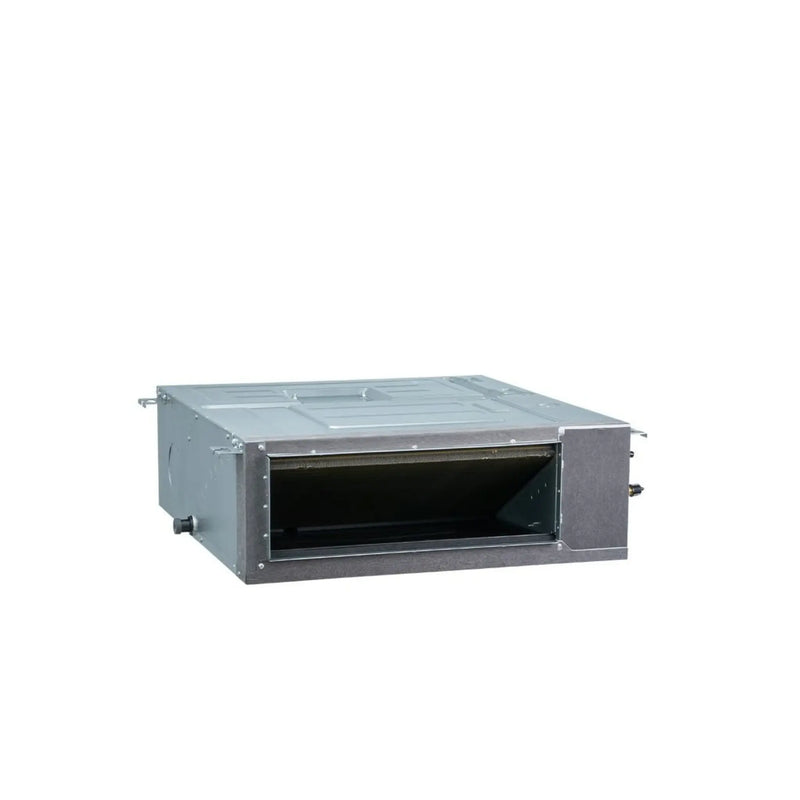

ACiQ 4 Ton 48,000 BTU Mini Split Concealed Duct Air Handler R454B 230V ACIQ-48CD-HH-MC

The ACiQ 48,000 BTU Concealed Duct Air Handler provides powerful and discreet comfort without visible units on your walls or ceilings. Designed to be installed in crawl spaces, attics, or soffits, this air handler distributes air through ceiling or wall registers via flexible ducting. It’s the ideal solution for custom HVAC configurations in new construction or renovations, providing efficient heating and cooling without compromising room aesthetics.

Key Features

48,000 BTU cooling and 52,000 BTU heating output
Concealed installation in ceilings, floors, or soffits
Delivers airflow through ductwork to multiple room registers
Integrated condensate pump for flexible drainage solutions
Quiet squirrel cage fan design with 54.5 dBA maximum sound level
Wall-mounted thermostat included for easy control
R454B refrigerant and Energy Star efficiency
Ideal for multi-room distribution with up to 4 duct runs

Best for new builds or remodels. Requires field-fabricated ductwork, plenums, and registers for installation.

View More Single Zone Mini Splits

Specifications

ACiQ 48K BTU 18 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-48ZPL-HP230C

Brand	ACiQ	SKU	ACIQ-48ZPL-HP230C
SEER2 Rating	18	Tonnage	4 Ton
BTU	48,000 BTU	Weight	239.86
Manufacturer	ACiQ	Refrigerant Charge	24.6 ft
Product Features	Low Ambient Heating	HSPF2	11.0
Heating BTU	53,000 BTU	Maximum CFM	4237.90
Decibel Level	62.5 dBA	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R454B
Compressor Type	Twin Rotary	Liquid Line	3/8"
Suction Line	3/4"	Electrical	208/230V, 1 Phase, 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	45A
Min Breaker Size	44A	Zone Compatibility	Single Zone
Height	52.48"	Width	37.48"
Depth	16.34"	Warranty	12 year compressor, 7 year parts with online registration

ACiQ 4 Ton 48,000 BTU Mini Split Concealed Duct Air Handler R454B 230V ACIQ-48CD-HH-MC

Brand	ACiQ	Model #	ACIQ-48CD-HH-MC
Cooling Capacity	48,000 BTU	Heating Capacity	52,000 BTU
Max CFM	1529.41	Sound Level	54.5 dBA
Voltage	208/230V 1 Phase 60Hz	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Breaker Size (Max / Min)	50 Amps / 42 Amps
Dimensions (H x W x D)	11.81" x 47.24" x 34.14"

Warranty

ACiQ 48K BTU 18 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-48ZPL-HP230C

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years
Registered Warranty	7 years	12 years

ACiQ 4 Ton 48,000 BTU Mini Split Concealed Duct Air Handler R454B 230V ACIQ-48CD-HH-MC

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years
Registered Warranty	7 years	12 years

Documents

ACiQ 48K BTU 18 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-48ZPL-HP230C

Submittal with 48K Ceiling Cassette

Submittal with 48K Concealed Duct

Submittal with 48K Floor Mount

Warranty Information

ACiQ 4 Ton 48,000 BTU Mini Split Concealed Duct Air Handler R454B 230V ACIQ-48CD-HH-MC

Installation & Owner's Manual

Remote Controller Manual

Submittal

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
