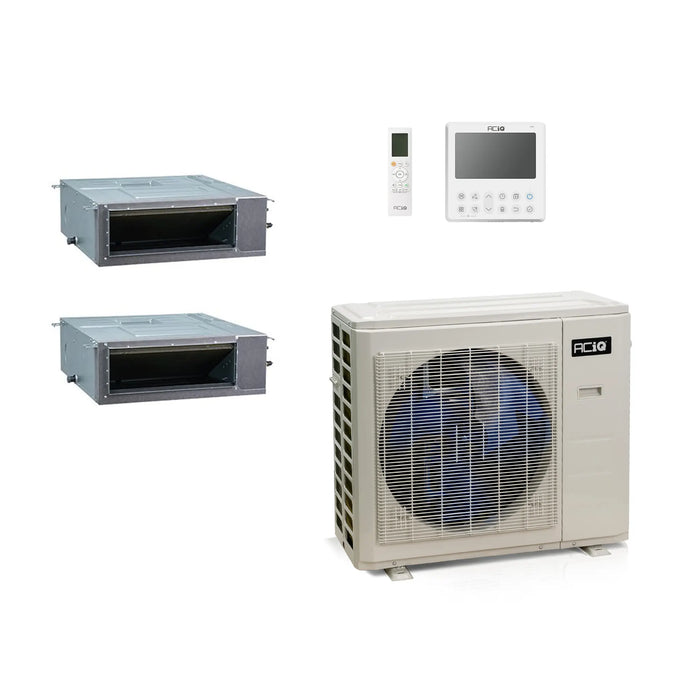

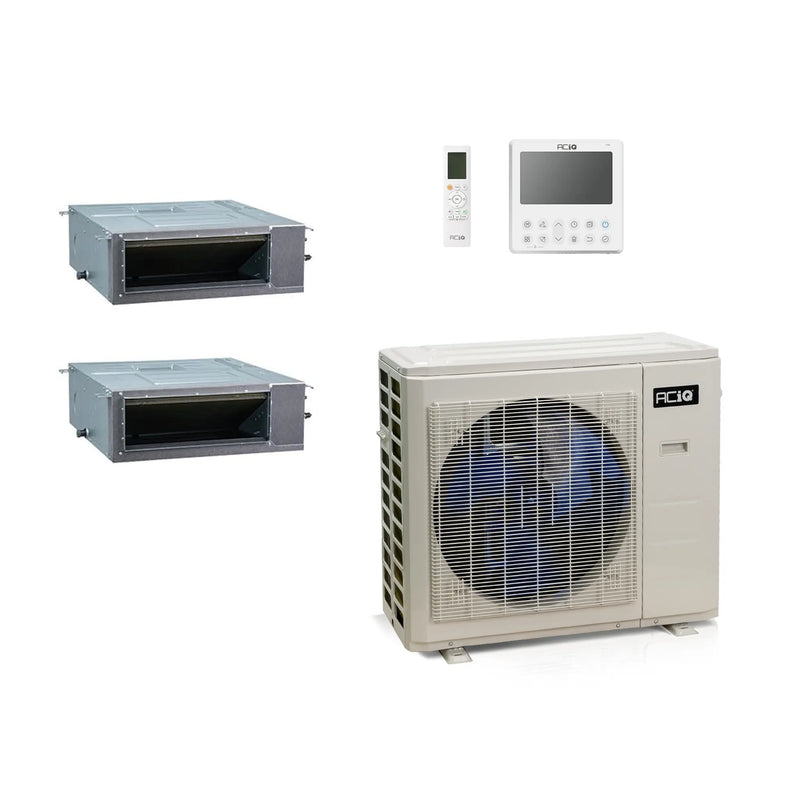

ACiQ 48K BTU 20.4 SEER2 Concealed Duct Mini Split System 2-Zone 230V 24+24

Name: ACiQ 48K BTU 20.4 SEER2 Concealed Duct Mini Split System 2-Zone 230V 24+24
Brand: ACiQ
SKU: ES-48Z-M6C ACIQ-24CD-HH-MC-2
Price: 7530.28 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-48Z-M6C ACIQ-24CD-HH-MC-2 | ID: 89011

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$7,530.28 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

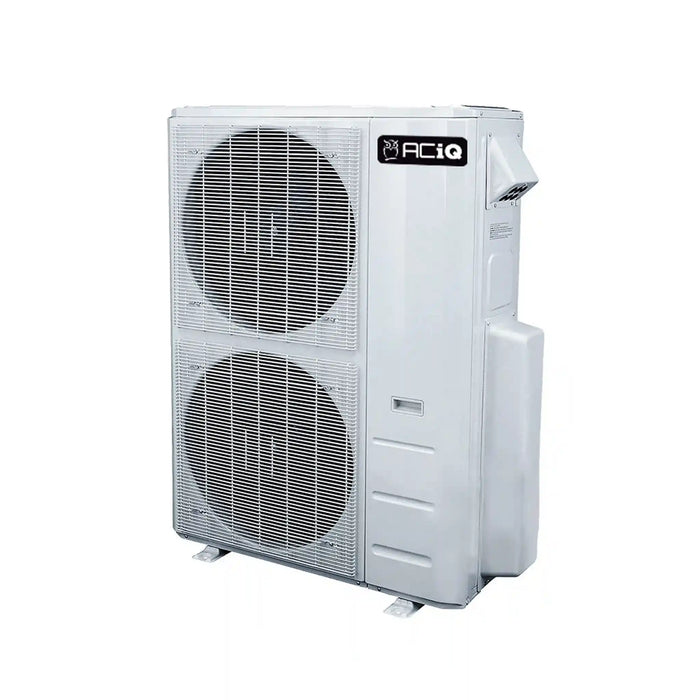

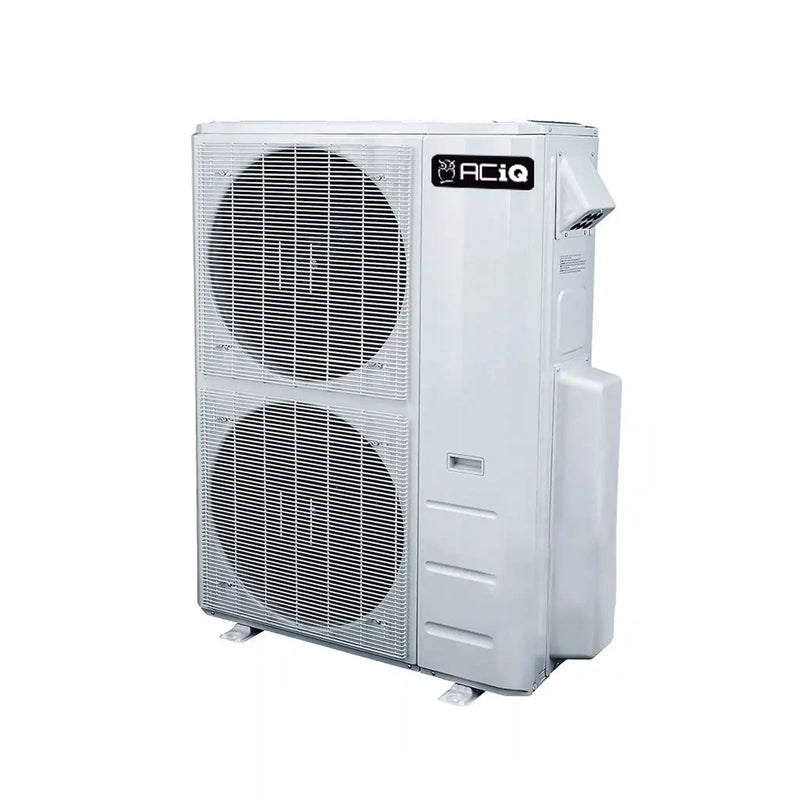

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 6 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

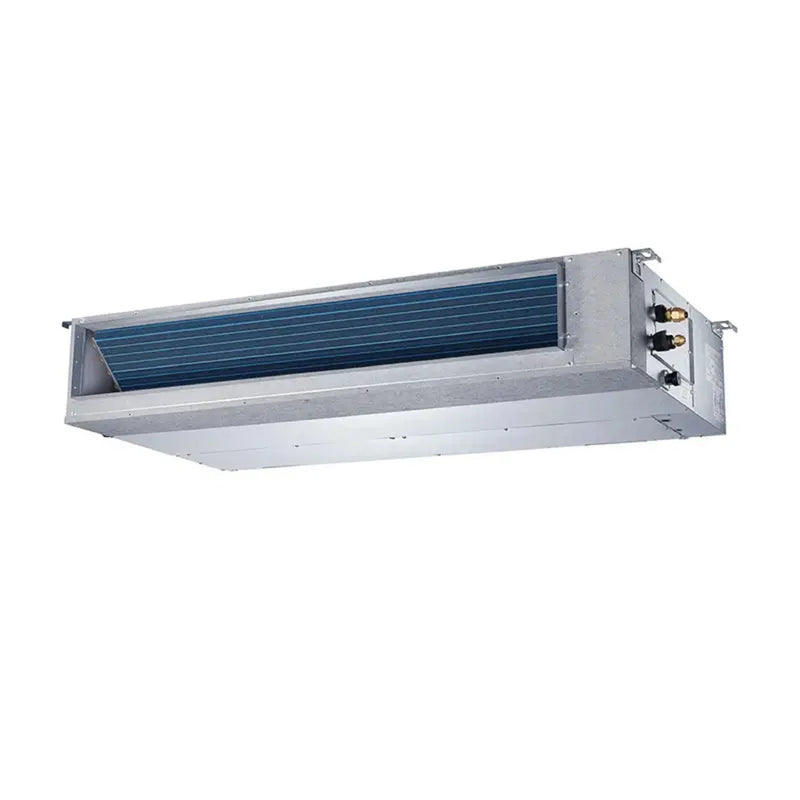

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2 offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.

Key Features

24,000 BTU for heating or cooling
Dry and Fan modes available
Suitable for medium-sized rooms in most climates
Includes wall-mounted thermostat
Concealed Duct design for discreet installation

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2 provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.

View More 2 Zone Mini Splits

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Brand	ACiQ	SKU	ES-48Z-M6C
Replaces	ES-48Z-M5B	SEER2	24
HSPF2	10.3	Cooling BTU	47000 BTU
Heating BTU	48000 BTU	Maximum CFM	4503
Decibel Level (dBA)	63	Electric Heat	Heat Pump
Refrigerant	R454B	Compressor Type	Rotary
Liquid Line	1/4" (6)	Suction Line	3/8" (4); 1/2" (2)
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
Max Breaker Size	60 A	Min. Breaker Size	40 A
Tonnage	4 Ton	BTU/Tonnage	48,000 BTU/4 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Height	52.48"	Width	37.48"
Depth	16.34"

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

Brand	ACiQ	SKU	ACIQ-24CD-HH-MC
Cooling BTU	24,000 BTU	Heating BTU	26,000 BTU
Maximum CFM	853.5	Decibel Level (dBA)	As Low as 29.5
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Height	9.65"
Width	39.37"	Depth	29.53"

Warranty

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Brochure

Installation and Owner's Manual

Service Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC x2

Submittal

Installation Manual

Service Manual

Owners Manual

Remote Controller Manual

Warranty Information
