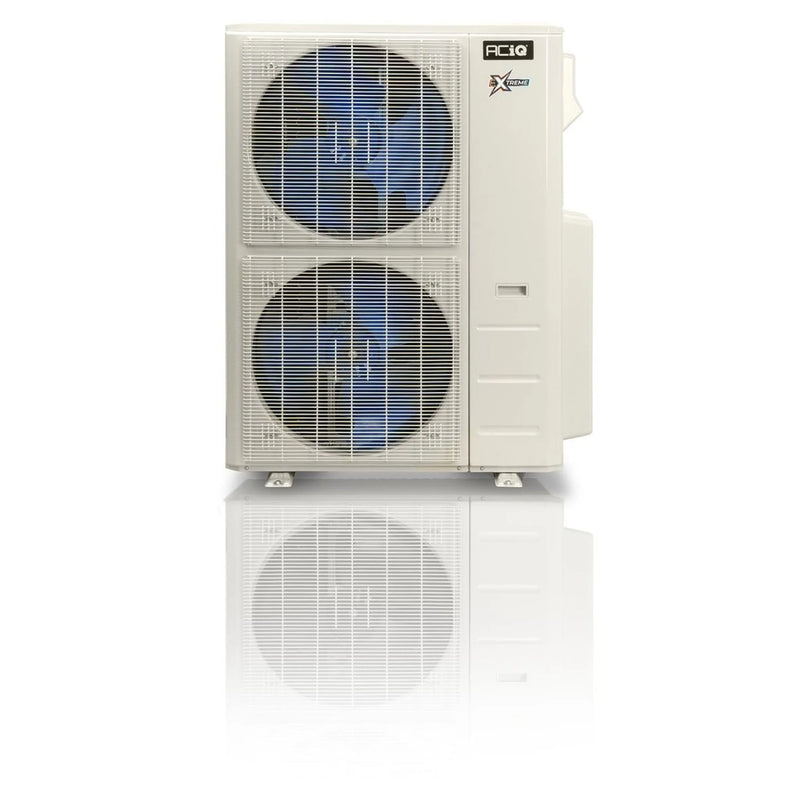

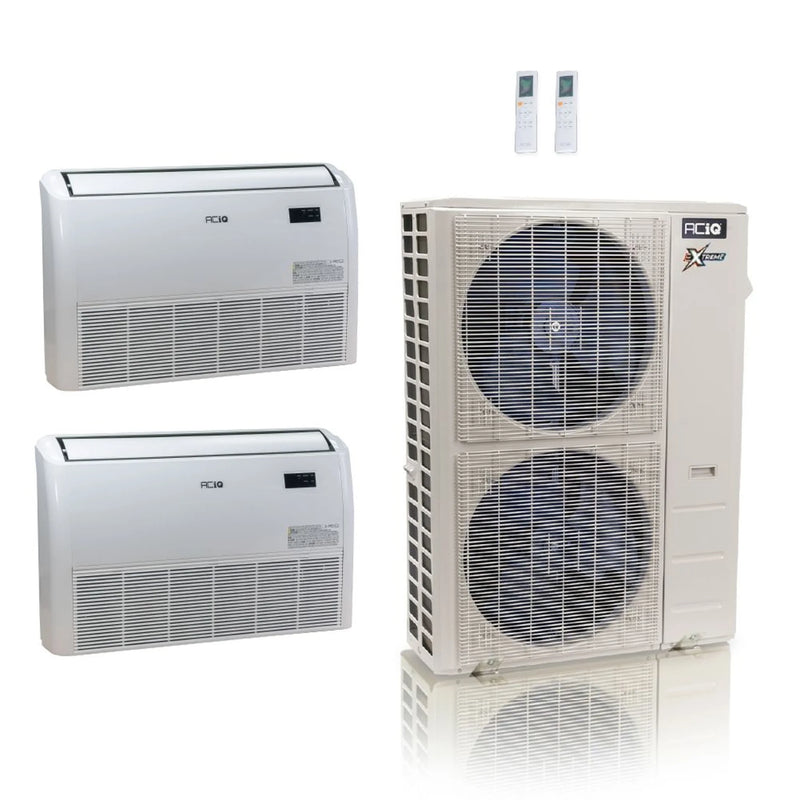

ACiQ 48,000 BTU SEER2 23 Multi Zone Condenser Extreme Series R454B 230V ACIQ-48Z-HH-M6C
The ACiQ-48Z-HH-M6C is a high-performance, energy-efficient solution for adaptive heating and cooling in homes and commercial spaces. This advanced 48,000 BTU, 23 SEER heat pump condenser is engineered to support up to 6 air handlers, delivering precise temperature control and comfort across multiple zones while saving space and reducing energy costs. Whether you're combating freezing winter conditions or blazing summer heat, this system is designed to perform efficiently in extreme temperatures, keeping your environment comfortable year-round.
Product Features:
-
48,000 BTU, 23 SEER Multi-Zone Heat Pump Condenser – Provides powerful and efficient heating and cooling for up to 6 air handlers.
-
Supports Up to 6 Air Handlers – Perfect for homes or buildings with multiple rooms, allowing independent temperature control for each zone.
-
Efficient Cooling in Extreme Conditions – Operates in outdoor temperatures ranging from -22°F to 122°F, ensuring reliable performance in any climate.
-
Efficient Heating in Cold Temperatures – Works efficiently in outdoor temperatures as low as -22°F and up to 75°F, providing warmth during harsh winter months.
-
Integrated Extreme Heat Technology – Features a base pan heater for additional protection and reliable operation in extreme weather.
-
Gold Fin Condenser Coil Protection – The Gold Fin full-protection coating enhances the durability and longevity of the condenser coil, preventing corrosion.
-
Ultra-Quiet Operation – Designed to operate quietly, even at the highest workload, ensuring a peaceful environment.
-
Intelligent Adaptive Inverter Technology – Adjusts automatically to deliver the optimal amount of heating or cooling, improving energy efficiency and comfort.
-
High-Efficiency Design – 23 SEER rating offers maximum energy savings and lower operating costs over the life of the unit.
-
Flexible Temperature Control – Zone-specific temperature settings allow you to heat or cool each room individually, turning off unused areas for additional energy savings.
-
Professional Installation Required – Pre-charged condenser, but requires professional installation for refrigerant management and line connections.
The ACiQ-48Z-HH-M6C is designed to be a cost-effective, efficient, and versatile solution for those seeking advanced climate control. By choosing this model, you're investing in a system that ensures year-round comfort while saving on energy costs and reducing your carbon footprint.
Note: Installation materials such as line sets, control wire, drain hose, whip, and disconnect are not included but can be purchased separately.
ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD
The ACiQ 18,000 BTU Floor or Ceiling Mounted Air Handler offers flexible installation in challenging spaces where high-wall mounting isn't possible. Its compact form and powerful airflow design make it ideal for sunrooms, attic remodels, or rooms with knee walls or below-window space. This unit can be wall-mounted close to the floor or suspended from the ceiling using an adjustable rod system, and it includes a wireless remote for intuitive control. Its whisper-quiet performance and low-profile design deliver both functionality and comfort for any interior space.
Key Features
- 18,000 BTU (cooling: 17,000 / heating: 19,000 BTU)
- Versatile installation – floor- or ceiling-mounted configuration
- Ideal for sunrooms, attics, or rooms with angled ceilings
- Maximum CFM: 576.8 with quiet operation as low as 29 dBA
- Pre-wired for condensate pump with overflow shutoff
- Wireless remote included
- R454B refrigerant – eco-friendly and efficient
- Energy Star certified
This unit is designed for creative installation solutions where traditional wall-mounted systems won’t work. Whether elevated above a windowsill or suspended from a ceiling, it provides quiet, efficient comfort.
ACiQ 24,000 BTU 2 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-24FM-HH-MD

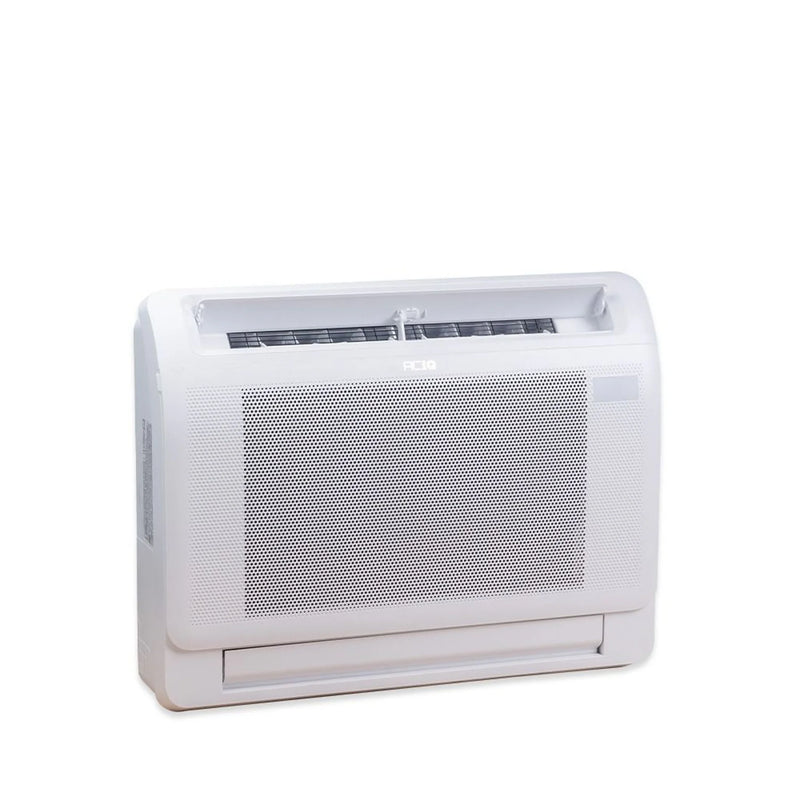

ACiQ Floor Mounted Air Handlers are an excellent HVAC solution for sun porches, attic conversions, and any room where space for traditional wall-mounted units is limited. Also known as heat console air handlers, these compact units are designed to mount low on the wall, near or directly on the floor, making them ideal for areas with low ceilings, knee walls, or minimal vertical wall space.
Their design is slightly wider, taller, and shallower than standard wall-mounted units, allowing them to fit under windows or within tight architectural features.
Key Installation Advantages:
-
Level Mounting on Angled Surfaces: Threaded rod mounting allows the unit to be perfectly level, even on angled or uneven walls commonly found in attic remodels. The adjustable rod supports installation close to the ceiling or suspended several feet below it.
-
Minimal Clearance Required: Unlike ceiling cassettes or concealed duct units that require at least 12 inches of ceiling space, ACiQ floor-mounted models can operate with just a 1-inch gap between ceiling and roof—perfect for metal buildings or three-season rooms.
-
Efficient Sunroom Integration: Mounts directly to the wall beneath windowsills, approximately 2 inches above the floor. No floor penetration is required—refrigerant lines, drain hoses, and electrical connections pass cleanly through the wall. Ideal for sunrooms with large windows and minimal wall space.
-
Smart Heating and Cooling: Draws air from the bottom and delivers it upward for effective winter heating. When used with an optional door-open sensor, the system can automatically shut off during the summer when windows or patio doors are open.
-
Optional Floor Mounting: Ideal for brick, stone, or marble surfaces where wall drilling is not feasible. All lines can run through the floor and be completely concealed. Comes pre-wired for a 240V condensate pump with overflow shutoff connections.
Note: The 18,000 and 24,000 BTU models have a slightly different appearance than the 12,000 BTU version. Both support floor or ceiling surface mounting. Please refer to the model-specific installation manual for details.
