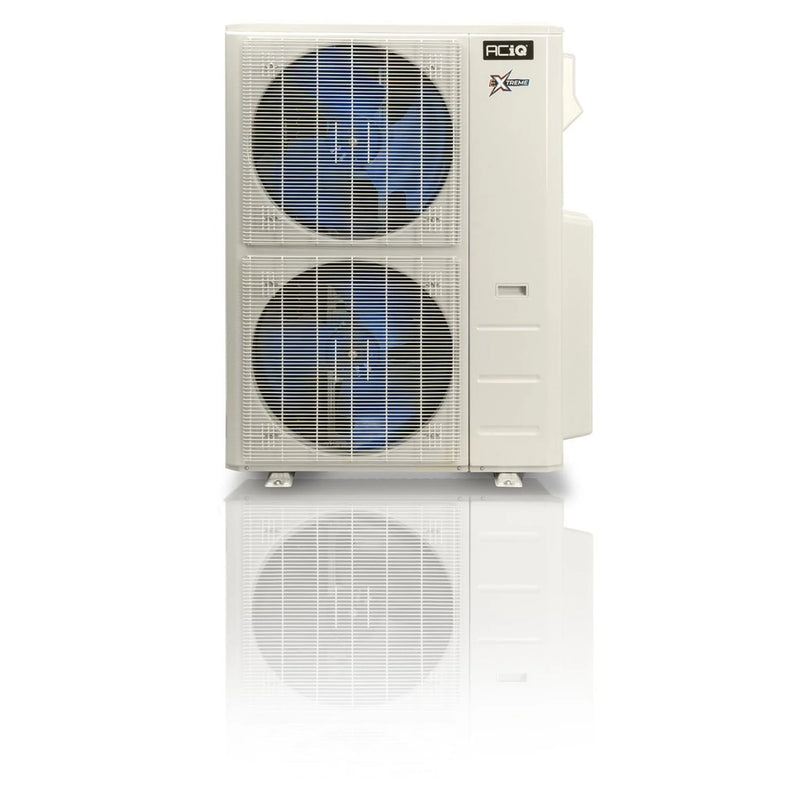

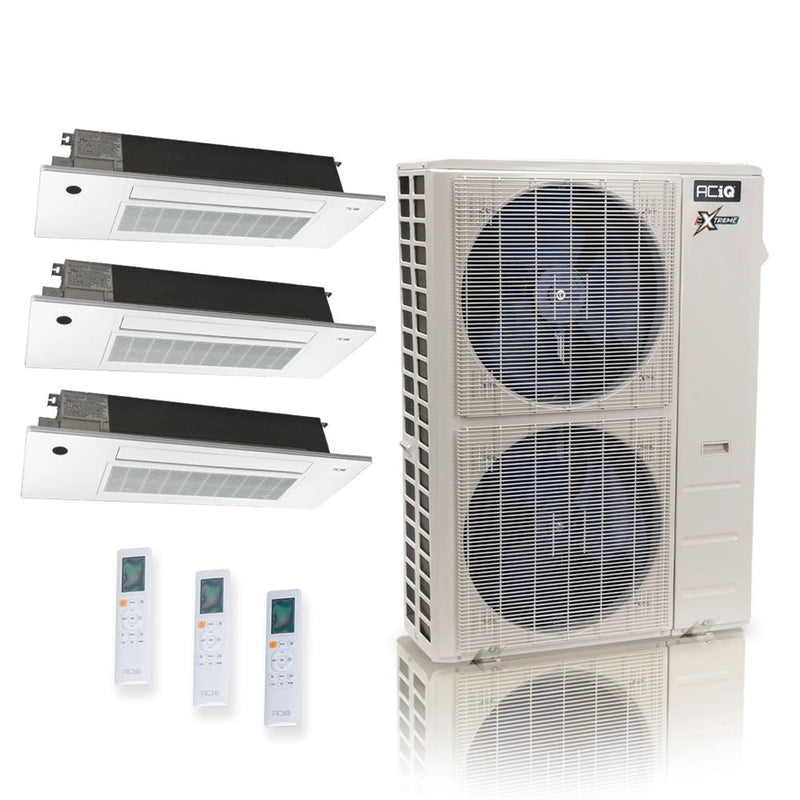

ACiQ 48,000 BTU SEER2 23 Multi Zone Condenser Extreme Series R454B 230V ACIQ-48Z-HH-M6C
The ACiQ-48Z-HH-M6C is a high-performance, energy-efficient solution for adaptive heating and cooling in homes and commercial spaces. This advanced 48,000 BTU, 23 SEER heat pump condenser is engineered to support up to 6 air handlers, delivering precise temperature control and comfort across multiple zones while saving space and reducing energy costs. Whether you're combating freezing winter conditions or blazing summer heat, this system is designed to perform efficiently in extreme temperatures, keeping your environment comfortable year-round.
Product Features:
-
48,000 BTU, 23 SEER Multi-Zone Heat Pump Condenser – Provides powerful and efficient heating and cooling for up to 6 air handlers.
-
Supports Up to 6 Air Handlers – Perfect for homes or buildings with multiple rooms, allowing independent temperature control for each zone.
-
Efficient Cooling in Extreme Conditions – Operates in outdoor temperatures ranging from -22°F to 122°F, ensuring reliable performance in any climate.
-
Efficient Heating in Cold Temperatures – Works efficiently in outdoor temperatures as low as -22°F and up to 75°F, providing warmth during harsh winter months.
-
Integrated Extreme Heat Technology – Features a base pan heater for additional protection and reliable operation in extreme weather.
-
Gold Fin Condenser Coil Protection – The Gold Fin full-protection coating enhances the durability and longevity of the condenser coil, preventing corrosion.
-
Ultra-Quiet Operation – Designed to operate quietly, even at the highest workload, ensuring a peaceful environment.
-
Intelligent Adaptive Inverter Technology – Adjusts automatically to deliver the optimal amount of heating or cooling, improving energy efficiency and comfort.
-
High-Efficiency Design – 23 SEER rating offers maximum energy savings and lower operating costs over the life of the unit.
-
Flexible Temperature Control – Zone-specific temperature settings allow you to heat or cool each room individually, turning off unused areas for additional energy savings.
-
Professional Installation Required – Pre-charged condenser, but requires professional installation for refrigerant management and line connections.
The ACiQ-48Z-HH-M6C is designed to be a cost-effective, efficient, and versatile solution for those seeking advanced climate control. By choosing this model, you're investing in a system that ensures year-round comfort while saving on energy costs and reducing your carbon footprint.
Note: Installation materials such as line sets, control wire, drain hose, whip, and disconnect are not included but can be purchased separately.

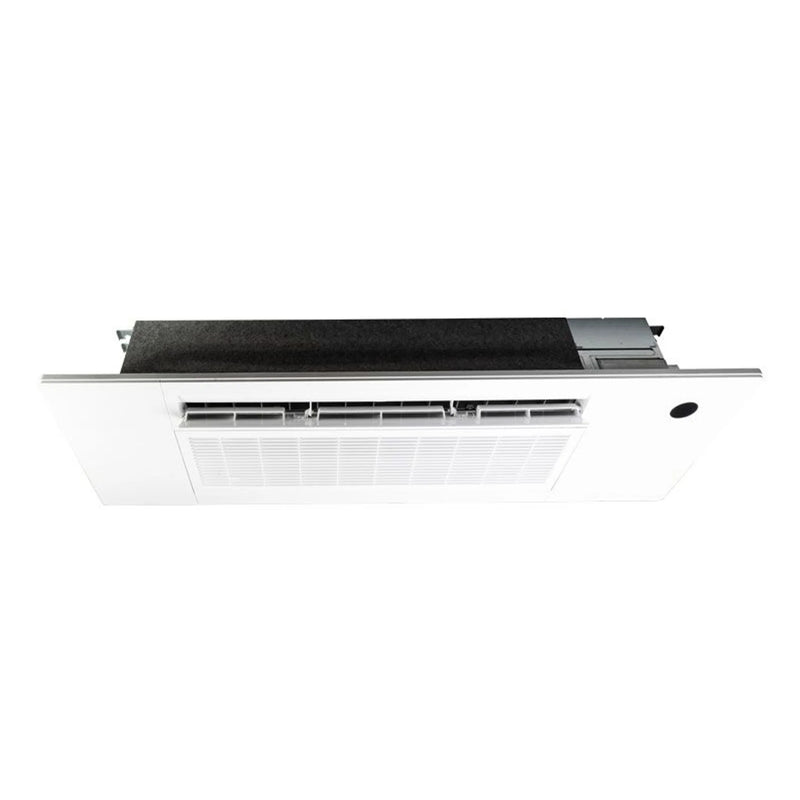

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB
The ACiQ Slim Ceiling Cassette is designed to provide efficient heating and cooling in a compact, low-profile form that fits between 16-inch on-center ceiling joists. With one-way airflow, a clean ceiling-mounted design, and compatibility with ACiQ multi-zone systems, this cassette offers the performance of a traditional mini split indoor unit while remaining discreet and space-saving. It supports 6,000, 9,000, and 12,000 BTU applications and includes a dip switch for adjusting capacity. Using environmentally friendly R-454B refrigerant, the Slim Cassette delivers reliable comfort with a minimal appearance and easy ceiling integration.
Key Features
- Fits between 16-inch on-center joists for easier installation
- Rated for 6K, 9K, and 12K BTU; dip switch adjustable
- One-way airflow design with discreet ceiling-mounted appearance
- No-ladder filter access with lowering grille system
- Handheld remote control included
- Decorative grille included for a clean, modern look
- Uses environmentally friendly R-454B refrigerant
- Compatible with ACiQ multi-zone condensers
ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB
The ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB offers the advantages of a traditional cassette in a slimmer profile that fits between 16”-on-center joists, making installation easier in many cases. This air handler provides high-efficiency heating and cooling with a one-way air delivery system for a sleek and understated appearance.
Key Features
- Narrow profile fits between 16 inch-on-center joists
- Switchable size – select between 12,000 BTU and 18,000 BTU
- No-ladder filter cleaning – grille lowers on cables for easy access to filter
- Handheld remote included
- Decorative Grille included
Installation of the Slim Ceiling Cassette requires flush-mounting and may involve constructing a PVC drain system for condensation. The unit comes with a factory-installed condensate pump and has the same refrigerant and wiring connections as wall-mounted units.
