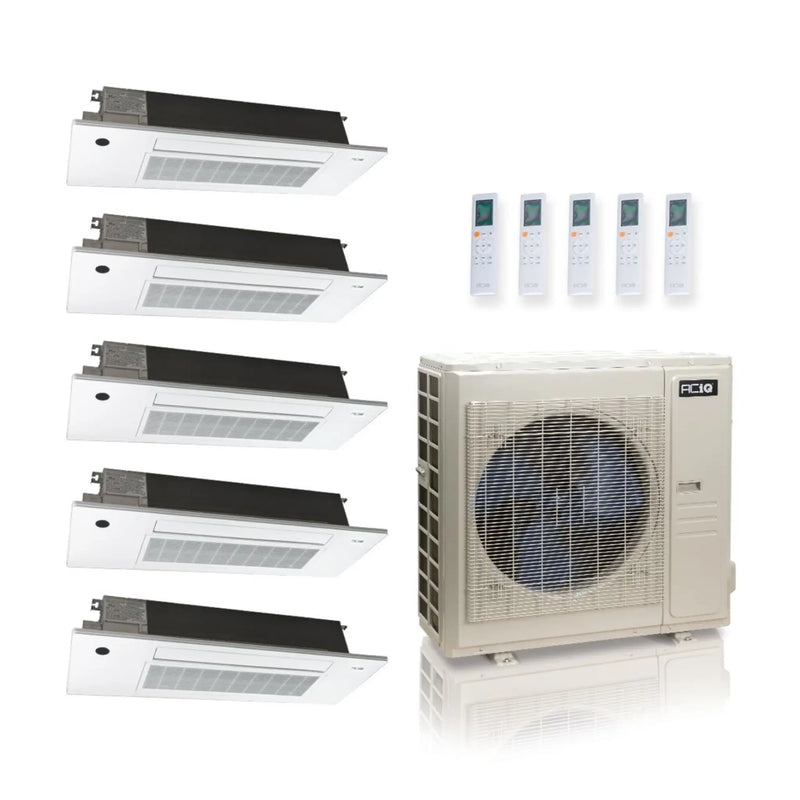

ACiQ 48K BTU 24 SEER2 5-Zone Slim Ceiling Cassette Mini Split R454B 230V 9+12+12+12+18

Name: ACiQ 48K BTU 24 SEER2 5-Zone Slim Ceiling Cassette Mini Split R454B 230V 9+12+12+12+18
Brand: ACiQ
SKU: ES-48Z-M6C
Price: 8479.99 USD
Availability: InStock

By ACiQ | Model: ES-48Z-M6C / SCC-09-HH-MB / SCC-12-HH-MB-3 / SCC-18-HH-MB | ID: 91700

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$8,479.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

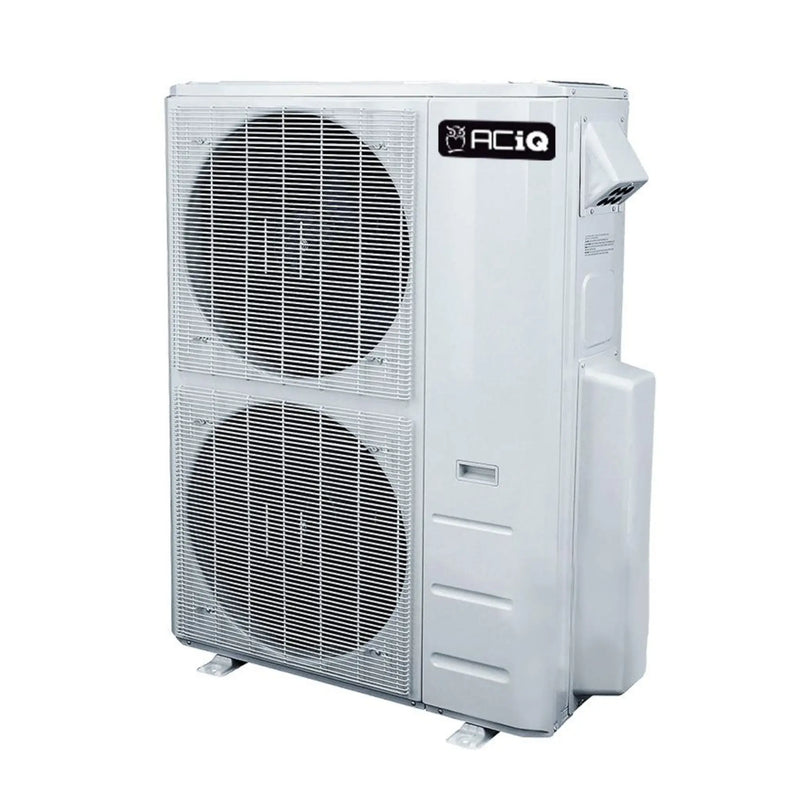

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 6 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

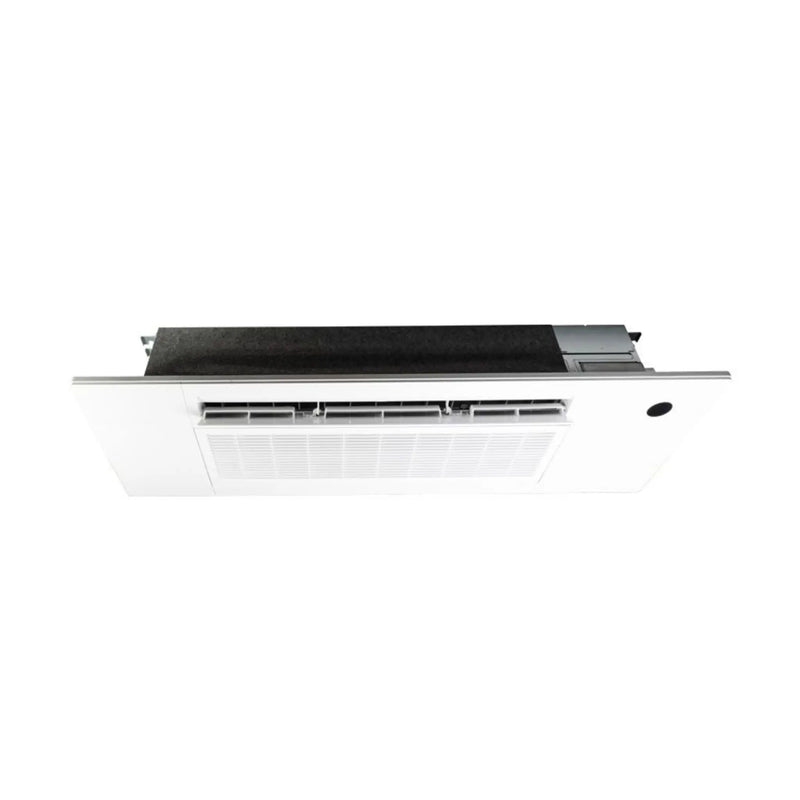

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x4

The ACiQ Slim Ceiling Cassette is designed to provide efficient heating and cooling in a compact, low-profile form that fits between 16-inch on-center ceiling joists. With one-way airflow, a clean ceiling-mounted design, and compatibility with ACiQ multi-zone systems, this cassette offers the performance of a traditional mini split indoor unit while remaining discreet and space-saving. It supports 6,000, 9,000, and 12,000 BTU applications and includes a dip switch for adjusting capacity. Using environmentally friendly R-454B refrigerant, the Slim Cassette delivers reliable comfort with a minimal appearance and easy ceiling integration.

Key Features

Fits between 16-inch on-center joists for easier installation
Rated for 6K, 9K, and 12K BTU; dip switch adjustable
One-way airflow design with discreet ceiling-mounted appearance
No-ladder filter access with lowering grille system
Handheld remote control included
Decorative grille included for a clean, modern look
Uses environmentally friendly R-454B refrigerant
Compatible with ACiQ multi-zone condensers

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB

The ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB offers the advantages of a traditional cassette in a slimmer profile that fits between 16”-on-center joists, making installation easier in many cases. This air handler provides high-efficiency heating and cooling with a one-way air delivery system for a sleek and understated appearance.

Key Features

Narrow profile fits between 16 inch-on-center joists
Switchable size – select between 12,000 BTU and 18,000 BTU
No-ladder filter cleaning – grille lowers on cables for easy access to filter
Handheld remote included
Decorative Grille included

Installation of the Slim Ceiling Cassette requires flush-mounting and may involve constructing a PVC drain system for condensation. The unit comes with a factory-installed condensate pump and has the same refrigerant and wiring connections as wall-mounted units.

View More 5 Zone Mini Splits

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Brand	ACiQ	SKU	ES-48Z-M6C
Replaces	ES-48Z-M5B	SEER2	24
HSPF2	10.3	Cooling BTU	47000 BTU
Heating BTU	48000 BTU	Maximum CFM	4503
Decibel Level (dBA)	63	Electric Heat	Heat Pump
Refrigerant	R454B	Compressor Type	Rotary
Liquid Line	1/4" (6)	Suction Line	3/8" (4); 1/2" (2)
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
Max Breaker Size	60 A	Min. Breaker Size	40 A
Tonnage	4 Ton	BTU/Tonnage	48,000 BTU/4 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Height	52.48"	Width	37.48"
Depth	16.34"	Warranty	12 year compressor, 7 year parts with online registration

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x4

Brand	ACiQ	SKU	SCC-0612-HH-MB
BTU	6,000 / 9,000 / 12,000	Weight (in lbs)	82.45
Manufacturer	ACiQ	Controller	Wireless Included
Heating BTU	6,000 / 9,000 / 12,000	Maximum CFM	Up to 353.20 CFM
Decibel Level (dBA)	As low as 24.0 Decibels	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V, 1 Phase, 60Hz	Phase	Single Phase
Mini Split Type	Slim Ceiling Cassette	Zone Compatibility	Multi Zone, Single Zone
Height	8.98"	Width	50.31"
Depth	13.19"	Warranty	12 year compressor, 7 year parts with online registration

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB

Brand	ACiQ	SKU	SCC-18-HH-MB
Cooling BTU	16700 BTU	Heating BTU	20000 BTU
Maximum CFM	400	Decibel Level (dBA)	35
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Ceiling Cassette	Zone Compatibility	Multi Zone
Height	8.98"	Width	50.31"
Depth	13.19"	Warranty	12 year compressor, 7 year parts with online registration

Warranty

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years
Registered Warranty	7 years	12 years

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x4

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

Documents

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Brochure

Installation and Owner's Manual

Service Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB x4

6K-AHRI Certificate

9K-AHRI Certificate

12K-AHRI Certificate

Warranty Information

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB

Installation & Owner's Manual

Warranty Information
