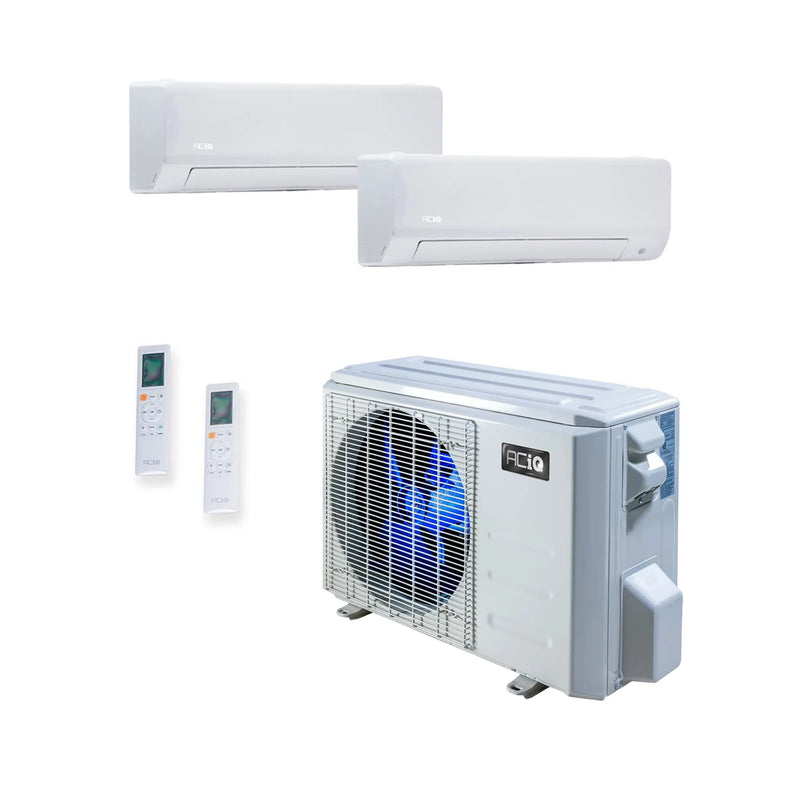

ACiQ 48K BTU 24 SEER2 Wall Mount Mini Split System 2-Zone R454B 230V 9+24

Name: ACiQ 48K BTU 24 SEER2 Wall Mount Mini Split System 2-Zone R454B 230V 9+24
Brand: ACiQ
SKU: ES-48Z-M6C ACIQ-09W-HH-MD ACIQ-24W-HH-MD
Price: 6231.3 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-48Z-M6C ACIQ-09W-HH-MD ACIQ-24W-HH-MD | ID: 89044

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$6,231.30 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

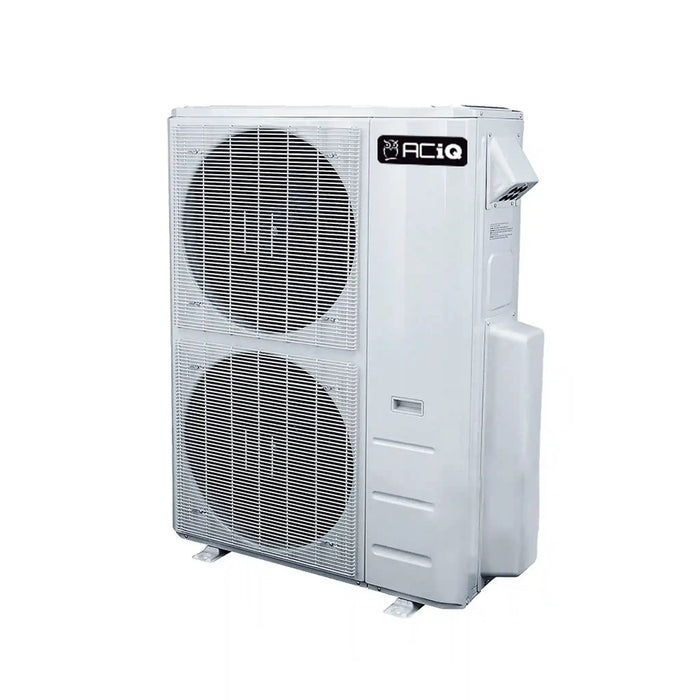

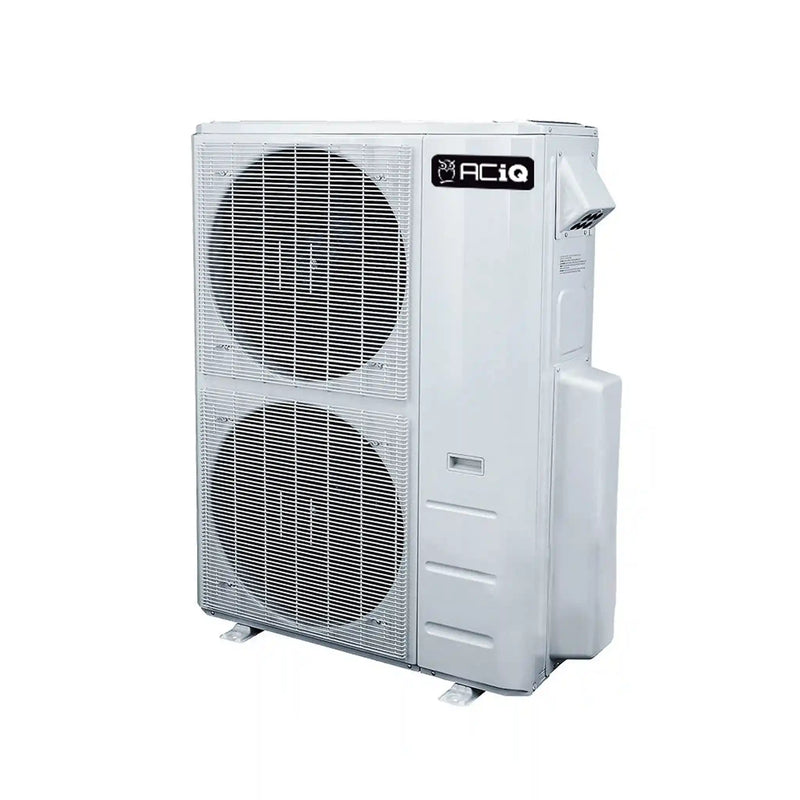

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 6 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

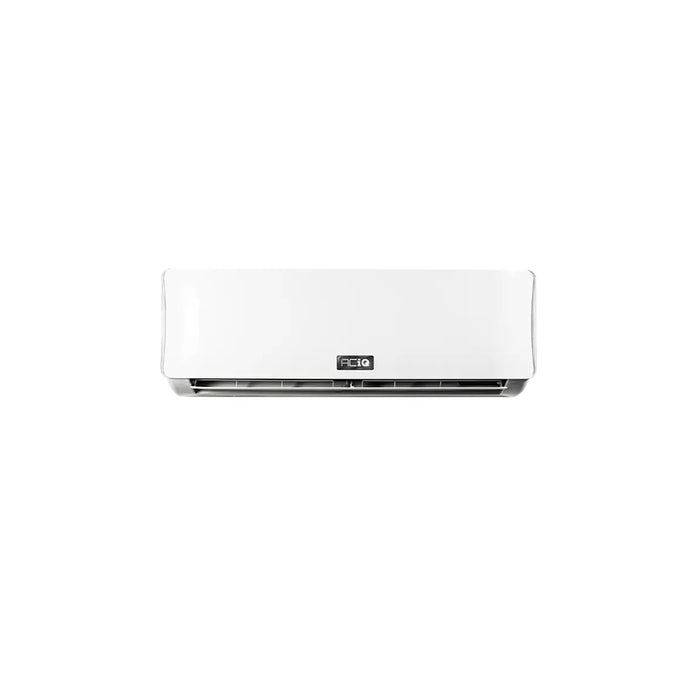

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser to create an efficient Hyper Heat system. Equipped with adaptive technology, it monitors and maintains your ideal temperature regardless of external weather conditions.

Key Features

9,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board with error code display, and a smart remote with LCD display. It is WiFi ready and compatible with Amazon Alexa and Google Assistant for convenient control.

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

The 24,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance and can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser for a highly efficient Hyper Heat system. This air handler is ideal for small to medium sized rooms, utilizing adaptive technology to monitor and maintain your desired temperature regardless of external weather conditions.

Key Features

24,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACIQ-24W-HH-MD air handler features a soft LED display for easy monitoring and self-diagnosing control board for error notifications. This unit is WiFi ready, allowing control via smart devices and voice assistants like Amazon Alexa and Google Assistant. Please note that installation with a condenser and other equipment is required for proper functionality.

View More 2 Zone Mini Splits

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Brand	ACiQ	SKU	ES-48Z-M6C
Replaces	ES-48Z-M5B	SEER2	24
HSPF2	10.3	Cooling BTU	47000 BTU
Heating BTU	48000 BTU	Maximum CFM	4503
Decibel Level (dBA)	63	Electric Heat	Heat Pump
Refrigerant	R454B	Compressor Type	Rotary
Liquid Line	1/4" (6)	Suction Line	3/8" (4); 1/2" (2)
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
Max Breaker Size	60 A	Min. Breaker Size	40 A
Tonnage	4 Ton	BTU/Tonnage	48,000 BTU/4 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Height	52.48"	Width	37.48"
Depth	16.34"

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Brand	ACiQ	SKU	ACIQ-09W-HH-MD
Cooling BTU	9000 BTU	Heating BTU	10000 BTU
Maximum CFM	335.29	Decibel Level (dBA)	38
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	23-24	SEER2	22.3
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Length	33.40"	Height	11.76"
Depth	9.18"	Replaces	N/A

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

Brand	ACiQ	SKU	ACIQ-24W-HH-MD
Weight	39.680000	Product Features	Low Ambient Heating, WiFi
Cooling BTU	24000 BTU	Heating BTU	24000 BTU
Maximum CFM	611.18	Decibel Level (dBA)	44
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	18-20	Liquid Line	3/8"
Suction Line	5/8"	Electrical	208/230V 1 Phase 60 Hz
BTU/Tonnage	24,000 BTU/2 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Length	46.85"
Height	14.59"	Depth	11.20"

Warranty

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Brochure

Installation and Owner's Manual

Service Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Submittal

Remote Control Manual

Installation & Owner's Manual

Wi-Fi Manual

Warranty Information

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

Remote Control Manual

Submittal

Installation & Owner's Manual

Wi-Fi Manual

Warranty Information
