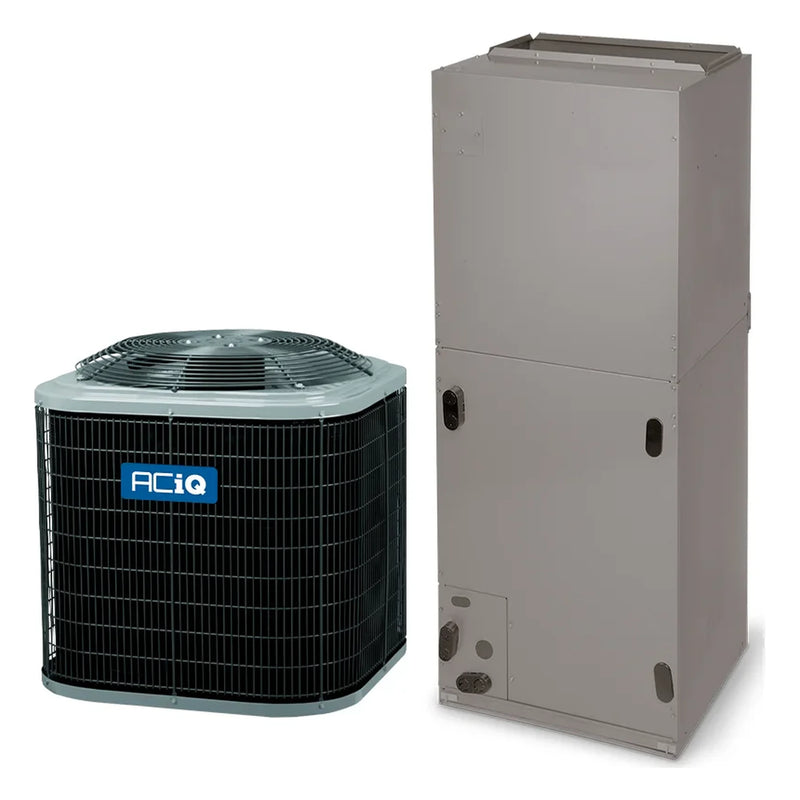

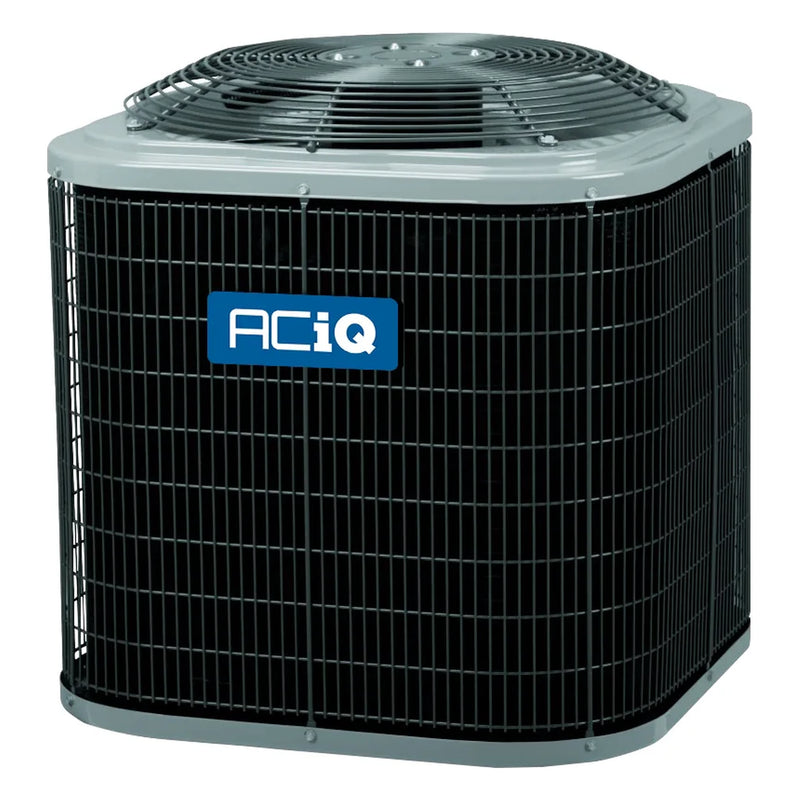

ACiQ 5 Ton Air Conditioner Condenser 13.4 SEER2 R454B R5A4S60AKANA
The ACiQ R5A4S60AKANA is a reliable and cost-effective 5 ton central air conditioner condenser, ideal for cooling large homes or zones in moderate climates. Engineered for energy efficiency and dependable performance, this AC-only outdoor unit is a smart choice for homeowners seeking long-lasting comfort at a competitive price. With its 13.4 SEER2 rating and pre-charged refrigerant design, it simplifies installation while reducing long-term energy costs.
Key Features and Benefits:
-
5 Ton Cooling Capacity
Effectively cools large homes or zones in average climates with consistent and efficient performance.
-
13.4 SEER2 Energy Efficiency Rating
Offers up to 7% improved efficiency over standard 13 SEER models, helping lower monthly utility bills.
-
Single Stage Compressor
Provides reliable, steady cooling with a simplified design for long-term durability and lower maintenance.
-
Pre-Charged with R-454B Refrigerant
Comes factory pre-charged for a 15-foot line set, ensuring quick, accurate installation and optimal performance.
-
Includes Filter Drier for Field Installation
Enhances system protection by removing moisture and contaminants, promoting longer equipment life.
-
Durable, Reinforced Cabinet Design
Built to last with reinforced corner posts and a protective inlet grille to guard internal components.
-
10-Year Limited Parts Warranty
Backed by a comprehensive parts warranty when installed according to local codes and registered online.
-
Ideal for Residential Cooling Applications
A dependable, efficient cooling solution for homeowners not requiring integrated heating.
Note: This unit is not eligible for installation in the following states due to SEER2 compliance regulations: AL, AZ, AR, CA, DE, FL, GA, KY, LA, MD, MS, NV, NM, NC, OK, SC, TN, TX, and VA.
Installation Requirements
This condenser must be paired with a compatible indoor coil or air handler to operate. It does not provide heating capabilities. For maximum performance and to maintain warranty eligibility, professional installation following all local and state codes is required.

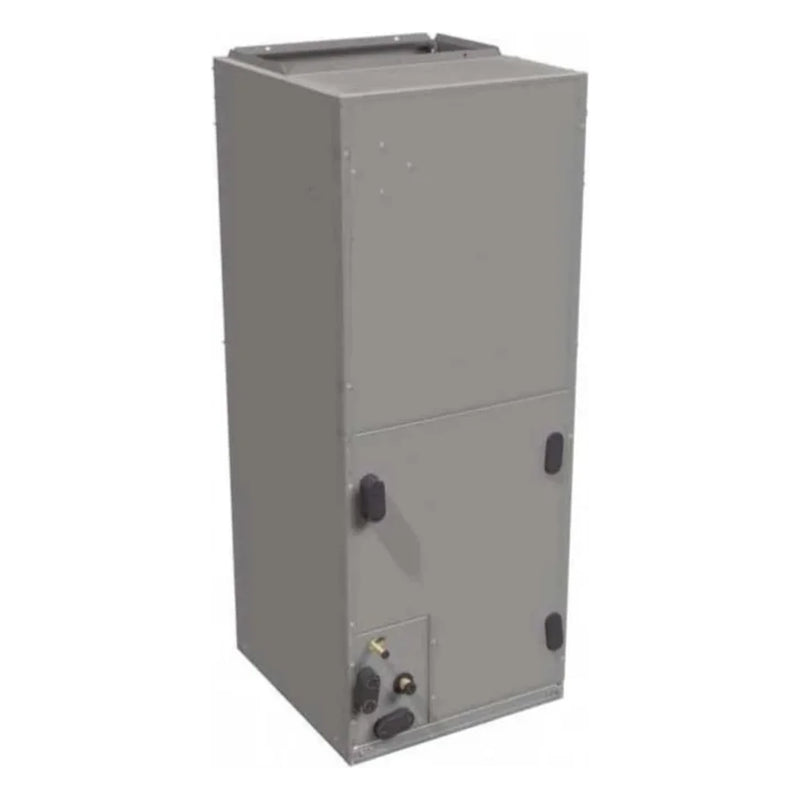

ACiQ 5 Ton Air Handler Multi-Positional 24 11/16" Width With TXV R454B FHMA5B60L0DA
The ACiQ FHMA5B60L0DA is a 5 ton multi-positional air handler built around a multi-tap 5-speed ECM blower motor and a factory-installed TXV kit. It is compatible with both AC-only and heat pump condensers and can be installed upflow, downflow, or horizontally.
Rated for up to 1,750 CFM of airflow with a 3/4 HP blower motor, this air handler ships with a fully insulated cabinet and supports optional 5-20 kW electric backup heat for supplemental or emergency heating.
Key Features and Benefits:
-
5 Ton Multi-Positional Design
Installs upflow, downflow, or horizontal.
-
Multi-Tap 5-Speed ECM Blower
Delivers up to 1,750 CFM with a 3/4 HP motor.
-
Factory-Installed TXV Kit
Optimizes refrigerant metering for efficiency.
-
Optional Electric Backup Heat
Supports 5-20 kW heat kits for supplemental heating.
-
Compatible with AC-Only and Heat Pump Condensers
Flexible matchup for a wide range of systems.
-
Fully Insulated Cabinet
Reduces sound and improves energy efficiency.
Installation Requirements
This air handler must be paired with a compatible outdoor condenser to operate; electric heat strips are sold separately unless otherwise noted. Disclaimer: This unit is compatible with R454B refrigerant systems, which are classified as A2L. To comply with safety standards, this unit must be paired with an R454B condenser and system equipped with a leakage detection system where required. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.
