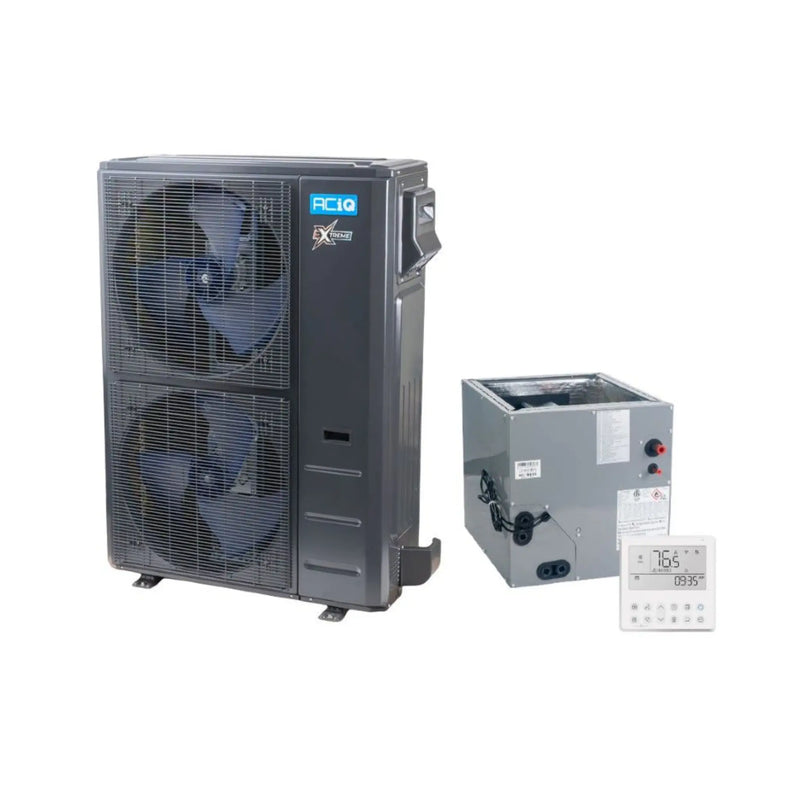

ACiQ 5 Ton 15.2 SEER2 Heat Pump Cased Coil Multi-Positional Inverter R454B

Name: ACiQ 5 Ton 15.2 SEER2 Heat Pump Cased Coil Multi-Positional Inverter R454B
Brand: ACiQ
SKU: ACIQ-60-HPD
Price: 4895.0 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By ACiQ | Model: ACIQ-60-HPD / ACIQ-60-ACL-B | ID: 90790

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,895.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

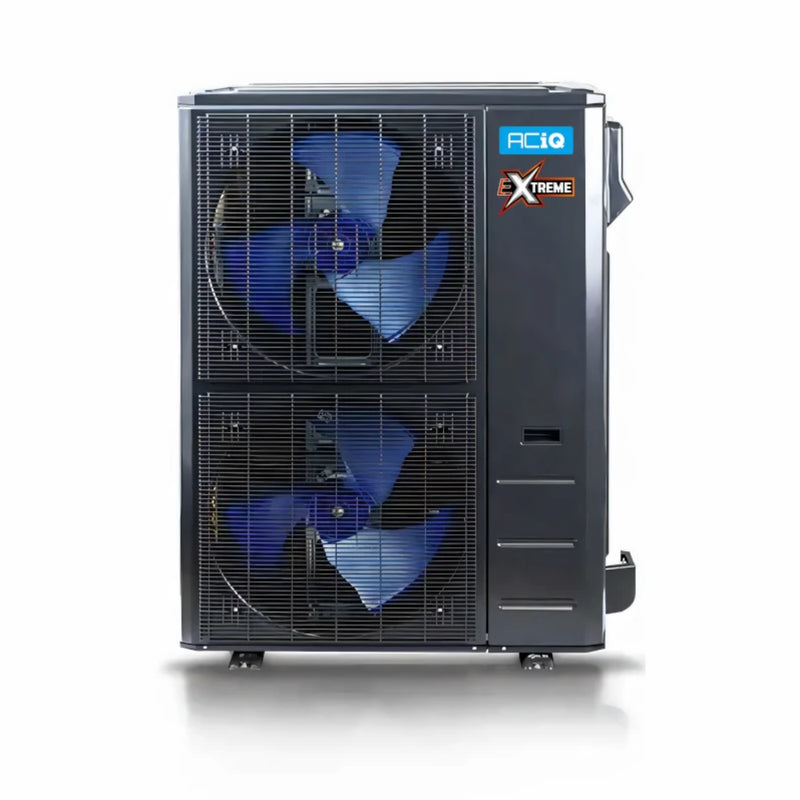

ACiQ 5 Ton 16 SEER2 Central Heat Pump Inverter Extreme Series R454B ACiQ-60-HPD

The ACiQ 5 Ton Extreme Series heat pump combines powerful performance with advanced inverter technology for energy-efficient, year-round comfort. With a 16 SEER2 rating, it intelligently adjusts output based on demand, ensuring optimal heating and cooling in any weather. Engineered for extreme temperatures and using eco-friendly R454B refrigerant, it’s the perfect high-capacity solution for larger homes or spaces.

Key Features

5 Ton Capacity with Variable BTU Output
Intelligent inverter technology delivers 12,000–54,000 BTU cooling and 12,000–56,000 BTU heating, adjusting performance based on real-time demand.
Advanced Inverter Technology
Converts AC to DC power to enable compressor modulation speeds up or slows down based on conditions, maximizing comfort and energy savings.
Smart Learning Condenser
Built-in sensors monitor air temperature, refrigerant pressure, duct performance, and more, entering a learning mode during startup to optimize future operation and efficiency.
Adaptive Sizing for Year-Round Comfort
Self-adjusting inverter design scales output to match heating or cooling needs, eliminating overcooling and high humidity during summer when sized for winter performance.
Extreme Heat Technology for Cold Climates
Provides 100% heating at 0°F and up to 80% capacity at -22°F, significantly reducing the need for electric backup heat and cutting cold-weather heating costs by up to 75%.
Eco-Friendly R454B Refrigerant
Runs on R454B refrigerant, supporting low global warming potential (GWP) and future-ready environmental standards.
All-Climate Performance
Efficiently cools in temperatures from -22°F to 122°F and heats from -22°F to 75°F, perfect for both extreme heat and freezing winters.
Durable Gold Fin Condenser Coil
Features gold fin anti-corrosion coating for extended system life and resistance against harsh weather conditions.
Ultra-Quiet Operation
Engineered for low-noise performance, even under high workloads, ensuring a peaceful indoor environment.
Ideal for Central Ducted HVAC Systems
Designed for integration into standard ducted applications, making it perfect for large homes or commercial properties.

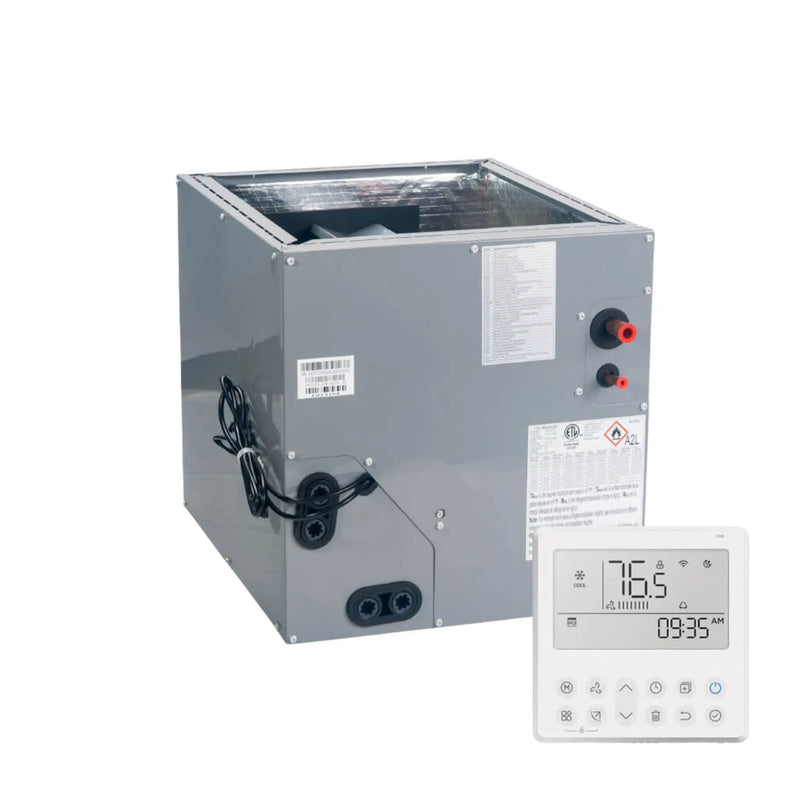

ACiQ 5 Ton Evaporator Coil Cased Multi-Positional With TXV 24.5"W R454B ACIQ-60-ACL-B

ACiQ takes pride in delivering high-quality HVAC systems, with every component designed for long-lasting performance. The ACiQ-60-ACL-B multi-positional A-coil is engineered to provide exceptional efficiency and flexibility for a wide range of applications. With its factory-integrated TXV kit, this evaporator coil ensures maximum energy optimization and superior performance. Its durable, compact design and versatile installation options make it the perfect choice for homeowners seeking reliable comfort and energy savings.

Key Features

5 ton multi-positional evaporator coil - ideal for diverse HVAC configurations
Works in almost any upflow, downflow, or horizontal system setup - providing versatile installation options
Compatible with both AC-only and heat pump condensers - ensuring system flexibility
Factory-installed TXV kit - enhances system efficiency and energy optimization
Sturdy and compact design - built for durability and space efficiency
Rated up to 5 tons of heating and cooling capacity - ideal for residential or light commercial use
Can be paired with AC-only or heat pump condensers - improving overall system performance
Ensures superior indoor comfort - optimized for long-term, energy-efficient operation

Please note - The ACiQ-60-ACL-B coil cannot operate independently and must be paired with a compatible condenser and blower or furnace, each available separately. In some configurations, this coil may be larger than its paired condenser to improve efficiency, but it should never be smaller than the condenser it supports.

View More Coil Systems

Specifications

ACiQ 5 Ton 16 SEER2 Central Heat Pump Inverter Extreme Series R454B ACiQ-60-HPD

Brand	ACiQ	SKU	ACiQ-60-HPD
Refrigerant Charge	25'	Weight	275.13
Replaces	ACiQ-60-HPB	Product Features	Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser
HSPF2	9.0	Cooling BTU	55,000 BTU
Heating BTU	59,000 BTU	Maximum CFM	1807
Decibel Level (dBA)	65	Electric Heat	Heat Pump
Refrigerant	R454B	SEER2	16
Condenser Stages	Variable Speed	Compressor Type	Rotary
Liquid Valve Size	3/8"	Suction Valve Size	3/4"
Electrical	208/230V 1 Phase 60 Hz	Max Breaker Size	40 Amps
Min. Breaker Size	40 Amps	Tonnage	5 Ton
BTU/Tonnage	60,000 BTU/5 Ton	Min/Max Outdoor Temp for Heating	-22°F - 75°F
Min/Max Outdoor Temp for Cooling	-22°F - 122°F	Ambient Temperature Range	-22°F - 122°F
Height	58.3"	Width	37.5"
Depth	16.3"	Warranty	12 Years Compressor and 7 Years Parts with Online Registration

ACiQ 5 Ton Evaporator Coil Cased Multi-Positional With TXV 24.5"W R454B ACIQ-60-ACL-B

Brand	ACiQ	SKU	ACIQ-60-ACL-B
Tonnage	5 Ton	Weight	92 lbs
Manufacturer	ACiQ	Configuration	Multi-Positional
Refrigerant	R454B	Liquid Line	3/8"
Suction Line	3/4"	Style	A-Coil
Certification	UL Listed	Height	28"
Width	24 1/2"	Depth	21"
Warranty	10 Years Parts Warranty with Online Registration

Warranty

ACiQ 5 Ton 16 SEER2 Central Heat Pump Inverter Extreme Series R454B ACiQ-60-HPD

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

ACiQ 5 Ton Evaporator Coil Cased Multi-Positional With TXV 24.5"W R454B ACIQ-60-ACL-B

Warranty Type	Parts
Standard Warranty	5 years
Registered Warranty	10 years

Documents

ACiQ 5 Ton 16 SEER2 Central Heat Pump Inverter Extreme Series R454B ACiQ-60-HPD

HPD Installation Manual

HPD Service Manual

ACiQ 5 Ton Evaporator Coil Cased Multi-Positional With TXV 24.5"W R454B ACIQ-60-ACL-B

Submittal with ACiQ-48-EHPD

Submittal with ACiQ-48-HPD

Submittal with ACiQ-60-EHPD

Submittal with ACiQ-60-HPD

ACiQ ACL-B Coil Installation Manual

ACiQ ACL-B Coil Service Manual

60K ACL-B Extended Performance Table with ACiQ-48-EHPD

60K ACL-B Extended Performance Table with ACiQ-48-HPD

60K ACL-B Extended Performance Table with ACiQ-60-EHPD

60K ACL-B Extended Performance Table with ACiQ-60-HPD

EHPD / HPD / ACL-B / ACL-14-B / ACL-17-B Nominal Capacity Performance Chart

AHRI Certificate with ACiQ-48-EHPD

AHRI Certificate with ACiQ-48-HPD

AHRI Certificate with ACiQ-60-EHPD

AHRI Certificate with ACiQ-60-HPD
