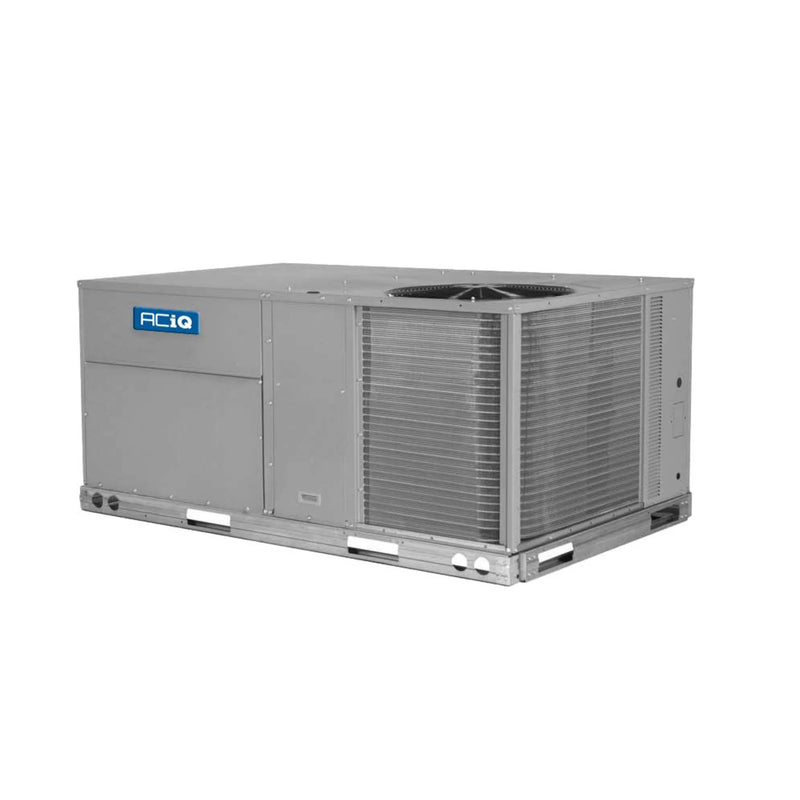

ACiQ RGV060HFFA0AAA

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 230V 3-Ph R410A

By ACiQ | Model: RGV060HFFA0AAA | ID: 90116
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$12,975.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 230V 3-Ph R410A RGV060HFFA0AAA

The ACiQ RGV060HFFA0AAA 5 Ton gas/electric packaged rooftop unit is designed for performance, efficiency, and long-term durability. Featuring advanced X-Vane Fan Technology, this unit delivers 58,500 BTUs of cooling and 150,000 BTUs of heating capacity with 80% AFUE efficiency. Built for easy maintenance and field flexibility, it includes a scroll compressor, ECM-driven vane axial fan, and intuitive onboard controls. It runs on 208/230V three-phase power and comes pre-charged with environmentally friendly R-410A refrigerant. This model is Carrier-equivalent to 48FCFA06A2A5-0A0A0 and ideal for commercial or light-industrial installations.

Key Features

  • 5 Ton cooling capacity with 13.4 SEER2 and 11.0 EER ratings
  • 150,000 BTU heating capacity at 80% AFUE efficiency
  • Two-stage burner operation for enhanced heating performance
  • Direct drive vane axial fan with ECM motor – no belts or pulleys
  • Scroll compressor with internal line-break protection
  • Reliable copper tube/aluminum fin coil with reduced refrigerant charge
  • High-impact composite fan blade for quiet outdoor operation
  • Field-convertible to horizontal airflow for installation flexibility
  • Simple electrical and gas hookup with single-point connection
  • Pre-charged with R-410A refrigerant for quick startup
  • Designed to fit existing roof curbs back to 1989
  • Upgraded control board with intuitive rotary fan setup

With its rugged design and thoughtful access for service, the RGV060HFFA0AAA is the smart choice for school buildings, commercial offices, and retail applications looking for comfort, performance, and long-term value.

View More Commercial Packaged Units

Specifications

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 230V 3-Ph R410A RGV060HFFA0AAA

Brand ACiQ SKU RGV060HFFA0AAA
Refrigerant Charge Pre-Charged Weight 556
Carrier 48FCFA06A2A5-0A0A0 Furnace Efficiency / AFUE 80%
Cooling BTU 58,500 BTU Heating BTU 150,000 BTU
Drive Type Direct Maximum CFM 2780
Decibel Level (dBA) 79 Decibels Refrigerant R410A
SEER 14-15 SEER2 13.4
EER 11 Condenser Stages Single Stage
Compressor Type Scroll Electrical 208/230v 3 Phase 60 Hz
Electric Phase Filter Three Phase Tonnage 5 Ton
Burner Stages Two Height 33 3/8"
Width 46 5/8" Depth 74 3/8"
Warranty 10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Warranty

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 230V 3-Ph R410A RGV060HFFA0AAA

Warranty Type Parts Compressor Heat Exchanger
Standard Warranty 1 Year 5 Years 10 Years
Registered Warranty 1 Year 5 Years 10 Years
Documents

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 230V 3-Ph R410A RGV060HFFA0AAA

RGV Installation Manual

RGV Specifications Sheet

ACiQ Owner's Manual

ACiQ Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
