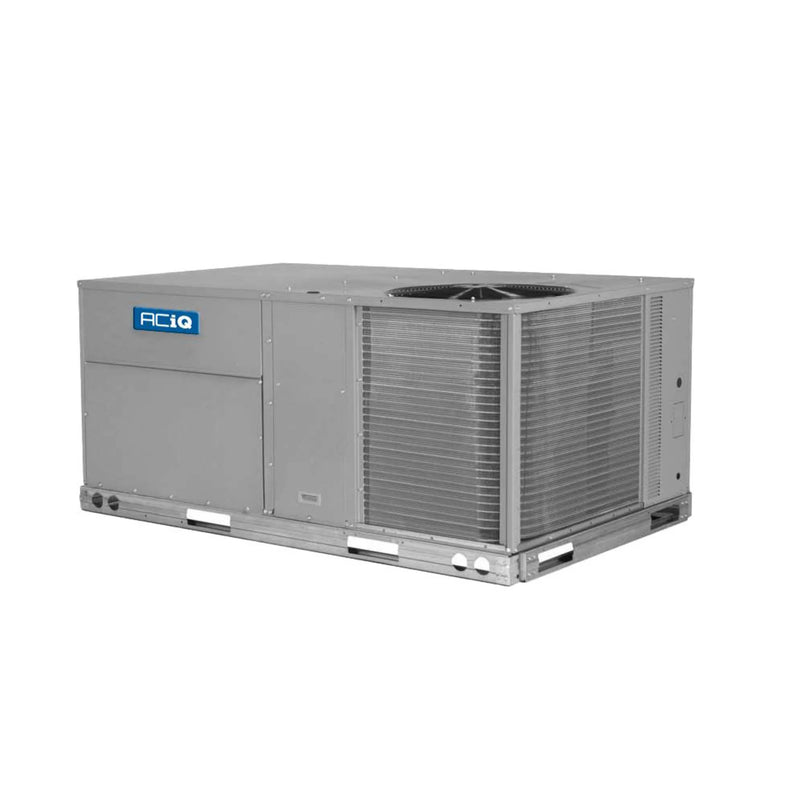

ACiQ RGF060LF2A0AAA

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 460V 3-Ph R454B

By ACiQ | Model: RGF060LF2A0AAA | ID: 90102
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$9,450.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 460V 3-Ph R454B RGF060LF2A0AAA

The ACiQ RGF060LF2A0AAA is a powerful 5 Ton gas/electric rooftop packaged unit engineered with X-Vane Fan Technology for superior airflow efficiency and reduced energy usage. Delivering 58,500 BTUs of cooling and 150,000 BTUs of heating at 80% AFUE, this model is equipped with R-454B refrigerant, a direct-drive ECM motor, and a single-stage scroll compressor for dependable performance. Ideal for medium static and high heat commercial applications, this unit replaces Carrier model 48FCFA06A2A6-0A0A0 and is pre-charged and ready for quick installation.

Key Features

  • 5 Ton capacity with 13.4 SEER2 and 11.0 EER for optimized energy performance
  • Delivers up to 150,000 BTUs of gas heating with 80% efficiency
  • Single-stage scroll compressor ensures reliable, quiet operation
  • Direct-drive vane axial fan with ECM motor eliminates need for belts
  • Factory pre-charged with eco-friendly R-454B refrigerant
  • Medium static pressure configuration designed for commercial rooftop use
  • Fully field-convertible to horizontal airflow to fit unique install needs
  • Intuitive control board with indoor fan adjustments and diagnostics
  • Composite drain pan prevents corrosion and shedding water efficiently
  • Sound rating of 79 dBA for quieter operation

The RGF060LF2A0AAA offers value, performance, and long-term serviceability. It’s a top choice for installers seeking drop-in replacements compatible with older Carrier curbs.

View More Commercial Packaged Units

Specifications

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 460V 3-Ph R454B RGF060LF2A0AAA

Brand ACiQ SKU RGF060LF2A0AAA
Refrigerant Charge Pre-Charged Weight 556.000000
Equivalent Carrier Equivalent: 48FCFA06A2A6-0A0A0 Furnace Efficiency / AFUE 80%
Cooling BTU 58,500 BTU Heating BTU 150,000 BTU
Drive Type Direct Maximum CFM 2500
Decibel Level (dBA) 79 Decibels Refrigerant R454B
SEER 14-15 SEER2 13.4
EER 11.0 Condenser Stages Single Stage
Compressor Type Scroll Electrical 460v 3 Phase 60 Hz
Electric Phase Filter Three Phase Tonnage 5 Ton
Burner Stages Single Height 33 3/8"
Width 46 5/8" Depth 74 3/8"
Warranty 10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Warranty

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 460V 3-Ph R454B RGF060LF2A0AAA

Warranty Type Parts Compressor Heat Exchanger
Standard Warranty 1 Year 5 Years 10 Years
Registered Warranty 1 Year 5 Years 10 Years
Documents

ACiQ 5 Ton 150K BTU 13.4 SEER2 Gas Commercial Packaged Unit 460V 3-Ph R454B RGF060LF2A0AAA

RGF Installation Manual

RGF Specifications Sheet

ACiQ Warranty Information
