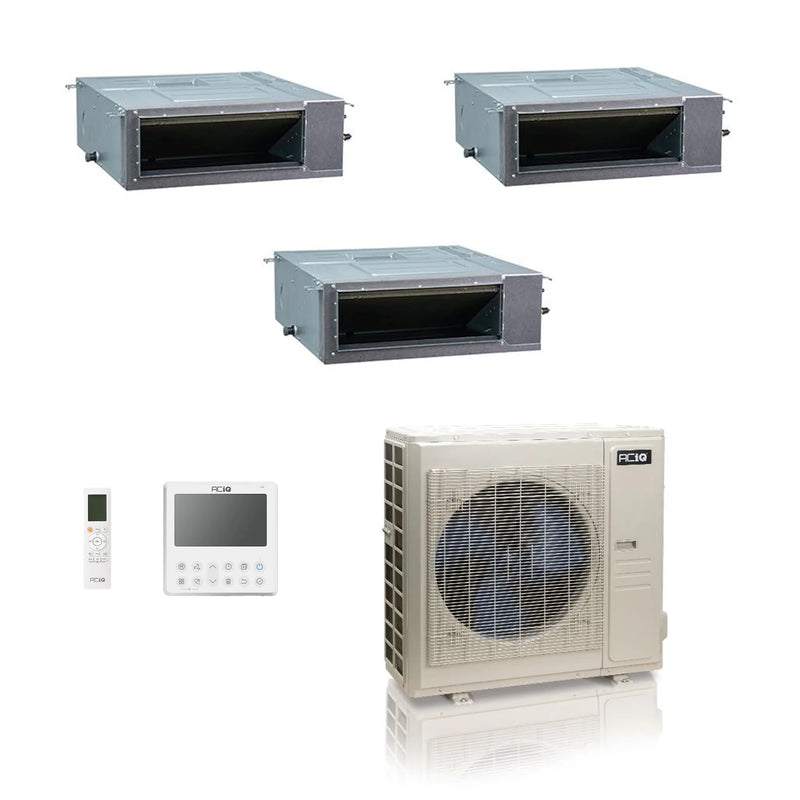

ACiQ 55K BTU 18 SEER2 Concealed Duct Mini Split System 3-Zone 230V 9+12+24

Name: ACiQ 55K BTU 18 SEER2 Concealed Duct Mini Split System 3-Zone 230V 9+12+24
Brand: ACiQ
SKU: ES-55Z-M6C ACIQ-09CD ACIQ-12CD ACIQ-24CD
Price: 7862.38 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-55Z-M6C ACIQ-09CD ACIQ-12CD ACIQ-24CD | ID: 88804

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$7,862.38 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

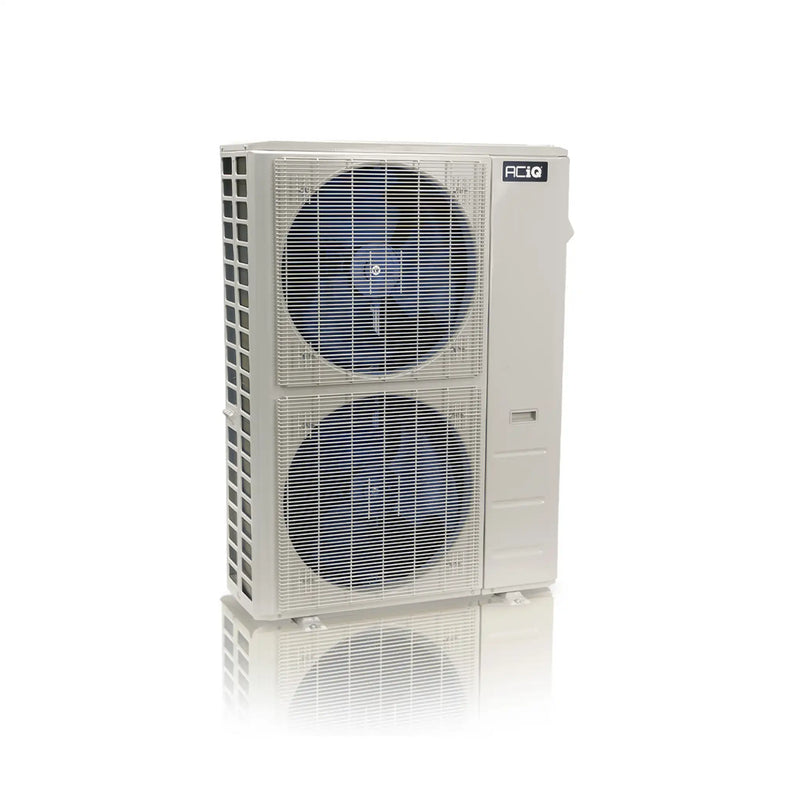

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-55Z-M6C model allows for up to 6 air handlers to run off a single condenser, saving outdoor space while keeping your home comfortable.

Key Features

55,000 BTU, 22.0 SEER2 multi zone heat pump condenser
Designed to function with up to 6 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

The 55,000 BTU, ES-55Z-M6C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser adjusts to provide the precise amount of heating or cooling needed for each room or zone. With a high efficiency rating of 22.0 SEER2, this system is designed to save you money both initially and over its lifetime.

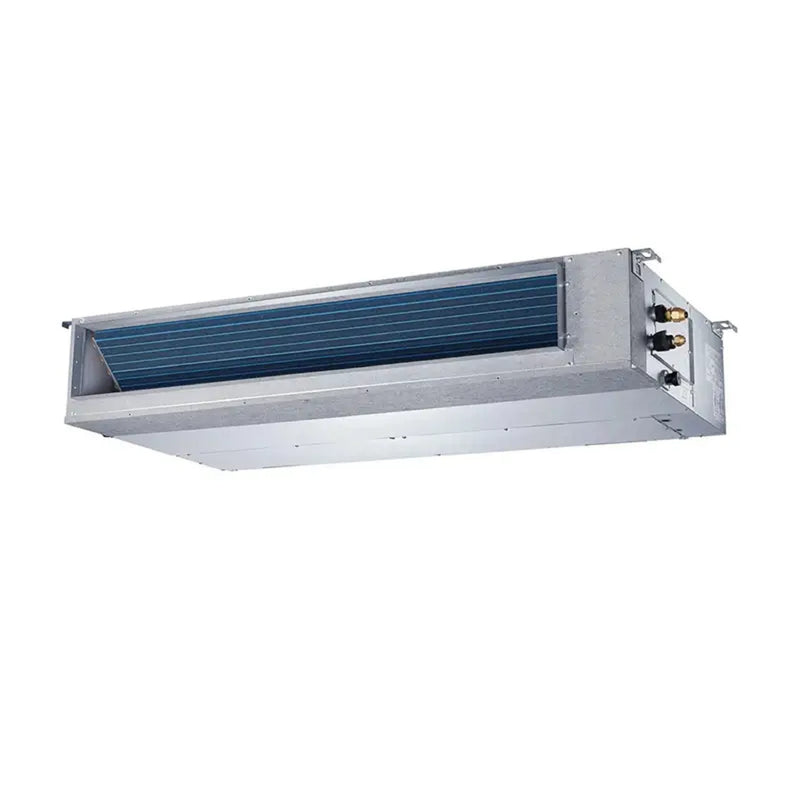

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Experience the convenience of a multi-zone mini split system without visible air handlers with the ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC. This flexible unit can be installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit, allowing for customizable air distribution through flex ducting to ceiling or wall registers.

Key Features

9,000 BTU of heating or cooling power
Dry and fan modes for added versatility
Perfect for smaller rooms in most climates
Includes a wall-mounted thermostat for easy temperature control
Concealed duct design for a seamless look

Enjoy quiet comfort with the precision engineering of the ACiQ system, maintaining your desired temperature without disrupting your peace and quiet.

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Experience the convenience and flexibility of a multi-zone mini split system with the ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC. This unit allows for discreet installation above the ceiling, below the floor, or behind a soffit, providing efficient heating and cooling without visible air handlers on your walls or ceilings.

Key Features

12,000 BTU of heating or cooling power
Dry and Fan modes for added versatility
Includes a wall-mounted thermostat for easy temperature control
Concealed Duct design for a seamless appearance

Quiet Comfort: The ACiQ system is designed for whisper-quiet operation, ensuring a peaceful indoor environment while efficiently maintaining your desired temperature.

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.

Key Features

24,000 BTU for heating or cooling
Dry and Fan modes available
Suitable for medium-sized rooms in most climates
Includes wall-mounted thermostat
Concealed Duct design for discreet installation

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.

View More 3 Zone Mini Splits

Specifications

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Brand	ACiQ	SKU	ES-55Z-M6C
Refrigerant Charge	147.6'	Weight	270.280000
HSPF2	9.1	Cooling BTU	55000 BTU
Heating BTU	55000 BTU	Maximum CFM	4500
Decibel Level (dBA)	62	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R410A
SEER2	21.3	Compressor Type	Rotary
Liquid Line	1/4" (5)	Suction Line	3/8" (3); 1/2" (2)
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
Max Breaker Size	60 Amps	Min. Breaker Size	40 Amps
BTU/Tonnage	55,000 BTU/4.5 Ton	Zone Compatibility	Multi Zone
Operating Mode	Cooling, Heating	Height	52.48"
Width	37.48"	Depth	16.34"

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Brand	ACiQ	SKU	ACIQ-09CD-HH-MC
Cooling BTU	9,000 BTU	Heating BTU	10,000 BTU
Maximum CFM	352.94	Decibel Level (dBA)	As low as 27
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	9,000 BTU/0.75 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Length	27.56"
Height	7.87"	Depth	19.92"

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Brand	ACiQ	SKU	ACIQ-12CD-HH-MC
Cooling BTU	12,000 BTU	Heating BTU	12,000 BTU
Maximum CFM	352.94	Decibel Level (dBA)	As low as 26.5
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Length	27.56"
Height	7.87"	Depth	19.92"

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Brand	ACiQ	SKU	ACIQ-24CD-HH-MC
Cooling BTU	24,000 BTU	Heating BTU	26,000 BTU
Maximum CFM	853.5	Decibel Level (dBA)	As Low as 29.5
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Height	9.65"
Width	39.37"	Depth	29.53"

Warranty

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
