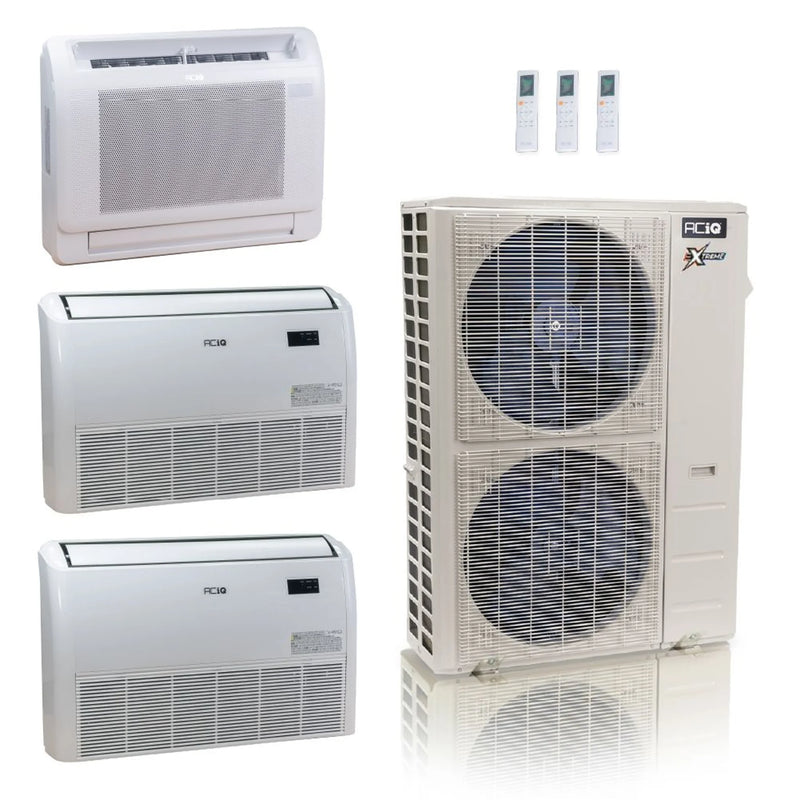

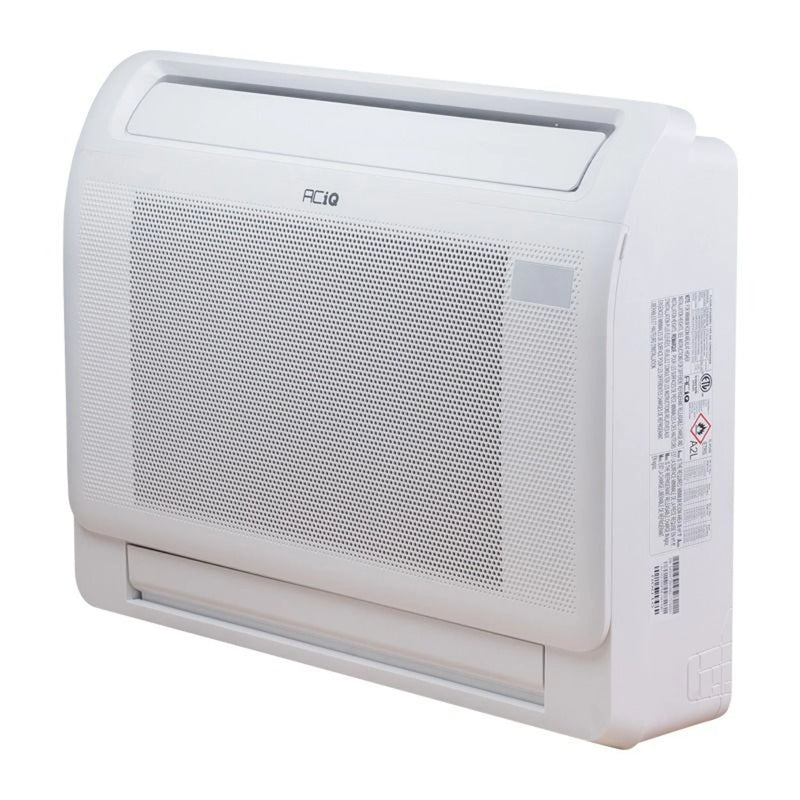

ACiQ 55K BTU 22.2 SEER2 3-Zone Floor Mount Mini Split R454B 230V 12+18+24
Product Details

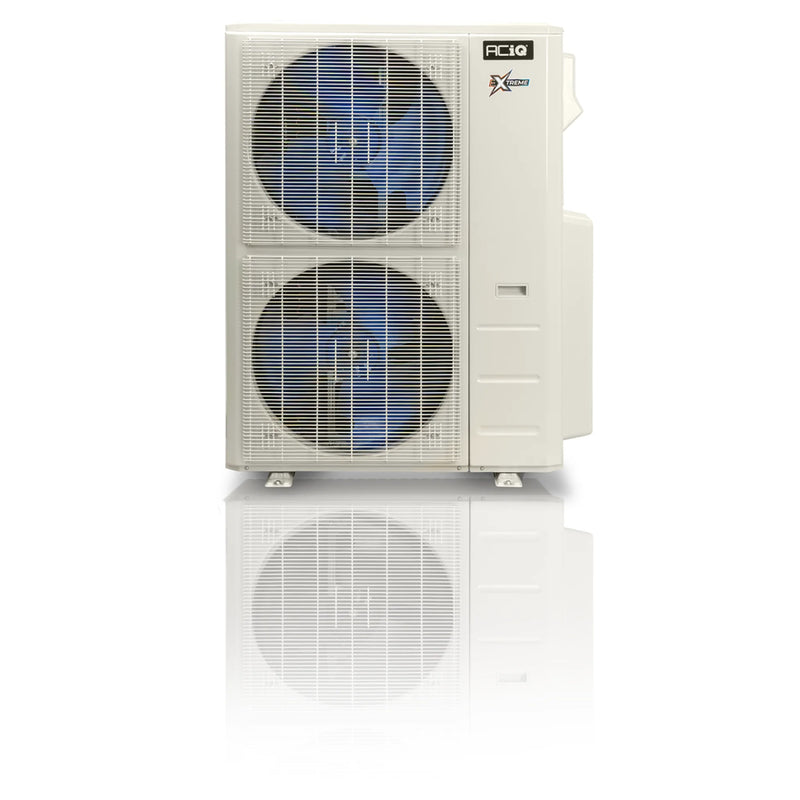

ACiQ 55K BTU Extreme Multi Zone Mini Split Heat Pump Condenser R454B 230V ACIQ-55Z-HH-M6C
The ACiQ-55Z-HH-M6C is a 55,000 BTU multi zone heat pump condenser designed to deliver efficient, adaptive climate control for up to six zones. With a high SEER2 rating of 22.2, it offers outstanding performance even in extreme conditions, operating in outdoor temperatures as low as -22°F. This intelligent inverter-driven system supports various configurations, making it ideal for homes that demand quiet, reliable, and flexible heating and cooling. Its advanced base pan heater technology and Gold Fin coil protection enhance durability, while quiet operation ensures comfort without noise disruption.
Key Features
- 55,000 BTU multi-zone condenser with 4.5-ton capacity
- Up to 6 compatible indoor air handlers for zone-specific climate control
- High-efficiency 22.2 SEER2 performance for reduced energy bills
- Effective cooling from -22°F to 122°F and heating from -22°F to 75°F
- Integrated Extreme Heat technology and base pan heater for cold climates
- Gold Fin condenser coil coating for corrosion resistance
- Twin rotary inverter compressor for quieter and more durable operation
- Pre-charged with R410A refrigerant for 25’ per line set connection
- Self-diagnostic control board with alerts for easy troubleshooting
- Requires professional installation with vacuum and refrigerant charging
The ACiQ-55Z-HH-M6C is ideal for residential applications requiring flexibility, high efficiency, and low ambient performance. Its zone-specific adaptability allows for customized temperature settings in each room, helping to improve comfort and energy savings.
View More
Specifications
ACiQ 55K BTU Extreme Multi Zone Mini Split Heat Pump Condenser R454B 230V ACIQ-55Z-HH-M6C
| Brand | ACiQ | SKU | ACIQ-55Z-HH-M6C |
| Refrigerant Charge | 151.68 oz. | Weight (in lbs) | 276 |
| AHRI Certificate Number | 216032373 | Replaces | ACIQ-55Z-HH-M5B |
| Product Features | Low Ambient Heating | HSPF2 | 10.5 |
| Cooling BTU | 51000 | Heating BTU | 55000 |
| Maximum CFM | 4503 | Decibel Level (dBA) | 65 |
| Electric Heat | Heat Pump | Energy Star | Yes |
| Refrigerant | R454B | SEER2 (Efficiency) | 22.2 |
| Compressor Type | Twin Rotary | Liquid Line | 1/4" (6) |
| Suction Line | 3/8" (4); 1/2" (2) | Electrical | 208/230V, 1 Phase, 60 Hz |
| Phase | Single Phase | Max Breaker Size | 40A |
| Min. Breaker Size | 39.5A | Tonnage | 4.5 Ton |
| BTU/Tonnage | 55,000 BTU/4.5 Ton | Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone | Height | 52.48" |
| Width | 37.48" | Depth | 16.34" |
| Warranty | 12 year compressor, 7 year parts with online registration | ||
Warranty
ACiQ 55K BTU Extreme Multi Zone Mini Split Heat Pump Condenser R454B 230V ACIQ-55Z-HH-M6C
| Warranty Type | Parts | Compressor |
| Standard Warranty | 5 year parts | 7 year parts |
| Registered Warranty | 7 year parts | 12 year parts |
Documents
ACiQ 55K BTU Extreme Multi Zone Mini Split Heat Pump Condenser R454B 230V ACIQ-55Z-HH-M6C
Installation and Owner's Manual
