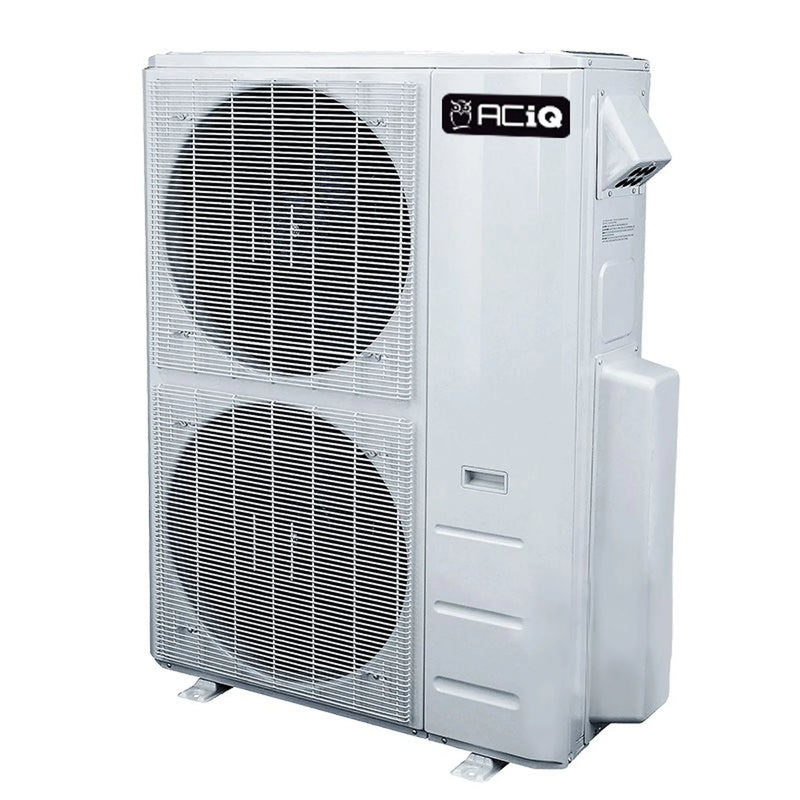

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C
ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-55Z-M6C model allows for up to 6 air handlers to run off a single condenser, saving outdoor space while keeping your home comfortable.
Key Features
- 55,000 BTU, 22.0 SEER2 multi zone heat pump condenser
- Designed to function with up to 6 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
The 55,000 BTU, ES-55Z-M6C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser adjusts to provide the precise amount of heating or cooling needed for each room or zone. With a high efficiency rating of 22.0 SEER2, this system is designed to save you money both initially and over its lifetime.

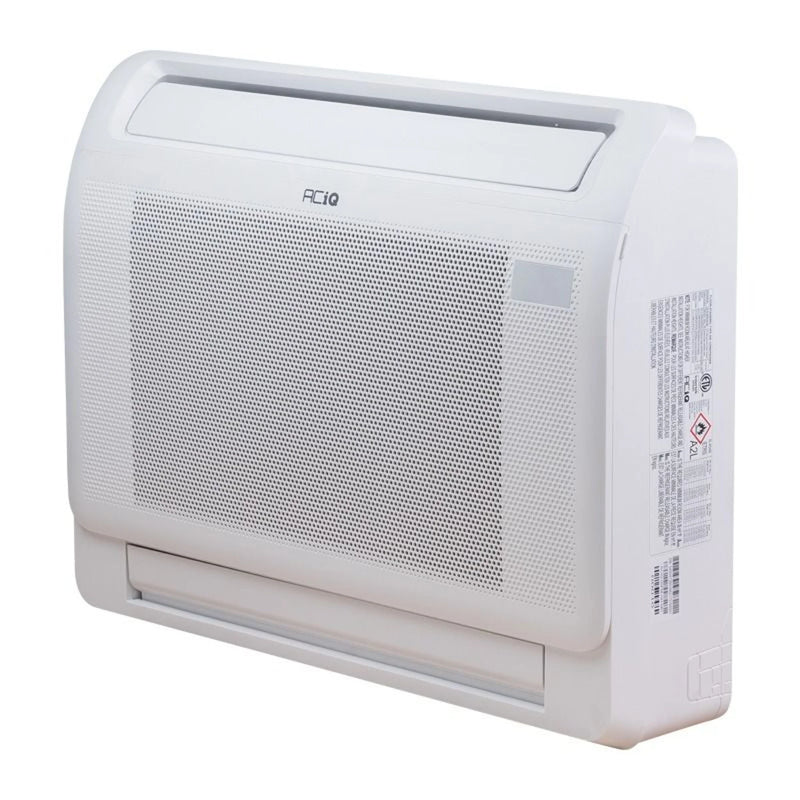

ACiQ Floor Mounted Air Handler Compact Climate Control for Challenging Spaces ACIQ-12FM-HH-MD
The ACiQ Floor Mounted Air Handler is a space-saving solution ideal for areas where traditional wall-mounted units won't fit, such as sun porches, attic rooms, and remodels with limited vertical wall space. Designed to install low on the wall or even directly on the floor, this console-style HVAC unit provides efficient year-round comfort with powerful heating and cooling capabilities.
Its unique airflow design makes it especially effective in heating applications—warm air is delivered at floor level to reduce heat stratification, ensuring consistent comfort from floor to ceiling. When switched to cooling mode, airflow reverses to improve cold air distribution throughout the room.
Perfect for areas with low ceilings, knee-walls, or windows occupying most wall space, this low-profile mini split air handler offers quiet, reliable operation and flexible placement options.
Key Features:
- 12,000 BTU of efficient heating and cooling capacity
- Ideal for small rooms in most climate zones
-
Optimized airflow for superior heating performance
- Reversible airflow in cooling mode for better air circulation
-
Dry and fan modes for humidity control and air movement
- Compact, low-profile design fits under windows or on knee-walls
-
Remote control thermostat for convenient temperature adjustments
- Surface-mount installation on either floor or ceiling
- Compatible with ACiQ mini split systems
- Reliable performance for sunrooms, attic remodels, and tight spaces
Note: The 18,000 and 24,000 BTU models differ slightly in appearance from the 12,000 BTU version. Refer to the installation manual for specific mounting instructions.
ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD
The ACiQ 18,000 BTU Floor or Ceiling Mounted Air Handler offers flexible installation in challenging spaces where high-wall mounting isn't possible. Its compact form and powerful airflow design make it ideal for sunrooms, attic remodels, or rooms with knee walls or below-window space. This unit can be wall-mounted close to the floor or suspended from the ceiling using an adjustable rod system, and it includes a wireless remote for intuitive control. Its whisper-quiet performance and low-profile design deliver both functionality and comfort for any interior space.
Key Features
- 18,000 BTU (cooling: 17,000 / heating: 19,000 BTU)
- Versatile installation – floor- or ceiling-mounted configuration
- Ideal for sunrooms, attics, or rooms with angled ceilings
- Maximum CFM: 576.8 with quiet operation as low as 29 dBA
- Pre-wired for condensate pump with overflow shutoff
- Wireless remote included
- R454B refrigerant – eco-friendly and efficient
- Energy Star certified
This unit is designed for creative installation solutions where traditional wall-mounted systems won’t work. Whether elevated above a windowsill or suspended from a ceiling, it provides quiet, efficient comfort.
ACiQ 24,000 BTU 2 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-24FM-HH-MD
ACiQ Floor Mounted Air Handlers are an excellent HVAC solution for sun porches, attic conversions, and any room where space for traditional wall-mounted units is limited. Also known as heat console air handlers, these compact units are designed to mount low on the wall, near or directly on the floor, making them ideal for areas with low ceilings, knee walls, or minimal vertical wall space.
Their design is slightly wider, taller, and shallower than standard wall-mounted units, allowing them to fit under windows or within tight architectural features. Models like the ACiQ-18FM-HH-MB and ACiQ-24FM-HH-MB are engineered specifically to solve complex installation challenges in unconventional environments.
Key Installation Advantages:
-
Level Mounting on Angled Surfaces: Threaded rod mounting allows the unit to be perfectly level, even on angled or uneven walls commonly found in attic remodels. The adjustable rod supports installation close to the ceiling or suspended several feet below it.
-
Minimal Clearance Required: Unlike ceiling cassettes or concealed duct units that require at least 12 inches of ceiling space, ACiQ floor-mounted models can operate with just a 1-inch gap between ceiling and roof—perfect for metal buildings or three-season rooms.
-
Efficient Sunroom Integration: Mounts directly to the wall beneath windowsills, approximately 2 inches above the floor. No floor penetration is required—refrigerant lines, drain hoses, and electrical connections pass cleanly through the wall. Ideal for sunrooms with large windows and minimal wall space.
-
Smart Heating and Cooling: Draws air from the bottom and delivers it upward for effective winter heating. When used with an optional door-open sensor, the system can automatically shut off during the summer when windows or patio doors are open.
-
Optional Floor Mounting: Ideal for brick, stone, or marble surfaces where wall drilling is not feasible. All lines can run through the floor and be completely concealed. Comes pre-wired for a 240V condensate pump with overflow shutoff connections.
Note: The 18,000 and 24,000 BTU models have a slightly different appearance than the 12,000 BTU version. Both support floor or ceiling surface mounting. Please refer to the model-specific installation manual for details.
