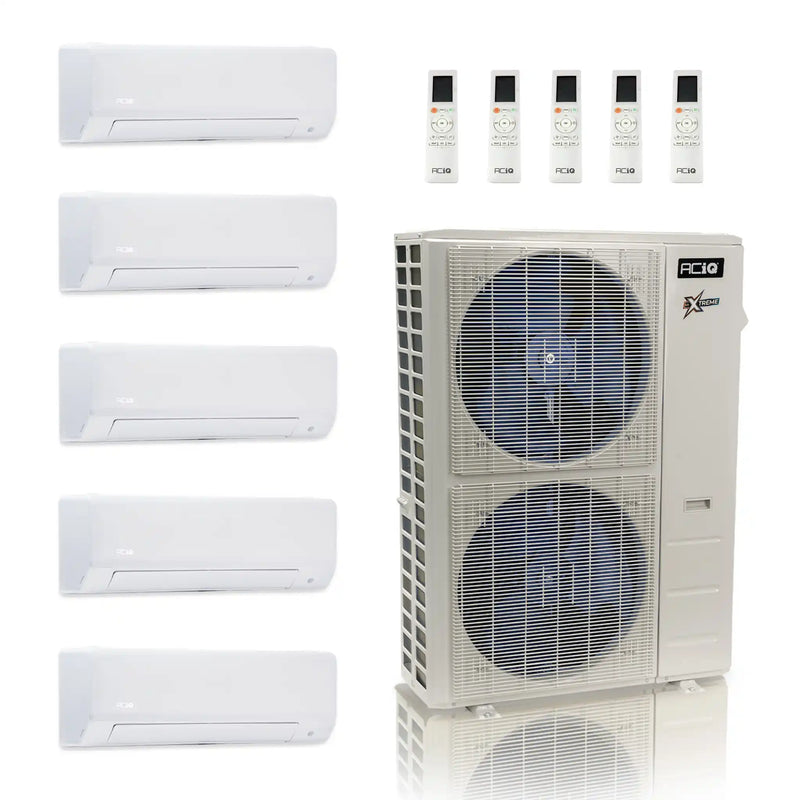

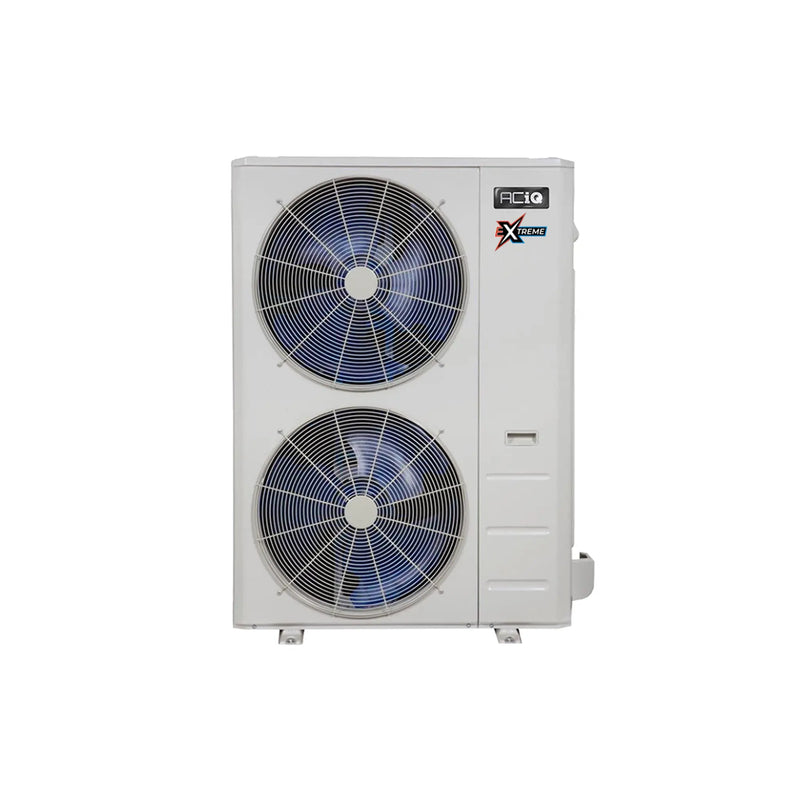

ACIQ 55,000 BTU Multi Zone Heat Pump Condenser ACIQ-55Z-HH-M6C
The ACIQ-55z-HH-M6C is a smart, adaptive heating and cooling solution engineered to deliver year-round comfort in almost any climate. Designed for efficiency, flexibility, and long-term value, this multi zone heat pump condenser can support up to six indoor air handlers from a single outdoor unit—saving outdoor space while allowing precise, room-by-room temperature control. With advanced inverter technology, Extreme Heat performance, and a high 22.2 SEER2 efficiency rating, this system is built to reduce energy costs without sacrificing comfort.
- 55,000 BTU multi zone heat pump condenser with 22.2 SEER2 high-efficiency rating
- Supports up to six connected air handlers for whole-home zoned comfort
- Adaptive inverter-driven compressor continuously adjusts output for optimal performance
- Efficient cooling operation in outdoor temperatures from -22°F to 122°F
- Reliable heating performance from -22°F to 75°F outdoor temperatures
- Extreme Heat technology with integrated base pan heater for cold-climate operation
- Gold Fin full-protection coating on condenser coil for enhanced corrosion resistance
- Quiet operation even under high-demand heating and cooling conditions
- Capable of supporting up to 60,000 BTU total indoor capacity across air handlers
- Independent zone temperature control with the ability to shut off unused rooms
The 55,000 BTU ACIQ-55z-HH-M6C is engineered to support up to four air handlers at 125% of its rated capacity, providing up to 60,000 BTU of combined indoor output. This intelligent, self-adjusting inverter condenser delivers the precise amount of heating or cooling needed in each zone, maximizing comfort while minimizing energy waste. Its 22.2 SEER2 efficiency rating makes it a cost-effective investment both upfront and over the lifespan of the system.
This condenser is factory pre-charged with R410-A refrigerant for up to 25 feet per air handler connection. However, it is not a DIY or self-install system. Professional installation is required, including vacuuming the lines and adding refrigerant if necessary. Line sets, control wire, drain hose, whip, and disconnect are not included and must be purchased separately. A minimum of two air handlers is required for proper operation of all ACIQ multi zone systems.
Extreme Heat Base Pan Heater Technology
Every ACIQ condenser includes integrated Extreme Heat technology designed for reliable performance in harsh winter conditions. Advanced inverter control, outdoor temperature sensing, variable refrigerant flow, and variable fan speed work together to extract heat efficiently down to -22°F. The built-in base pan heater prevents ice buildup during heat pump operation, ensuring consistent performance and system longevity.
ACIQ Quality Construction & Efficiency
ACIQ systems are manufactured using state-of-the-art processes to ensure quiet operation, durability, and long service life. Each condenser features a variable inverter twin rotary compressor that reduces mechanical wear while increasing efficiency and performance. Compared to other systems in the same price range, ACIQ delivers exceptional value through lower operating costs and dependable performance.
Warranty, Installation, and Maintenance
ACIQ multi zone condensers are factory run-tested and equipped with a self-diagnosing control board that simplifies troubleshooting by sending alerts to connected air handlers. When registered, ACIQ equipment qualifies for extended warranty coverage of up to 7 years on parts and 12 years on the compressor, providing long-term peace of mind and reliable comfort.

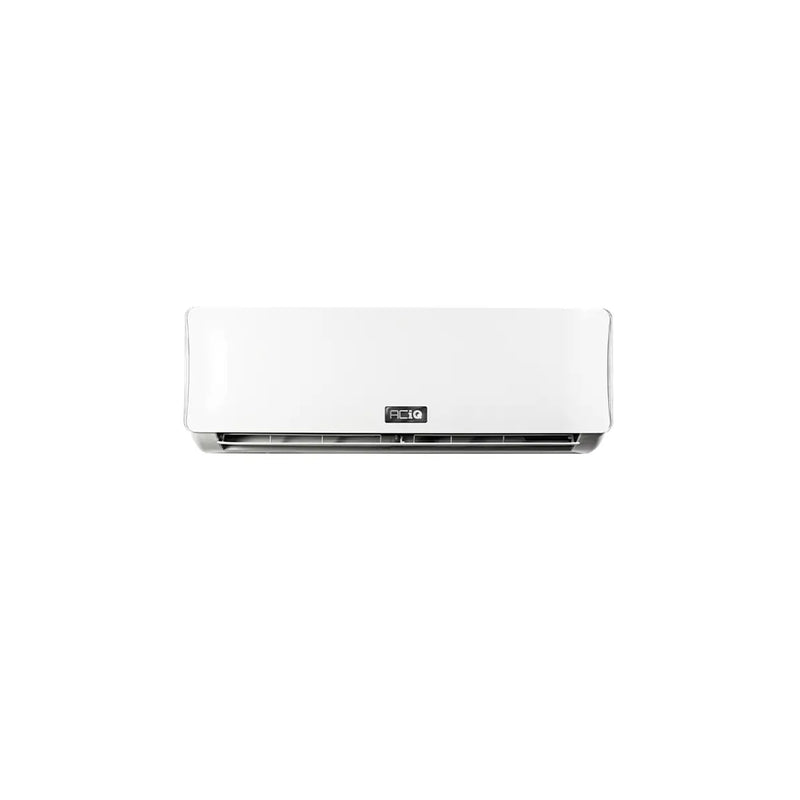

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD x2
The 6,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser for a highly efficient Hyper Heat system. The adaptive technology ensures your ideal temperature is maintained regardless of the outdoor weather conditions.
Key Features
- 6,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
The ACiQ-06W-HH-MD air handler features a soft LED display for easy monitoring, along with intelligent heating and cooling capabilities. It is WiFi ready, allowing you to control your home's temperature from anywhere using a smart device. Please note that installation with a condenser and other equipment is required for proper functionality.
ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD
The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser to create an efficient Hyper Heat system. Equipped with adaptive technology, it monitors and maintains your ideal temperature regardless of external weather conditions.
Key Features
- 9,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board with error code display, and a smart remote with LCD display. It is WiFi ready and compatible with Amazon Alexa and Google Assistant for convenient control.
ACiQ 12K BTU Platinum Air Handler Wall Mounted Mini Split Multi Zone ACIQ-12W-HH-MD
The ACiQ 12,000 BTU wall-mounted air handler delivers powerful, whisper-quiet performance for both single and multizone mini split systems. Compatible with ACiQ’s Multizone and Platinum Series condensers, this unit offers reliable heating and cooling for small to medium spaces. Equipped with smart technology, this unit features intelligent temperature control, an onboard diagnostic LED display, and full integration with WiFi, Alexa, and Google Home for remote access. Whether you're upgrading a zone or building a new system, this wall mount is a dependable choice for comfort and energy efficiency year-round.
Key Features
- 12,000 BTU wall-mounted ductless air handler – ideal for small to medium rooms
- WiFi enabled for smartphone control via Net Home Plus, Alexa, and Google Home
- Compatible with ACiQ Multizone and Platinum Hyper Heat single zone condensers
- Quiet operation – as low as 19.5 dB for undisturbed comfort
- Advanced display panel with real-time temperature and diagnostic alerts
- Enhanced modes: Dry Mode, Intelligent Sleep Mode, and Power Save Mode
- Smart remote control included with LCD feedback screen
- Quick installation with flexible refrigerant line and drain exit
- Energy-efficient R454B refrigerant for reduced environmental impact
Ideal for home offices, bedrooms, or additions, this unit brings precise comfort control and flexible compatibility into any ductless system design.
ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD
The 24,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance and can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser for a highly efficient Hyper Heat system. This air handler is ideal for small to medium sized rooms, utilizing adaptive technology to monitor and maintain your desired temperature regardless of external weather conditions.
Key Features
- 24,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
The ACIQ-24W-HH-MD air handler features a soft LED display for easy monitoring and self-diagnosing control board for error notifications. This unit is WiFi ready, allowing control via smart devices and voice assistants like Amazon Alexa and Google Assistant. Please note that installation with a condenser and other equipment is required for proper functionality.
