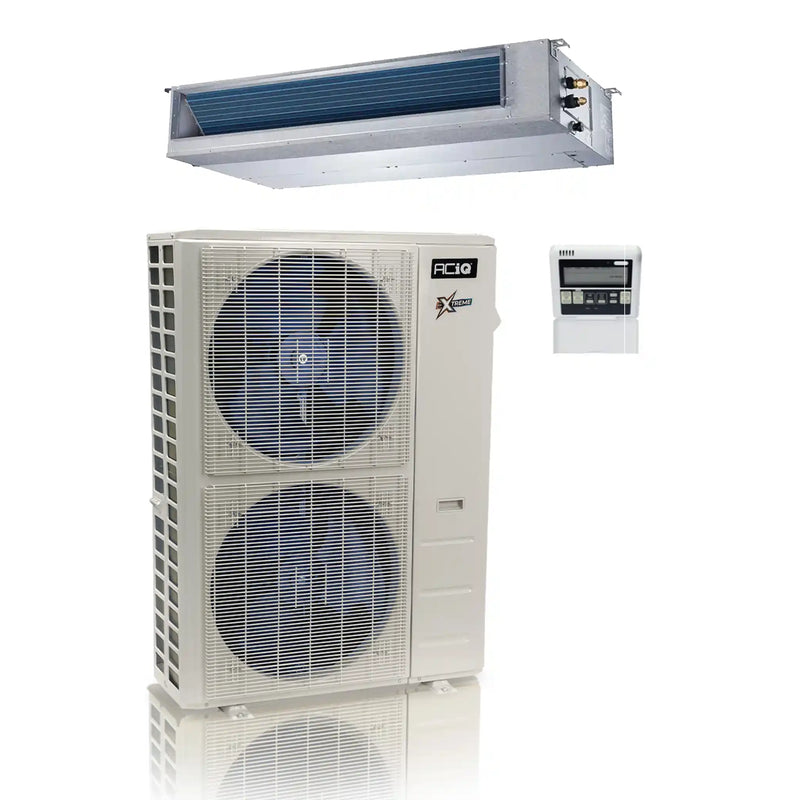

ACiQ 60,000 BTU 23 SEER Extreme Concealed Duct Mini Split System R454B 230V

Name: ACiQ 60,000 BTU 23 SEER Extreme Concealed Duct Mini Split System R454B 230V
Brand: ACiQ
SKU: ACIQ-60CD-HH-MC ACiQ-60ZPL-HP230C
Price: 5049.98 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACIQ-60CD-HH-MC ACiQ-60ZPL-HP230C | ID: 88267

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$5,049.98 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

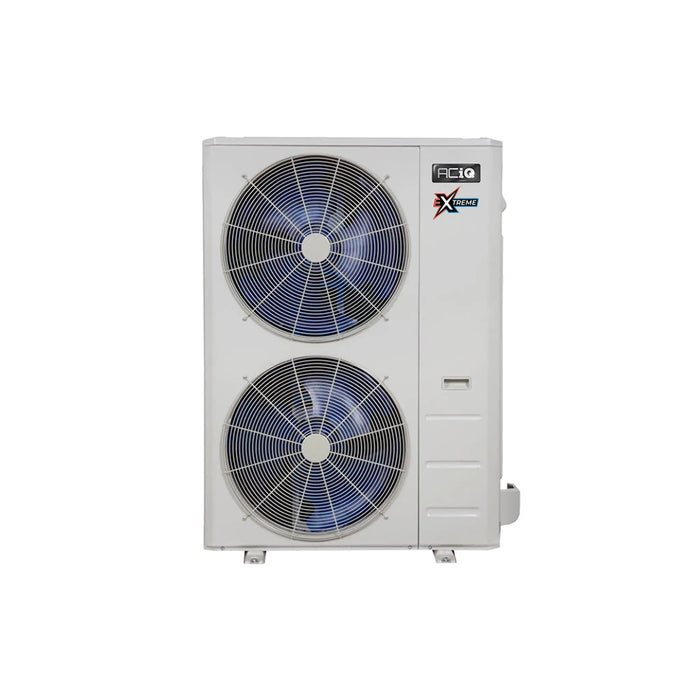

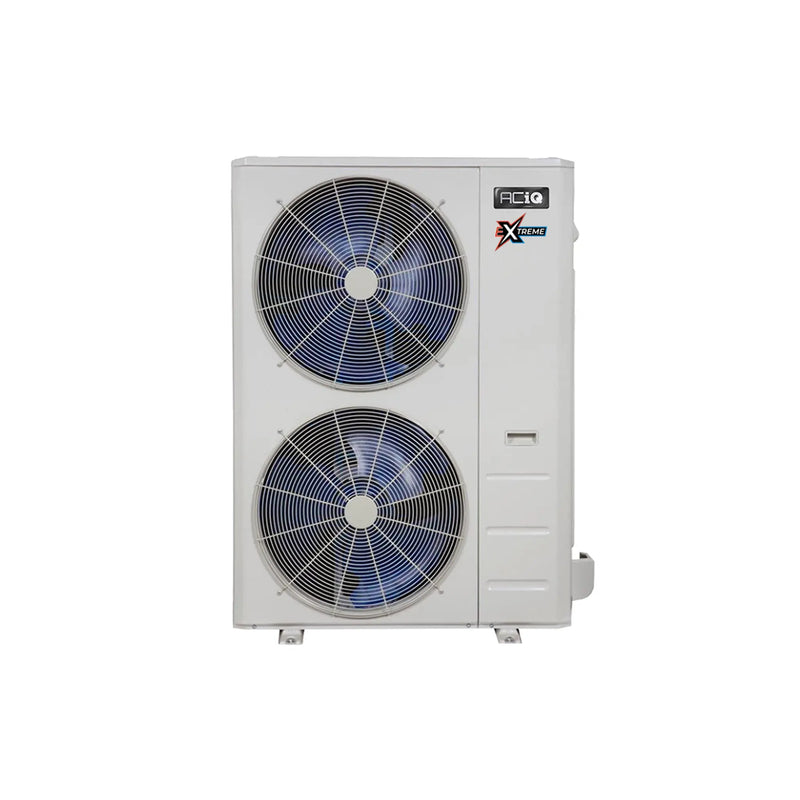

ACiQ 5 Ton 17.5 SEER2 Heat Pump Condenser Extreme Series R454B 230V ACIQ-60ZPL-HP230C

The ACiQ 60,000 BTU Extreme Series Single Zone Condenser delivers exceptional heating and cooling performance in demanding climates. Designed with Hyper Heat technology, this high-efficiency condenser provides reliable operation in extreme temperatures—heating down to -22°F and cooling up to 122°F. The dual rotary inverter compressor and durable gold fin condenser ensure quiet, long-lasting operation, ideal for large rooms and residential applications.

Key Features

Hyper Heat performance in temperatures as low as -22°F
High 17.5 SEER2 and 8.7 HSPF2 efficiency ratings
R454B refrigerant for reduced environmental impact
Gold fin coil for anti-corrosion and extended durability
63.5 dBA quiet rotary compressor
Dual inverter system provides variable-speed operation
5-ton capacity ideal for large residential spaces
Compatible with concealed duct, ceiling cassette, floor mount, or wall air handlers

This unit is not DIY-friendly. Professional installation is required. Warranty registration provides up to 12 years compressor and 7 years parts coverage.

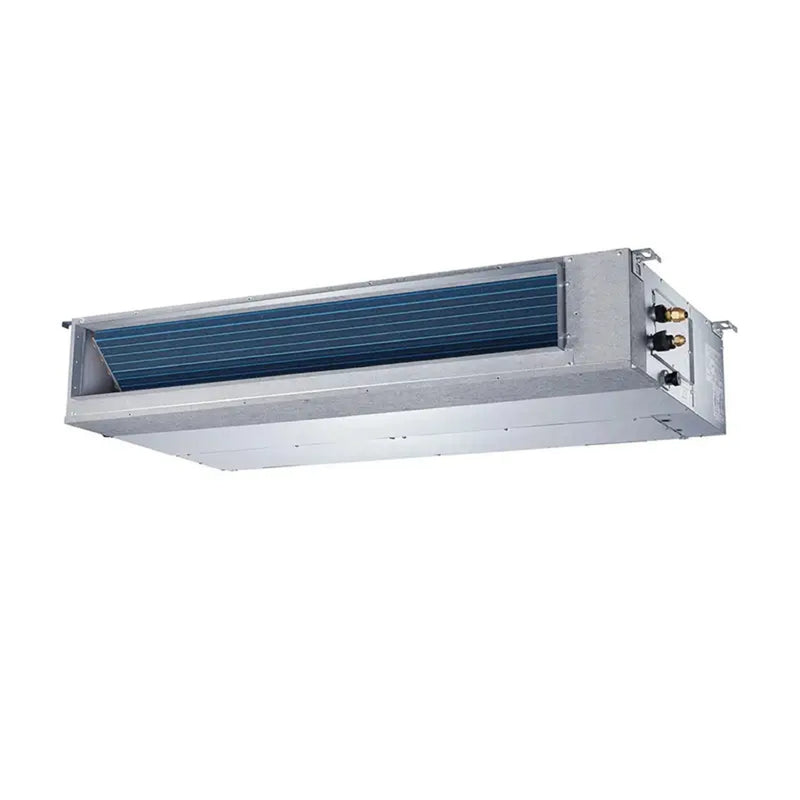

ACiQ 5 Ton 60,000 BTU Concealed Duct Mini Split Air Handler R454B 230V ACIQ-60CD-HH-MC

The ACiQ 60,000 BTU Concealed Duct Air Handler is the ideal hidden solution for large-room heating and cooling. Designed for flexible installations, it can be mounted above ceilings, under floors, or in soffits, distributing conditioned air discreetly via flex ducting. Its squirrel cage fan ensures quiet operation while delivering up to 2,302 CFM. With built-in pump, advanced controls, and Energy Star performance, this concealed duct unit is perfect for high-capacity, unobtrusive comfort.

Key Features

60,000 BTU heating and 55,000 BTU cooling capacity
Installs hidden in ceilings, floors, or soffits
Flexible ducting distributes air to multiple vents
Quiet operation at 54 dBA max sound level
R454B refrigerant and inverter efficiency
Wall-mounted thermostat and controller included
Factory-installed pump for condensate management
Designed for large rooms or zoned applications

Perfect for new construction or room remodels requiring discreet, high-capacity air delivery. Requires professional installation and ductwork fabrication.

View More Single Zone Mini Splits

Specifications

ACiQ 5 Ton 17.5 SEER2 Heat Pump Condenser Extreme Series R454B 230V ACIQ-60ZPL-HP230C

Brand	ACiQ	Model #	ACIQ-60ZPL-HP230C
Cooling Capacity	36,000 BTU	Heating Capacity	36,000 BTU
SEER2	17.5	HSPF2	8.7
Sound Level	63.5 dBA	Compressor Type	Rotary
Voltage	208/230V 1 Phase 60Hz	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	7/8"
Breaker Size (Max / Min)	60 Amps / 47 Amps
Dimensions (H x W x D)	52.48" x 37.48" x 16.34"

ACiQ 5 Ton 60,000 BTU Concealed Duct Mini Split Air Handler R454B 230V ACIQ-60CD-HH-MC

Brand	ACiQ	Model #	ACIQ-60CD-HH-MC
Cooling Capacity	55,000 BTU	Heating Capacity	57,000 BTU
Max CFM	2302.94	Sound Level	54 dBA
Voltage	208/230V 1 Phase 60Hz	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	7/8"
Breaker Size (Max / Min)	60 Amps / 47 Amps
Dimensions (H x W x D)	18.11" x 55.12" x 33.78"

Warranty

ACiQ 5 Ton 17.5 SEER2 Heat Pump Condenser Extreme Series R454B 230V ACIQ-60ZPL-HP230C

Compressor

12 Years (with registration)

Parts

7 Years (with registration)

ACiQ 5 Ton 60,000 BTU Concealed Duct Mini Split Air Handler R454B 230V ACIQ-60CD-HH-MC

Compressor

12 Years (with registration)

Parts

7 Years (with registration)

Documents

ACiQ 5 Ton 17.5 SEER2 Heat Pump Condenser Extreme Series R454B 230V ACIQ-60ZPL-HP230C

Submittal with 60K Concealed Duct

Warranty Information

ACiQ 5 Ton 60,000 BTU Concealed Duct Mini Split Air Handler R454B 230V ACIQ-60CD-HH-MC

Installation & Owner's Manual

Remote Controller Manual

Submittal

Warranty Information
