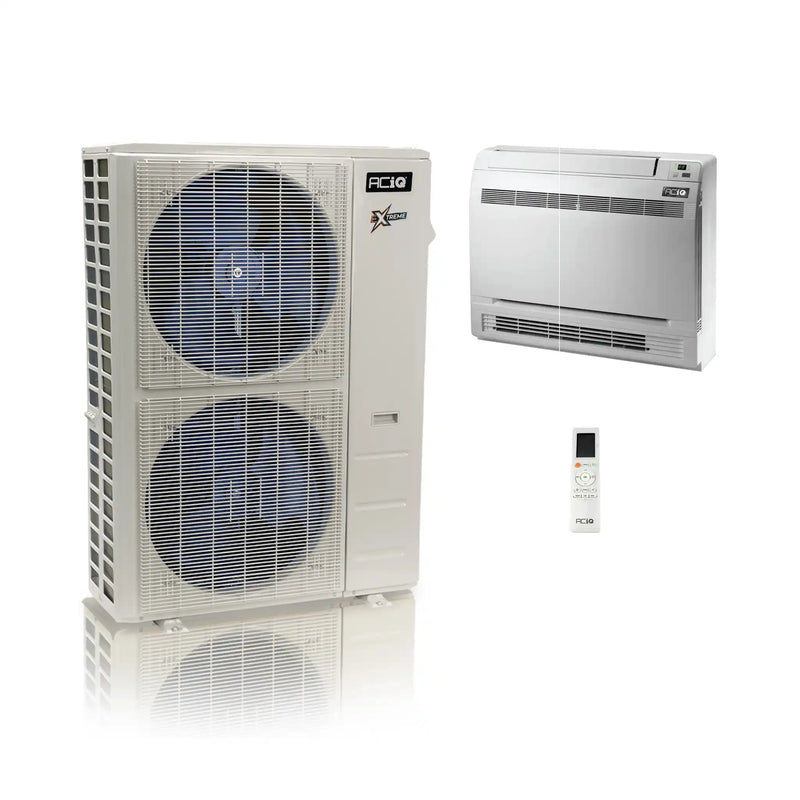

ACiQ 60,000 BTU 23 SEER Extreme Floor Mount Mini Split System R454B 230V

Name: ACiQ 60,000 BTU 23 SEER Extreme Floor Mount Mini Split System R454B 230V
Brand: ACiQ
SKU: ACIQ-60FM-HH-MD ACiQ-60ZPL-HP230C
Price: 4999.98 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACIQ-60FM-HH-MD ACiQ-60ZPL-HP230C | ID: 88269

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,999.98 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

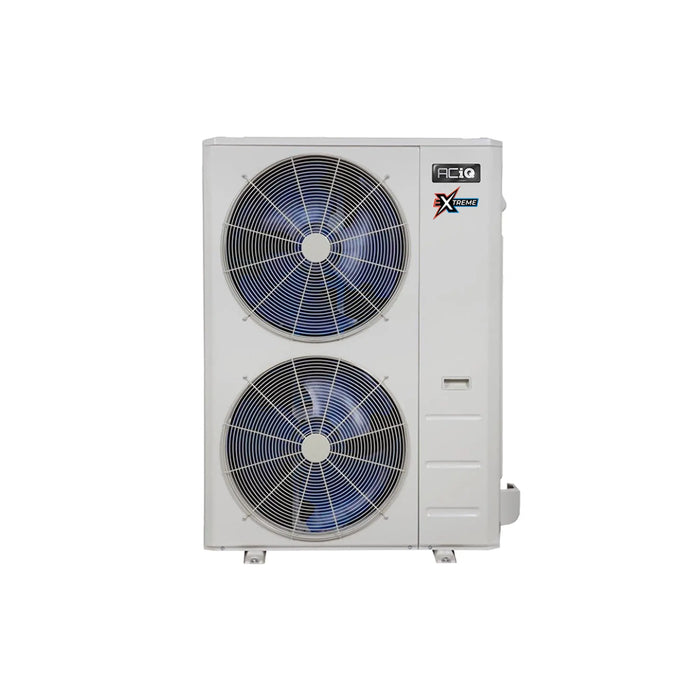

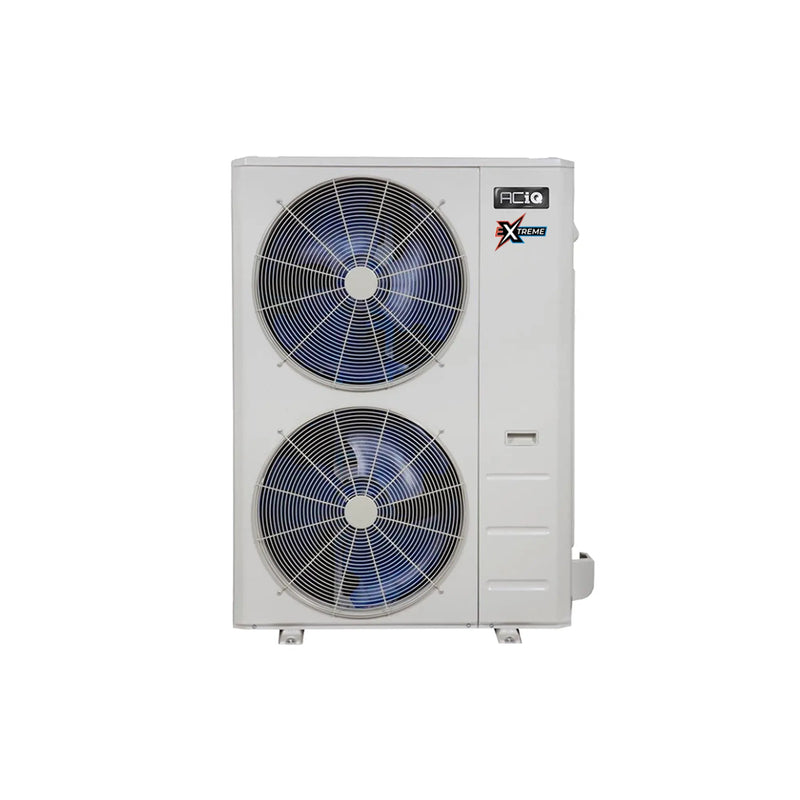

ACiQ 5 Ton 17.5 SEER2 Heat Pump Condenser Extreme Series R454B 230V ACIQ-60ZPL-HP230C

The ACiQ 60,000 BTU Extreme Series Single Zone Condenser delivers unmatched performance in demanding climates. Utilizing Hyper Heat technology, this high-capacity unit provides reliable heating even in frigid outdoor conditions down to -22°F and cools efficiently up to 122°F. Engineered for energy efficiency and quiet operation, the ACIQ-60ZPL-HP230C condenser uses variable inverter and twin rotary compressor technology for consistent, cost-effective comfort year-round.

Key Features

High-efficiency 17.5 SEER2 and 8.7 HSPF2 performance
Hyper Heat operation down to -22°F and cooling to 122°F
Advanced inverter rotary compressor for quiet efficiency
R454B refrigerant with lower environmental impact
Gold fin coating for condenser coil protection
Maximum airflow with a 63.5 dBA sound rating
Ideal for large residential applications (5 ton / 60,000 BTU)
Compatible with wall mount, ducted, ceiling cassette, and floor units

Professional installation is required. This unit does not include quick connect fittings or installation accessories. Register online for extended warranty coverage.

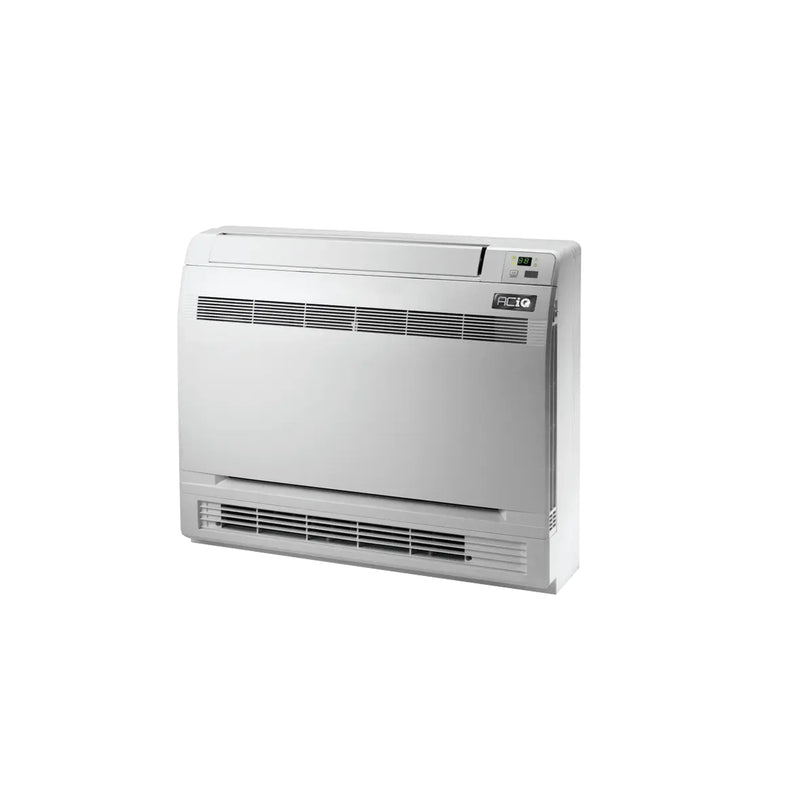

ACiQ 5 Ton 60,000 BTU Floor or Ceiling Mini Split Air Handler R454B 230V ACIQ-60FM-HH-MD

The ACiQ 60,000 BTU Floor or Ceiling Mounted Air Handler offers the flexibility to mount near the floor or on ceilings—making it ideal for spaces where standard wall-mounted units won’t fit. Whether it's a sunroom, attic, or knee-wall application, this system delivers high-capacity performance with quiet operation and minimal visual intrusion. Designed for heating and cooling large rooms, it reverses airflow direction based on mode for improved thermal comfort.

Key Features

60,000 BTU heating and 55,000 BTU cooling capacity
Mountable near floor or ceiling for layout flexibility
Quiet operation at just 54 dBA max
Energy Star certified for high efficiency
Includes wireless remote control for easy operation
Advanced airflow for enhanced heating at floor level
R454B refrigerant and inverter motor for low energy use
Ideal for large rooms with limited vertical wall space

Designed to pair with ACiQ single or multi-zone condensers. Built-in smart controls and professional-grade construction make this unit a reliable solution for residential comfort needs.

View More Single Zone Mini Splits

Specifications

ACiQ 5 Ton 17.5 SEER2 Heat Pump Condenser Extreme Series R454B 230V ACIQ-60ZPL-HP230C

Brand	ACiQ	Model #	ACIQ-60ZPL-HP230C
Cooling Capacity	36,000 BTU	Heating Capacity	36,000 BTU
SEER2	17.5	HSPF2	8.7
Sound Level	63.5 dBA	Compressor Type	Rotary
Voltage	208/230V 1 Phase 60Hz	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	7/8"
Breaker Size (Max / Min)	60 Amps / 47 Amps
Dimensions (H x W x D)	52.48" x 37.48" x 16.34"

ACiQ 5 Ton 60,000 BTU Floor or Ceiling Mini Split Air Handler R454B 230V ACIQ-60FM-HH-MD

Brand	ACiQ	Model #	ACIQ-60FM-HH-MD
Cooling Capacity	55,000 BTU	Heating Capacity	60,000 BTU
Max CFM	1384.12	Sound Level	54 dBA
Voltage	208/230V 1 Phase 60Hz	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	3/4"
Breaker Size (Max / Min)	60 Amps / 47 Amps
Dimensions (H x W x D)	64.96" x 26.57" x 9.25"

Warranty

ACiQ 5 Ton 17.5 SEER2 Heat Pump Condenser Extreme Series R454B 230V ACIQ-60ZPL-HP230C

Compressor

12 Years (with registration)

Parts

7 Years (with registration)

ACiQ 5 Ton 60,000 BTU Floor or Ceiling Mini Split Air Handler R454B 230V ACIQ-60FM-HH-MD

Compressor

12 Years (with registration)

Parts

7 Years (with registration)

Documents

ACiQ 5 Ton 17.5 SEER2 Heat Pump Condenser Extreme Series R454B 230V ACIQ-60ZPL-HP230C

Submittal with 60K Floor Mount

Warranty Information

ACiQ 5 Ton 60,000 BTU Floor or Ceiling Mini Split Air Handler R454B 230V ACIQ-60FM-HH-MD

Floor Mount Air Handler Owner's and Install Manual

Submittal

Remote Controller Manual

Warranty Information
