ACiQ RGV090HF2A0AAA

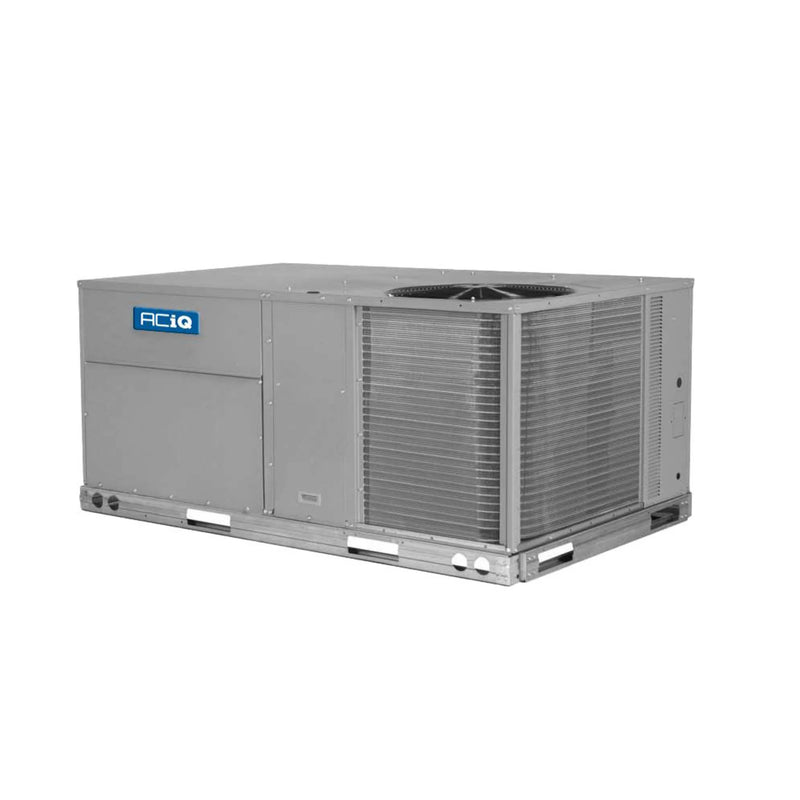

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 230V 3-Ph R410A

By ACiQ | Model: RGV090HF2A0AAA | ID: 90118
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$13,550.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 230V 3-Ph R410A RGV090HF2A0AAA

ACiQ’s 7.5 Ton RGV090HF2A0AAA packaged rooftop unit features advanced X-Vane Fan Technology and a high-efficiency scroll compressor, making it ideal for commercial and industrial environments requiring consistent performance and easy serviceability. Designed with field-friendly installation and maintenance features, this unit delivers 86,000 BTU of cooling and up to 180,000 BTU of heating at 80% AFUE. The innovative direct-drive ECM motor and vane axial fan system ensure quiet, efficient airflow with fewer moving parts and lower energy usage. This model is a Carrier equivalent to 48FCEM08A2A5-0A0A0 and is pre-charged with R-410A refrigerant.

Key Features

  • 7.5 Ton cooling capacity with 86,000 BTU output
  • 180,000 BTU heating output with 80% efficiency (AFUE)
  • 15.0 IEER and 11.2 EER energy performance ratings
  • X-Vane direct-drive fan with ECM motor – no belts or pulleys
  • Scroll compressor with internal overload protection
  • Medium static pressure, high-heat rated rooftop configuration
  • Field-convertible to horizontal airflow
  • Fits existing roof curbs dating back to 1989
  • Corrosion-resistant composite drain pan with natural drainage
  • Low maintenance with intuitive control board and fast-access handles
  • Pre-charged with eco-friendly R-410A refrigerant
  • 208/230V 3-phase power supply

This packaged unit is engineered for easy installation and low-cost maintenance, making it ideal for commercial applications such as retail centers, schools, and office buildings where performance and reliability are essential.

View More Commercial Packaged Units

Specifications

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 230V 3-Ph R410A RGV090HF2A0AAA

Brand ACiQ SKU RGV090HF2A0AAA
Refrigerant Charge Pre-Charged Weight 787
Carrier Equivalent 48FCEM08A2A5-0A0A0 Furnace Efficiency / AFUE 80%
Cooling BTU 86,000 BTU Heating BTU 180,000 BTU
Drive Type Direct Maximum CFM 2650
Decibel Level (dBA) 79 Decibels Refrigerant R410A
EER 11.2 IEER 15.0
Condenser Stages Two Stage Compressor Type Scroll
Electrical 208/230v 3 Phase 60 Hz Electric Phase Filter Three Phase
Tonnage 7.5 Ton Burner Stages Two
Height 41 1/4" Width 88 1/8"
Depth 59 1/2" Warranty 10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Warranty

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 230V 3-Ph R410A RGV090HF2A0AAA

Warranty Type Parts Compressor Heat Exchanger
Standard Warranty 1 Year 5 Years 10 Years
Registered Warranty 1 Year 5 Years 10 Years
Documents

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 230V 3-Ph R410A RGV090HF2A0AAA

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 460V 3-Ph R410A RGV090LF2A0AAA

RGV Installation Manual

RGV Specifications Sheet

ACiQ Owner's Manual

ACiQ Warranty Information
