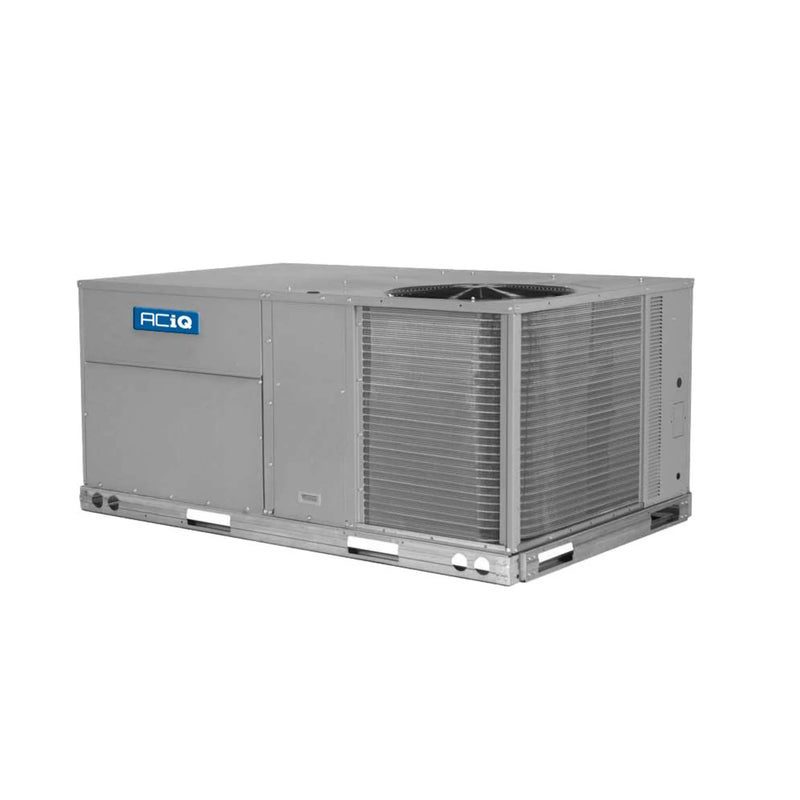

ACiQ RGF090LF2A0AAA

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 460V 3-Ph R454B

By ACiQ | Model: RGF090LF2A0AAA | ID: 90108
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$15,000.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 460V 3-Ph R454B RGF090LF2A0AAA

The ACiQ RGF090LF2A0AAA is a high-performance 7.5 Ton gas/electric packaged rooftop unit built to deliver superior efficiency, durability, and ease of service. Equipped with X-Vane Fan Technology and a two-stage scroll compressor, this unit provides 86,000 BTUs of cooling and 180,000 BTUs of heating at 80% AFUE. Featuring R-454B refrigerant and ECM-driven airflow, it’s ideal for medium static pressure and high heat applications in commercial environments. Compatible with existing roof curbs from 1989 and Carrier-equivalent to 48FCEM08A2A6-0A0A0, the RGF090LF2A0AAA is ready for quick install and long-term value.

Key Features

  • 7.5 Ton capacity with 15.0 IEER and 11.2 EER ratings
  • 180,000 BTU heating capacity at 80% furnace efficiency
  • Two-stage scroll compressor with internal overload protection
  • Direct drive vane axial fan with ECM motor – no belts required
  • R-454B refrigerant and fixed metering device for environmental compliance
  • Pre-charged and wired for faster rooftop installation
  • Medium static, high heat performance ideal for commercial applications
  • Field-convertible to horizontal airflow for job site flexibility
  • Reliable copper tube/aluminum fin coil with reduced refrigerant charge
  • Rugged composite drain pan resists corrosion and sheds water
  • Upgraded control board for quick fan adjustments and diagnostics
  • Quiet operation rated at 79 dBA

This RGF unit is engineered for energy-conscious businesses seeking long-lasting HVAC solutions with simplified servicing and compatibility with legacy infrastructure.

View More Commercial Packaged Units

Specifications

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 460V 3-Ph R454B RGF090LF2A0AAA

Brand ACiQ SKU RGF090LF2A0AAA
Refrigerant Charge Pre-Charged Weight 787
Equivalent Carrier Equivalent: 48FCEM08A2A6-0A0A0 Furnace Efficiency / AFUE 80%
Cooling BTU 86,000 BTU Heating BTU 180,000 BTU
Drive Type Direct Maximum CFM 2650
Decibel Level (dBA) 79 Decibels Refrigerant R454B
EER 11.2 IEER 15.0
Condenser Stages Two Stage Compressor Type Scroll
Electrical 460v 3 Phase 60 Hz Electric Phase Filter Three Phase
Tonnage 7.5 Ton Burner Stages Two
Height 41 1/4" Width 88 1/8"
Depth 59 1/2" Warranty 10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Warranty

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 460V 3-Ph R454B RGF090LF2A0AAA

Warranty Type Parts Compressor Heat Exchanger
Standard Warranty 1 Year 5 Years 10 Years
Registered Warranty 1 Year 5 Years 10 Years
Documents

ACiQ 7.5 Ton 180K BTU 11.2 EER Gas Commercial Packaged Unit 460V 3-Ph R454B RGF090LF2A0AAA

RGF Installation Manual

RGF Specifications Sheet

ACiQ Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
