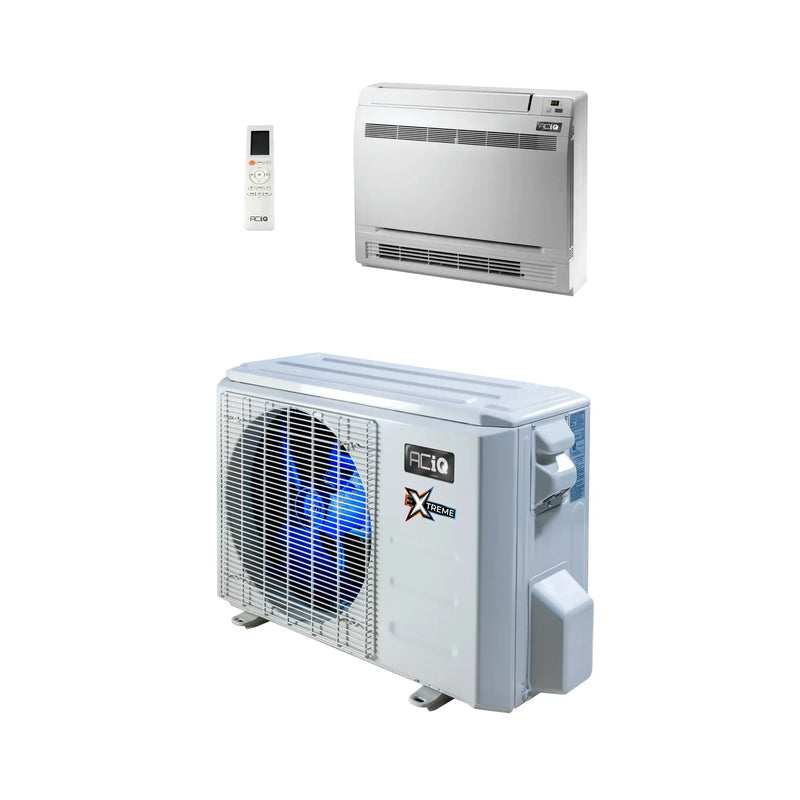

ACiQ 9K BTU 23 SEER Extreme Slim Floor Mount Mini Split System R454B 230V

Name: ACiQ 9K BTU 23 SEER Extreme Slim Floor Mount Mini Split System R454B 230V
Brand: ACiQ
SKU: ACIQ-09FM-HH-MD ACiQ-09ZPL-HP230C
Price: 2209.99 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACIQ-09FM-HH-MD ACiQ-09ZPL-HP230C | ID: 88290

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,209.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

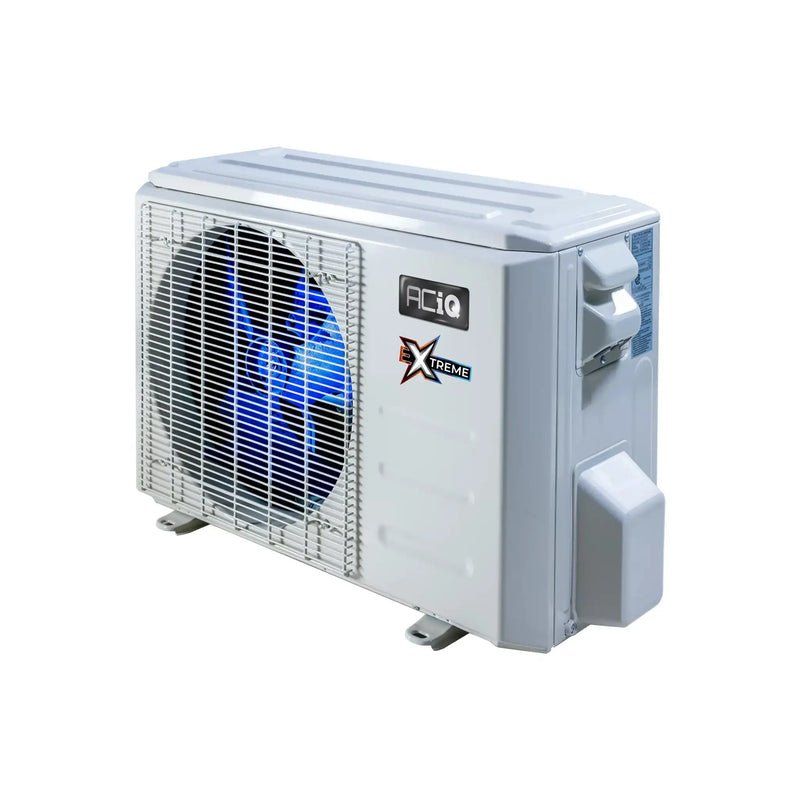

ACiQ 9,000 BTU 27.4 SEER2 Single Zone Heat Pump Condenser R454B 230V ACIQ-09ZPL-HP230C

The ACiQ 9,000 BTU Extreme Series Condenser delivers superior energy efficiency and quiet comfort in extreme climates. With a SEER2 rating of 27.4 and HSPF2 of 12.5, it is built to provide high-performance heating and cooling while using less energy. Extreme Heat technology allows this system to operate down to -22°F, making it a perfect solution for cold regions. It includes a base pan heater and advanced inverter compressor for enhanced reliability and performance.

Key Features

9,000 BTU high-efficiency single zone mini split condenser
Exceptional SEER2 27.4 and HSPF2 12.5 performance
Heating from -22°F to 75°F; Cooling from -22°F to 122°F
R454B refrigerant – efficient and eco-friendly
Quiet dual rotary inverter compressor operation at 56 dBA
Base pan heater included for anti-icing protection
Gold Fin anti-corrosion coil coating
Not DIY – requires professional installation

This outdoor condenser is designed for use with ACiQ wall, ceiling, or concealed duct air handlers, delivering reliable performance across all seasons.

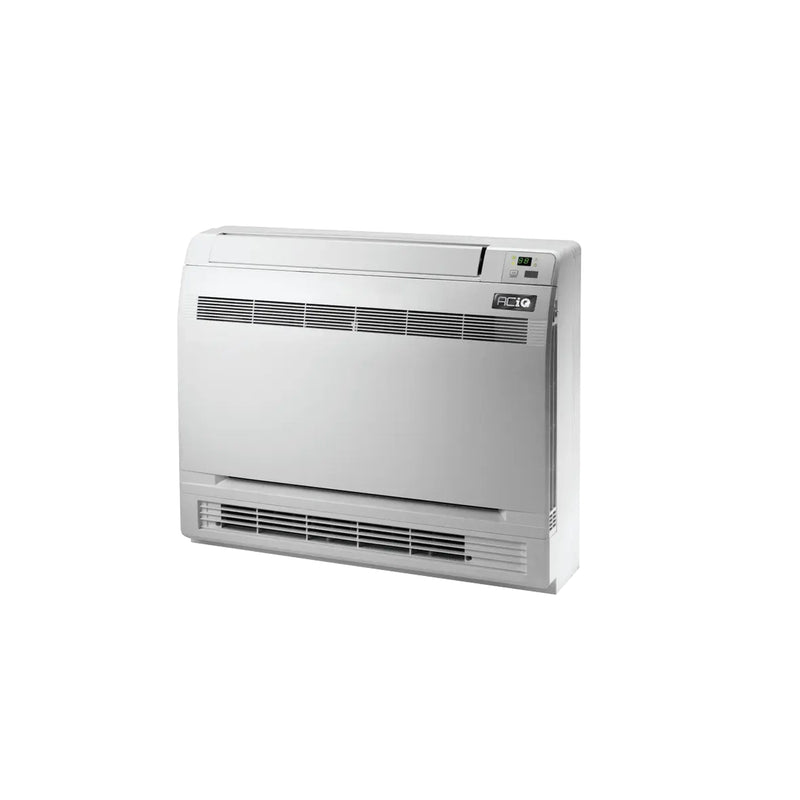

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD

The ACiQ Floor or Ceiling Mounted Mini Split Air Handler is a flexible indoor unit designed for installations where high-wall placement is not feasible. Delivering 12,000 BTU of powerful heating and cooling, it can be mounted low on the wall or suspended from the ceiling. Its low-profile design and quiet operation make it ideal for sunrooms, attics, and spaces with limited wall space. Adaptive airflow direction optimizes performance in both heating and cooling modes.

Key Features

12,000 BTU floor or ceiling mounted mini split air handler
Optimized for heating at floor level and cooling with reversed airflow
Energy-efficient with R454B refrigerant and inverter compatibility
Ultra-quiet operation as low as 25 dBA
Multi-zone compatible design
Includes wireless remote controller
Ideal for rooms with low walls, sunrooms, or attic remodels

This unit is designed for versatile installations and offers both floor and ceiling mount capability for unique room configurations or limited-space environments.

View More Single Zone Mini Splits

Specifications

ACiQ 9,000 BTU 27.4 SEER2 Single Zone Heat Pump Condenser R454B 230V ACIQ-09ZPL-HP230C

Brand	ACiQ	Model #	ACIQ-09ZPL-HP230C
Cooling Capacity	9,000 BTU	Heating Capacity	12,000 BTU
SEER2	27.4	HSPF2	12.5
Voltage / Phase / Hz	208/230V, 1 Phase, 60 Hz	Tonnage	0.75 Ton
Sound Level (dBA)	56	Refrigerant	R454B
Certifications	Energy Star, NEEP, UL, AHRI	Max CFM	1470.6
Min/Max Heating Temp	-22°F to 75°F	Min/Max Cooling Temp	-22°F to 122°F
Breaker Size	15A (Min/Max)	Zone Compatibility	Single Zone
Unit Dimensions (H x W x D)	21.81" x 31.69" x 12.99"

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD

Brand	ACiQ	Model #	ACIQ-09FM-HH-MD
Cooling Capacity	12,000 BTU	Heating Capacity	12,000 BTU
SEER2	—	Max CFM	441
Sound Level (dBA)	As low as 25	Refrigerant	R454B
Voltage / Phase / Hz	208/230V, 1 Phase, 60 Hz	Zone Compatibility	Multi Zone
Liquid Line	1/4"	Suction Line	1/2"
Mini Split Type	Floor Mounted	Controller	Wireless Included
Unit Dimensions (L x H x D)	27.56" x 8.27" x 23.62"
Replace

Warranty

ACiQ 9,000 BTU 27.4 SEER2 Single Zone Heat Pump Condenser R454B 230V ACIQ-09ZPL-HP230C

Compressor Warranty

12 Years

Parts Warranty

7 Years

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD

Compressor Warranty

12 Years

Parts Warranty

7 Years

Documents

ACiQ 9,000 BTU 27.4 SEER2 Single Zone Heat Pump Condenser R454B 230V ACIQ-09ZPL-HP230C

Submittal with 9K Slim Ceiling Cassette

ACiQ 9,000 BTU Floor or Ceiling Mount Air Handler Multi-Zone R454B 230V ACIQ-09FM-HH-MD

Submittal

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
