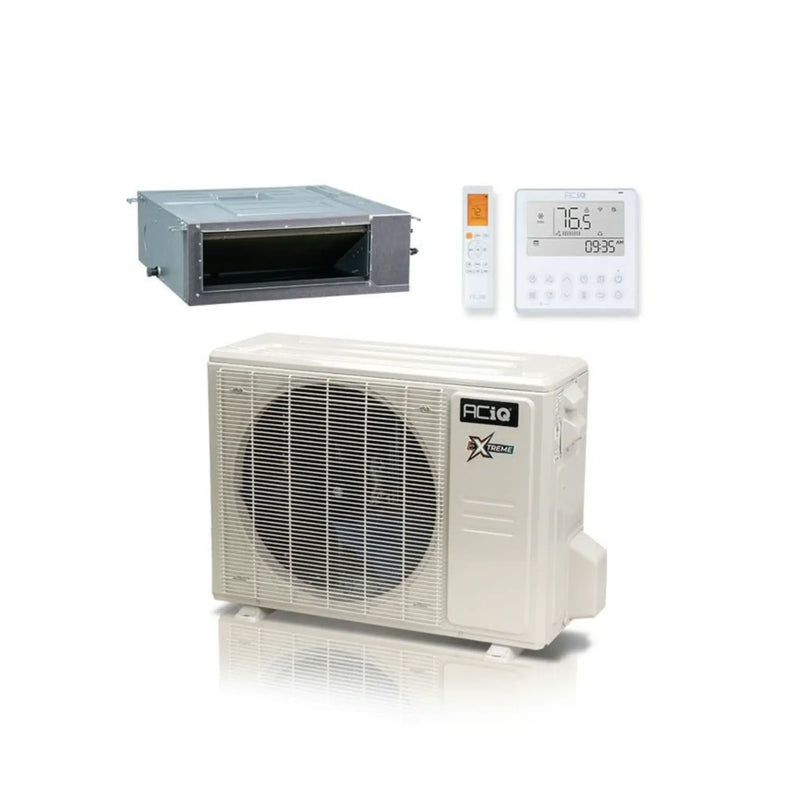

ACiQ 9K BTU 27.4 SEER2 Single Zone Concealed Duct Mini Split System R454B

Name: ACiQ 9K BTU 27.4 SEER2 Single Zone Concealed Duct Mini Split System R454B
Brand: ACiQ
SKU: ACIQ-09ZPL-HP230C
Price: 2245.0 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By ACiQ | Model: ACIQ-09ZPL-HP230C / ACIQ-09CD-HH-MC | ID: 90809

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,245.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

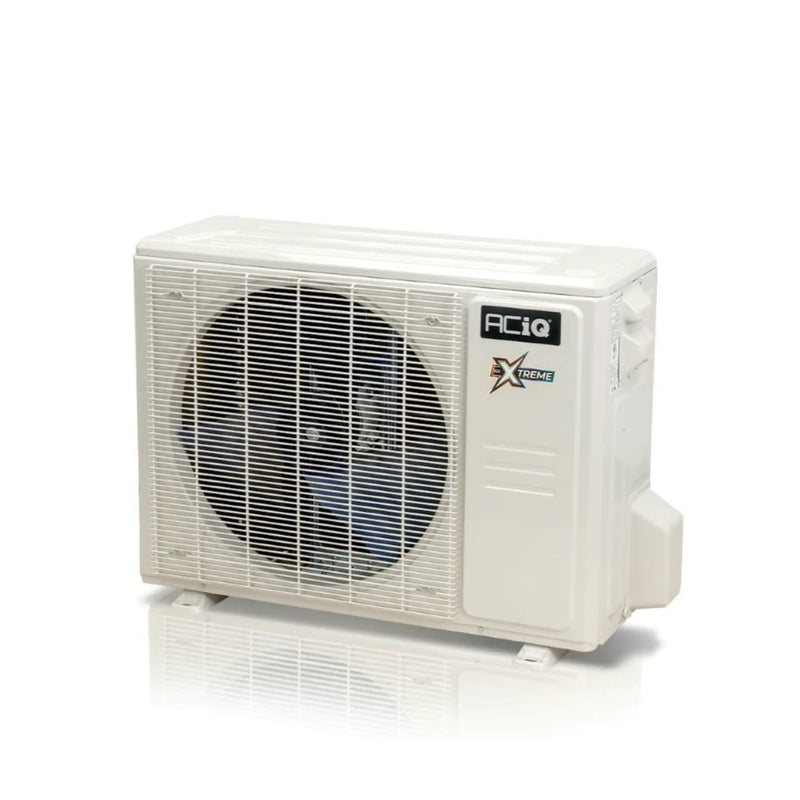

ACiQ 9K BTU 27.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-09ZPL-HP230C

The ACiQ 9,000 BTU Extreme Series Condenser delivers superior energy efficiency and quiet comfort in extreme climates. With a SEER2 rating of 27.4 and HSPF2 of 12.5, it is built to provide high-performance heating and cooling while using less energy. Extreme Heat technology allows this system to operate down to -22°F, making it a perfect solution for cold regions. It includes a base pan heater and advanced inverter compressor for enhanced reliability and performance.

Key Features

9,000 BTU high-efficiency single zone mini split condenser
Exceptional SEER2 27.4 and HSPF2 12.5 performance
Heating from -22°F to 75°F; Cooling from -22°F to 122°F
R454B refrigerant – efficient and eco-friendly
Quiet dual rotary inverter compressor operation at 56 dBA
Base pan heater included for anti-icing protection
Gold Fin anti-corrosion coil coating
Not DIY – requires professional installation

This outdoor condenser is designed for use with ACiQ wall, ceiling, or concealed duct air handlers, delivering reliable performance across all seasons.

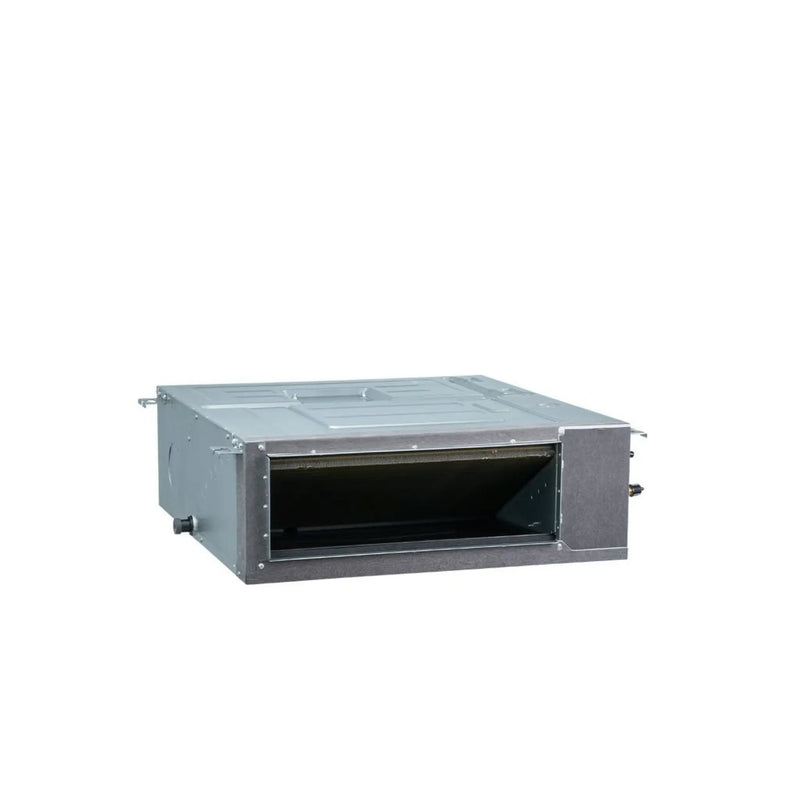

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Experience the convenience of a multi-zone mini split system without visible air handlers with the ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC. This flexible unit can be installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit, allowing for customizable air distribution through flex ducting to ceiling or wall registers.

Key Features

9,000 BTU of heating or cooling power
Dry and fan modes for added versatility
Perfect for smaller rooms in most climates
Includes a wall-mounted thermostat for easy temperature control
Concealed duct design for a seamless look

Enjoy quiet comfort with the precision engineering of the ACiQ system, maintaining your desired temperature without disrupting your peace and quiet.

View More Single Zone Mini Splits

Specifications

ACiQ 9K BTU 27.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-09ZPL-HP230C

Brand	ACiQ	SKU	ACIQ-09ZPL-HP230C
SEER2 Rating	27.4	Tonnage	0.75 Ton
BTU	9,000 BTU	Weight	78.7
Manufacturer	ACiQ	Replaces	N/A
Refrigerant Charge	35.27 oz.	Product Features	Low Ambient Heating
HSPF2	12.5	Cooling BTU	9,000 BTU
Heating BTU	12,000 BTU	Maximum CFM	1470.6
Decibel Level (dBA)	56	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R454B
Compressor Type	Rotary	Liquid Line	1/4"
Suction Line	3/8"	Electrical	208/230V, 1 Phase, 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	15A
Min Breaker Size	15A	Min/Max Temp Heating	-22~75 °F / -30~24 °C
Min/Max Temp Cooling	-22~122 °F / -30~50 °C	Zone Compatibility	Single Zone
Operating Mode	Heating/Cooling	Certification	Energy Star, NEEP, UL AHRI
Height	21.81"	Width	31.69"
Depth	12.99"	Warranty	12 year compressor, 7 year parts with online registration

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Brand	ACiQ	SKU	ACIQ-09CD-HH-MC
Cooling BTU	9,000 BTU	Heating BTU	10,000 BTU
Maximum CFM	352.94	Decibel Level (dBA)	As low as 27
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	9,000 BTU/0.75 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Length	27.56"
Height	7.87"	Depth	19.92"

Warranty

ACiQ 9K BTU 27.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-09ZPL-HP230C

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

Documents

ACiQ 9K BTU 27.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-09ZPL-HP230C

AHRI Certificates (9K with all available air handlers)

Submittal with 9K Ceiling Cassette

Submittal with 9K Concealed Duct

Submittal with 9K Floor/Ceiling Mount

Submittal with 9K Slim Ceiling Cassette

Submittal with 9k Wall Mount

Service Manual

Nominal Capacity Performance Charts

Warranty

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Installation & Owner's Manual

Remote Controller Manual

Submittal

Brochure

Warranty Information
