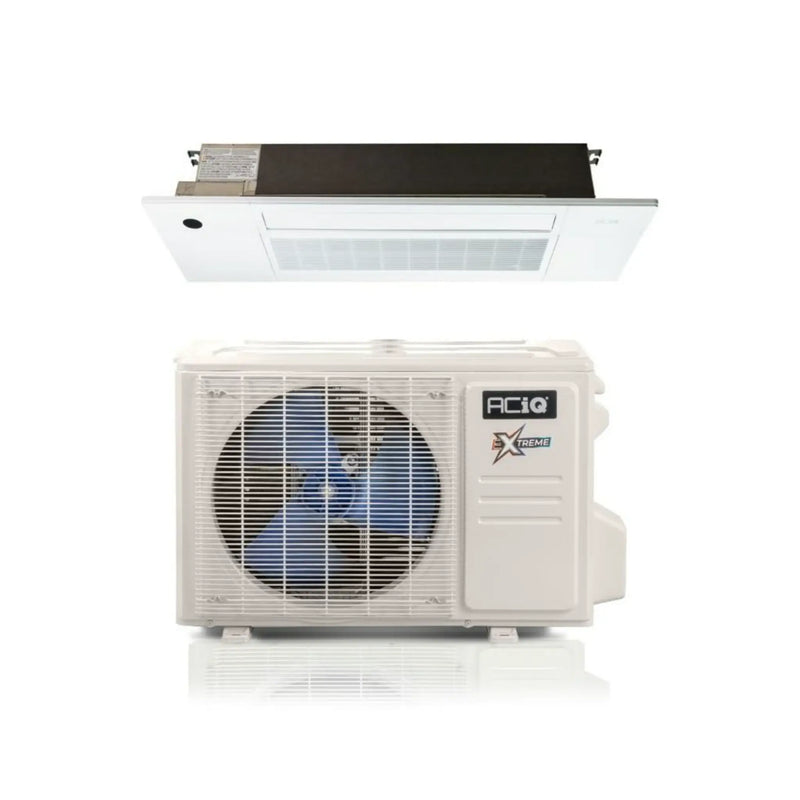

ACIQ 9KBTU 24 SEER2 Single Zone Slim Ceiling Cassette Mini Split R454B 230V

Name: ACIQ 9KBTU 24 SEER2 Single Zone Slim Ceiling Cassette Mini Split R454B 230V
Brand: ACiQ
SKU: SCC-0612-HH-MB
Price: 2099.99 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By ACiQ | Model: SCC-0612-HH-MB / ACiQ-09ZPL-HP230C | ID: 90812

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,099.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

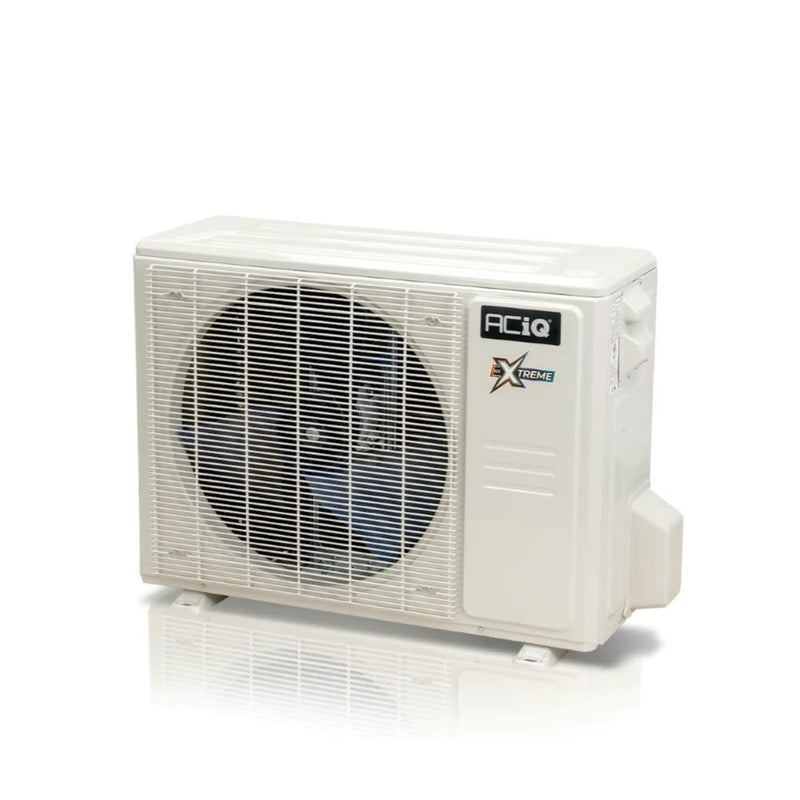

ACiQ 9K BTU 27.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-09ZPL-HP230C

The ACiQ 9,000 BTU Extreme Series Condenser delivers superior energy efficiency and quiet comfort in extreme climates. With a SEER2 rating of 27.4 and HSPF2 of 12.5, it is built to provide high-performance heating and cooling while using less energy. Extreme Heat technology allows this system to operate down to -22°F, making it a perfect solution for cold regions. It includes a base pan heater and advanced inverter compressor for enhanced reliability and performance.

Key Features

9,000 BTU high-efficiency single zone mini split condenser
Exceptional SEER2 27.4 and HSPF2 12.5 performance
Heating from -22°F to 75°F; Cooling from -22°F to 122°F
R454B refrigerant – efficient and eco-friendly
Quiet dual rotary inverter compressor operation at 56 dBA
Base pan heater included for anti-icing protection
Gold Fin anti-corrosion coil coating
Not DIY – requires professional installation

This outdoor condenser is designed for use with ACiQ wall, ceiling, or concealed duct air handlers, delivering reliable performance across all seasons.

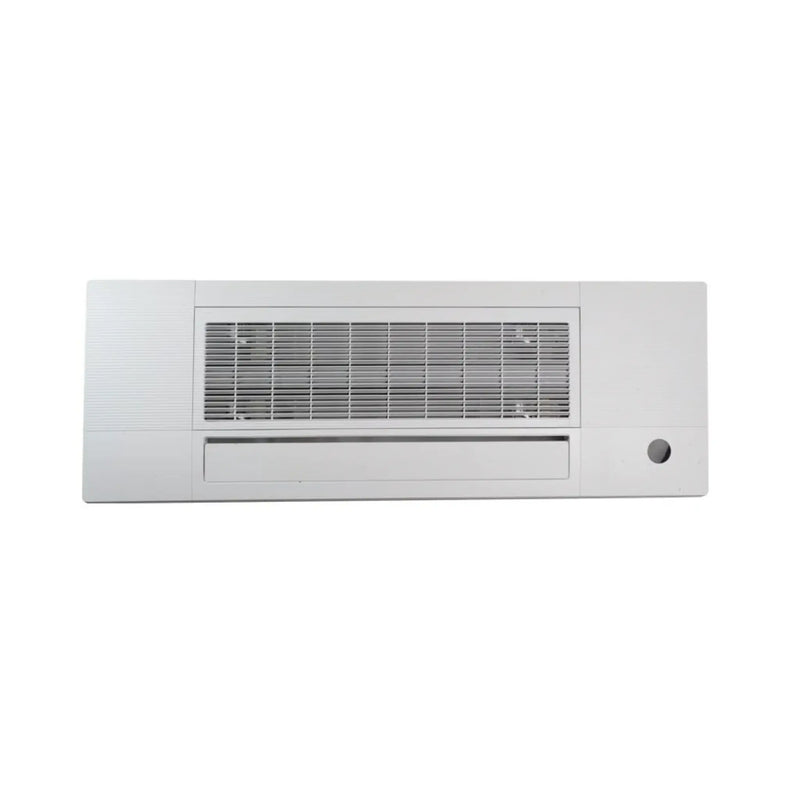

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB

The ACiQ Slim Ceiling Cassette is designed to provide efficient heating and cooling in a compact, low-profile form that fits between 16-inch on-center ceiling joists. With one-way airflow, a clean ceiling-mounted design, and compatibility with ACiQ multi-zone systems, this cassette offers the performance of a traditional mini split indoor unit while remaining discreet and space-saving. It supports 6,000, 9,000, and 12,000 BTU applications and includes a dip switch for adjusting capacity. Using environmentally friendly R-454B refrigerant, the Slim Cassette delivers reliable comfort with a minimal appearance and easy ceiling integration.

Key Features

Fits between 16-inch on-center joists for easier installation
Rated for 6K, 9K, and 12K BTU; dip switch adjustable
One-way airflow design with discreet ceiling-mounted appearance
No-ladder filter access with lowering grille system
Handheld remote control included
Decorative grille included for a clean, modern look
Uses environmentally friendly R-454B refrigerant
Compatible with ACiQ multi-zone condensers

View More Single Zone Mini Splits

Specifications

ACiQ 9K BTU 27.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-09ZPL-HP230C

Brand	ACiQ	SKU	ACIQ-09ZPL-HP230C
SEER2 Rating	27.4	Tonnage	0.75 Ton
BTU	9,000 BTU	Weight	78.7
Manufacturer	ACiQ	Replaces	N/A
Refrigerant Charge	35.27 oz.	Product Features	Low Ambient Heating
HSPF2	12.5	Cooling BTU	9,000 BTU
Heating BTU	12,000 BTU	Maximum CFM	1470.6
Decibel Level (dBA)	56	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R454B
Compressor Type	Rotary	Liquid Line	1/4"
Suction Line	3/8"	Electrical	208/230V, 1 Phase, 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	15A
Min Breaker Size	15A	Min/Max Temp Heating	-22~75 °F / -30~24 °C
Min/Max Temp Cooling	-22~122 °F / -30~50 °C	Zone Compatibility	Single Zone
Operating Mode	Heating/Cooling	Certification	Energy Star, NEEP, UL AHRI
Height	21.81"	Width	31.69"
Depth	12.99"	Warranty	12 year compressor, 7 year parts with online registration

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB

Brand	ACiQ	SKU	SCC-0612-HH-MB
BTU	6,000 / 9,000 / 12,000	Weight (in lbs)	82.45
Manufacturer	ACiQ	Controller	Wireless Included
Heating BTU	6,000 / 9,000 / 12,000	Maximum CFM	Up to 353.20 CFM
Decibel Level (dBA)	As low as 24.0 Decibels	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V, 1 Phase, 60Hz	Phase	Single Phase
Mini Split Type	Slim Ceiling Cassette	Zone Compatibility	Multi Zone, Single Zone
Height	8.98"	Width	50.31"
Depth	13.19"	Warranty	12 year compressor, 7 year parts with online registration

Warranty

ACiQ 9K BTU 27.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-09ZPL-HP230C

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

Documents

ACiQ 9K BTU 27.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-09ZPL-HP230C

AHRI Certificates (9K with all available air handlers)

Submittal with 9K Ceiling Cassette

Submittal with 9K Concealed Duct

Submittal with 9K Floor/Ceiling Mount

Submittal with 9K Slim Ceiling Cassette

Submittal with 9k Wall Mount

Service Manual

Nominal Capacity Performance Charts

Warranty

ACIQ 6K - 12K BTU Platinum Slim Ceiling Casette Mini Split Air Handler Single Zone R454B 230V SCC-0612-HH-MB

6K-AHRI Certificate

9K-AHRI Certificate

12K-AHRI Certificate

Warranty Information
