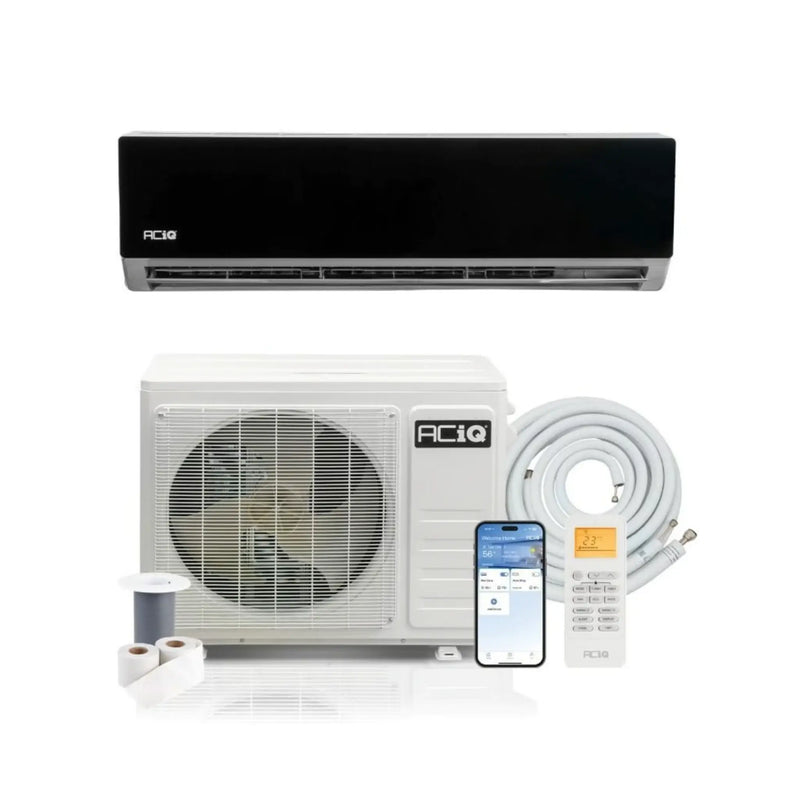

ACIQ Essentials 36K BTU 19 SEER2 Single Zone Wall Mount Mini Split R454B

By ACiQ | Model: ACiQ-K36Z-HP230B / ACiQ-K36W-BL-HP230B | ID: 90814
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,549.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

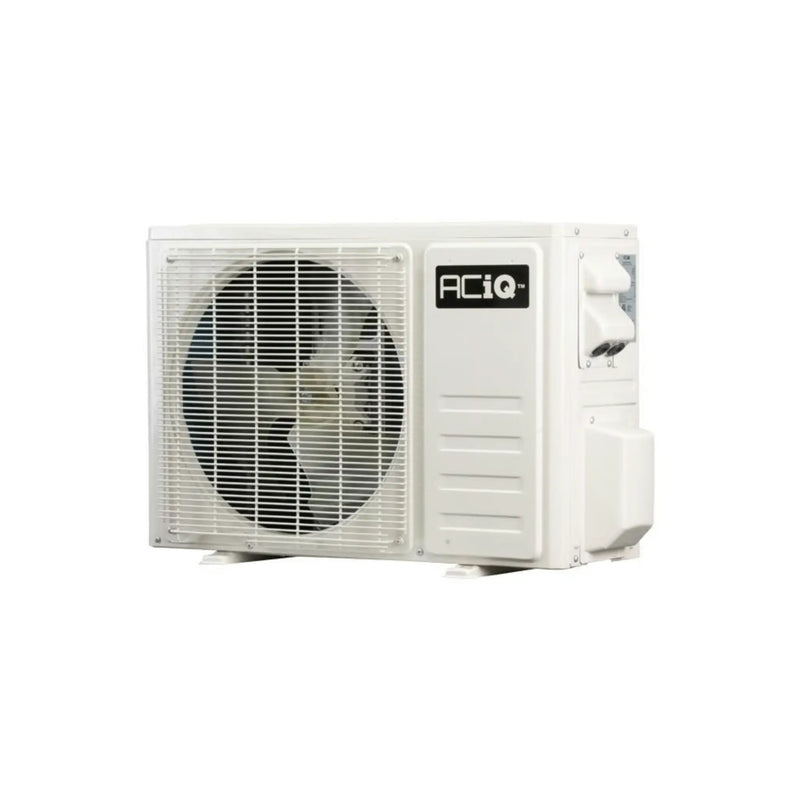

ACIQ 36,000 BTU 19 SEER2 Mini Split Heat Pump Condenser Single Zone R454B

The ACiQ 36K BTU Essentials Mini Split Heat Pump Condenser ACIQ-K36Z-HP230B is a 3-ton, single-zone outdoor unit designed for efficient cooling and heating using R-454B refrigerant. Operating on 230V, this system delivers reliable year-round comfort for larger rooms or medium-sized living areas. Its inverter-driven compressor ensures stable performance, reduced energy consumption, and quiet operation. Built for durability and compatibility with ACiQ single-zone indoor units, this condenser provides a dependable and cost-effective solution for modern ductless mini split installations.

Key Features

  • 36,000 BTU cooling and heating capacity for larger rooms and mid-size homes
  • Single-zone 230V condenser for ductless mini split systems
  • Uses environmentally friendly R-454B refrigerant
  • 19 SEER2 high-efficiency performance
  • Inverter rotary compressor for stable and energy-efficient operation
  • Quiet outdoor operation
  • Wide operating range for reliable heating and cooling in various climates
  • Compatible with ACiQ single-zone indoor air handlers
  • Supports optional features like WiFi control when paired with a compatible indoor unit

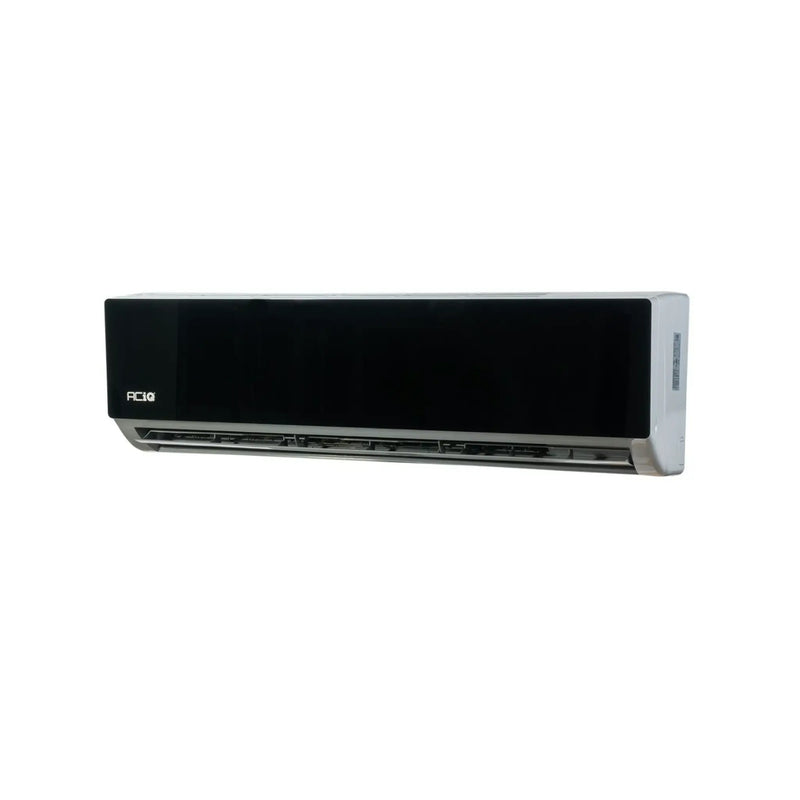

ACIQ 36K BTU Essentials Wall Mount Air Handler Mini Split Single Zone R454B ACIQ-K36W-BL-HP230B

The ACiQ 36K BTU wall-mounted air handler ACIQ-K36W-BL-HP230B is designed to deliver intelligent, energy-efficient comfort for small to medium-sized rooms. Using adaptive technology, it continuously monitors indoor conditions to maintain your selected temperature as outdoor weather changes throughout the day. Its soft LED display provides quick access to system information, including room temperature, setpoint adjustments, mode changes, and diagnostic alerts. The display can be turned off for a dark-room environment, and the included smart remote offers additional control convenience. With built-in WiFi capability, this air handler can be controlled through a smartphone app or integrated with Amazon Alexa and Google Assistant. This unit must be paired with a compatible ACiQ condenser for full operation.

Key Features

    • 36,000 BTU wall-mounted air handler designed for small to medium-sized spaces
    • Adaptive temperature monitoring for steady, intelligent comfort
    • Soft LED display for room temperature, setpoint, mode, and diagnostics
    • Display can be switched off for low-light environments
    • Smart handheld remote included with LCD screen
    • Built-in WiFi capability for smartphone control (iOS and Android)
    • Compatible with Amazon Alexa and Google Assistant
    • Requires matching ACiQ condenser and standard installation components

View More Single Zone Mini Splits

Specifications

ACIQ 36,000 BTU 19 SEER2 Mini Split Heat Pump Condenser Single Zone R454B

Brand ACiQ SKU ACIQ-K36Z-HP230B
SEER Rating 19 SEER2 Rating 19
Tonnage 3 Ton BTU 36,000 BTU
Weight 120.2 Manufacturer ACiQ
Refrigerant Charge 55.73 oz. Product Features WiFi
HSPF2 Region IV / V: 9.0 / 7.7 Heating BTU 36,000 BTU
Decibel Level (dBA) 63 (Max) Refrigerant R454B
Compressor Type Rotary Liquid Line 1/4"
Suction Line 5/8" Electrical 208/230V, 1 Ph, 60 Hz
Phase Single Phase Max Breaker Size MOP: 30A
Min. Breaker Size MCA: 18A Zone Compatibility Single Zone
Min/Max Heating Temp -4°F ~ 86°F Min/Max Cooling Temp 5°F ~ 122°F
Height 31.61" Width 38.50"
Depth 16.57"

ACIQ 36K BTU Essentials Wall Mount Air Handler Mini Split Single Zone R454B ACIQ-K36W-BL-HP230B

Brand ACiQ SKU ACIQ-K36W-BL-HP230B
SEER Rating 19 SEER2 Rating 19
Tonnage 3 Ton BTU 36,000 BTU
Weight 48.5 Manufacturer ACiQ
Replaces ACiQ-K36W-HP230 AHRI Certificate Number 217606048
HSPF2 Region IV / V: 9.0 / 7.7 Heating BTU 36,000 BTU
Maximum CFM Up to 847 CFM Decibel Level (dBA) As low as 36 Decibels
Refrigerant R454B Liquid Line 1/4"
Suction Line 5/8" Electrical 208/230V, 1 Ph, 60 Hz
Phase Single Phase Mini Split Type Wall Mounted
Zone Compatibility Single Zone Height 14.17"
Width 46.89" Depth 10.16"
Warranty

ACIQ 36,000 BTU 19 SEER2 Mini Split Heat Pump Condenser Single Zone R454B

Warranty Type Parts Compressor
Standard Warranty 3 years 5 years
Registered Warranty 4 years 6 years

ACIQ 36K BTU Essentials Wall Mount Air Handler Mini Split Single Zone R454B ACIQ-K36W-BL-HP230B

Warranty Type Parts Compressor
Standard Warranty 3 years 5 years
Registered Warranty 4 years 6 years
Documents

ACIQ 36,000 BTU 19 SEER2 Mini Split Heat Pump Condenser Single Zone R454B

AHRI Certificate (With Black 36K Air Handler)

AHRI Certificate (With White 36K Air Handler)

Submittal

Installation & Owners Manual

Service Manual

Wifi User Manual

Warranty

ACIQ 36K BTU Essentials Wall Mount Air Handler Mini Split Single Zone R454B ACIQ-K36W-BL-HP230B

AHRI Certificate

Submittal

Installation & Owners Manual

Service Manual

Wifi User Manual

Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.

Reviews
