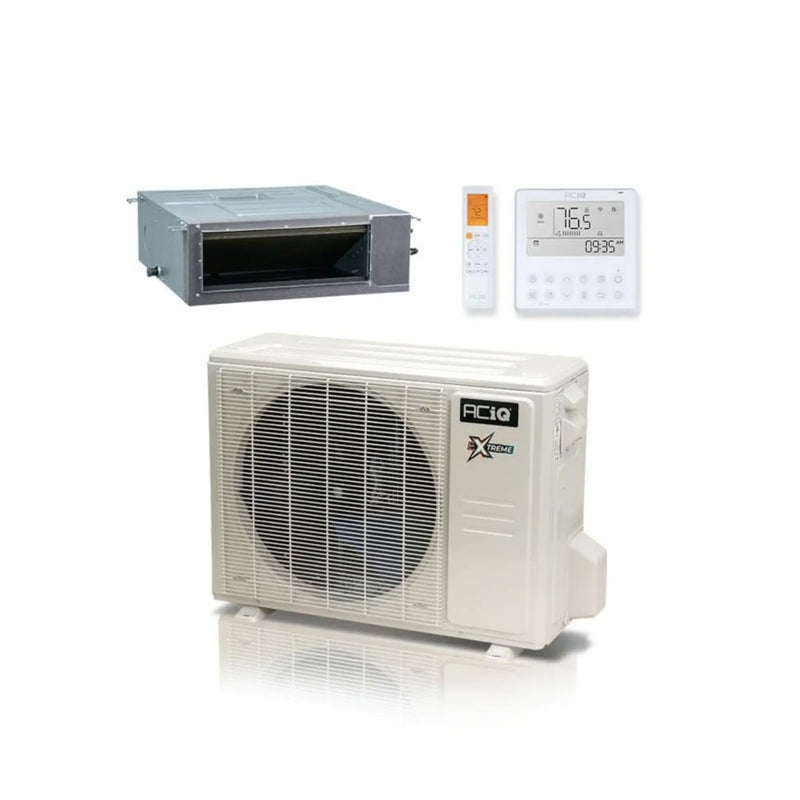

ACIQ Extreme 12K BTU 20 SEER2 Single Zone Concealed Duct Mini Split R454B

Name: ACIQ Extreme 12K BTU 20 SEER2 Single Zone Concealed Duct Mini Split R454B
Brand: ACiQ
SKU: ACIQ-12ZPL-HP230C
Price: 2099.99 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By ACiQ | Model: ACIQ-12ZPL-HP230C / ACIQ-12CD-HH-MC | ID: 90813

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,099.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

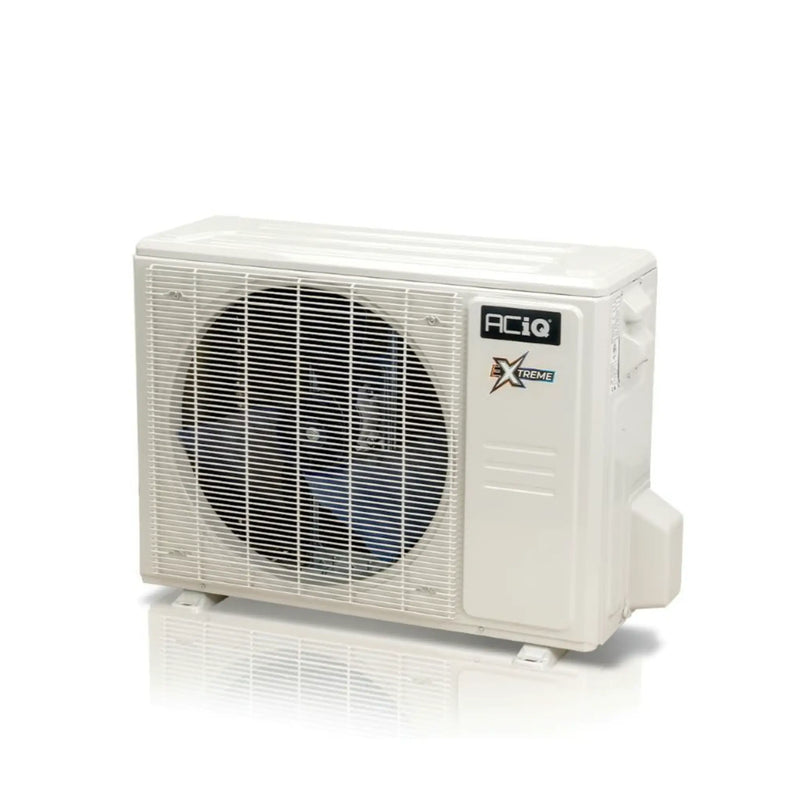

ACiQ 12K BTU 25.5 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-12ZPL-HP230C

Experience high-efficiency performance with the ACiQ 12,000 BTU Extreme Series single zone condenser. Engineered with advanced inverter technology and R454B refrigerant, this system offers up to 25.5 SEER2 and delivers consistent heating and cooling performance in harsh climates—down to -22°F. Built for long-term reliability and low ambient operation, this condenser provides a cost-effective, energy-conscious solution for year-round comfort.

Key Features

12,000 BTU single zone inverter condenser with 25.5 SEER2 and 10.5 HSPF2
Rated for extreme temperatures from -22°F to 122°F
Low ambient heating performance with R454B refrigerant
Quiet 56 dBA operation for minimal outdoor noise
Energy Star and NEEP certified for high energy performance
Compatible with various indoor unit types including ceiling cassette

Ideal for smaller rooms or zones, this 1-ton condenser delivers top-tier comfort with one of the highest SEER2 ratings in its class.

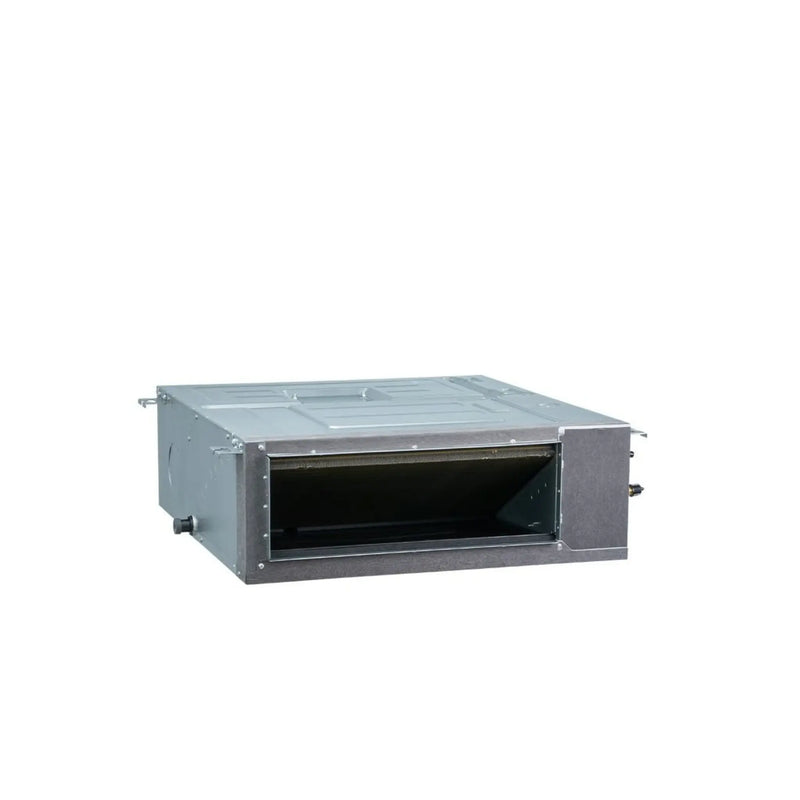

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Experience the convenience and flexibility of a multi-zone mini split system with the ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC. This unit allows for discreet installation above the ceiling, below the floor, or behind a soffit, providing efficient heating and cooling without visible air handlers on your walls or ceilings.

Key Features

12,000 BTU of heating or cooling power
Dry and Fan modes for added versatility
Includes a wall-mounted thermostat for easy temperature control
Concealed Duct design for a seamless appearance

Quiet Comfort: The ACiQ system is designed for whisper-quiet operation, ensuring a peaceful indoor environment while efficiently maintaining your desired temperature.

View More Single Zone Mini Splits

Specifications

ACiQ 12K BTU 25.5 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-12ZPL-HP230C

Brand	ACiQ	SKU	ACIQ-12ZPL-HP230C
SEER2 Rating	25.5	Tonnage	1 Ton
BTU	12,000 BTU	Weight	78.7
Manufacturer	ACiQ	Replaces	N/A
Refrigerant Charge	35.27 oz.	Product Features	Low Ambient Heating
HSPF2	10.5	Cooling BTU	12,000 BTU
Heating BTU	12,000 BTU	Maximum CFM	1470.6
Decibel Level (dBA)	56	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R454B
Compressor Type	Rotary	Liquid Line	1/4"
Suction Line	3/8"	Electrical	208/230V, 1 Phase, 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	15A
Min Breaker Size	15A	BTU/Tonnage	12,000 BTU / 1 Ton
Min/Max Outdoor Temp Heating	-22~75 °F / -30~24 °C	Min/Max Outdoor Temp Cooling	-22~122 °F / -30~50 °C
Zone Compatibility	Single Zone	Certification	Energy Star, NEEP, UL AHRI
Height	21.81"	Width	31.69"
Depth	12.99"	Warranty	12 year compressor, 7 year parts with online registration

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Brand	ACiQ	SKU	ACIQ-12CD-HH-MC
Cooling BTU	12,000 BTU	Heating BTU	12,000 BTU
Maximum CFM	352.94	Decibel Level (dBA)	As low as 26.5
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Length	27.56"
Height	7.87"	Depth	19.92"

Warranty

ACiQ 12K BTU 25.5 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-12ZPL-HP230C

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 12K BTU 25.5 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACIQ-12ZPL-HP230C

Submittal

Installation Manual

Owner's Manual

Remote Manual

Service Manual

Warranty Information

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Installation & Owner's Manual

Remote Controller Manual

Submittal

Brochure

Warranty Information
