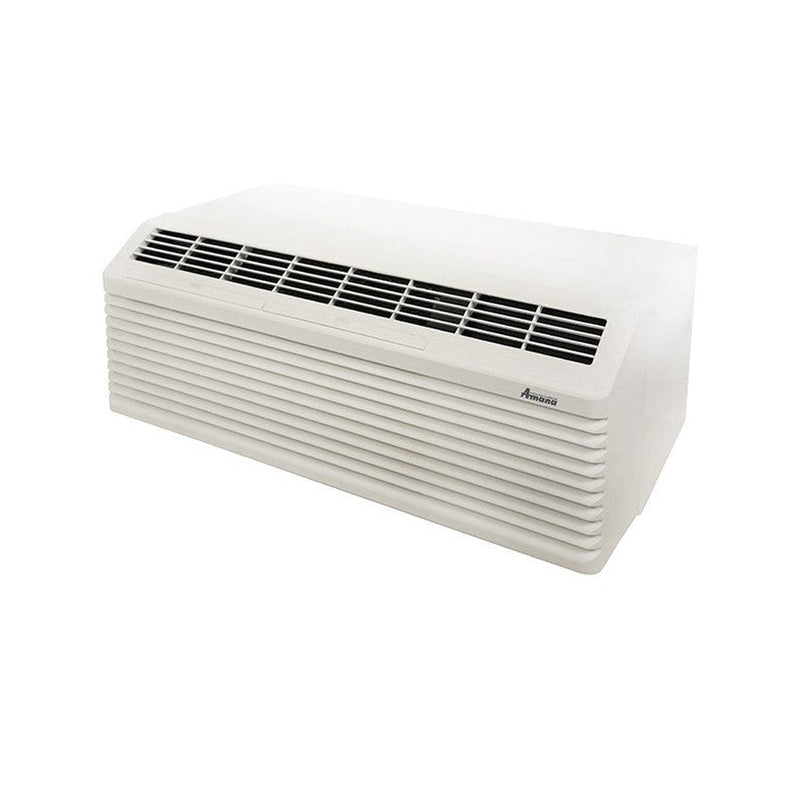

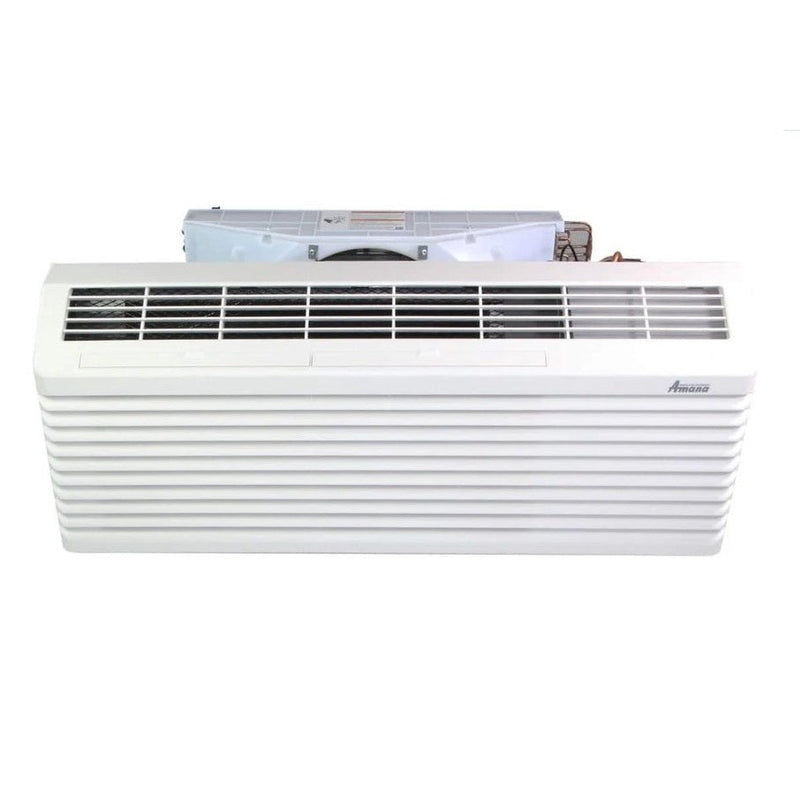

Amana R32 Package Terminal Air Conditioner 12K BTU 5.0KW Built-In Heat 230V

By Amana | SKU: PTC123J50AXXX | ID: 110832
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,391.00 + FREE SHIPPING
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387
Product Details

Amana R32 Package Terminal Air Conditioner 12K BTU 5.0KW Built-In Heat 230V PTC123J50AXXX

The Amana PTC123J50AXXX is a J-Series packaged terminal air conditioner built for hospitality, assisted living and multi-family properties that need dependable cooling and supplemental heat from a single through-the-wall unit. It delivers 11,900 BTU of cooling at a 11.4 EER, with a 5.0 kW electric heat strip built into the chassis. An acoustically engineered design with a tangential indoor fan and two-speed indoor and outdoor motors keeps it quiet at an STC 29 rating, and it uses low-GWP R-32 refrigerant.

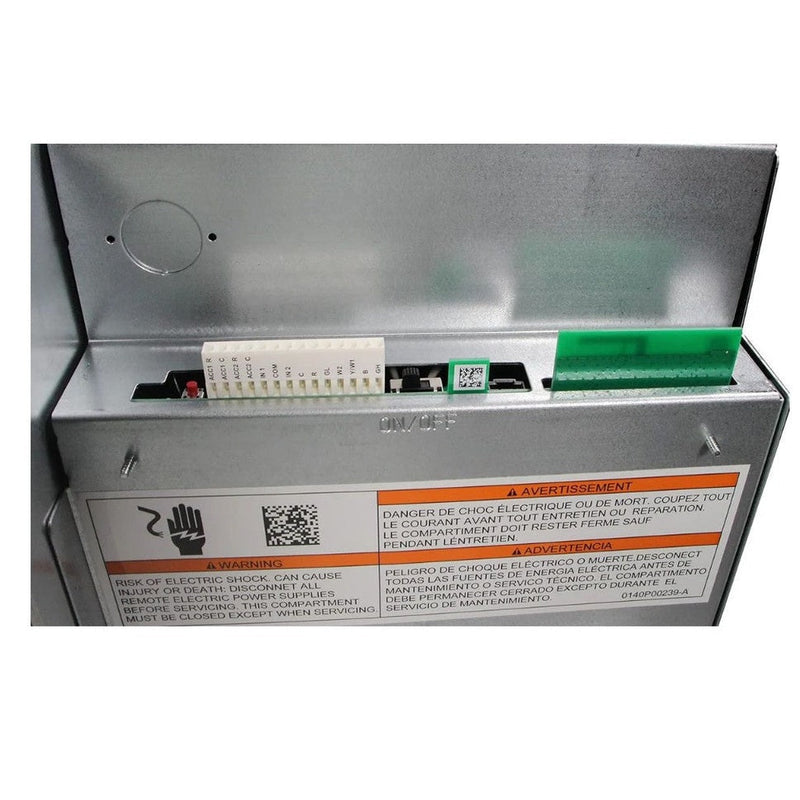

This unit has no onboard controls. It requires a wired or wireless wall thermostat, plus a 42" wall sleeve and a rear grille for a new installation (all sold separately).

Key Features

  • 11,900 BTU Cooling: 11,900 (230V) / 11,700 (208V) BTU
  • Built-In 5.0 kW Electric Heat: 17,100 (230V) / 14,000 (208V) BTU - the heat strip is part of the unit, not a separate kit
  • 11.4 EER: Rated cooling efficiency
  • R32 Refrigerant: Lower global warming potential than R-410A
  • NEMA 6-30P (30 Amp): 208/230V single phase, 58 in. power cord included
  • Wall Thermostat Required: Wired or wireless, with RF and Bluetooth support (sold separately)
  • Quiet Operation: STC 29 rating from a tangential indoor fan and two-speed indoor and outdoor motors
  • Dual Fan Motors: Independent indoor and outdoor fan speed control
  • Energy Saver Mode: Cycles the unit down to hold comfort at lower consumption
  • Fresh Air Intake: Brings outside air in without opening a window
  • Room Freeze Protection: Brings on the fan and heat strip when the room falls to 40°F or below
  • Condensate Dispersion System: Draws condensate onto the outdoor coil for fast evaporation

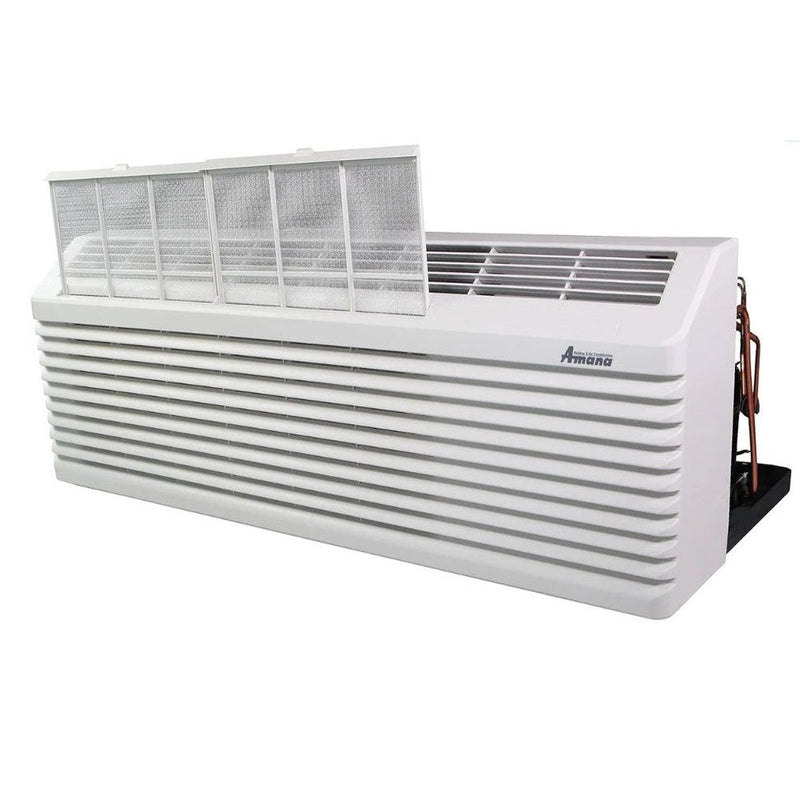

  • Washable Pull-Out Filters: Rinse and reinstall - no replacement filters to stock
  • 1.7 Pints/Hour Dehumidification: Removes moisture for comfort in humid conditions
  • Standard 42" Sleeve Fit: Installs in a standard 42" PTAC wall sleeve

Important Installation Note

This unit requires a wall thermostat - there are no controls on the chassis. A new installation also requires a 42" wall sleeve and a rear grille. All are sold separately.

View More PTAC Units

Specifications

Amana R32 Package Terminal Air Conditioner 12K BTU 5.0KW Built-In Heat 230V PTC123J50AXXX

SKU PTC123J50AXXX Brand/Manufacturer Amana
Product Type PTAC Air Conditioner Operating Mode Cooling + Electric Heat
Cooling Capacity 11,900 (230V) / 11,700 (208V) BTU EER 11.4
Electric Heat (Built-In) 5.0 kW (230V and 208V) Electric Heat Capacity 17,100 (230V) / 14,000 (208V) BTU
Refrigerant R-32 Certification ETL / AHRI Certified
Voltage 208 / 230V | 1 Phase | 60 Hz Plug Type NEMA 6-30P (30 Amp)
Cooling Amps 6.1 (230V) / 6.1 (208V) Electric Heat Amps 21.7 (230V) / 19.7 (208V)
Airflow 330 CFM High / 245 CFM Low Dehumidification 1.7 Pints/Hour
Controls Wall Thermostat Required (sold separately) Connectivity RF and Bluetooth
Sound Rating STC 29 Power Cord 58 in. Included
Product Width 42 in. Product Height 16-1/16 in.
Product Depth 14-1/8 in. Product Weight 108 lb.
Wall Sleeve 42 in. Standard PTAC Wall Cut-Out 42-1/4 in. W x 16-1/4 in. H
Energy Star No Application Residential / Commercial
