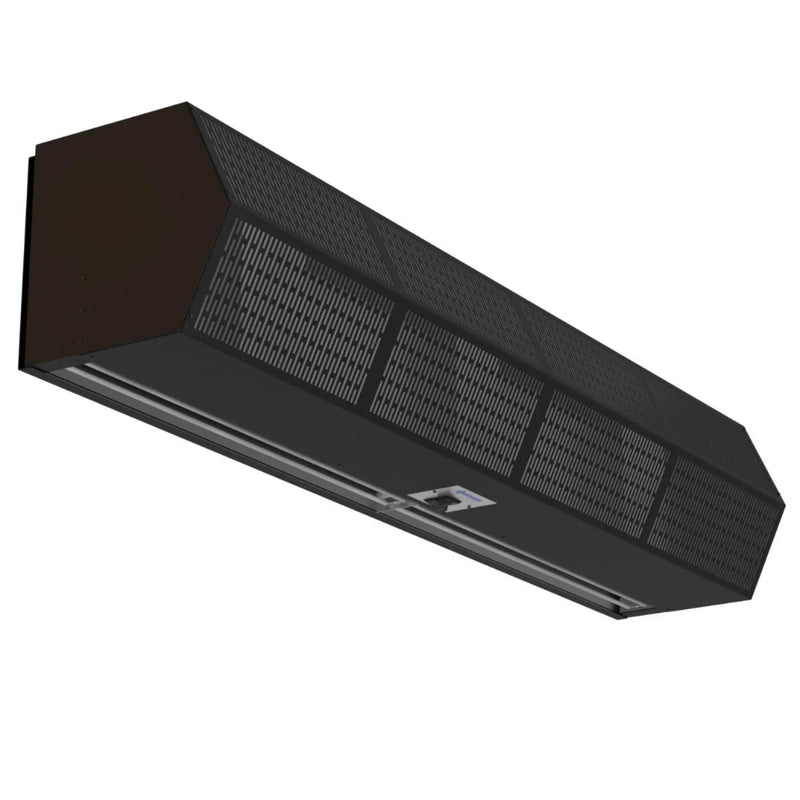

Berner 120" Commercial High Performance 10 Air Curtain Electric Heated 28KW Black 480/3/60

By Berner | Model: CHD10-2120EZ-280-BK | ID: 70589
Manufactured in the USA
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Most Products In Stock - Call or Text (833) 658-3387 for availability
$4,900.35 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Product Details

Berner 120" Commercial High Performance 10 Air Curtain Electric Heated 28KW Black 480/3/60 CHD10-2120EZ-280-BK

The Berner CHD10-2120EZ-280-BK is a massive, high-capacity electrically heated air curtain from the Commercial High Performance 10 series, specifically engineered for 120-inch (10-foot) wide doorways. This "2120" model is powered by dual 1/2 HP three-speed motors, providing maximum air volume and curtain stability across a full 10-foot opening. Paired with a robust 28 kW heating element, it creates a powerful, warm thermal barrier for the largest commercial entrances. Finished in a custom Black Powder Coat, it delivers elite climate control and insect control up to 8 feet with a sophisticated, professional look.

Constructed with a durable Black Aluminum exterior cover, the CHD10-2120EZ-280-BK houses its heavy-duty components within a 14" high by 15" deep chassis. Operating on 480V three-phase power, this unit is designed for oversized facilities—such as airport terminals, large retail warehouses, and industrial pedestrian entrances—that require maximum heat output to neutralize cold drafts across a 10-foot wide opening. It is AMCA certified for performance, UL listed for safety, and serves as an industrial-grade energy-saving alternative to vestibules.

  • 120" Wide High-Velocity Coverage: Utilizes two 1/2 HP motors to ensure a high-volume, continuous air stream across a 10-foot wide entrance for maximum environmental separation.
  • Internal 28 kW Electric Heat: Features a high-capacity heating system designed to provide significant temperature rise, ensuring occupant comfort in high-traffic, oversized commercial zones.
  • Custom Black Finish: The factory-applied black powder-coated exterior provides a modern, premium aesthetic that blends into dark-themed architectural designs or storefronts.
  • Indoor-Only Installation: Designed exclusively for indoor mounting to safeguard the dual-motor system and heating coils from environmental damage.
  • 480V/3PH Power Configuration: Optimized for facilities utilizing 480-volt three-phase power ("EZ" code), providing stable heating capacity with industrial-grade electrical stability.
  • Dual 1/2 HP Three-Speed Motors: Includes a built-in speed switch, allowing users to precisely balance air volume, velocity, and sound levels (approx. 74 dBA).
  • Maximum Environmental Protection: Maintains a thermal barrier up to 10ft high and provides a high-velocity shield against insects up to 8ft high.
  • AMCA and UL Certified: Performance and safety ratings are independently verified to ensure compliance with strict commercial building standards.
  • Simplified "No Assembly" Installation: Shipped fully assembled with 1/4-inch keyhole slots for wall mounting and 5/16-inch threaded inserts for top mounting.
  • Extended 2-Year Warranty: Includes a two-year parts warranty, providing long-term peace of mind for heavy-duty heated applications.

Shipping Information: Ships in 2-3 Weeks

Return Policy: Please note that because our units are produced to order, all sales are final. We are unable to accept returns or exchanges once an order has been processed.

View More Air Curtains

Specifications

Berner 120" Commercial High Performance 10 Air Curtain Electric Heated 28KW Black 480/3/60 CHD10-2120EZ-280-BK

Brand Berner SKU CHD10-2120EZ-280-BK
Environment Indoor Use Only Weight 190 lbs
Nozzle Width 120" Maximum CFM 4,725
Max Mounting Height 10 Feet Decibel Level 74 dBA
Electric Heat 28.0 kW Electrical 480/3/60
Operating Mode Electric Heated Color Black (Powder Coated)
Mounting Type Wall and Top Dimensions (HxWxD) 14” x 122.25" x 15”
Warranty 2 Year Limited Type Commercial High Performance
Warranty

Berner 120" Commercial High Performance 10 Air Curtain Electric Heated 28KW Black 480/3/60 CHD10-2120EZ-280-BK

Warranty Coverage Details
Parts Warranty 2 Year Limited Warranty
Documents

Berner 120" Commercial High Performance 10 Air Curtain Electric Heated 28KW Black 480/3/60 CHD10-2120EZ-280-BK

CHD10 Brochure

CHD10 Ambient (Unheated) Data Sheet

CHD10 Electric Heat Data Sheet

CHD10 Installation Instructions
