Berner 120" Commercial Low Profile 8 Air Curtain Electric Heated 28.8 KW White 480/3/60

By Berner | Model: CLC08-2120EZ-288 | ID: 71000
Manufactured in the USA
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Most Products In Stock - Call or Text (833) 658-3387 for availability
$4,635.80 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Product Details

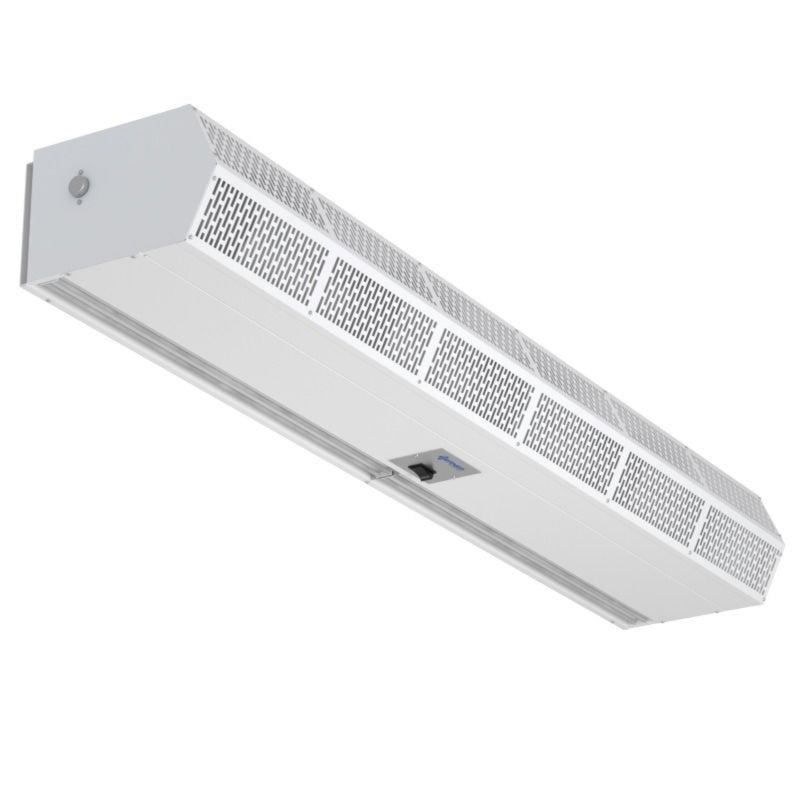

Berner 120" Commercial Low Profile 8 Air Curtain Electric Heated 28.8 KW White 480/3/60 CLC08-2120EZ-288

The Berner CLC08-2120EZ-288 is a high-capacity, 120-inch electric heated air curtain designed for expansive commercial and industrial openings. Featuring a powerful 28.8 kW heating system and configured for 480V 3-phase power, it provides a high-output thermal barrier for doorways up to 10 feet wide. This model is ideal for large main entrances, shipping bays, and warehouse doors in cold climates.

Key Features

  • Designed for 120-inch wide door openings up to 8 feet high (Environmental) or 7 feet high (Insect Control)
  • High-output electric heating system with 28.8 kW capacity
  • Industrial 480V / 3 Phase / 60 Hz electrical configuration (EZ suffix)
  • Low profile 8.5-inch cabinet height for discreet overhead mounting
  • AMCA certified performance and UL listed for safety
  • Dual 1/5 HP two-speed motors producing 3263 CFM of airflow
  • Durable aluminum housing with a professional white powder coated finish
  • Simple installation with 1/4” keyhole slots for wall or top mounting
  • Indoor mounting only
  • Made in the USA with a 2-year limited parts warranty on heated models

Shipping Information: Ships in 2-3 Weeks

Return Policy: Please note that because our units are produced to order, all sales are final. We are unable to accept returns or exchanges once an order has been processed.

View More Air Curtains

Specifications

Berner 120" Commercial Low Profile 8 Air Curtain Electric Heated 28.8 KW White 480/3/60 CLC08-2120EZ-288

Brand Berner SKU CLC08-2120EZ-288
Weight (lbs) 180 Nozzle Width 119.25"
Maximum CFM 3263 Heating Capacity 28.8 kW
Max Mounting Height (Environmental) 8 Feet Max Mounting Height (Insect Control) 7 Feet
Electrical 480V / 3 Phase / 60 Hz Operating Mode Electric Heated
Color White Material Aluminum
Mounting Type Wall / Top Mount Indoor / Outdoor Indoor Only
Dimensions (HxWxD) 8.5" x 120.69" x 13.5"
Application Shipping Bays, Warehouse Entrances, Industrial Main Entry, Cold Climate Entrances
Warranty

Berner 120" Commercial Low Profile 8 Air Curtain Electric Heated 28.8 KW White 480/3/60 CLC08-2120EZ-288

Warranty Coverage Details
Parts Warranty 2 Year Limited Parts Warranty
Documents

Berner 120" Commercial Low Profile 8 Air Curtain Electric Heated 28.8 KW White 480/3/60 CLC08-2120EZ-288

Berner CLC08 Brochure

Berner CLC08 Installation, Operation and Service Instructions

Berner CLC08 Spec Sheet
