Berner 26" Drive-Thru Air Curtain Unit 3 Series Electric Heated 120/1/60

By Berner | Model: DTU03-2026EA | ID: 71459
Manufactured in the USA
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,156.35 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Product Details

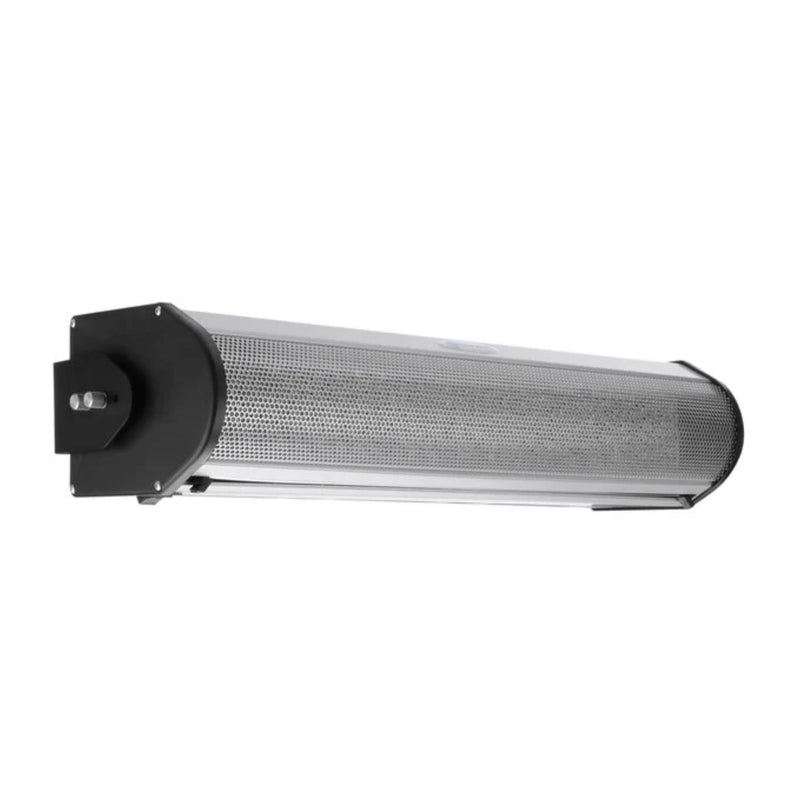

Berner 26" Drive-Thru Air Curtain Unit 3 Series Electric Heated 120/1/60 DTU03-2026EA

The Berner DTU03-2026EA is a 26-inch electric heated air curtain from the Drive-Thru Unit 3 (DTU03) Series. This dual-motor unit is designed for wider drive-thru, pass-thru, and concession windows requiring both environmental separation and added employee comfort.

This heated air curtain increases discharge air temperature by approximately 27°F to 31°F while creating a strong air barrier against insects, outside air, and vehicle exhaust. Its compact design fits tight service window openings while maintaining clear visibility and communication.

Key Features

  • 26-inch electric heated air curtain for drive-thru windows
  • Dual motor design for wider opening coverage
  • Designed for windows up to 3 feet high
  • Provides insect control protection up to 5 feet
  • 1.7 kW to 2 kW electric heater with thermal overload protection
  • Raises discharge air temperature approximately 27°F to 31°F
  • Factory-installed fan and heat switch controls
  • Mount Anywhere bracket system included
  • Washable filter removable without tools
  • Compact low-profile aluminum construction
  • Galvanized steel internal frame for durability
  • Designed for indoor mounting applications

This heated drive-thru air curtain is ideal for quick service restaurants, concession stands, and pass-through windows requiring temperature control and environmental separation.

Shipping Information: Ships in 2-3 Weeks

Return Policy: Please note that all units are built to order and cannot be returned or exchanged once processed.

View More Air Curtains

Specifications

Berner 26" Drive-Thru Air Curtain Unit 3 Series Electric Heated 120/1/60 DTU03-2026EA

Brand Berner SKU DTU03-2026EA
Nozzle Width 26" Motors 1 x 1/12 HP, 1 x 1/20 HP
Max Mounting Height 3 Feet Electrical 120V / 1 Phase / 60 Hz
Heating Capacity 1.7 kW – 2 kW Amperage 16.4 – 18.9 Amps
Operating Mode Electric Heated Airflow 200 CFM
Max Air Velocity 2,800 FPM Sound Level ~52 dBA (10 ft)
Plug Type NEMA 5-20P Cord Length 6 ft
Construction Extruded Aluminum Frame Galvanized Steel
Dimensions (WxDxH) 28 1/8" x 7 3/4" x 7"
Installation Indoor Only
Warranty

Berner 26" Drive-Thru Air Curtain Unit 3 Series Electric Heated 120/1/60 DTU03-2026EA

Warranty Coverage Details
Parts Warranty 1 Year Limited Parts Warranty
Documents

Berner 26" Drive-Thru Air Curtain Unit 3 Series Electric Heated 120/1/60 DTU03-2026EA

DTU03 Manual

DTU03 Brochure

DTU03 Spec Sheet
