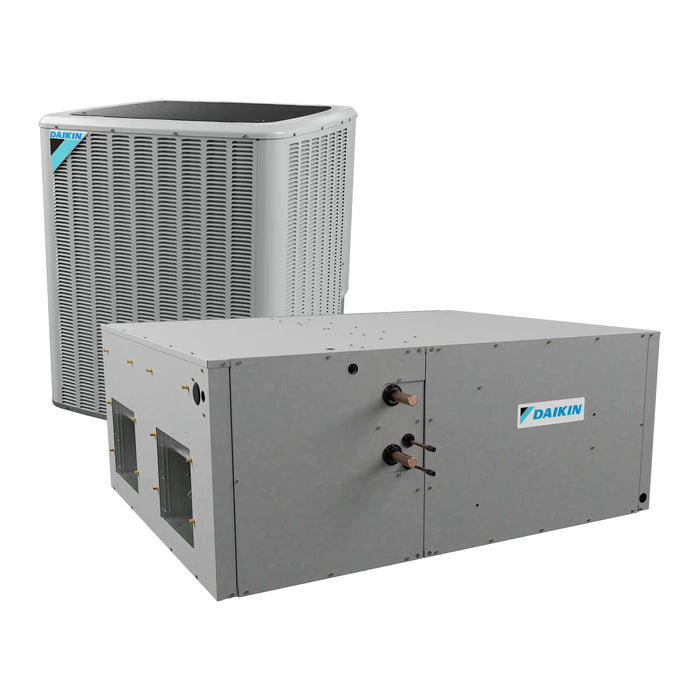

Daikin 10 Ton 16.4 IEER Commercial Split Air Conditioning System 230V-3 R32

Name: Daikin 10 Ton 16.4 IEER Commercial Split Air Conditioning System 230V-3 R32
Brand: Daikin
SKU: DC6TE12030 DAQ12033
Price: 10350.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By Daikin | SKU: DC6TE12030 DAQ12033 | ID: 060154

✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$10,350.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

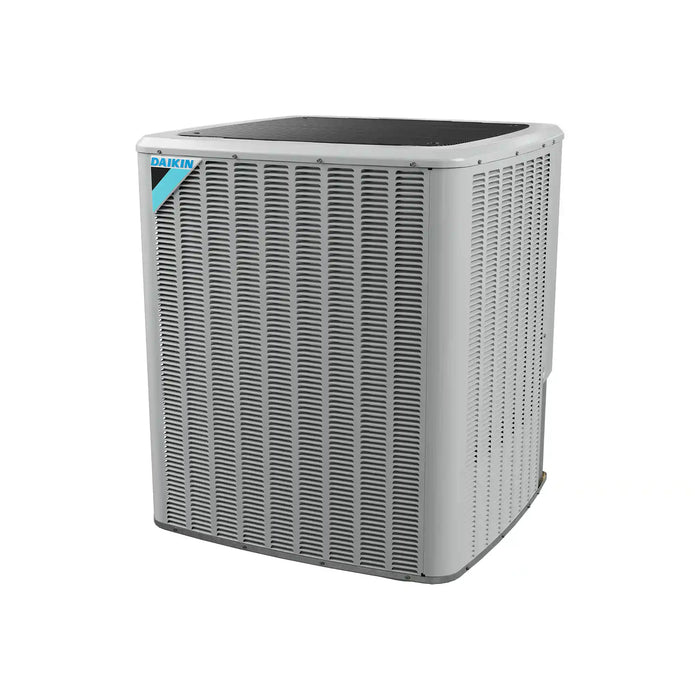

Daikin 10 Ton 16.4 IEER Commercial Air Conditioner Two-Stage 230V 3-Phase R32 DC6TE12030

Upgrade your cooling system with our high-performance Three-Phase Split System Air Conditioner, featuring a 16.4 IEER and R-32 refrigerant for enhanced efficiency and eco-friendliness. This unit boasts a two-stage tandem compressor design for improved performance, quiet operation with a top discharge, and a high-efficiency copper tube/aluminum fin coil for optimal heat transfer. With durable brass service valves, factory-installed filter drier, and compliance with ASHRAE 90.1 standards, it ensures reliability and safety. The heavy-gauge galvanized-steel cabinet with an attractive nickel gray powder finish and innovative sound control top design delivers both strength and aesthetics, while the steel louver coil guard protects the system from damage. Additionally, it meets the 2010 Florida Building Code for hurricane-type winds when properly anchored, offering peace of mind. Contact us today to experience advanced, energy-efficient cooling!

EER HSVTC: 11.4
Energy Star Certified: No
Refrigerant Type: R-32
Unit Height: 41.5 in
Unit Width: 35.5 in
Cooling Capacity Nominal: 118000 Btu/H
Max Overcurrent Protection: 60 A
Power Phase: 3 Ph
Power Voltage: 208/230 V
Compressor Stages: Two Stage
Compressor Type: Scroll
Unit Weight: 350 lb
Cooling Capacity Max: 118000 Btu/H
Tonnage: 10
Unit Depth: 35.5 in

Standard Features:

Two-Stage Tandem Compressor Design for enhanced performance and energy efficiency
Quiet Operating Top Discharge for reduced noise levels during operation
High-Efficiency Copper Tube/Aluminum Fin Coil for improved heat transfer and overall system efficiency
Brass Liquid and Suction Service Valves for easy maintenance and reliable connections
High- and Low-Pressure Switches for system protection and safety
Factory-Installed Filter Drier for moisture control and system protection
Complies with ASHRAE 90.1 energy efficiency standards
AHRI Certified and ETL Listed for industry-leading performance and safety

Cabinet Features:

Innovative Sound Control Top Design for quieter operation
Steel Louver Coil Guard protects the coil from damage while adding strength to the unit
Bottom Pan Rails Elevate Unit above slab for better installation and drainage
Heavy-Gauge Galvanized-Steel Cabinet for durability and long-lasting protection
Attractive Nickel Gray Powder-Paint Finish for an aesthetic and durable exterior
Meets 2010 Florida Building Code Unit Integrity Requirements for hurricane-type winds (Anchor bracket kits available)

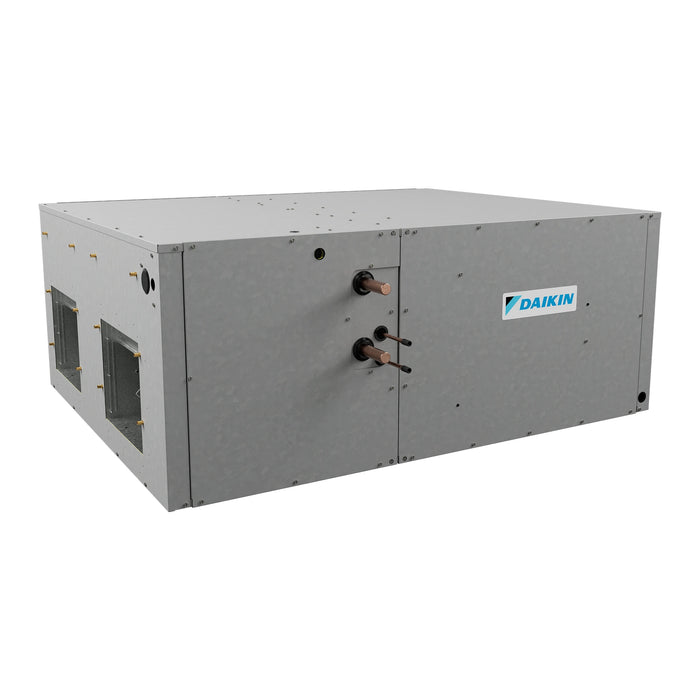

Daikin 10 Ton Commercial Air Handler Multi-Position 5-Speed 230V 3-Phase R32 DAQ12033

The Daikin DAQ12033 air handler is designed to deliver exceptional cooling performance, with a 10-ton capacity and a nominal cooling rating of 120,000 BTU/H. Equipped with two 5-speed direct-drive motors and copper tube/aluminum fin coils, it ensures reliable, efficient heat exchange and optimal airflow. The unit is built with durability in mind, featuring a heavy-gauge galvanized-steel cabinet and fully insulated with fiberglass to reduce noise and energy loss. Additionally, it includes a R-32 leak mitigation system for improved energy efficiency and environmental responsibility. For easy maintenance, the air handler comes with removable access panels, a built-in filter rack, and horizontal and vertical condensate pans for versatile drainage. Whether you need a robust system for a large space or looking to upgrade, this air handler promises efficient, long-lasting performance. Plus, it's AHRI certified and ETL listed, meeting the highest industry standards for safety and performance.

Unit Height: 24.1875 in
Unit Width: 60.46875 in
Cooling Capacity Nominal: 120000 Btu/H
Max Overcurrent Protection: 20/20 A
Power Phase: 3 Ph
Power Voltage: 208/230 V
Motor Speed Type: Multi Speed ECM
Unit Weight: 430 lb
Tonnage: 10
Unit Depth: 48.09375 in

Standard Features:

TXV Control
Features two (2) thermal expansion valves for optimized refrigerant flow.
DAQ Units with Two 5-Speed Direct-Drive Motors
Provides efficient performance and reliability.
Copper Tube/Aluminum Fin Coils
Ensures superior heat exchange and durability.
AHRI Certified & ETL Listed
Meets industry performance and safety standards.
R-32 Leak Mitigation System
Reduces refrigerant leaks, improving energy efficiency and environmental impact.

Cabinet Features:

Heavy-Gauge, Reinforced Galvanized-Steel Cabinet
Offers enhanced durability and resistance to corrosion.
Fully Insulated with Fiberglass Blanket
Reduces noise and energy loss for optimal system efficiency.
Horizontal and Vertical Condensate Pans
Designed for reliable and versatile drainage.
Built-in Filter Rack (2" Filter Included)
Easy maintenance with convenient filter access.
Top Panel Entry for Low and High Voltage
Simplifies wiring during installation.
Removable Access Panels
Provides faster, easier servicing and maintenance.

View More Commercial Air Conditioner Split Systems

Specifications

Daikin 10 Ton 16.4 IEER Commercial Air Conditioner Two-Stage 230V 3-Phase R32 DC6TE12030

Brand	Daikin	Model #	DC6TE12030
Cooling Capacity (Nominal)	118,000 Btu/H	Cooling Capacity (Max)	118,000 Btu/H
IEER	16.4	EER (HSVTC)	11.4
Power Phase	3 Ph	Power Voltage	208/230 V
Hz	60 Hz	RLA (Rated Load Amps)	17.3 A
LRA (Locked Rotor Amps)	155 A	Compressor Stages	Two-Stage
Compressor Type	Scroll	Refrigerant Type	R-32
Refrigerant Charge	110 oz	Liquid Valve Connection Size (O.D.)	⅝"
Suction Valve Connection Size (O.D.)	1⅛"	Energy Star Certified	No
Ship Weight	381 lbs	Unit Weight	350 lbs
Unit Height	41.5 in	Unit Width	35.5 in
Unit Depth	35.5 in	Replaces	DX14XA1203

Daikin 10 Ton Commercial Air Handler Multi-Position 5-Speed 230V 3-Phase R32 DAQ12033

Brand	Daikin	SKU	DAQ12033
Cooling BTU	120,000	Nominal Cooling (Tons)	10
Category	Air Handler	Heating (kW)	15, 20, 30
Voltage-Hz-Phase	208/230-60-3	Voltage Range	197 - 253
FLA (Total)	13.8	Minimum Circuit Ampacity	15.5/15.5
Blower Motor Type	Direct-Drive	Blower	Multi-Speed (5 taps)
Horse Power	1 HP	FLA/ LRA	6.9/47.7
Nominal Airflow (Ft./Min.)	4,000	Disposable Filter Size / Qty	16”x20”x2”/ 2 20”x20”x2”/ 2
Coil Area (sq. ft.)	10	Expansion Valve Qty.	2
Refrigerant	R-32	Liquid Connection (Qty.)	3/8" (2)
Suction Connection (Qty.)	1-1/8” (2)	Condensate Drain	¾ FPT
Unit Height	24.1875 in	Unit Width	60.46875 in
Unit Depth	48.09375 in	Shipping Weight	430 lbs
UPC #	633190265814	Replaces	DAX12043

Warranty

Daikin 10 Ton Commercial Air Handler Multi-Position 5-Speed 230V 3-Phase R32 DAQ12033

Warranty Type	Residential	Multi-Family	Commercial
Standard Warranty	5 year parts	5 year parts	5 year parts
Registered Warranty	10 year parts	10 year parts	5 year parts

Documents

Daikin 10 Ton 16.4 IEER Commercial Air Conditioner Two-Stage 230V 3-Phase R32 DC6TE12030

Line Set Application Guide

Service Guide

Installation Guide

Specification Sheet

Warranty Certificate

Daikin 10 Ton Commercial Air Handler Multi-Position 5-Speed 230V 3-Phase R32 DAQ12033

Installation Manual

Line Set Application Manual

Specification Sheets

Service Manual

Warranty Information
