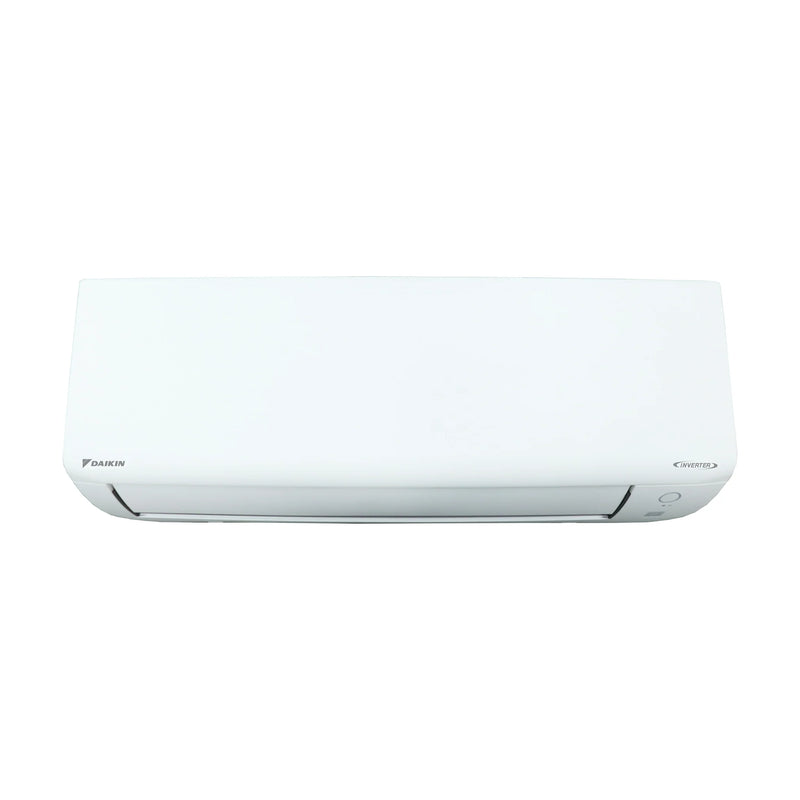

Daikin FTXF12AXVJU

Daikin 12,000 BTU Oterra Mini Split Air Handler Single Zone Wall Mount R32

By Daikin | Model: FTXF12AXVJU | ID: 660535
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$621.00 + SHIPPING
Product Details

Daikin 12,000 BTU Oterra Mini Split Air Handler Single Zone Wall Mount R32 FTXF12AXVJU

The Daikin Oterra 12,000 BTU Wall Mount Air Handler is a versatile and energy-efficient solution for single-zone heating and cooling systems. Powered by advanced inverter swing compressor technology and eco-friendly R32 refrigerant, this unit ensures reliable and consistent performance with reduced energy consumption and environmental impact.

Key Features

  • Heating & Cooling Efficiency – Supports 0.75 Ton to 2 Ton Heat Pump or Cooling Only Systems
  • Energy Ratings – Delivers up to 20 SEER2, 12.5 EER2, and 10 HSPF2 for outstanding energy efficiency
  • Operating Temperature Range – Cooling: 50°F to 114.8°F, Heating: 5°F to 64.4°F
  • Inverter Swing Compressor – Delivers precise and efficient performance
  • Self Diagnostics – Simplifies maintenance and troubleshooting
  • Comfort Modes – Includes Energy-saving, Dry, and Powerful modes to meet various comfort needs
  • Anti-Corrosion Treatment – Provides long-lasting durability to the outdoor heat exchanger
  • Quiet Indoor Operation – Reduces noise for a peaceful environment
  • Precharged Installation – Precharged for up to 32.8 ft of liquid line for simplified installation
  • Maximum Piping Lengths – 09/12 MBH: 65.625 ft length, 49.25 ft height; 18/24 MBH: 98.5 ft length, 65.625 ft height
  • Low Ambient Cooling – Operates down to 5°F with jumper settings (J6 for 09/12k models, J4 for 18/24k models)
  • Wireless Remote – Includes a backlit infrared remote controller for convenient control
  • Auto Restart – Automatically resumes operation after power interruptions
  • Warranty Coverage – Includes a 12-Year Parts Warranty and a 12-Year Labor Warranty for dependable protection

The Daikin Oterra 12,000 BTU Wall Mount Air Handler offers reliable, energy-efficient heating and cooling in a durable and quiet design. Perfect for single-zone systems, it combines advanced features, flexible installation, and user-friendly controls, delivering year-round comfort and peace of mind.

Specifications

Daikin 12,000 BTU Oterra Mini Split Air Handler Single Zone Wall Mount R32 FTXF12AXVJU

Brand Daikin SKU FTXF12AXVJU
Weight 20.9 lbs Manufacturer Daikin
Replaces FTX12BXVJU HSPF2 10.2
Decibel Level (dBA) 46 Refrigerant R32
Mini Split Type Wall Mounted Zone Compatibility Single Zone
Height 11.33" Width 30.31"
Depth 9.18" Warranty Limited 12-Year Parts Warranty
Warranty

Daikin 12,000 BTU Oterra Mini Split Air Handler Single Zone Wall Mount R32 FTXF12AXVJU

Warranty Type Commercial Multi-Family Residential
Standard Parts Warranty 5 years 5 years 5 years
Registered Parts Warranty 5 years 12 years 12 years
Documents

Daikin 12,000 BTU Oterra Mini Split Air Handler Single Zone Wall Mount R32 FTXF12AXVJU

Oterra Series Submittal

Oterra Series Installation Manual

Oterra Series Operation Manual

Oterra Series Brochure

Oterra Series Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
