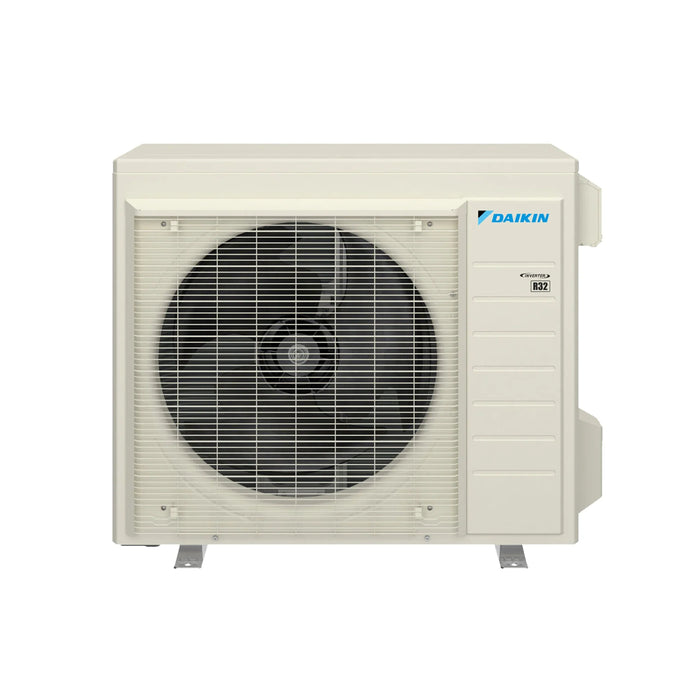

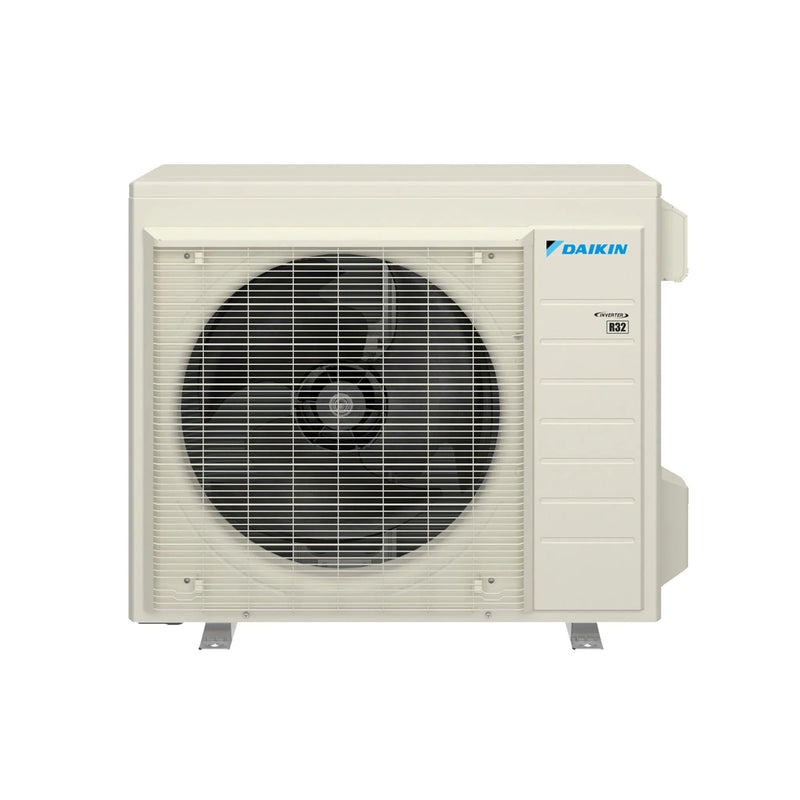

Daikin 3MXM24AVJU9

Daikin 24,000 BTU MXM Heat Pump Condenser Mini Split Multi Zone 230V R32

By Daikin | Model: 3MXM24AVJU9 | ID: 660764
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$3,722.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Daikin 24,000 BTU MXM Heat Pump Condenser Mini Split Multi Zone 230V R32 3MXM24AVJU9

The Daikin 24,000 BTU MXM Multi-Zone Mini Split Heat Pump Condenser offers advanced inverter technology and exceptional energy efficiency for multi-room comfort. Designed for flexibility and reliability, this system supports 2 to 5 indoor zones, delivering powerful heating and cooling performance while maintaining quiet, efficient operation. With the use of environmentally friendly R32 refrigerant, it ensures optimized energy use and long-term system durability for both residential and light commercial applications.

Key Features

  • High-Efficiency Performance: Achieves up to 21 SEER2, 12 EER2, and 9.7 HSPF2 for superior energy savings.
  • Powerful Operation: Delivers full heating capacity at 5°F and full cooling at 104°F (MXT Enhanced Capacity models).
  • Wide Temperature Range: Operates efficiently from -13°F to 60°F for heating and 14°F to 115°F for cooling.
  • Multi-Zone Support: Compatible with 2-, 3-, 4-, and 5-zone configurations, pre-charged for up to 131 ft of liquid line.
  • Quiet Operation: Outdoor sound pressure as low as 52 dB(A); indoor operation as quiet as 24 dB(A).
  • Smart Controls: Includes auto changeover mode, auto restart after power failure, and self-diagnostic digital display.
  • Durable Construction: Anti-corrosion coated heat exchanger provides extended outdoor reliability.
  • Environmentally Friendly: Uses R32 refrigerant for reduced environmental impact and higher efficiency.

Ideal for homes, offices, or small commercial spaces, the Daikin MXM condenser ensures precise temperature control across multiple zones. With quiet performance and industry-leading warranty coverage, it provides reliable year-round comfort and energy-efficient operation.

View More Mini Split Condensers

Specifications

Daikin 24,000 BTU MXM Heat Pump Condenser Mini Split Multi Zone 230V R32 3MXM24AVJU9

Brand Daikin Model # 3MXM24AVJU9
Replaces 3MXS24WMVJU9 BTU/Tonnage 24,000 BTU / 2 Ton
Cooling Efficiency (SEER2) 21 SEER2 Compressor Type Swing
Refrigerant R32 Electrical 208–230V / 60Hz / 1 Phase
Sound Level 24–40 dB(A) Zone Compatibility Multi-Zone (2–5 Zones)
Liquid Line 1/4" (3) Suction Line 3/8" (1), 1/2" (2)
Heating Temperature Range -13°F to 60°F Cooling Temperature Range 14°F to 115°F
Breaker Size (Max/Min) 25A Max / 19.9A Min Weight 140 lbs
Dimensions (H x W x D) 29.5" x 34.16" x 12.58" Warranty Limited 12-Year Parts Warranty
Warranty

Daikin 24,000 BTU MXM Heat Pump Condenser Mini Split Multi Zone 230V R32 3MXM24AVJU9

Warranty Type Parts
Standard Warranty 5 Year Parts
Registered Warranty 12 Year Parts
Documents

Daikin 24,000 BTU MXM Heat Pump Condenser Mini Split Multi Zone 230V R32 3MXM24AVJU9

Application Guide

Installation Manual

Warranty Certificate
