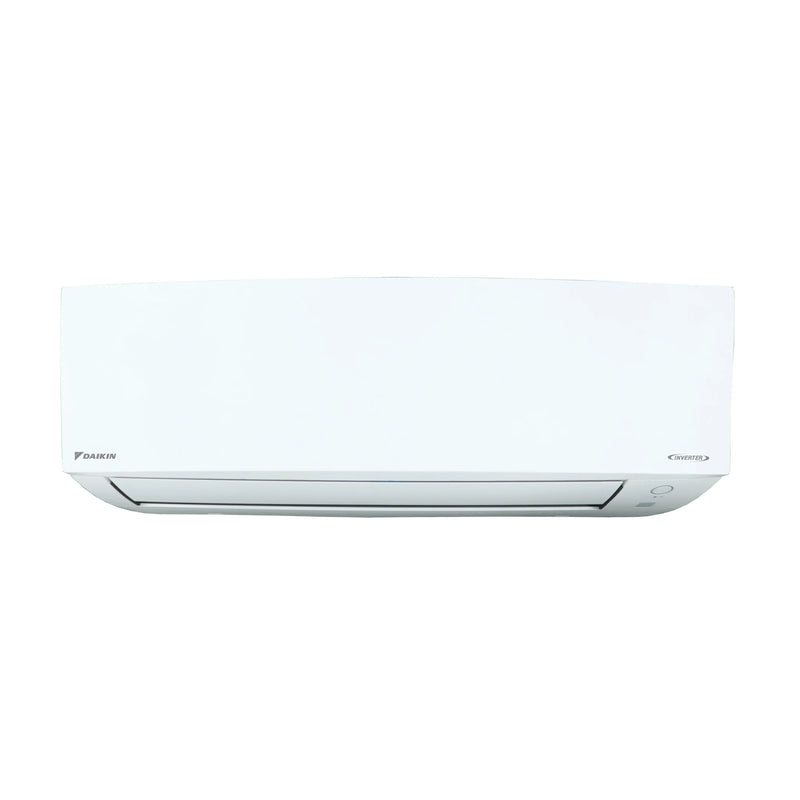

Daikin FTXC24AXVJU

Daikin 24K BTU Entra Mini Split Air Handler Single Zone Wall Mount R32 230V

By Daikin | Model: FTXC24AXVJU | ID: 660506
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$570.00 + SHIPPING
Product Details

Daikin 24K BTU Entra Mini Split Air Handler Single Zone Wall Mount R32 230V FTXC24AXVJU

The Daikin Entra 24,000 BTU Wall Mount Air Handler is a high-capacity, energy-efficient solution for single-zone heating and cooling. Powered by inverter compressor technology and using R32 refrigerant, it delivers consistent comfort with energy savings and quiet operation—ideal for residential or light commercial applications with larger coverage areas.

Key Features

  • System Compatibility – Supports 0.75 Ton to 2 Ton Heat Pump capacity
  • Energy Efficiency – Delivers up to 18 SEER2, 11 EER2, and 9 HSPF2 for cost-effective operation
  • Heating Temperature Range – Operates from 5°F to 64.4°F for year-round warmth
  • Cooling Temperature Range – Operates from 50°F to 114.8°F for reliable performance in hot weather
  • Inverter Technology – Compressor adjusts output for consistent and energy-efficient operation
  • Self-Diagnostics – Digital display enables quick and easy troubleshooting
  • Comfort Modes – Includes Energy Saving, Programme Dry, and Powerful operation options
  • Automatic Fan Adjustment – Auto Fan Speed Control maintains ideal airflow levels
  • Corrosion Protection – Outdoor heat exchanger features anti-corrosion treatment for extended life
  • Quiet Operation – Indoor unit operates quietly to maintain a peaceful environment
  • Auto Restart – Automatically resumes operation after power outages
  • Precharged Refrigerant – Precharged for up to 32.8 ft of liquid line to ease installation
  • Piping Flexibility – Max piping for 18/24 MBH: 98.5 ft length, 32.8 ft height
  • Remote Control – Includes Wireless IR Remote Controller for convenient adjustments
  • Warranty Coverage – 10-Year Limited Parts Warranty and 10-Year Extended Labor Warranty

Note: This unit does not support low ambient cooling operation.

The Daikin Entra 24,000 BTU Wall Mount Air Handler combines high output, efficiency, and convenience in one advanced unit. Perfect for large single-zone systems, it offers quiet performance, durable construction, and user-friendly controls for long-lasting comfort and peace of mind.

Specifications

Daikin 24K BTU Entra Mini Split Air Handler Single Zone Wall Mount R32 230V FTXC24AXVJU

Brand Daikin SKU FTXC24AXVJU
Weight 30 lbs Manufacturer Daikin
Replaces FTXB24BXVJU HSPF2 9
Decibel Level (dBA) 51 Refrigerant R32
Mini Split Type Wall Mounted Zone Compatibility Single Zone
Height 11.68" Width 39.56"
Depth 11.33" Warranty Limited 10-Year Parts Warranty
Warranty

Daikin 24K BTU Entra Mini Split Air Handler Single Zone Wall Mount R32 230V FTXC24AXVJU

Warranty Type Commercial Multi-Family Residential
Standard Parts Warranty 5 years 5 years 5 years
Registered Parts Warranty 5 years 10 years 10 years
Documents

Daikin 24K BTU Entra Mini Split Air Handler Single Zone Wall Mount R32 230V FTXC24AXVJU

Entra Series Installation Manual

Entra Series Warranty
