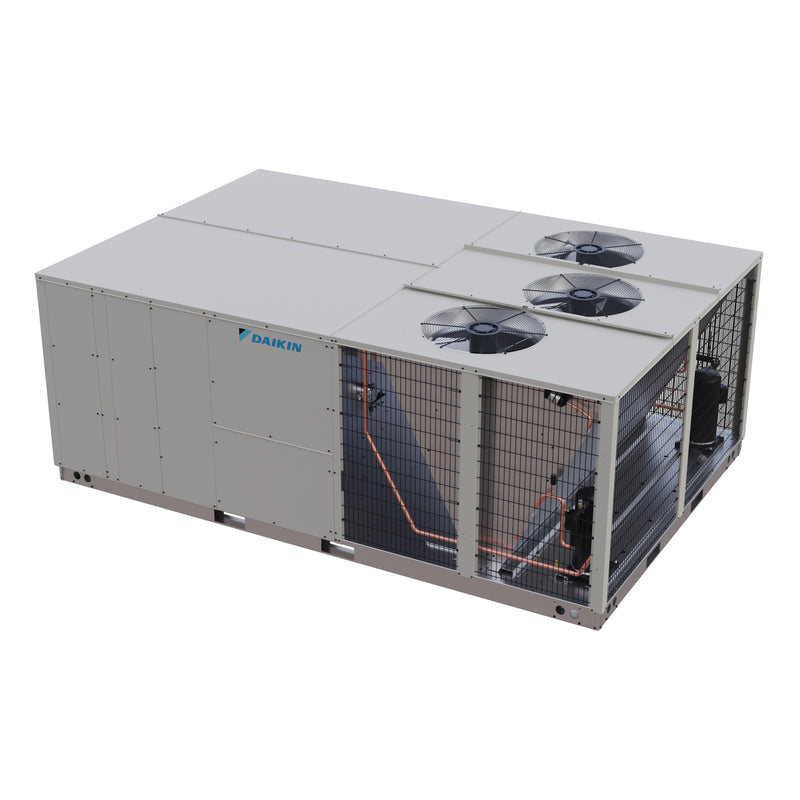

Daikin 25 Ton 360000 BTU Commercial Gas Package AC 13 IEER 460V 3 Phase R32

Daikin 25 Ton 360000 BTU Commercial Gas Package AC 13 IEER 460V 3 Phase R32

By Daikin | SKU: DSG3004DM00001S | ID: 060123
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$27,850.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Daikin 25 Ton 360000 BTU Commercial Gas Package AC 13 IEER 460V 3 Phase R32 DSG3004DM00001S

The Daikin DSG Commercial Gas Packaged Air Conditioner offers reliable, energy-efficient cooling in a single self-contained unit. Since 1951, Daikin has been a leader in HVAC innovation, producing high-quality, energy-efficient solutions that provide exceptional indoor comfort. With a global reputation for excellence, Daikin continues to offer state-of-the-art HVAC systems, and the DSG unit is no exception, providing a perfect solution for commercial buildings.

Key Features:

  • High Performance, Low Noise: The DSG unit features scroll compressors with stage control that match the required load, ensuring efficient part-load operation and low noise levels.
  • Vibration Isolation: Factory-mounted on rubber grommets for vibration isolation, reducing noise and increasing longevity.
  • R32 Refrigerant: Uses R32, an environmentally friendly refrigerant with a low global warming potential (GWP), for a sustainable and efficient cooling solution.
  • Factory-Charged: The unit is factory-charged with refrigerant, ready for installation with no additional setup required.
  • Dual Compressor Configuration: Two single-stage scroll compressors allow for partial load applications, enhancing energy efficiency and ensuring reliable performance even under varying loads.
  • Compressor Durability: The compressors are located outside the condenser section to avoid air bypass, with crankcase heaters and external thermal overload protection for extended lifespan.
  • Direct-Drive Motors: Two direct-drive motors are used for the supply fan, reducing maintenance and providing reliable operation without the need for belts, sheaves, or lubrication.
  • High-Static Drive Options: The DSG system offers high-static drive options for applications with high airflow or static pressure requirements.
  • Microchannel Heat Exchanger: The microchannel heat exchanger technology on condenser coils improves performance and reduces refrigerant load, increasing the unit's overall efficiency.
  • Advanced Coil Construction: Outdoor coils use seamless copper tubes and mechanically bonded aluminum plate-type fins to maximize operating efficiency.
  • Indoor Air Quality: The unit features a draw-through coil design for improved dehumidification, ensuring better indoor air quality.
  • Factory-Installed Filter Drier: Ensures moisture is removed from the refrigerant to avoid damage to the system and optimize performance.
  • Heating Function: The unit includes a fully integrated heating system with two-stage capability, ensuring reliable heating during colder months with an induced draft fan for efficient heat exchange.
  • Reliable Heating Control: Heating control is integrated into the system for quick start-up and precise control, including flame roll-out safety protection switches and a high-temperature limit switch for safety.
  • Easy Installation: The unit is designed with a single-point power entry and color-coded wiring for easy installation, while the terminal strips simplify low voltage wiring.
  • Long-Lasting Filter: The unit includes a draw-through filter section and uses standard off-the-shelf sizes for easy replacement and optimal air quality.

Cabinet Features:

  • Easy Accessibility: The cabinet is designed with tool-less filter access for convenient maintenance.
  • Insulated Cabinet: The unit is fully insulated with foil-faced fiberglass to prevent sweating and reduce thermal losses.
  • Heavy-Duty Construction: Built with a strong, galvanized steel base rail, the unit provides a stable foundation and includes holes for easy overhead rigging and forklift lifting.
  • Flexible Electrical Access: Electrical lines can be routed through the base or horizontal knockouts for added flexibility during installation.

Ideal For:

  • Commercial Buildings: The DSG unit is perfect for businesses, offices, retail spaces, and other commercial environments that require reliable and efficient heating and cooling.
  • Rooftop or Ground-Level Installations: Designed for both rooftop and ground-level installations, it offers flexibility for various building layouts.
  • New Construction or Retrofit Projects: This system is ideal for both new construction projects and retrofitting older systems with an energy-efficient, high-performance replacement.

The Daikin DSG Commercial Gas Packaged Air Conditioner is a highly efficient solution for businesses looking for reliable, energy-efficient heating and cooling. With its advanced features and environmentally friendly refrigerant, the DSG unit ensures optimal comfort while reducing energy costs and environmental impact.

Upgrade to the Daikin DSG unit today for the perfect balance of performance, efficiency, and reliability!

View More Commercial Packaged Units

Specifications

Daikin 25 Ton 360000 BTU Commercial Gas Package AC 13 IEER 460V 3 Phase R32 DSG3004DM00001S

Brand Daikin Model Number DSG3004DM00001S
Replaces DFG3004DM00001S Type Gas Heat
Ton 25.0 Ton Cooling Btu 290,000
Cooling Stage(s) 2 High Stage Input / Output (KBTU/H) 360 / 291.6
Compressor Stage Single Voltage 460V
Electrical Phase(s) 3-Phase Amp(s) 90
Maximum CFM 8,200 Refrigerant Type R-32
Height (Inches) 51 Length (Inches) 133 7/8
Width (Inches) 88 1/2 Total Shipping Weight (lbs.) 2,385
Parts Warranty (Years) 5 Compressor Warranty (Years) 5
UPC # 633190264886
Warranty

Daikin 25 Ton 360000 BTU Commercial Gas Package AC 13 IEER 460V 3 Phase R32 DSG3004DM00001S

Warranty Type Parts Compressor
Online Registered Warranty 5 Years 5 Years
Documents

Daikin 25 Ton 360000 BTU Commercial Gas Package AC 13 IEER 460V 3 Phase R32 DSG3004DM00001S

Daikin Brochure R32
Daikin Catalog R32
DSG 15-25 Ton Installation Manual
DSG 15-25 Ton Specification Sheet
