Daikin 36K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V

Name: Daikin 36K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V
Brand: Daikin
SKU: FBA36AAVJU
Price: 2888.0 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By Daikin | Model: FBA36AAVJU | ID: 660572

✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,888.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

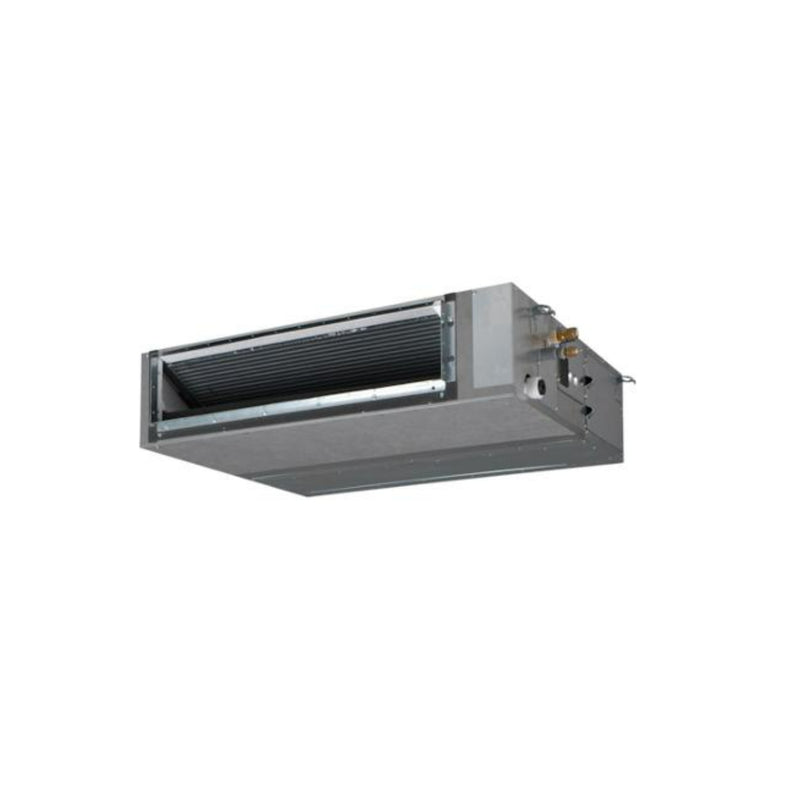

Daikin 36K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA36AAVJU

The Daikin 36,000 BTU Ducted Mini Split Indoor Unit offers high-capacity cooling and heating in a slim-profile ducted configuration. Designed for quiet operation with a DC fan motor, this single-zone unit features advanced functions including auto airflow adjustment during commissioning, refrigerant leak detection with dispersion mode, and service-friendly access from below. Utilizing R-32 refrigerant, it delivers up to 40,000 BTU of heating performance, making it ideal for year-round climate control in residential or commercial spaces.

Key Features

36,000 BTU Cooling / 40,000 BTU Heating Capacity
Uses Efficient and Eco-Friendly R-32 Refrigerant
Single-Zone Indoor Ducted Application
Auto Adjusting Airflow Based on Static Pressure During Commissioning
DC Fan Motor Ensures Quiet and Reliable Performance
Minimized Discharge Air Temperature to Reduce Condensation
Built-in Refrigerant Leak Detection System with Dispersion Mode
Remote Not Included – Recommended Remote: G38-651
Service Access from Below Simplifies Maintenance

This ducted indoor unit is built for performance, serviceability, and comfort, supporting both cooling and heating for medium-to-large single-zone installations.

View More Air Handlers

Specifications

Daikin 36K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA36AAVJU

Brand	Daikin	SKU	FBA36AAVJU
BTU Cooling	36,000	BTU Heating	40,000
Nominal Capacity	36,000	Refrigerant	R-32
Voltage	208/230 V	Zone Type	Single-Zone
Unit Type	Indoor	Style	Ducted
Sound Pressure (Cooling)	44 dBA	Sound Pressure (Heating)	44 dBA
Liquid Connection	3/8"	Suction Fitting	5/8"
Remote Included	No	Recommended Remote	G38-651
Width	55-1/8"	Height	9-11/16"
Depth	31-1/2"	Unit Weight	101 lb
Color	Silver	Warranty	10 Limited Years

Warranty

Daikin 36K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA36AAVJU

Warranty Type	Parts
Standard Warranty	5 Year Parts
Registered Warranty	10 Year Parts

Documents

Daikin 36K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA36AAVJU

Installation Manual

Warranty
