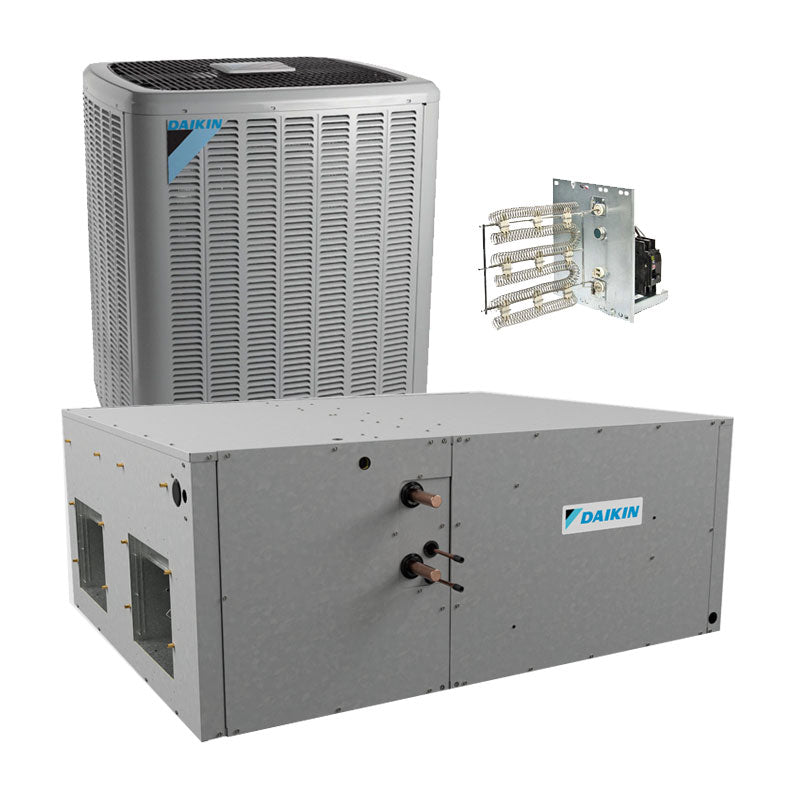

Daikin 5 Ton 13.4 SEER2 Commercial AC Split System 208/230V Three Phase R32

Daikin 5 Ton 13.4 SEER2 Commercial AC Split System 208/230V Three Phase R32

By Daikin | SKU: DC3SEA6030 DAQ12033 AHKD15-3 | ID: 060152
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$8,250.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Daikin 5 Ton 13.4 SEER Commercial Split Air Conditioner 208/240V 3-Phase R32 DC3SEA6030

Stay cool and comfortable with this reliable, energy-efficient commercial air conditioner. With a powerful 60,000 BTU/H cooling capacity, it offers consistent performance while saving on energy costs. Factory charging and accessible maintenance features simplify installation. A corrosion-resistant, protective cabinet ensures long-term durability—even in harsh environments.

  • Energy Star Certified: No
  • Refrigerant Type: R-32
  • SEER 2: 13.4
  • Unit Height: 39.5 in
  • Unit Width: 35.5 in
  • Unit Depth: 35.5 in
  • Cooling Capacity Nominal: 60,000 Btu/H
  • Communication Feature: Non-Communicating
  • Max Overcurrent Protection: 35 A
  • Power Phase: 3 Ph
  • Power Voltage: 208/240 V
  • Compressor Type: Scroll
  • Compressor Stages: Single Stage
  • Unit Weight: 222 lb
  • Tonnage: 5
  • Model Efficiency: 13.4 SEER2

Standard Features

  • High-Efficiency Scroll Compressor – Reliable, efficient operation.
  • Copeland® CoreSense™ Technology – Enhanced diagnostics and protection.
  • Factory-Charged for 15’ of tubing – Simplifies installation.
  • Copper Tube/Aluminum Fin Coil (5mm) – Efficient heat transfer.
  • Factory-Installed Filter Drier – Moisture control and system protection.
  • Sweat Connection Service Valves – Easy gauge port access for servicing.
  • Enclosed Contactor – Improved safety and durability.
  • High-Pressure Switch – System protection.
  • Ground Lug Connection – Safe electrical grounding.
  • Extended-Life Capacitors – Enhanced reliability.
  • AHRI Certified & ETL Listed – Verified safety and performance.

Cabinet Features

  • Removable Grille-Style Top – UL 60335-2-40 compliant, easy maintenance.
  • Venturi for Increased Airflow – Optimizes system performance.
  • Nickel Gray Powder-Coat Finish – 500-hour salt-spray resistance.
  • Steel Louver Coil Guard – Durable with rust-resistant screws.
  • Wire Fan Discharge Grille – Improved airflow management.
  • Top and Side Maintenance Access – Convenient servicing.
  • Single-Panel Control Access – Allows for field-installed accessories.

Daikin 10 Ton Commercial Air Handler Multi-Position 5-Speed 208/230V 3 Phase R32 DAQ12033

The Daikin DAQ12033 air handler delivers powerful 10-ton cooling (120,000 BTU/H), driven by two 5-speed direct-drive motors for efficient airflow and performance. Featuring copper tube/aluminum fin coils, a fully insulated cabinet, and R-32 leak mitigation, it's built for high performance and easy maintenance. Includes access panels, filter rack, and dual condensate pans. AHRI certified and ETL listed.

  • Unit Height: 24.1875 in
  • Unit Width: 60.46875 in
  • Unit Depth: 48.09375 in
  • Cooling Capacity Nominal: 120,000 Btu/H
  • Max Overcurrent Protection: 20/20 A
  • Power Phase: 3 Ph
  • Power Voltage: 208/230 V
  • Motor Speed Type: Multi-Speed ECM
  • Unit Weight: 430 lb
  • Tonnage: 10

Standard Features

  • TXV Control – Dual thermal expansion valves for optimized refrigerant flow.
  • Two 5-Speed Direct-Drive Motors – Reliable, efficient operation.
  • Copper Tube/Aluminum Fin Coils – Superior heat transfer and durability.
  • R-32 Leak Mitigation System – Enhances efficiency and reduces environmental impact.
  • AHRI Certified & ETL Listed – Industry-verified performance and safety.

Cabinet Features

  • Heavy-Gauge Galvanized-Steel Cabinet – Corrosion-resistant durability.
  • Fully Insulated with Fiberglass – Reduces noise and energy loss.
  • Horizontal and Vertical Condensate Pans – Flexible drainage options.
  • Built-in Filter Rack (2" Filter Included) – Easy maintenance access.
  • Top Panel Entry – Simplifies high/low voltage wiring.
  • Removable Access Panels – Speeds up servicing and inspections.

View More Commercial Air Conditioner Split Systems

Specifications

Daikin 5 Ton 13.4 SEER Commercial Split Air Conditioner 208/240V 3-Phase R32 DC3SEA6030

Brand Daikin Model # DC3SEA6030
SEER2 13.4 Motor Type PSC
Energy Star Certified No Refrigerant Type R-32
Cooling Capacity Nominal 60,000 Btu/H Cooling Capacity Max 60,000 Btu/H
Power Phase 3 Ph Power Voltage 208/240 V
Decibels 72 Unit Weight 222 lb
Refrigerant Charge 91 oz Compressor Stages Single Stage
Compressor Type Scroll RLA (Rated Load Amps) 15.4
LRA (Locked Rotor Amps) 156 Liquid Line Size (O.D.) ⅜″
Suction Line Size (O.D.) ¾″ Unit Height 39.5 in
Unit Width 35.5 in Unit Depth 35.5 in
Ship Weight 237 lb Replaces DX13SA0603

Daikin 10 Ton Commercial Air Handler Multi-Position 5-Speed 208/230V 3 Phase R32 DAQ12033

Brand Daikin SKU DAQ12033
Cooling BTU 120,000 Nominal Cooling (Tons) 10
Category Air Handler Heating (kW) 15, 20, 30
Voltage-Hz-Phase 208/230-60-3 Voltage Range 197 – 253
FLA (Total) 13.8 Minimum Circuit Ampacity 15.5/15.5
Blower Motor Type Direct-Drive Blower Multi-Speed (5 taps)
Horse Power 1 HP FLA / LRA 6.9 / 47.7
Nominal Airflow (Ft./Min.) 4,000 Disposable Filter Size / Qty 16″×20″×2″ / 2
20″×20″×2″ / 2
Coil Area (sq. ft.) 10 Expansion Valve Qty. 2
Refrigerant R-32 Liquid Connection (Qty.) ⅜″ (2)
Suction Connection (Qty.) 1⅛″ (2) Condensate Drain ¾ FPT
Unit Height 24.1875 in Unit Width 60.46875 in
Unit Depth 48.09375 in Shipping Weight 430 lbs
UPC 633190265814 Replaces DAX12043
Warranty

Daikin 5 Ton 13.4 SEER Commercial Split Air Conditioner 208/240V 3-Phase R32 DC3SEA6030

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 10 year parts

Daikin 10 Ton Commercial Air Handler Multi-Position 5-Speed 208/230V 3 Phase R32 DAQ12033

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 10 year parts
Documents

Daikin 5 Ton 13.4 SEER Commercial Split Air Conditioner 208/240V 3-Phase R32 DC3SEA6030

Installation Manual

Specification Sheets

Service Manual

Warranty Information

Daikin 10 Ton Commercial Air Handler Multi-Position 5-Speed 208/230V 3 Phase R32 DAQ12033

Installation Manual

Specification Sheets

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
