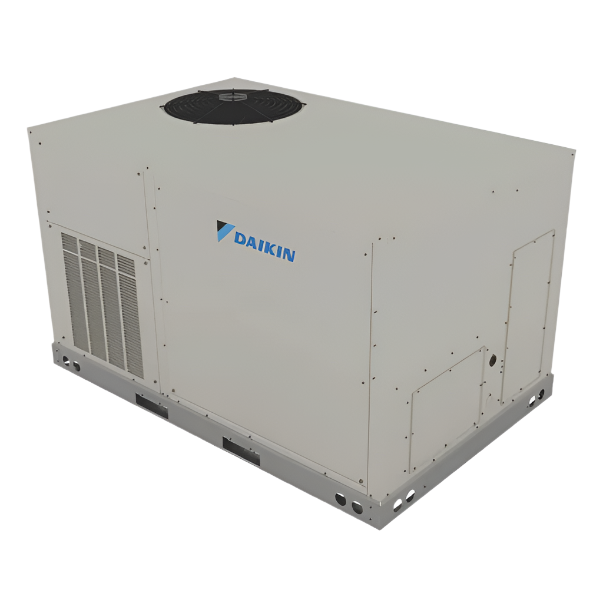

Daikin 6 Ton 16.7 IEER Commercial Package Air Conditioner 460V 3 Phase R32

Daikin 6 Ton 16.7 IEER Commercial Package Air Conditioner 460V 3 Phase R32

By Daikin | SKU: DSC0724D000001S | ID: 060010
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$5,680.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Daikin 6 Ton 16.7 IEER Commercial Package Air Conditioner 460V 3 Phase R32 DSC0724D000001S

The Daikin DSC Commercial Packaged Air Conditioner offers superior, energy-efficient cooling performance in a single self-contained unit. With over 70 years of HVAC expertise, Daikin has been a leader in the industry since 1951, becoming the first company in Japan to manufacture packaged air conditioning systems. Today, as one of the world’s largest HVAC manufacturers, Daikin continues to innovate, offering sustainable and efficient solutions for a variety of indoor comfort needs. The DSC packaged air conditioner is designed for easy installation, making it ideal for both new construction and retrofit projects, offering outstanding performance and versatility for commercial applications.

Daikin’s packaged rooftop units are built to replace most existing rooftop units without the need for curb adapters, ensuring a smooth installation process with minimal downtime. This unit is engineered to provide reliable and consistent cooling while maintaining high energy efficiency and reducing environmental impact.

Standard Features

  • High-Performance, Low Noise Scroll Compressors – Optimized to match the required total load for quiet and efficient operation
  • Vibration Isolation – Compressors mounted on resilient rubber grommets to reduce noise and vibrations
  • Environmentally Friendly Refrigerant – Factory-charged with Low GWP R32 refrigerant for improved environmental sustainability
  • Dual Scroll Compressors – Each individually circled for partial load operation to maximize efficiency
  • Compressor Location – Positioned outside the condenser section to avoid air bypass, enhancing performance
  • Crankcase Heaters and Thermal Overload Protection – Designed to extend compressor lifespan and protect from extreme conditions
  • Direct-Drive EEM Fan Motors – Ball bearing motors that eliminate the need for belts, sheaves, and lubrication, improving reliability and efficiency
  • Slide-Out Curb Fans – Easy to maintain and replace with quick access
  • High-Static Drive Options – Suitable for applications with high airflow or static pressure requirements
  • Dynamic Fan Balancing – Each fan assembly is factory-balanced to ensure smooth and efficient operation
  • Indoor Coil Configuration – Draw-through setup for improved dehumidification and efficiency
  • Durable Copper and Aluminum Coils – Seamless copper tubes and aluminum fins for maximum heat transfer and operational efficiency
  • Thermal Expansion Valve – Per circuit, with high- and low-pressure switches, service ports, and filter drier for enhanced system longevity
  • Microchannel Heat Exchanger Technology – Advanced technology on condenser coils for superior performance and reduced refrigerant load
  • Easy Wiring and Control – Color-coded wiring and a complete 24-volt Electromechanical controls package for simple installation
  • Single-Point Power Entry – Simplifies installation and reduces wiring complexity
  • Efficient Air Filtration – Equipped with a draw-through filter section for better air quality and easy filter replacements

Cabinet Features

  • Fully Insulated Unit – Insulation prevents sweating and thermal loss, using foil-faced fiberglass insulation that omits exposed filter fibers
  • 1-inch Raised Flanges – Designed around the supply and return sections to ensure durability
  • Heavy-Gauge Galvanized Steel Base Rail – Built for strength, with a 3.5-inch height and holes for rigging and forklift lifting
  • Easy Accessibility for Wiring – Electrical lines can be routed through the base or horizontal knockout for field convenience
Specifications

Daikin 6 Ton 16.7 IEER Commercial Package Air Conditioner 460V 3 Phase R32 DSC0724D000001S

Brand Daikin SKU DSC0724D000001S
Refrigerant Charge Pre-charged Weight (in lbs) 581
Manufacturer Daikin Replaces DFC0724D000001S
Cooling BTU 69,000 BTU Drive Type Direct
Maximum CFM 2100 Decibel Level (dBA) 78 decibels
Refrigerant R32 SEER2 (Efficiency) 13.4
EER 11.4 IEER 16.7
Condenser Stages Single Stage Compressor Type Scroll
Electrical 460 V. 3 Phase 60 Hz Phase Three Phase
Max Breaker Size 20 amps Min. Breaker Size 13.9 amps
Tonnage 6 Ton Height 38.8"
Width 73.9" Depth 48.1"
UPC # 633190262981 Warranty 5 Years with Online Registration
Warranty

Daikin 6 Ton 16.7 IEER Commercial Package Air Conditioner 460V 3 Phase R32 DSC0724D000001S

Warranty Type Coverage
Registered Warranty 5 Years
Documents

Daikin 6 Ton 16.7 IEER Commercial Package Air Conditioner 460V 3 Phase R32 DSC0724D000001S

Daikin Brochure R32

Daikin Catalog R32

DSC 3-6 Ton Specification Sheet

DSC 3-6 Ton Installation Manual

Commercial Warranty
