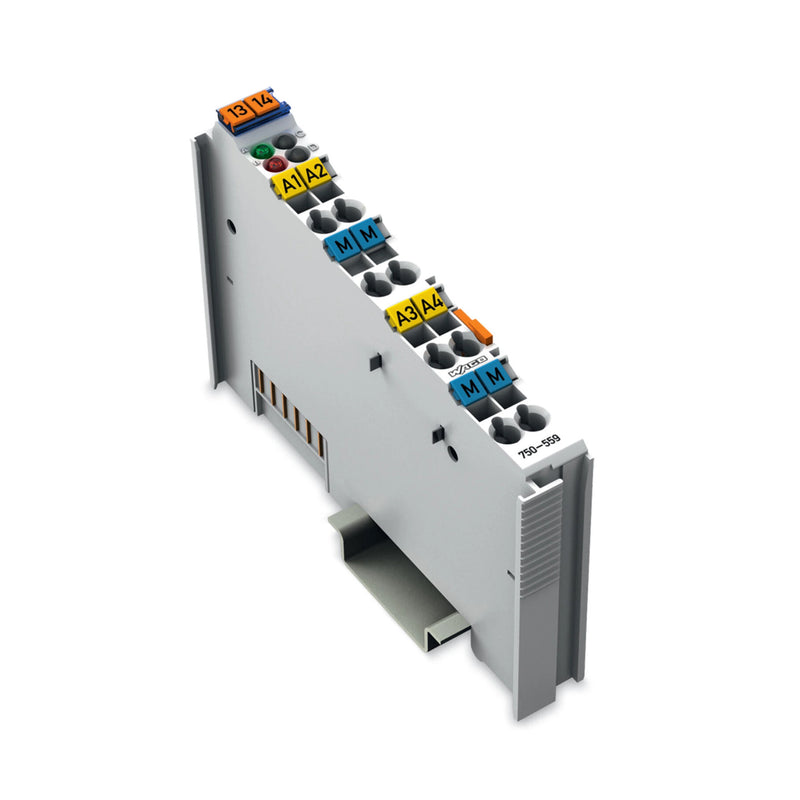

Daikin 750-559

Daikin WAGO Analog Module 4-Channel Generates Standard 0–10V Signals 12 Bit

By Daikin | Model: 750-559 | ID: 30464
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,399.00 + SHIPPING
Product Details

Daikin WAGO Analog Module 4-Channel Generates Standard 0–10V Signals 12 Bit 750-559

The Daikin WAGO 750-559 4-Channel Analog Output Module is a high-performance industrial automation component designed to generate four independent 0–10 V analog output signals for precise control and monitoring applications. Engineered for reliable operation in PLC and automation systems, this module delivers accurate voltage output with 12-bit resolution, ensuring stable signal transmission for demanding industrial environments.

Featuring electrical isolation between the output signal and the system, the WAGO 750-559 helps improve system reliability while minimizing electrical interference. The module is powered directly by the internal system power supply, simplifying installation and reducing external wiring requirements. All four output channels share a common ground potential, making integration into compatible control systems straightforward and efficient.

Product Features

  • Generates four standard 0–10 V analog output signals for industrial control applications.
  • High-precision 12-bit output resolution for accurate analog signal generation.
  • Electrically isolated output signals to enhance system protection and reduce electrical noise.
  • Powered by the internal system supply, eliminating the need for an external power source.
  • Four output channels with a common ground potential for simplified system integration.
  • Ideal for industrial automation, PLC control systems, process automation, and building management systems (BMS).
  • Suitable for factory automation, machine control, process control, and industrial monitoring applications.
  • Compatible with WAGO I/O systems, delivering reliable performance in demanding industrial environments.

View More Accessories & Parts

Specification Sheets

Daikin WAGO Analog Module 4-Channel Generates Standard 0–10V Signals 12 Bit 750-559

Brand Daikin Model Number 750-559
Number of Analog Outputs 4 Number of Channels 4
Signal Type Voltage Voltage Signal Range 0 ... 10 VDC
Actuator Connection 4 x (2-wire) Resolution 12 Bit
Data Width 4 × 16-bit data; 4 × 8-bit control/status (optional) Load Impedance (Voltage Output) ≥ 5 kΩ
Conversion Time (Typical) ≤ 10 ms Reference Temperature 25°C
Measurement Error (Max.) ≤ ±0.1% Temperature Error (Max.) ≤ ±0.01%/K
Output Error (Max.) 0.1% Output Temperature Error 0.01%/K
Recovery Time (Typical) 100 ms System Supply Voltage 5 VDC (via data contacts)
System Current Consumption 125 mA Field Supply Voltage 24 VDC (-25 ... +30%) via power jumper contacts
Isolation 500 V (System/Field) Status Indicators LED (A) Green: Function; LED (B) Red: Error
Incoming Power Jumper Contacts 2 Outgoing Power Jumper Contacts 2
Power Jumper Contact Capacity 10 A Connection Technology 8 × CAGE CLAMP®
Connectable Conductor Material Copper Connection Type Inputs / Outputs
Solid Conductor 0.08 ... 2.5 mm² / 28 ... 14 AWG Fine-Stranded Conductor 0.08 ... 2.5 mm² / 28 ... 14 AWG
Strip Length 8 ... 9 mm / 0.31 ... 0.35 in Application Industrial Automation & PLC Systems
