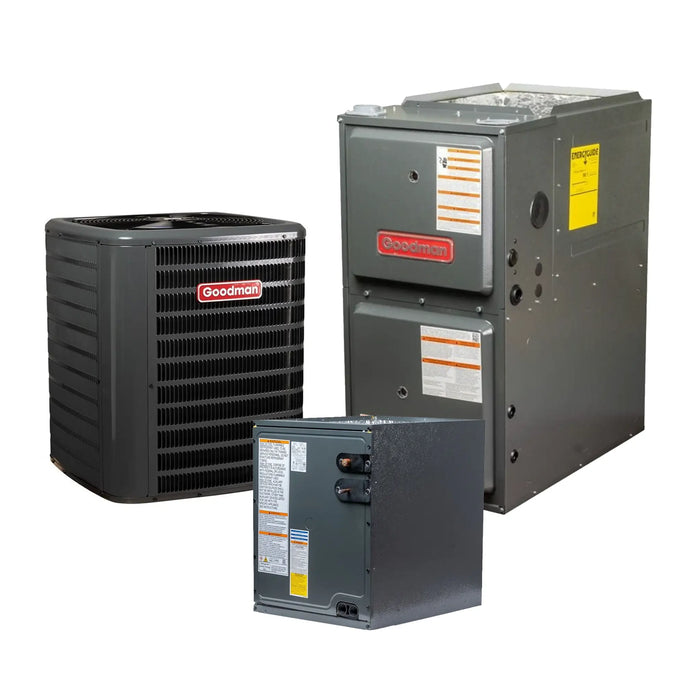

Goodman 1.5 Ton 14.3 SEER2 Multi-Family Air Conditioner Condenser R32 GLXS4MA1810
This HVAC system features a high-efficiency scroll compressor for optimal cooling and energy savings. It includes a high-density foam sound blanket for quieter operation and advanced Copeland CoreSense Technology for enhanced reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system boasts a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-to-access service valves. It also has a secure enclosed contactor, a high-pressure switch for safety, and long-lasting capacitors. Certified by AHRI for performance and ETL Listed for safety, it ensures reliable, efficient operation.
- New R32 Freon, meets the 2025 refrigerant change guidelines.
- High efficiency scroll compressor
- High-density foam compressor sound blanket
- Advanced Copeland CoreSense Technology
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top: UL 60335-2-40 compliant
- Venturi: Enhances airflow velocity
- Finish: Architectural Gray powder-coat with 500-hour salt-spray approval
- Wire fan grille: Durable and safe
- Steel coil guard: Protects the coil
- Maintenance access: Top and side
- Control access: Single-panel with space for accessories
- Hurricane compliance: Meets 2023 Florida Building Code for wind integrity when anchored

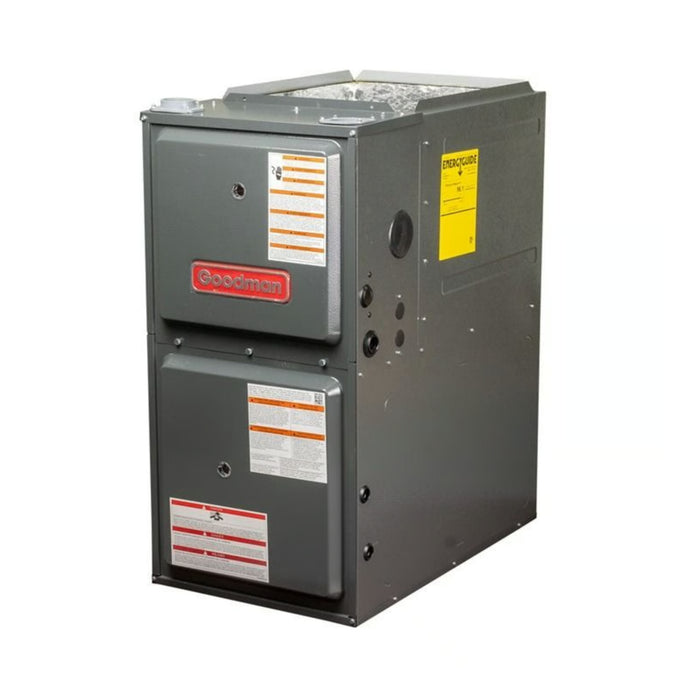

Goodman 96% AFUE 40,000 BTU Gas Furnace R32 Two-Stage Upflow/Horizontal GR9T960403AN
The Goodman GR9T960403AN is a compact, high-efficiency furnace designed to provide reliable heating for smaller homes while keeping utility costs low. With a 96% AFUE efficiency rating, a two-stage burner, and a nine-speed ECM blower motor, this gas furnace ensures steady comfort, quieter performance, and long-term durability. Built with advanced diagnostics and a heavy-duty steel cabinet, it’s an excellent choice for homeowners looking for energy savings and dependable performance.
Key Features
- 40,000 BTU input / 38,400 BTU output – ideal for smaller homes and mild climates
- 96% AFUE efficiency – nearly all fuel is converted into heat for lower operating costs
- Two-stage burner – adjusts heat output for better comfort and efficiency
- 9-speed ECM blower motor – smarter airflow control, quieter operation, and reduced energy use
- Heavy-gauge insulated steel cabinet – minimizes air leakage and reduces noise
- Durable hot surface ignitor – more reliable than traditional pilot lights
- Self-diagnostic control board – simplifies troubleshooting and system monitoring
- Runs on natural gas, convertible to propane with optional LP conversion kit
- PVC flue venting required – standard for condensing, high-efficiency furnaces
- Flexible installation – supports both upflow and horizontal configurations
- Strong warranty coverage: 10-year parts and lifetime heat exchanger (with registration)
40,000 BTU Heating Power
Providing 40,000 BTUs of heating input and 38,400 BTUs of output, the GR9T960403AN is well-suited for smaller homes or single-zone applications. Its efficient design ensures steady comfort without oversizing your system.
High-Efficiency Operation
This Goodman furnace delivers 96% AFUE efficiency, meaning only 4% of energy is lost during operation. The condensing design requires plastic or PVC venting for safe, efficient exhaust.
Two-Stage Heating with ECM Blower
The two-stage burner runs at partial or full capacity depending on demand, providing both energy efficiency and consistent comfort. Paired with the nine-speed ECM blower motor, it ensures quieter operation and optimized airflow compared to older PSC motors.
Durability and Reliability
Engineered with a heavy-duty steel cabinet, aluminized steel heat exchanger, and advanced hot surface ignitor, this furnace is built for long-term reliability with reduced maintenance needs.
Warranty Protection
Goodman protects your investment with a 10-year parts warranty and a lifetime heat exchanger warranty, valid upon proper installation and online registration.
Installation Notes
The GR9T960403AN supports both upflow and horizontal installation. A horizontal drain kit is required for horizontal installs (sold separately). The unit ships ready for natural gas but can be converted to propane with an optional LP kit.
Goodman 1.5 Ton Cased Evaporator Coil 14" Width Upflow/Downflow R32 With TXV CAPTA1818A3
Goodman CAPTA Series Cased A-Coil Evaporator Coil – Upflow/Downflow | R32 | Internal TXV | All-Aluminum Construction
A central HVAC system is only as efficient as its evaporator coil — and the Goodman CAPTA Series delivers performance, reliability, and energy efficiency built for today’s demanding comfort standards. Featuring an all-aluminum coil, factory-installed TXV, and durable cabinet construction, the CAPTA cased A-coils are ideal for both AC-only and heat pump systems. These coils are designed for upflow or downflow installations, making them a go-to choice for installers and homeowners looking for flexibility, compatibility, and long-term performance.
Key Features & Benefits
-
All-Aluminum Coil Design for Maximum Heat Transfer
Uses sine fins and grooved tubes to optimize heat transfer efficiency, reduce corrosion risk, and deliver reliable performance year after year.
-
Factory-Installed Internal TXV (Thermostatic Expansion Valve)
Ensures precise refrigerant metering and consistent performance, especially in high-efficiency or variable-capacity HVAC systems.
-
Versatile Upflow/Downflow Configuration
Designed for upflow and downflow applications in residential and light commercial systems, simplifying installation in a variety of setups.
-
Durable Galvanized and Embossed Cabinet
Provides extra protection for internal components with insulated, galvanized steel casing that helps prevent air leakage and improve overall system efficiency.
-
Advanced Condensate Management
Equipped with a UV- and rust-resistant DecaBDE-free thermoplastic drain pan and foil-faced insulation to control condensation and protect against moisture-related issues.
-
Double Pressure Tested at the Factory
Each coil is pressure tested twice to ensure long-term system reliability and reduce the risk of refrigerant leaks during operation.
-
R-32 Refrigerant Compatible
Fully compliant with the Clean Air Act refrigerant regulations, supporting the transition to environmentally friendly and efficient cooling systems.
-
10-Year Limited Parts Warranty
Backed by Goodman’s industry-leading warranty, providing peace of mind with proper system registration and professional installation.
Why Choose Goodman?
Goodman is a trusted name in North America for residential and light commercial HVAC systems, known for building high-quality products at competitive prices. With an emphasis on component reliability, long-term durability, and low failure rates, Goodman coils are engineered to provide dependable performance and lasting value. When you choose the CAPTA Series, you’re investing in comfort that’s built to last.
