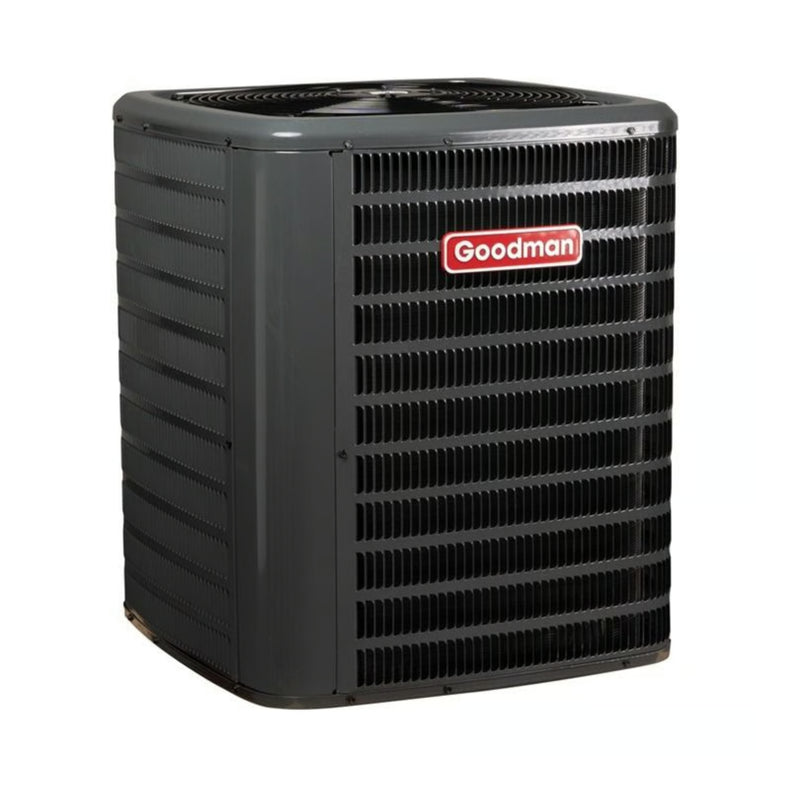

Goodman 2 Ton 15.2 SEER2 Split Air Conditioner Condenser High Efficiency R32 GLXS5BA2410
15.2 SEER2 High-Efficiency Air Conditioner – Model GLXS5BA2410
Goodman continues to lead the HVAC industry with performance-driven, energy-efficient air conditioning systems designed for long-term durability and reliable cooling. The GLXS5BA2410 is a 2-ton high-efficiency air conditioner condenser built for quiet operation, eco-friendly performance, and simplified installation. With its use of R-32 refrigerant, advanced components, and high SEER2 rating, this condenser is ideal for homeowners seeking an environmentally responsible, budget-conscious solution to home cooling.
Features:
-
2 Ton Cooling Capacity – Provides powerful and efficient cooling for small to medium-sized homes, ideal for residential HVAC installations in warmer or moderate climates.
-
15.2 SEER2 Energy Efficiency – Rated at 15.2 SEER2, this air conditioner condenser exceeds minimum federal standards, offering up to 12% greater efficiency than 14.3 SEER2 models. This means lower monthly energy bills and improved environmental performance.
-
Environmentally Friendly R-32 Refrigerant – Utilizes low-GWP R-32 refrigerant that complies with EPA Clean Air Act requirements. It supports a greener cooling solution while delivering strong performance.
-
Factory Pre-Charged with Refrigerant – Pre-charged for up to 15 feet of refrigerant line, saving time and labor costs during installation and ensuring quicker system startup.
-
Quiet Operation Design – Built with sound-dampening insulation and a high-efficiency scroll compressor, this model runs with low operational noise, making it ideal for residential applications near living areas.
-
Durable Construction – Built with a heavy-gauge galvanized steel cabinet and finished with a baked-on powder coating that resists rust and corrosion. Tested to withstand 500 hours of salt spray, making it suitable for coastal installations.
-
Advanced Coil Technology – Features 5mm copper tubing and enhanced aluminum fin coils for improved heat transfer, long-term reliability, and corrosion resistance.
-
Factory-Installed Filter Drier – Enhances the reliability of the refrigerant system by removing moisture and contaminants, protecting internal components.
-
Sweat Connection Service Valves – Service-friendly design with easy-access gauge ports and sweat-type valves, reducing time for diagnostics and maintenance.
-
Compact Footprint – With a 27-inch height and 26-inch width, the unit offers flexible installation options in tight outdoor spaces or alongside existing HVAC systems.
-
Meets 2023 Florida Building Code – Compliant with hurricane wind-load standards when properly anchored using available bracket kits, offering peace of mind in storm-prone areas.
Cooling Capacity
The Goodman GLXS5BA2410 provides 2 tons of cooling capacity, generally suitable for homes ranging from 1,000 to 1,200 square feet depending on insulation quality, ceiling height, and local climate conditions. It may be paired with a larger indoor coil to optimize system efficiency without affecting performance.
Energy Efficiency – 15.2 SEER2
This unit is rated at 15.2 SEER2, making it a strong choice for homeowners looking to balance high efficiency with affordability. Compared to 14.3 SEER2 systems, this unit offers approximately 12% better energy savings, helping reduce monthly utility costs while supporting eco-conscious home upgrades.
10-Year Limited Warranty
The GLXS5BA2410 is backed by Goodman’s standard 10-year limited parts warranty. To qualify, the unit must be installed according to state and local codes and registered online with Goodman. This ensures confidence in performance and protection against unexpected repairs.
Ease of Installation and Service
-
Top and side panel access for faster serviceability
-
Accessible control panel for simplified wiring
-
Pre-installed components to streamline professional HVAC installation
-
Ideal for replacement or new construction residential cooling systems
Built for Comfort and Quiet Cooling
Goodman prioritizes homeowner comfort. The GLXS5BA2410 is engineered to deliver quiet, consistent, and reliable cooling performance. With advanced internal components and noise-reduction insulation, the unit is perfect for homeowners who value both comfort and efficiency.
Important Safety Note – R-32 Refrigerant
This air conditioner condenser uses A2L-classified R-32 refrigerant and must be paired with an R-32-compatible evaporator coil or air handler that includes a refrigerant leak detection system. Non-compliance may present safety risks and void the warranty.

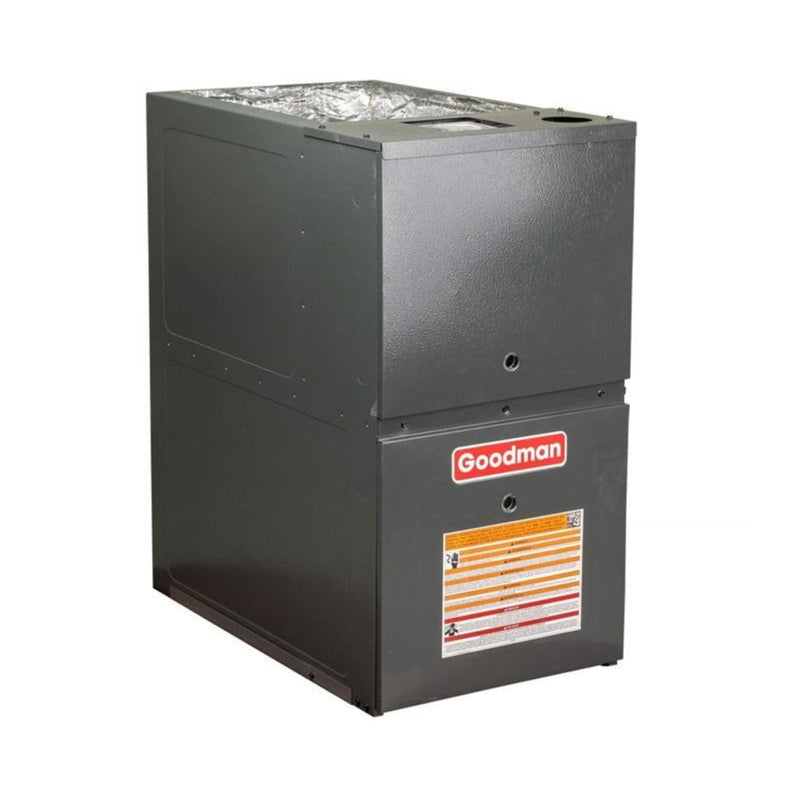

Goodman 40K BTU Gas Furnace 80% Two-Stage 9-Speed 14" Upflow/Horizontal R32 GR9T800403AN
The Goodman GR9T800403AN gas furnace delivers exceptional performance, quiet operation, and proven reliability at a competitive price point. Built for energy-efficient heating and superior comfort, this two-stage, 9-speed gas furnace is ideal for small homes or spaces where optimized airflow and temperature control are essential.
With its advanced engineering and durable construction, the Goodman GR9T800403AN offers an excellent balance of efficiency, noise reduction, and installation flexibility—making it a standout choice in the 80% AFUE category.
Key Features and Benefits
-
Two-Stage Gas Valve Operation
Provides quiet and efficient heating by adjusting output based on demand—enhancing comfort and reducing energy use.
-
9-Speed ECM Blower Motor
Maximizes air circulation while using less electricity than traditional PSC motors, helping lower utility bills.
-
High-Efficiency Heat Exchanger Design
Engineered for long-lasting performance and optimal heat transfer for consistent indoor comfort.
-
SureStart® Silicon Nitride Igniter
Increases reliability and igniter lifespan, reducing maintenance needs and ensuring consistent starts.
-
Self-Diagnostic Control Board
Simplifies troubleshooting with real-time system monitoring and maintenance alerts.
-
Quiet Induced Draft Blower
Two-speed design helps maintain quiet operation during both low- and high-stage heating cycles.
-
Low Constant Fan Speed
Keeps air circulating throughout your home for better air quality and more consistent temperatures.
-
Heavy-Gauge Insulated Steel Cabinet
Built for durability, thermal efficiency, and noise reduction with a baked enamel finish.
-
Flexible Installation Options
Supports upflow and horizontal configurations for easier placement in attics, basements, or closets.
-
Universal Gas Connections
Easy access with left or right connections for both gas and electrical services.
-
Low NOx Compliant (select models)
Meets emissions requirements for most regions—except SCAQMD and SJVAPCD in California.
Product Specifications
-
Model Number: Goodman GR9T800403AN
-
Heating Capacity: 40,000 BTU input / 32,000 BTU output
-
Efficiency: 80% AFUE (Annual Fuel Utilization Efficiency)
-
Stages: Two-stage heating
-
Blower Motor: 9-speed ECM
-
Ignition Type: Hot surface igniter (Silicon Nitride)
-
Fuel Type: Natural Gas (LP conversion kit available)
-
Orientation: Upflow or Horizontal (left/right)
-
Flue Venting: Metal venting required (standard for 80% furnaces)
-
Certifications: AHRI Certified, ETL Listed
-
Cabinet Air Leakage: ≤ 2%
Perfect for Smaller Homes
This 40,000 BTU model is designed to heat smaller homes or spaces efficiently (climate-dependent), making it ideal for those who want to upgrade their HVAC system with a dependable, quiet, and energy-conscious furnace.
Natural Gas or LP Compatible
The Goodman GR9T800403AN comes factory-equipped for natural gas but can be converted to propane (LP) with an optional LP conversion kit (sold separately). This flexibility makes it suitable for a wide range of heating applications and fuel availability.
Easy to Install and Maintain
The smart layout and multi-position cabinet simplify installation, and color-coded low-voltage terminals help reduce labor time. The durable hot surface igniter, diagnostic board, and robust heat exchanger all contribute to lower lifetime maintenance costs.
Warranty Coverage
Enjoy peace of mind with industry-leading coverage:
Goodman 2.5 Ton Cased Evaporator Coil 17.5" Height Horizontal R32 With TXV CHPTA3026B3
The Goodman CHPTA3026B3 2.5 Ton Horizontal Evaporator Coil is engineered for maximum efficiency and reliability in residential HVAC systems. Perfect for horizontal installations, this evaporator coil is designed to work with both AC-only and heat pump condensers. It comes with a factory-installed TXV kit for improved refrigerant control and system performance. This unit is also R32 refrigerant compliant, meeting the latest Clean Air Act requirements while providing superior cooling and heating efficiency.
Whether you’re upgrading an existing system or completing a new installation, the Goodman CHPTA3026B3 delivers exceptional comfort and value, all while maintaining budget-friendly efficiency.
Key Features
-
2.5 Ton Capacity – Ideal for medium to large residential spaces, providing optimal cooling and heating for your home.
-
Horizontal Installation Ready – Suitable for side-discharge applications in attics, crawl spaces, or tight mechanical rooms.
-
R32 Refrigerant Compatibility – Meets the latest Clean Air Act refrigerant standards, offering improved energy efficiency and reduced environmental impact.
-
Factory-Installed TXV Kit – Regulates refrigerant flow for superior system efficiency and more precise temperature control.
-
Durable Aluminum Coil Construction – Lightweight, corrosion-resistant tubing and fin coils enhance reliability and heat transfer.
-
Galvanized and Insulated Coil Cabinet – Embossed steel construction ensures strength, durability, and energy efficiency while minimizing air leakage.
-
Mold-Resistant Thermoplastic Drain Pan – Reduces microbial growth, improving air quality and system reliability.
-
Split-Seam Front Access Panel – Provides easy access for routine maintenance and servicing, reducing downtime.
-
System Compatibility – Works seamlessly with compatible R32 condensers and furnaces or blowers (sold separately).
-
10-Year Limited Warranty – Backed by Goodman’s standard 10-year parts warranty, ensuring peace of mind and long-term system performance.
Product Application and System Requirements
The Goodman CHPTA3026B3 is a 2.5-ton evaporator coil suitable for horizontal HVAC system configurations. For optimal performance, it must be paired with a compatible R32 condenser and a blower or furnace (sold separately). It is not designed to replace coils in single-piece air handlers or packaged units.
Enhanced Durability and Easy Installation
This horizontal evaporator coil is built with high-quality materials, including aluminum tubing and galvanized steel for longevity and resistance to wear and tear. The TXV kit comes pre-installed, simplifying installation and reducing costs. The insulated, embossed coil cabinet protects internal components and prevents energy loss, ensuring efficient operation for years to come.
Comfort and Efficiency You Can Count On
The Goodman CHPTA3026B3 ensures superior comfort by providing precise refrigerant control, thanks to its built-in TXV kit. This increases overall system efficiency, stabilizes temperature, and enhances cooling or heating performance. The mold-resistant drain pan further improves system reliability by reducing the risk of harmful particle buildup, helping maintain healthy indoor air quality.
