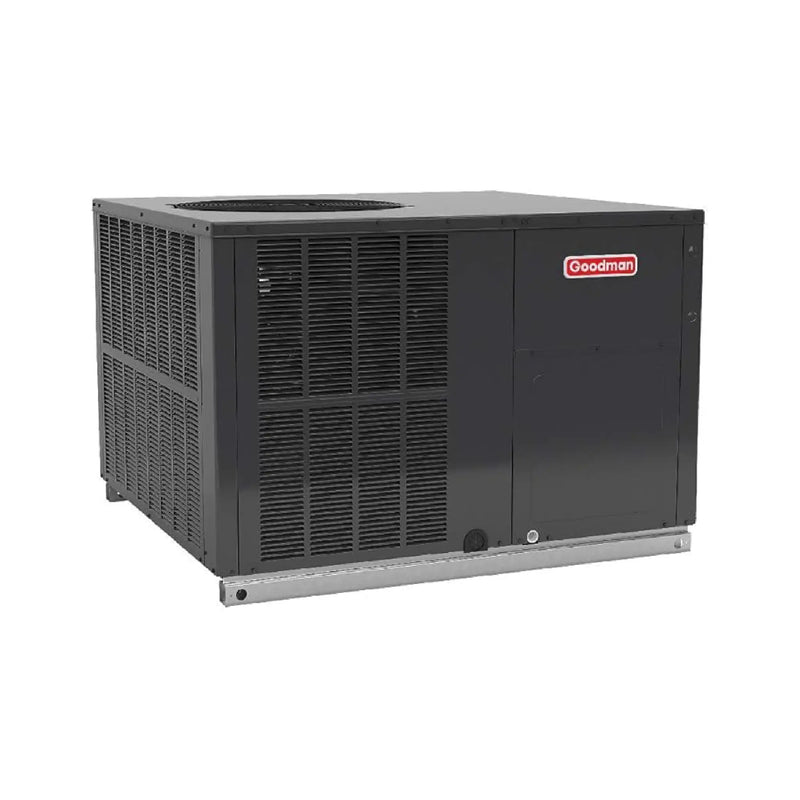

Goodman GPHM52431

Goodman 2 Ton 15.2 SEER2 Packaged Heat Pump Unit Downflow/Horizontal R32

By Goodman | Model: GPHM52431 | ID: 101493
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$5,468.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman 2 Ton 15.2 SEER2 Packaged Heat Pump Unit Downflow/Horizontal R32 GPHM52431

The Goodman GPHM52431 Packaged Heat Pump delivers high-efficiency, two-stage heating and cooling in a compact, all-in-one system. Built with a durable galvanized steel cabinet, multi-speed ECM blower motor, and flexible airflow options, it’s a reliable choice for both residential and light commercial applications.

Key Features

  • Meets 2023 M1 Test Standards – Ensures compliance with updated energy efficiency regulations
  • Fully insulated heavy-gauge, zinc-coated steel cabinet – UV-resistant grey powder-paint finish (Sandstone Beige for 5-ton model)
  • Horizontal or downflow application – Flexible installation for various site requirements
  • Aluminum foil-facing internal insulation with fiberglass scrim – Enhances thermal performance and reduces noise
  • Compressor sound blanket – Minimizes operational sound levels for quiet performance
  • Compressor grommets for vibration isolation – Reduces noise and extends component life
  • Louvered condenser coil protection – Shields critical components from debris and impact
  • Convenient access panels – Simplifies service and routine maintenance
  • 2-inch high bottom base rails – Facilitates easier handling and transport during installation
  • Florida Building Code wind-rated (2020) – Meets structural integrity standards for hurricane-type winds when properly anchored (anchor bracket kits available)

View More Packaged Units

Specifications

Goodman 2 Ton 15.2 SEER2 Packaged Heat Pump Unit Downflow/Horizontal R32 GPHM52431

Brand Goodman SKU GPHM52431
SEER Rating 14.4 SEER 2 14.4
Tonnage 2 Weight 376 lb
Manufacturer Goodman EER HSVTC 11.4
Energy Star Certified No Heating Capacity Nominal 22600 Btu/H
Refrigerant Type R-32 Unit Height 34-3/4 in
Unit Width 47 in Regional Compliance Southwest, Southeast, North
Cooling Capacity Nominal 24000 Btu/H Installation Configuration Downflow/Horizontal
Electric Heat Range 9.5 kW Max Overcurrent Protection 25 A
Power Phase 1 Ph Power Voltage 208-230 V
Compressor Stages Single Stage Compressor Type Scroll
Energy Source Electric Motor Speed Type Multi Speed ECM
Model Efficiency 15.2 SEER2 Heat Exchanger Type Air Cooled
Warranty

Goodman 2 Ton 15.2 SEER2 Packaged Heat Pump Unit Downflow/Horizontal R32 GPHM52431

Warranty Type Commercial Multi-Family Residential
Standard Parts Warranty 5 years 5 years 5 years
Registered Parts Warranty 5 years 10 years 10 years
Documents

Goodman 2 Ton 15.2 SEER2 Packaged Heat Pump Unit Downflow/Horizontal R32 GPHM52431

GPHM5 Specification Sheet

Goodman Packaged Unit Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
